Product Description
Product Description.
Pneumatic PVC butterfly valve, light weight, corrosion resistance, which is used in many fileds, such as general water and
raw water piping system and sewage piping systems, salt water and sea water piping systems. PH and chemical solution
system and other instries. The quality is approved by the majority of users.

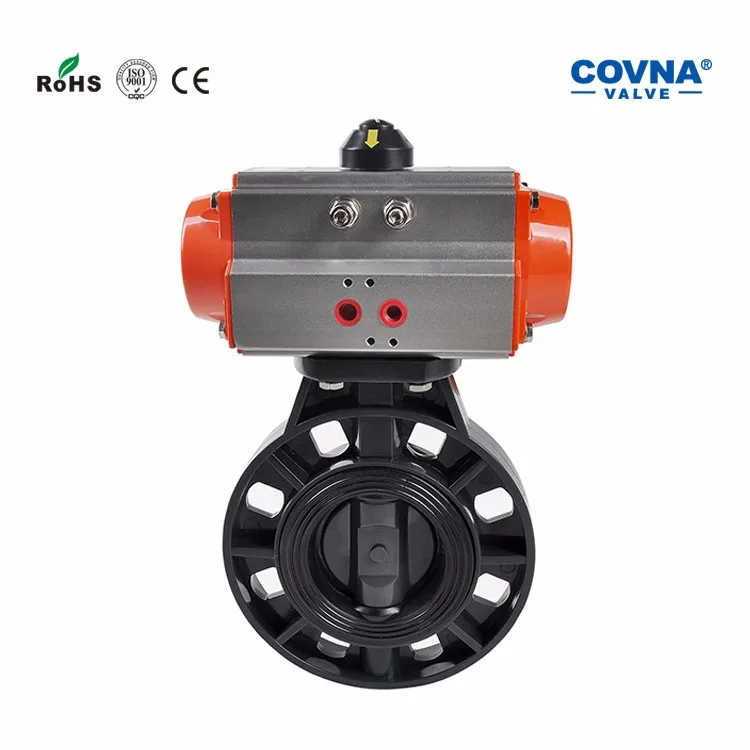

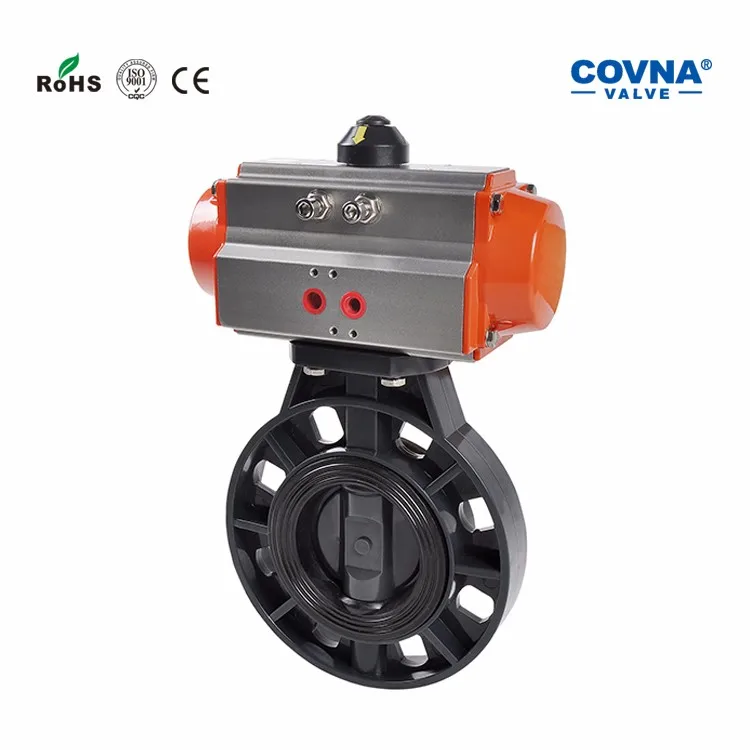

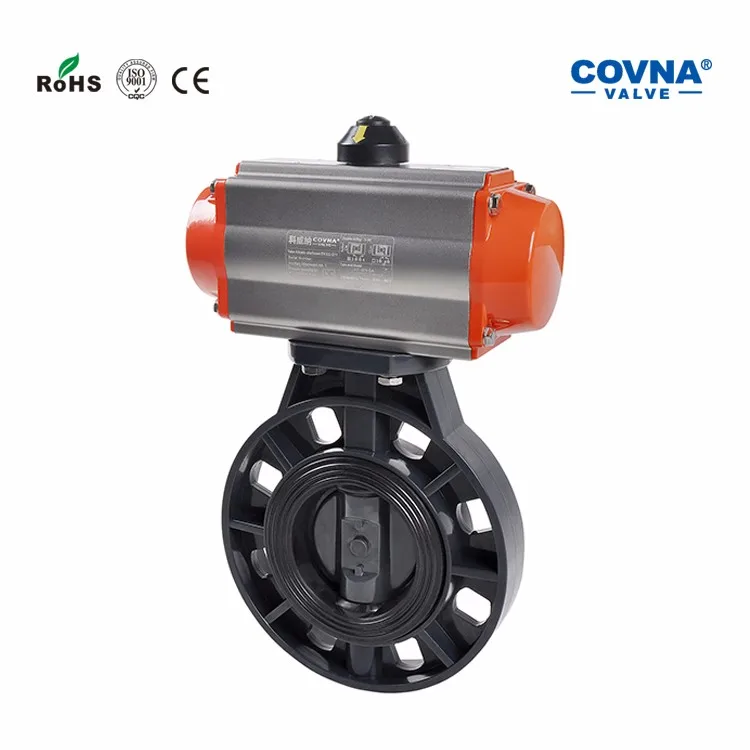

Item | Spring return 2 inch DN50 air pneumatic pvc butterfly valve | ||||
Applicable Standards | GB, DIN, ANSI, ASME, JIS, API | ||||
Size Range | DN50 to DN600 | ||||
Acting Mode | Double Acting, Sping Return (Single Acting) are Available | ||||
Air Supply Pressure | 2.5 to 8bar | ||||
Operating Pressure | PN10 , PN16KG | ||||
Output Torque | 14 to 1170Nm | ||||
Lifespan | 1,000,000 (1 Million) Times | ||||
Angle of Rotation | 90° ±4° | ||||
Shell Material | Aluminum Alloy Extruded | ||||
Body Material | UPVC, CPVC, PP | ||||
Sealing Material | NBR, EPDM | ||||
Core Material | UPVC,CPCV,PP,PTFE | ||||
Structure | Midline | ||||
End Connection | Wafer, Flange End | ||||
Applicable Media | Control of Water, Air, Gas, Oil, Liquid, Steam | ||||
Temp. of Media | Range from -10 to +80°C (14 to 176°F) with NBR Sealing | ||||
Ambient Temp. | Standard Type: -20 to +80°C (-4 to 176°F) | ||||
Optional Accessories | Namur Solenoid Valve, Limit Switch, F.R.L, Position Indicator, Manual Device | ||||
Application | Food & Beverage, Refining, Desalination, Petrochemical, Chemical, Pharmaceutical, Textile, Pulp & Paper, Mining, Marine and Power Industries | ||||
Lubrication | There is no need for lubrication for standard type under normal operating conditions. Special lubricants should be used under low or high temperature operating conditions | ||||

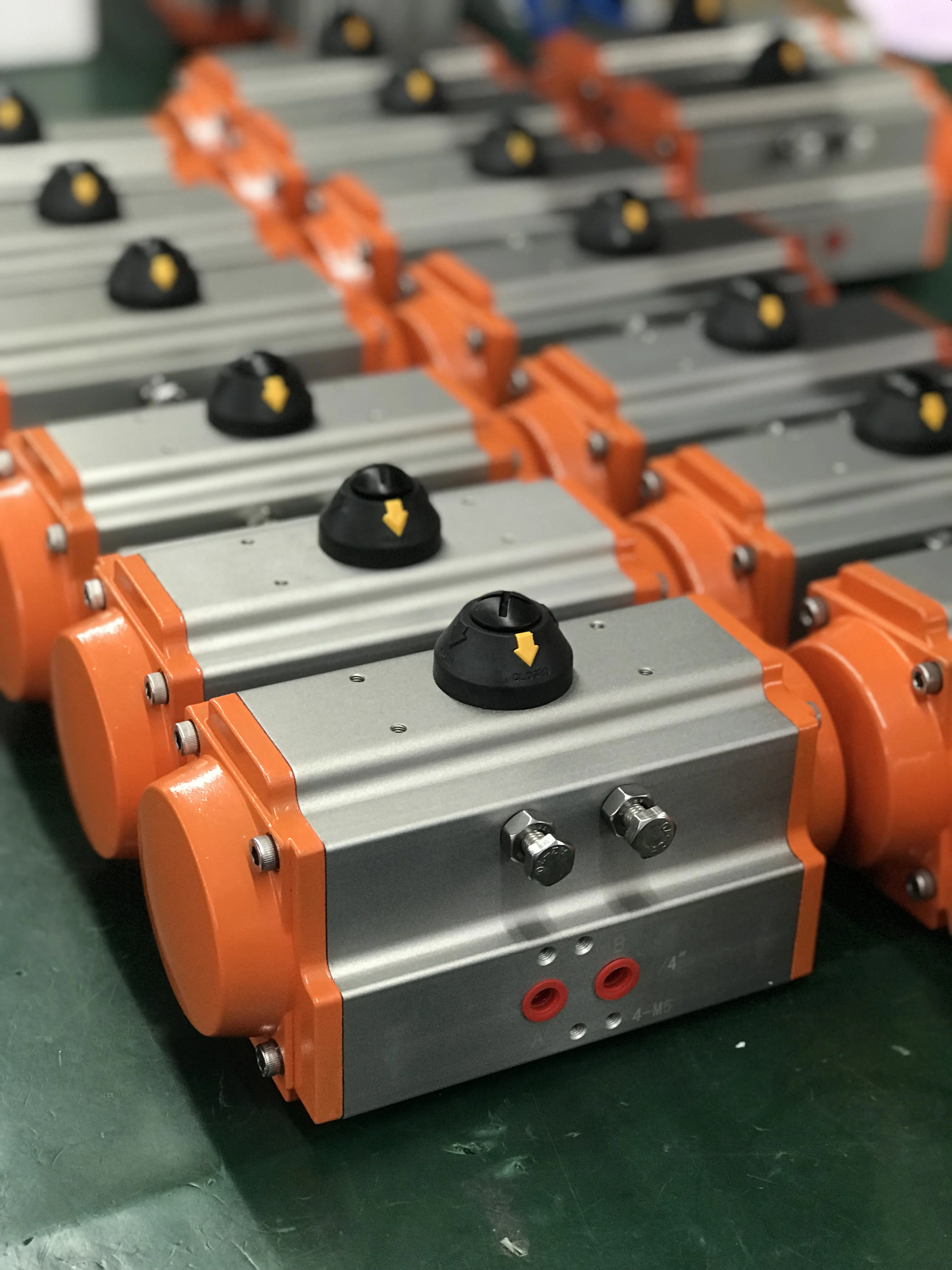

Features of Pneumatic Actuator:
● Rack and pinion pneumatic actuator with high output torque up to 4678Nm
● High quality aluminum alloy cylinder block, well for outdoor use
● Easy to repair or change the spring to ensure the toruqe
● NAMUR standard and ISO5211 mounting standard
● 1 Million lifespan and fast open/close
● Easy to repair or change the spring to ensure the toruqe
● NAMUR standard and ISO5211 mounting standard
● 1 Million lifespan and fast open/close
Double Acting | Air to open, Air to close, air supply failure keep the current position |
Spring Return | Air to open, interrupt air to open, air failure to close |
Operating Media | Dry or lubricated air, or the non-corrosive gases. The maximum particle diameter must less than 30 um |
Air Supply Pressure | Minimum supply pressure is 2.5 bar. The maximum supply pressure is 8 bar |
Operating Pressure | Standard: -20~80℃ |
Travel Adjustment | Have adjustment range of ±5° for the rotation at 0° and 90° |

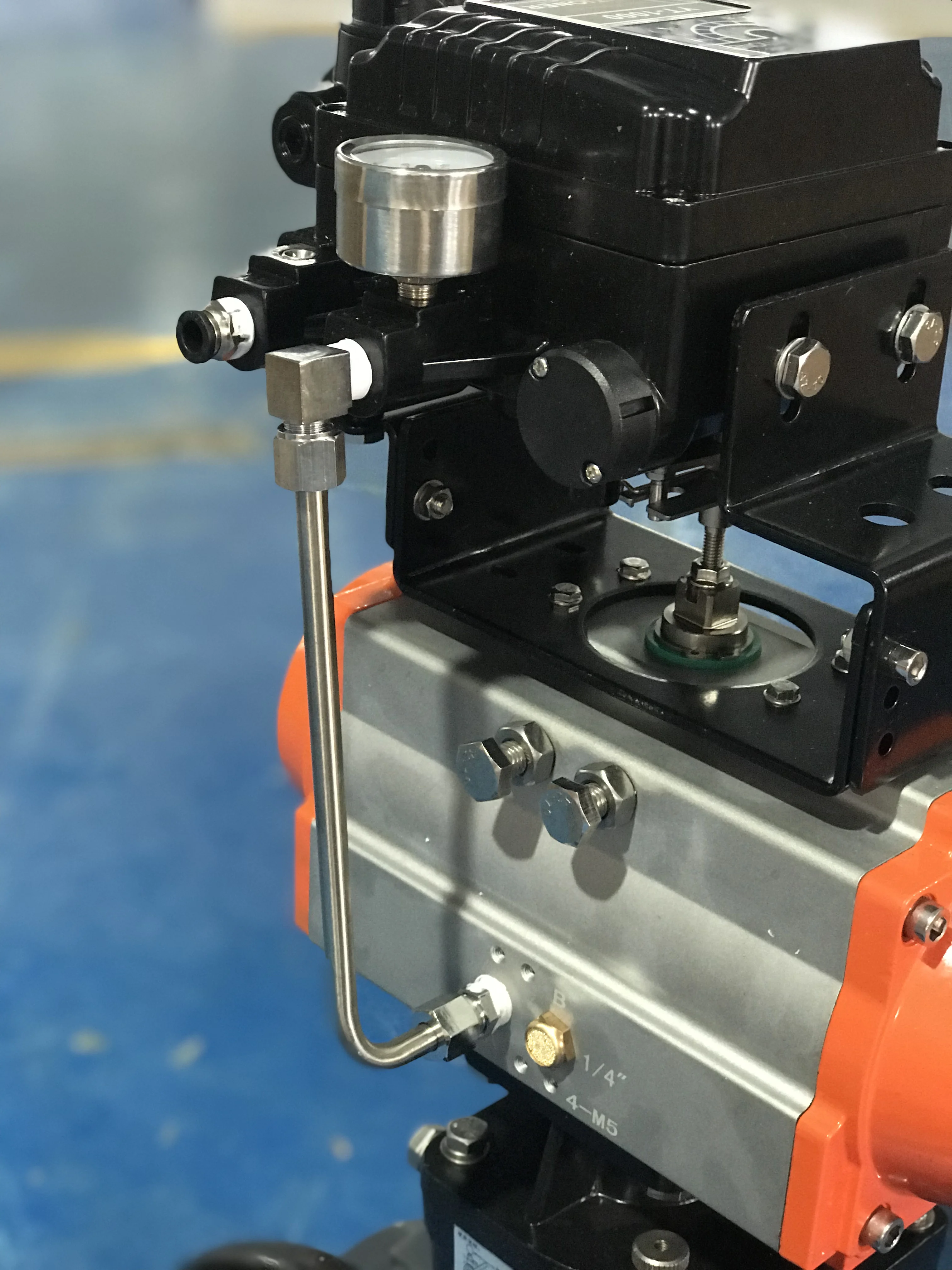

Pneumatic Accessories Options: |
As a one-stop valve solution provider, we offer positioner, limit switch, gearbox, F.R.L, pneumatic solenoid valve, and rack and pinion pneumatic actuator for your choice. To help your automation easier.
#ALIBABA SELECTION SUPPLIER WITH 20 YEARS MANUFACTURING EXPERIENCE | ||||||

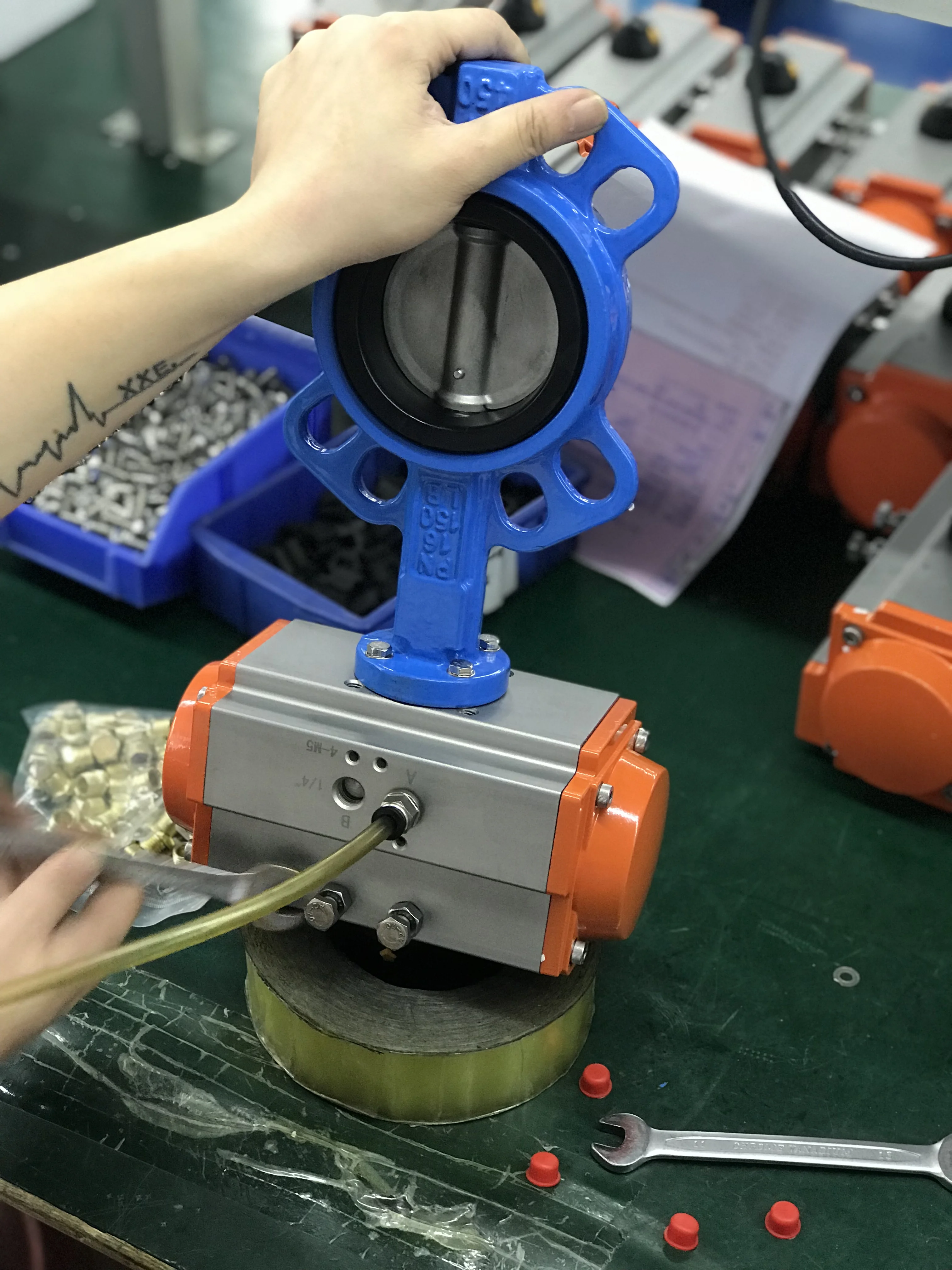

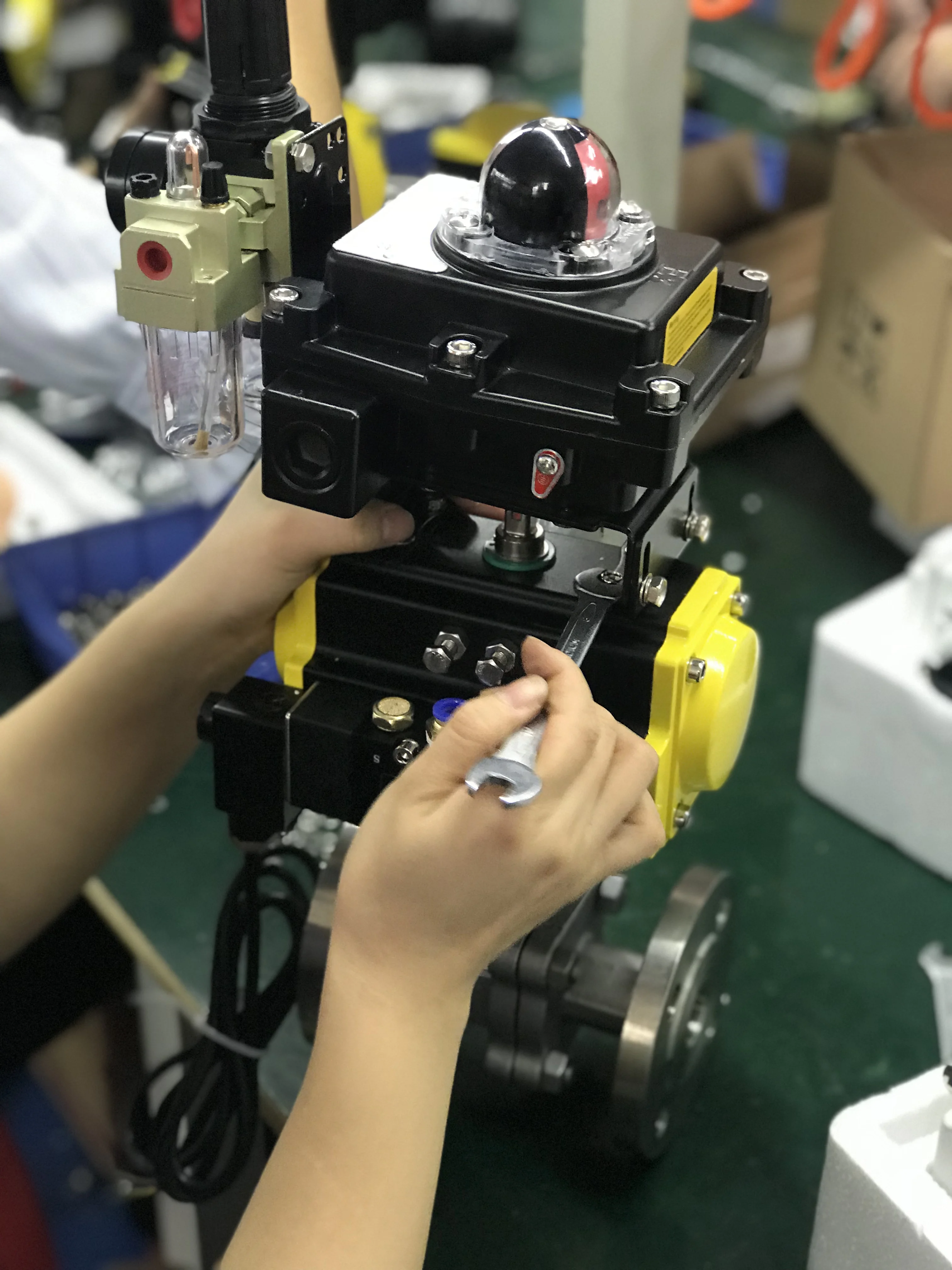

QUALITY CONTROL
COVNA havs invested in quality assurance, state-of-the-art machining and testing facilities in order to assist customers in safely controlling their processes.
MADE BY EXPERIENCED ENGINEERS
All products are designed, engineered and manufactured by experienced industry engineers to provide safe, reliable, dependable and affordable valves, actuators and solutions.
About COVNA
Company Profile
● Solenoid valve
● Electric actuator valve
● Pneumatic actuator valve
● Ball valve/Butterfly valve
● Check valve/Gate valve/Globe valve
As you see, we are a one-stop valve solution provider. We have offer automation solution for more than 2,000 companies. 20 Years experience in valve manufacture and automation solution. We are confident that we could offer the suitable valve and cost-effective solution for you.
Consult us and we are willing to help you resove the problem!

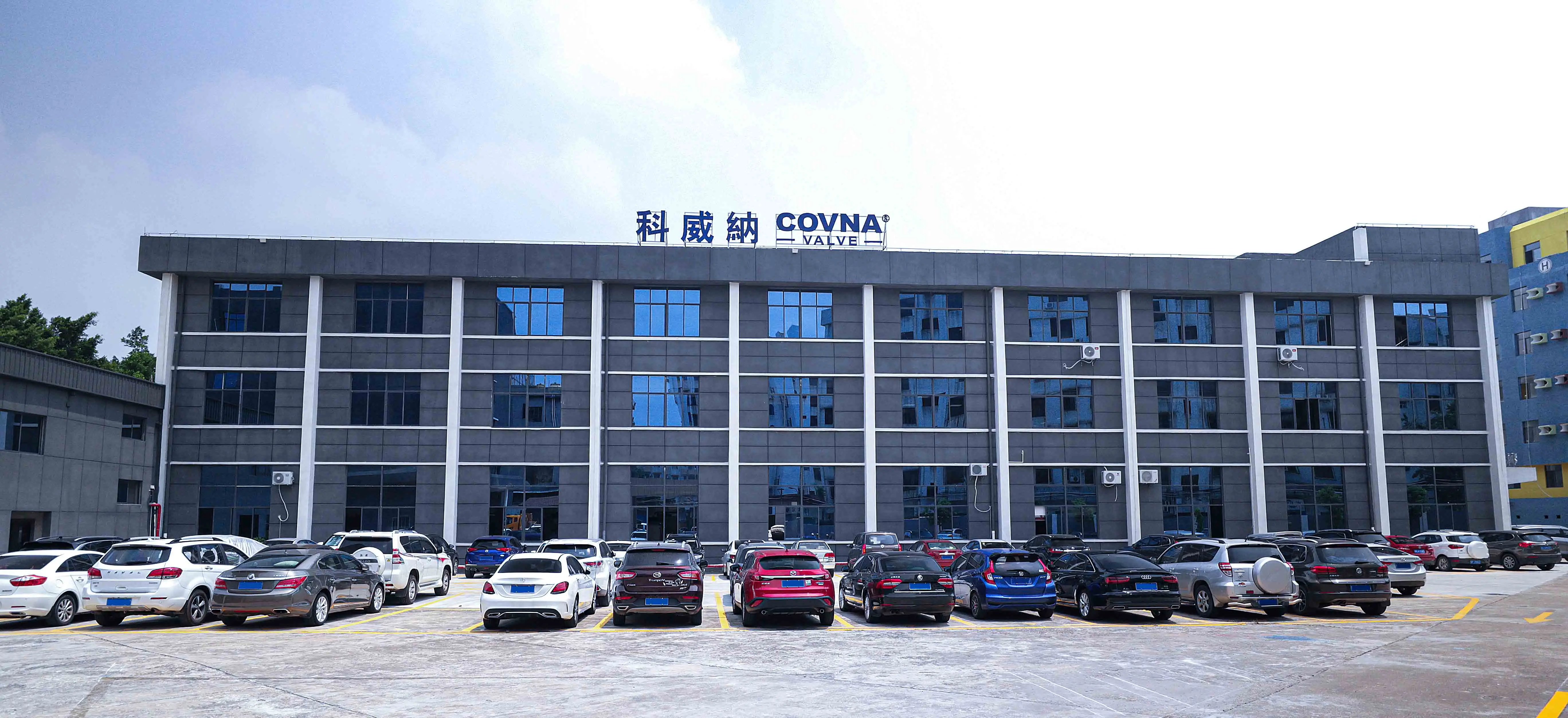

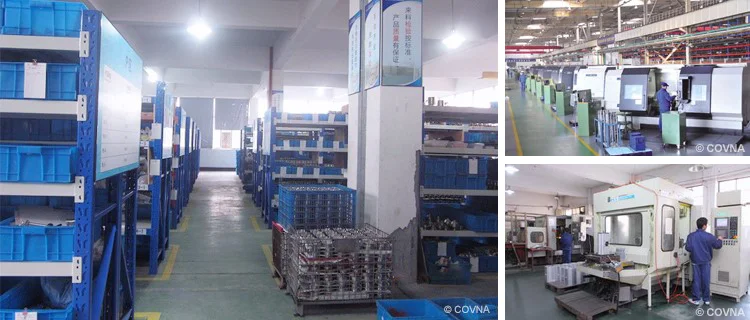

Factory Views
Certifications
Packing
Packing: Pneumatic valves packed with foam in carton.
Delivery Time: 15 working days after payment confirmed.
Delivery Time: 15 working days after payment confirmed.
FAQ
Q: Can I get a sample and how do I get it?
A: Yes, the sample is available and please tell us your requirements of the sample and we will quote it for you and help you to order it.
Q: What are your main products?
A: We are a valve and actuator manufacturer with 20 years experience and we could provide ball valve, butterfly valve, check valve, gate valve, globe valve, electric actuator and pneumatic actuator for you. We committed to being your No.1 one-stop valve solution provider.
Q: Do you have any certificates?
A: Yes, we have ISO9001:2015, CE, TUV, SGS and more than 30 patents. Quality is our goal and the certificate is good proof of our quality.
Q: Can I be your distributor?
A: Yes, you can be our distributor. Details please contact us.
Q: What are your payment term and delivery time?
A: We accept TT, Paypal, Western Union, Credit card. The delivery time about 3 to 7 working days.
A: Yes, the sample is available and please tell us your requirements of the sample and we will quote it for you and help you to order it.
Q: What are your main products?
A: We are a valve and actuator manufacturer with 20 years experience and we could provide ball valve, butterfly valve, check valve, gate valve, globe valve, electric actuator and pneumatic actuator for you. We committed to being your No.1 one-stop valve solution provider.
Q: Do you have any certificates?
A: Yes, we have ISO9001:2015, CE, TUV, SGS and more than 30 patents. Quality is our goal and the certificate is good proof of our quality.
Q: Can I be your distributor?
A: Yes, you can be our distributor. Details please contact us.
Q: What are your payment term and delivery time?
A: We accept TT, Paypal, Western Union, Credit card. The delivery time about 3 to 7 working days.
