Product Description

EBLOCK WALL PANEL

With or without reinforced steel mesh, can be used as partition walls, external covering walls, for straight, uniform and large-area wall location. Wall panels can be designed and installed either horizontally or vertically.

\t
Demensions
\t

\t
Length
\t
From 1200 To 4800mm
\t
Width
\t
600mm
\t
Thickness
\t
From 50mm To 200mm
\t
Reinforced steel mesh
\t
Single or Double

EBLOCK FLOOR PANEL (Load bearing or Non-load bearing)

Specially designed with single or double layers of steel mesh with Diameter Ø4mm - Ø12mm in order to replace the conventional steel floor or roof, ensure the load-bearing strength and reduce the time of construction

\t
Specification
\t
Value
\t
Compressive strength
\t
3.0 ~ 7.5 (MPa)
\t
Dry density
\t
500 ~ 830 (kg/m3)
\t
Thermal conductivity
\t
0.11 ~ 0.18 (W/mK)
\t
Fire resistance
\t
4 ~ 8 (hour)
\t
Sound Transmission Class
\t
32 ~ 48 (dB)

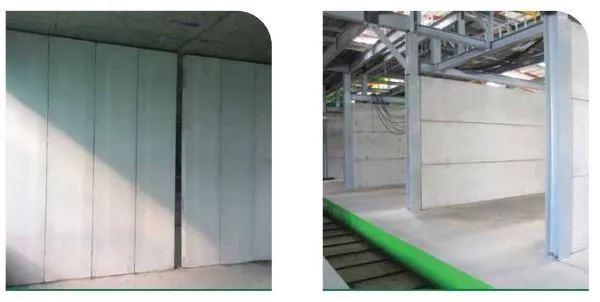

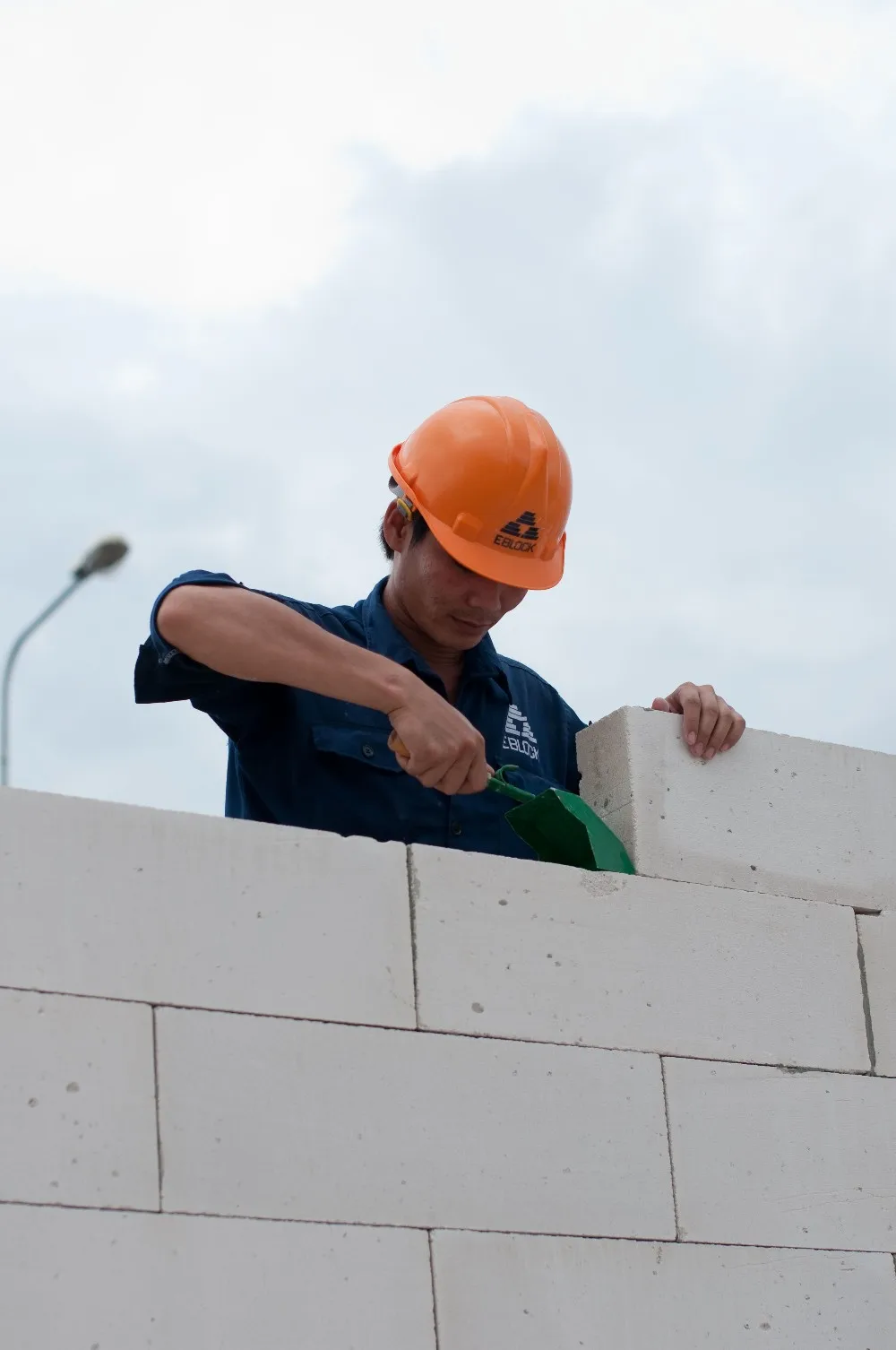

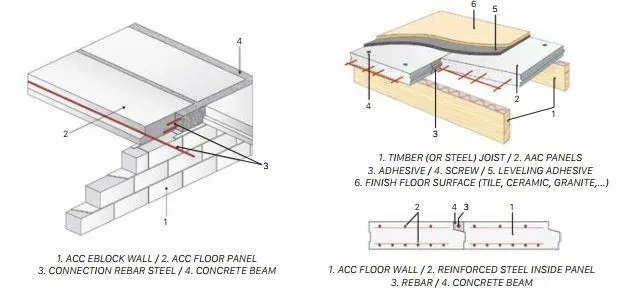

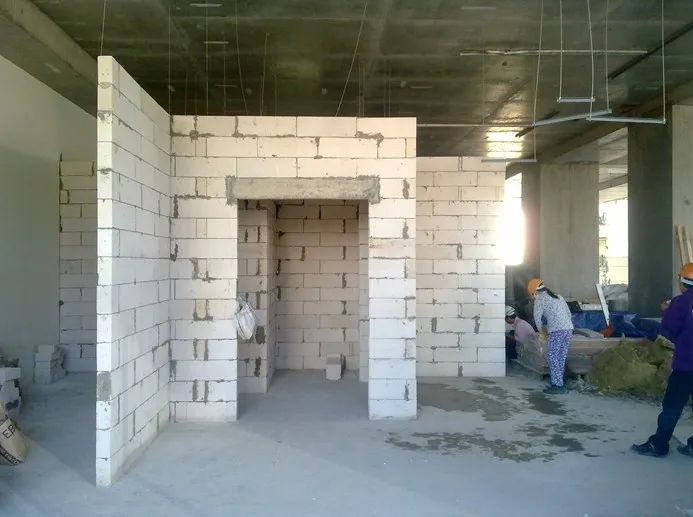

PANEL INSTALLATION

With its overall volumetric weight very light compared to other "light weight" Panels, EBLOCK AAC Panel is easy to be installed and applied in mass construction. In addition, the height and thickness of the panel can be customized to suit the design of each building and reduce the time of construction.

Detailed Images

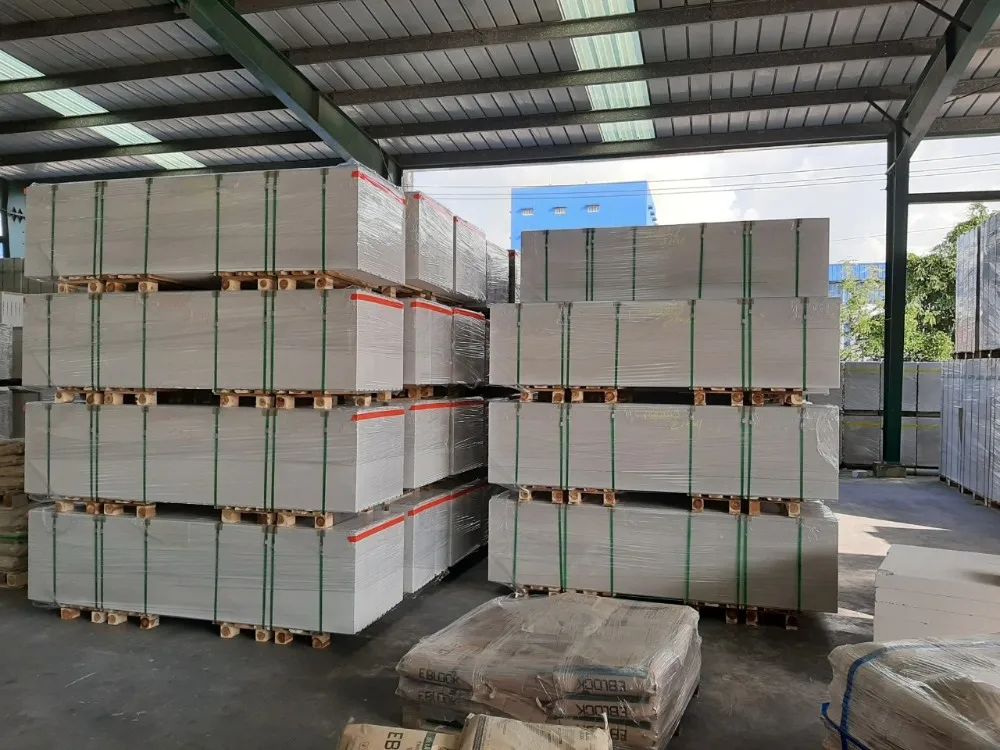

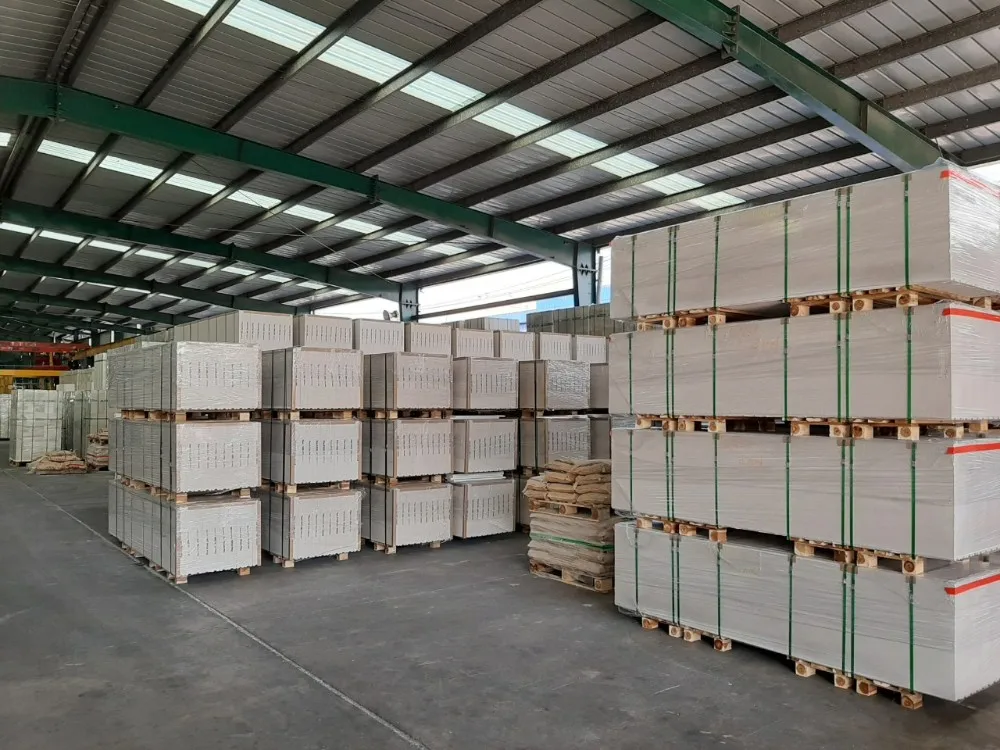

Packing & Delivery
Related Products
Certifications

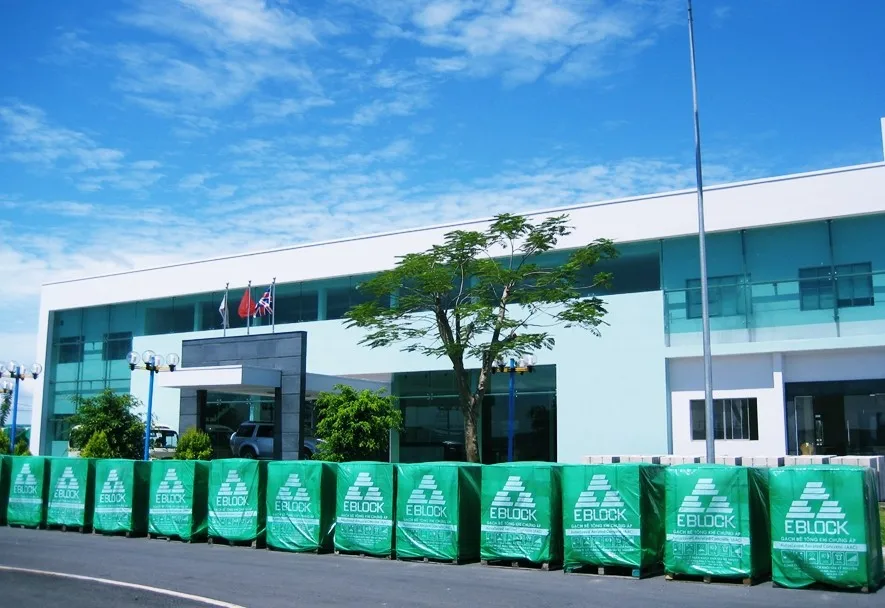

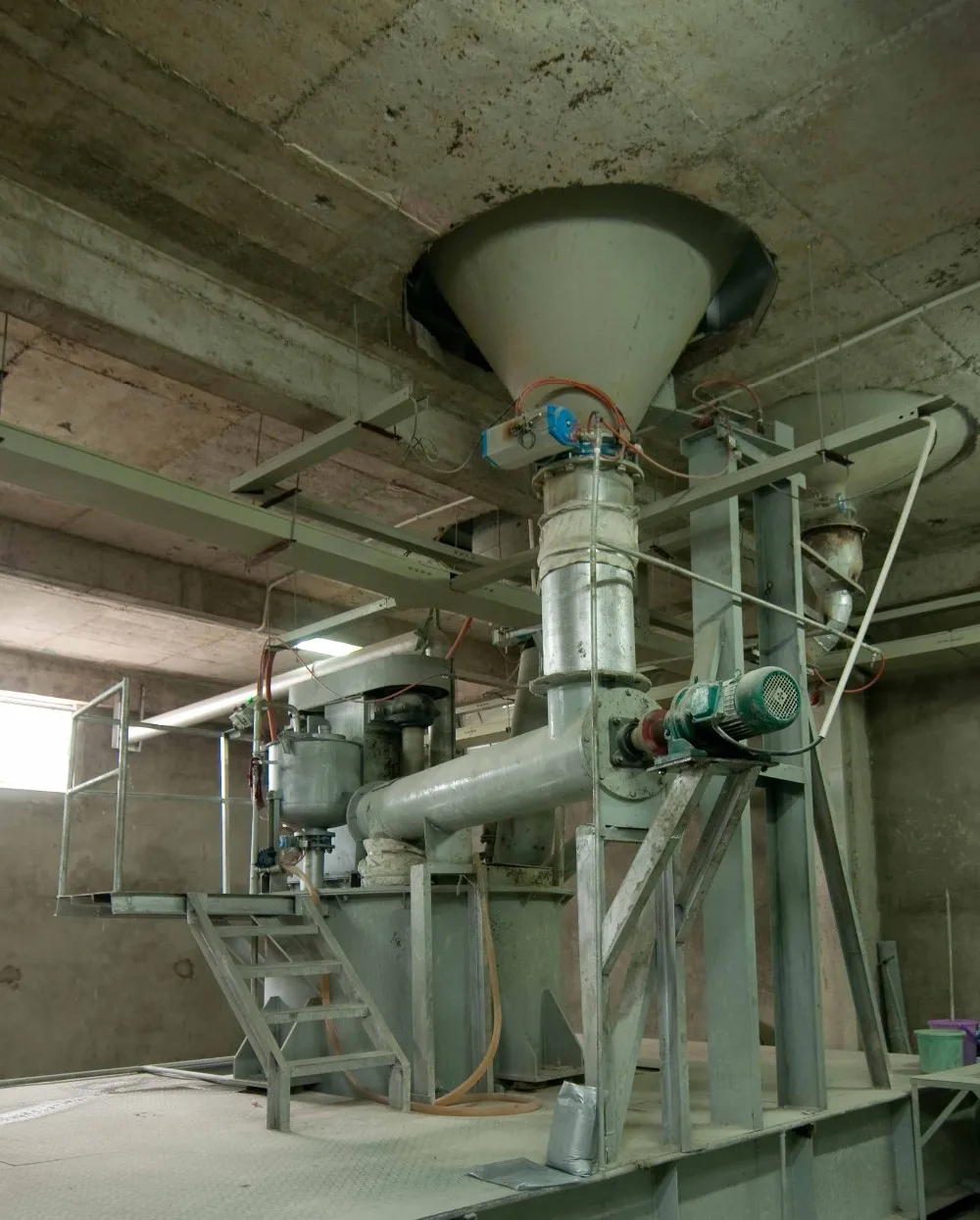

Our Company

OUR LEADING PIONEER STORY

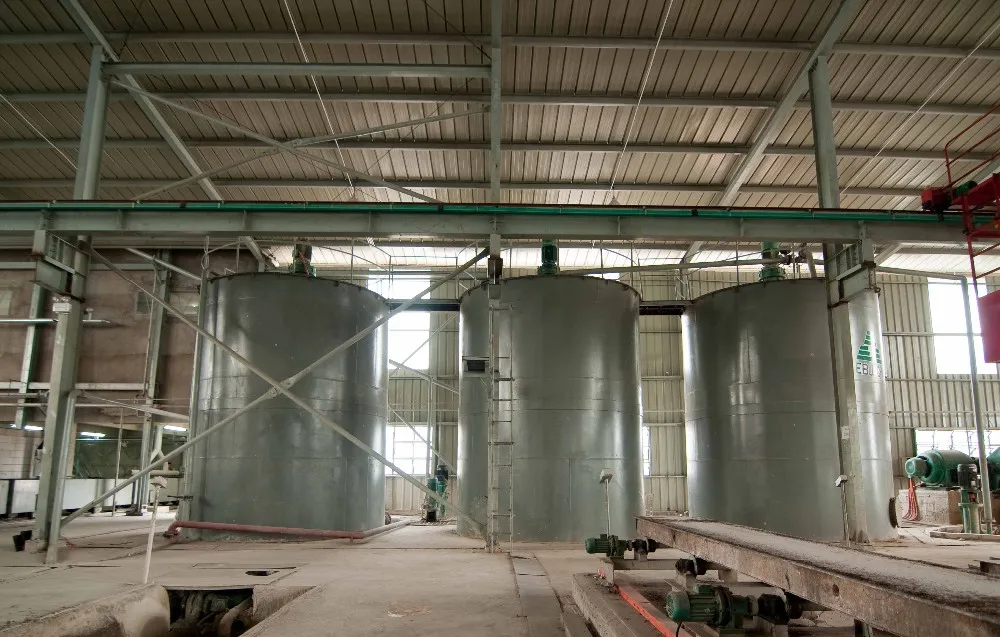

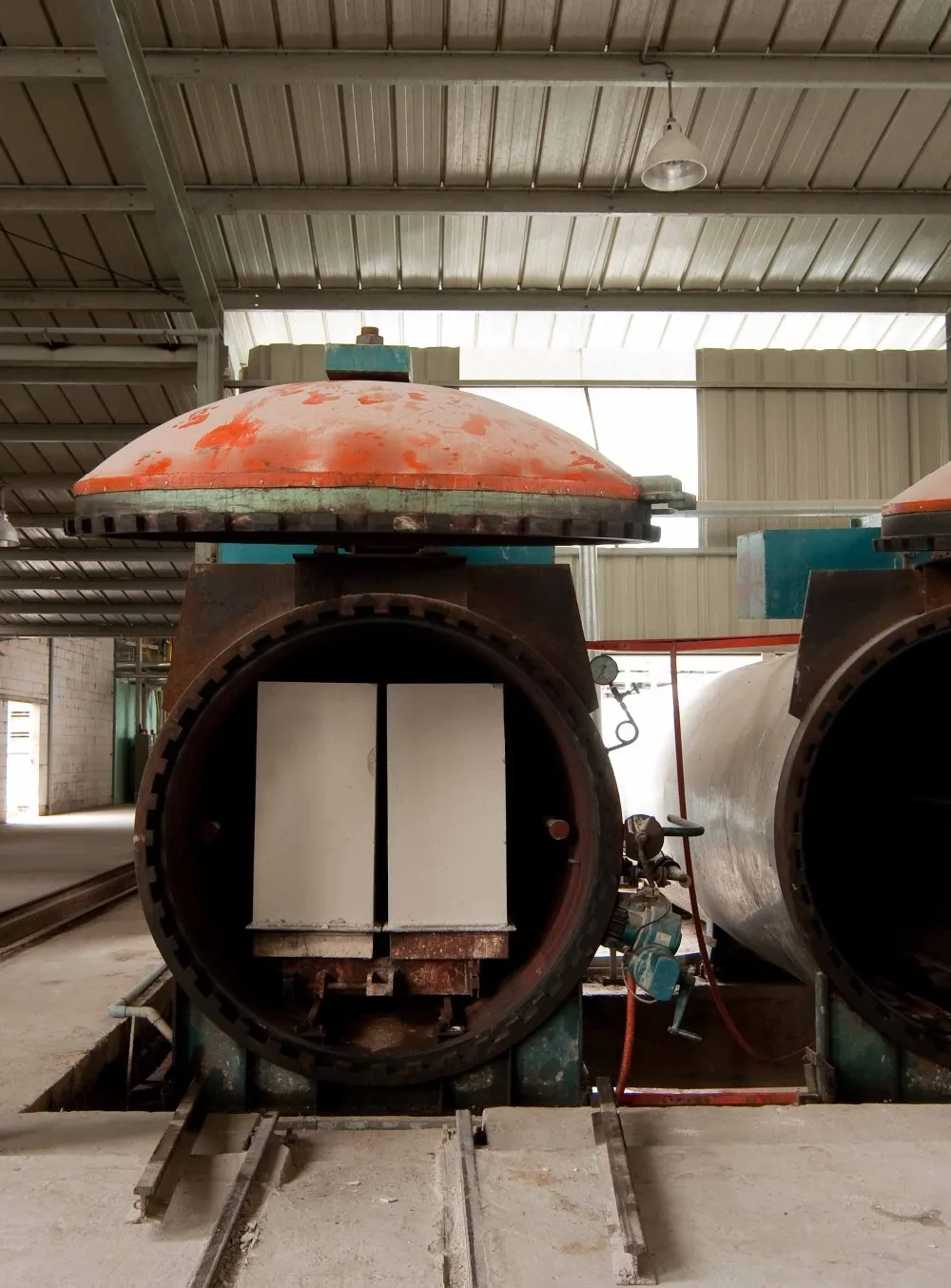

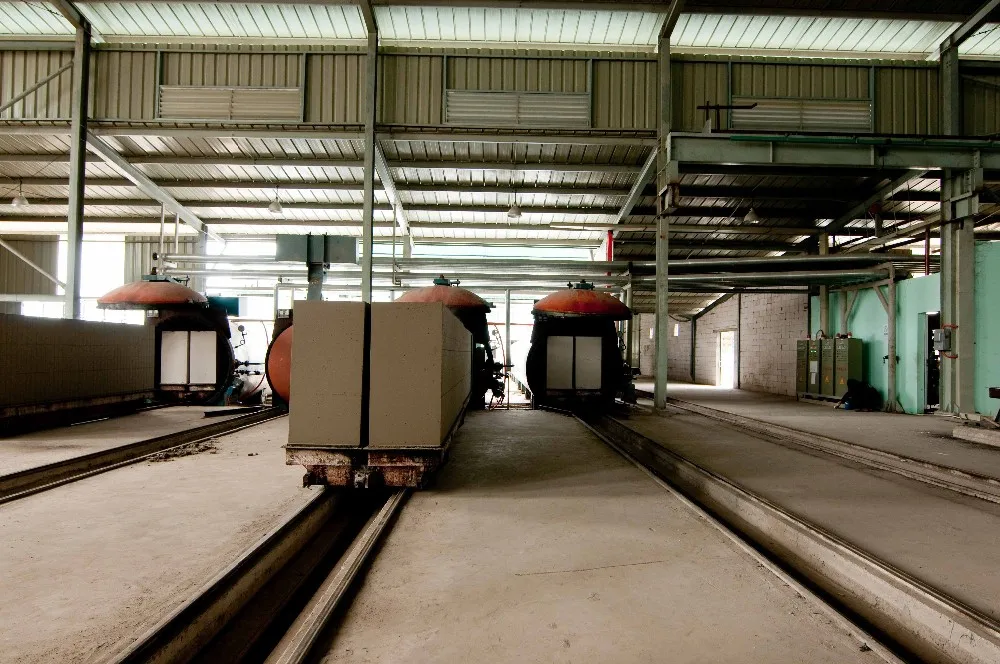

With the cooperation of British Fossett Corporation, New Era Block Tile JSC has set up the first AAC manufacturing factory based on German technology located in Thinh Phat Industrial Zone, Ben Luc, Long An province with an area of 5 hectares. The first products under EBLOCK brand were launched in 2010
