Product Description

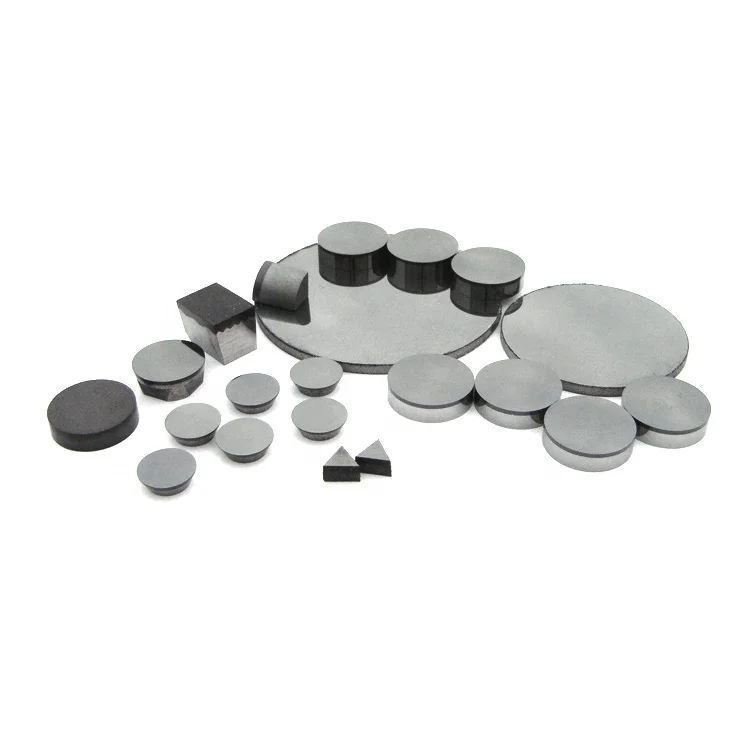

China Stone Cutting Tools PCD Inserts Blank PCD Tips
PCD Blanks with Poly Crystalline Diamond and Tungsten carbide substrates. It can be applied in woodworking tools, metalworking tools, stone cutting tools, mining tools and many related industries. Available grain size is 1microns, 5microns, 10microns, 25microns and 50microns. Standard total thickness is 1.6mm, 2.0mm, and 3.2mm. PCD layer is 0.5mm thick. Non-standard sizes are also available according to customer's requests.
Specification | ||||||
Standdard Diameters | 61mm discs | 58mm Disc | 51mm disc | |||
Applcation industries | woodworking tools | metalworking tools | stone cutting tools | |||
mining tools | oil drilling tools | water well drilling bits | ||||
Available thickness | 1.6mm, 2.0mm, and 3.2mm. PCD layer is 0.5mm thick. Non-standard sizes are also available according to customer's requests. | |||||
Tool Parts | Saws | Bits | Discs | |||
Main Features
1. Sharp: Fast cuting
2. Long Life: Super long life than traditional abrasive wheels
3. Cost-effective: Unit costs is much lower.
4. Non-standard sizes are available according to customer's requests.
5. Free laser cutting and sand blasting
6. Accurate dimensions
2. Long Life: Super long life than traditional abrasive wheels
3. Cost-effective: Unit costs is much lower.
4. Non-standard sizes are available according to customer's requests.
5. Free laser cutting and sand blasting
6. Accurate dimensions
Detailed Images
High Quality PCD Blanks
Diamond Microns : 1microns, 5microns, 10microns, 25microns and 50microns
Thickness: Standard total thickness is 1.6mm, 2.0mm, and 3.2mm. PCD layer is 0.5mm thick.
Original: CN
Non-standard sizes are also available according to customer's requests.
High Precise Laser Cutting
Cutting Machines: CNC Laser Cutting Machines
Process: Computer Controled Cutting Process
Advantages: Keep shining always, won't rust like the iron cases.
Clean lateral surfaces
Process Method: Sand Blasting
Machines: Hand-operated sand blasting machines
Process: Blasting each sides cleanly
Standard
Machines: Laser hole drilling machines
Applciation: Small hole drilling
Advantages: High efficiency
Related Products
Our Company
ZHENGZHOU RUIZUAN DIAMOND TOOL CO., LTD.
is committed to providing state-of-the-art diamond and CBN products. Experienced engineers & technical expertise brought their industrial knowledge and technical service to help customer find the best solutions with our diamond and CBN products.Our fully equipped manufacturing facility and advanced detection equipments make our product perform well and consistent. And we never stop persuing new technology and continious improvement. Our goal is to 100% customer satisfaction.
Our Equipments
8 Press machines
3 Lathe machines
2 Blance machines
2 Vollmer QWD760 EDM Cutting
2 Ewag CNC grinding machines
1 Zoller Inspections machines
1 Optical Projector
1 Drilling machines
3 Lathe machines
2 Blance machines
2 Vollmer QWD760 EDM Cutting
2 Ewag CNC grinding machines
1 Zoller Inspections machines
1 Optical Projector
1 Drilling machines
