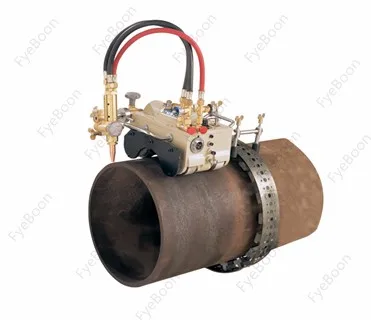

Хороший газовый резак для магнитной трубы 600
Хороший газовый резак для магнитной трубы 600

Хороший газовый резак для магнитной трубы 600


Поделиться:

Цена:*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики

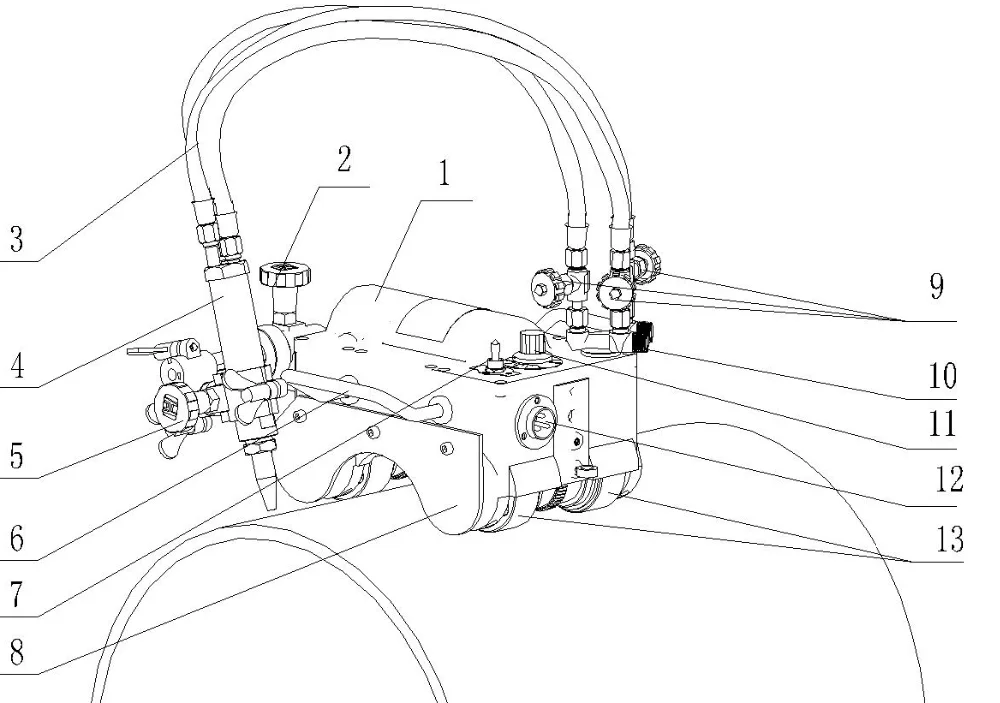

Product Info
No
Description
No
Description
1
Body
8
Thermal Baffle: To prevent heat to diffuse into the inner of machine
2
Cross Feeding Hand Wheel: To adjust horizontal position of torch
9
Two-port Valve: To adjust the flow
3
Hoses: Connect them to gas distributor. There are three hoses: preheating oxygen hose, fuel gas hose and cutting oxygen hose
10
Gas distributor: Gases are preheating oxygen, fuel gas and cutting oxygen
4
Torch
11
Speed Regulating Knob: Decrease the speed along "10" toward "0" anti-clockwise
5
Adjusting Hand Wheel of Torch
12
Plug Seat
6
Handlebar
13
Magnetic Roller Wheel: The two magnetic roller wheels can make the machine walk along pipe wall smoothly
7
Reversing Switch: To change the direction of machine. "STOP" position is in the middle

CG2-11/CG2-11-II
1
Main body made of aluminum alloy, light and portable.
2
Adopt permanent magnet wheel to crawl on pipe while cutting.
3
Used for parallel, upright and face upward cutting.
4
Bevel angle: I.Y.V (45°)
5
For ircular cutting, convenient in operation.
6
Widely applied to oil production, chemical pipe project.
CG2-11/CG2-11-II
Flame Torch No.
CG2-11 has one torch; CG2-11-II has two torches.
Diameter of Circle Cutting
CG2-11: >φ108mm; CG2-11-II: >φ110mm
Power Source
220V 50HZ
Cutting Speed
50-750mm/min
Cutting Thickness
6-50mm
Groove Angle
0°-45°
Cutting Range
￠>108mm (The no-seam pipe)
Cutting Accuracy
When the machine walks a cycle on pipe, the error is below 0.5mm every 1m circumference. The smoothness of cutting and groove can reach.
Adsorption Affinity of Magnetic Roller Wheel
>50kg
Impulse of Machine
When the machine walks up and down, it is below 0.5mm
Motor
70SZ08 servo-motor, 6000r/min, 68W
Remark
 If the diameter >600mm, you'd better use optional guide band.
