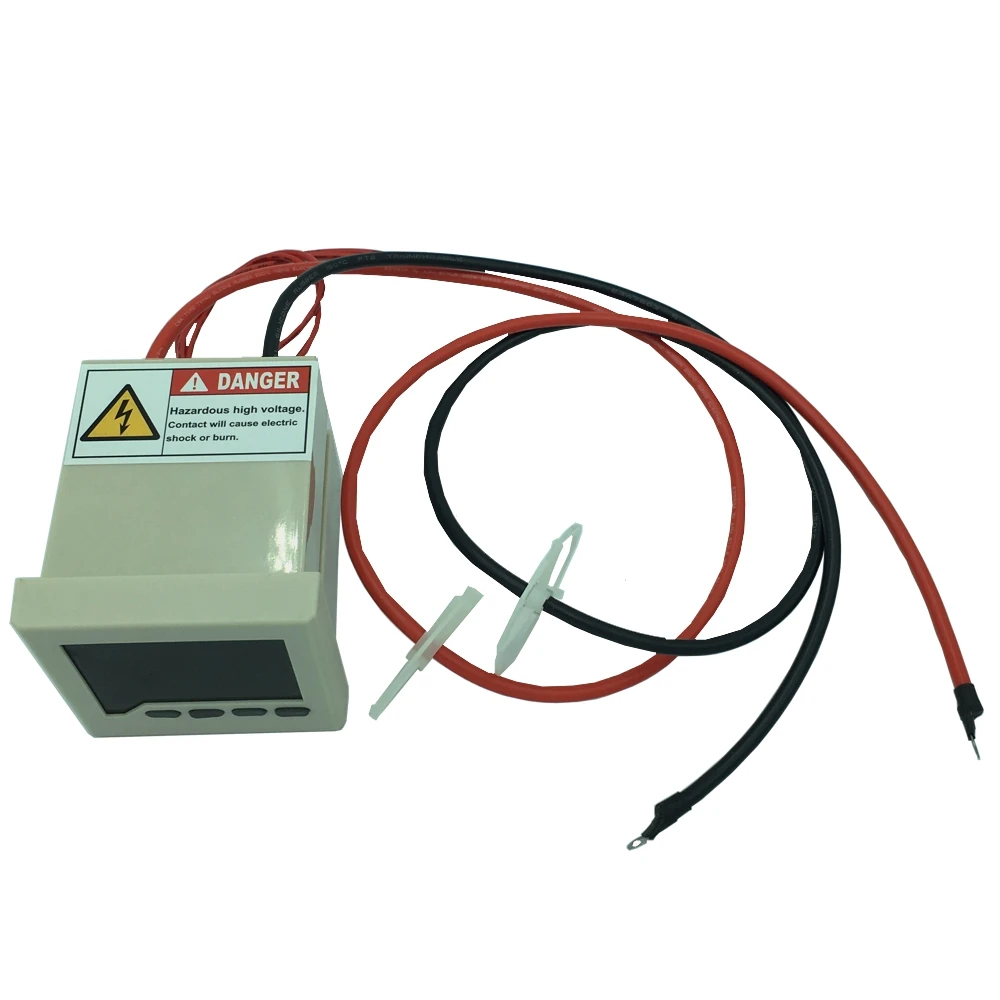

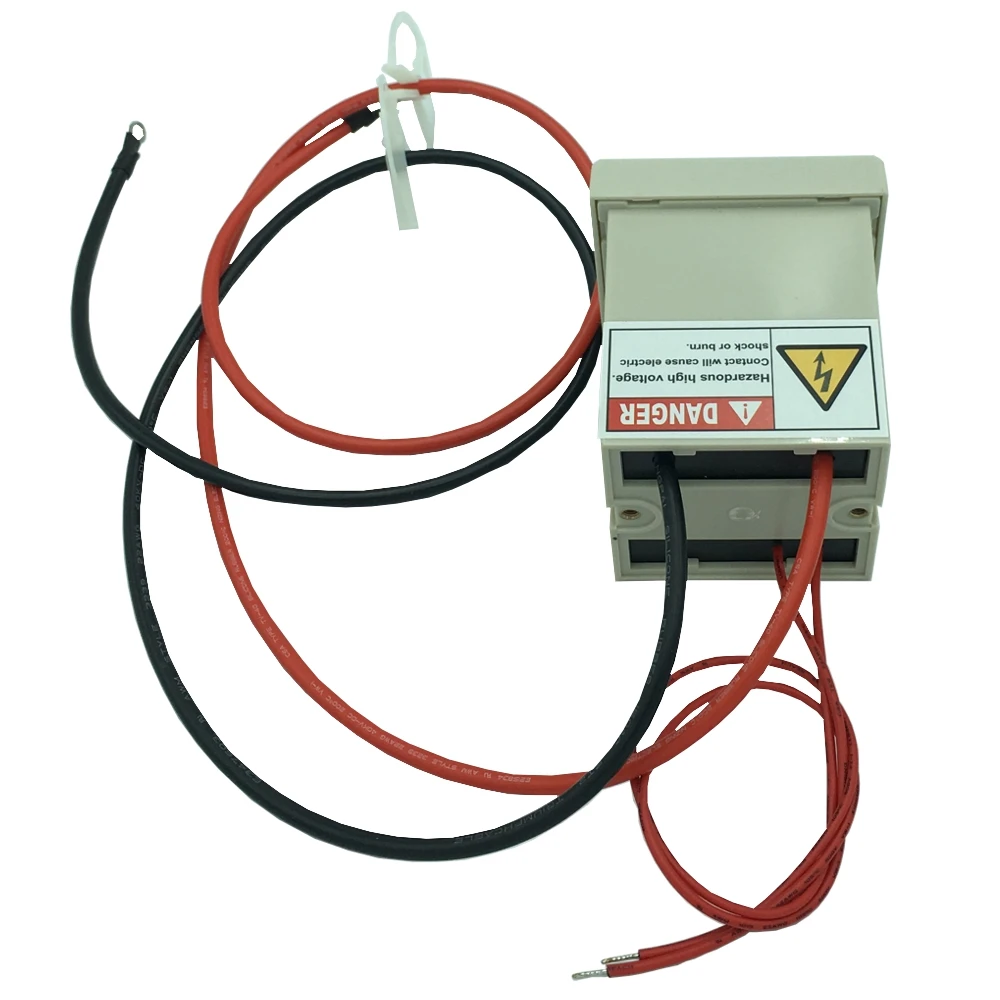

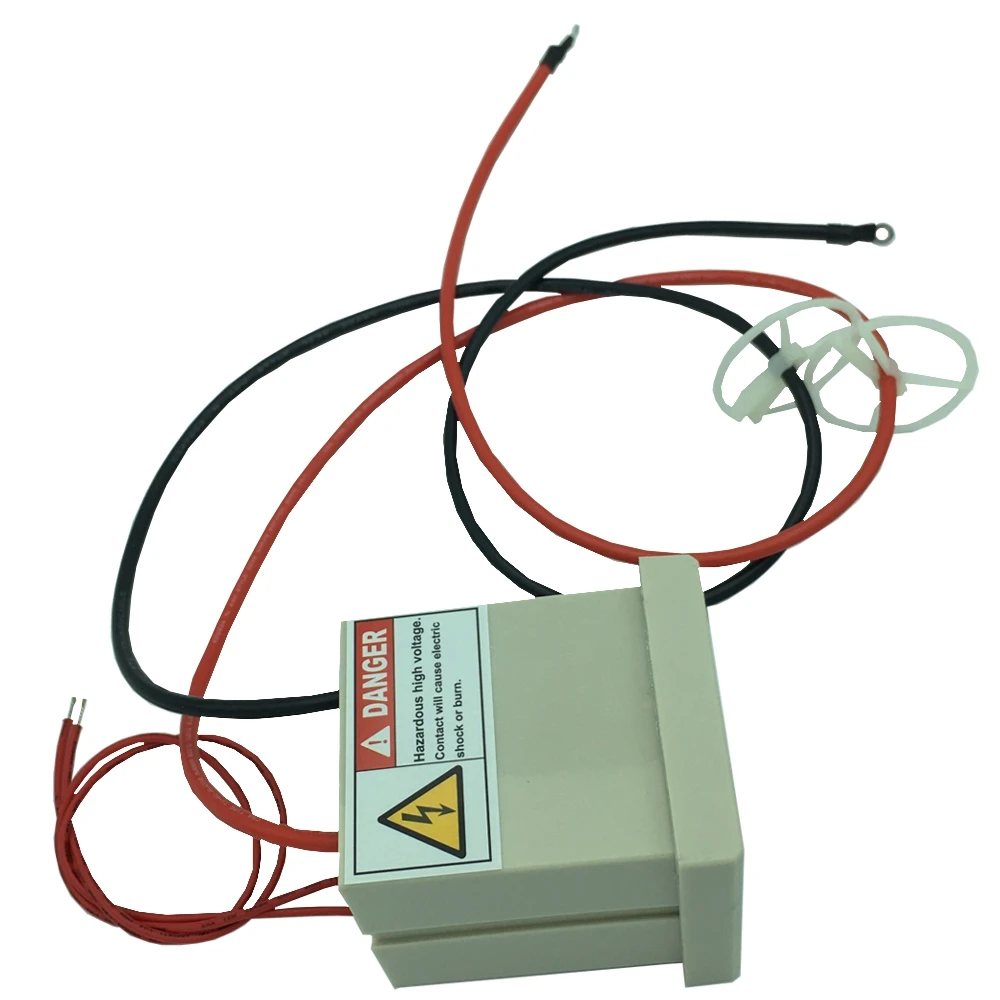

Operating voltage: max 40KVDC (CAT II, Pollution 2)
Voltage resolution: 0.01KV
Display: 0.56” 4 digits LED display
Maximum loading current: max 40uA
Maximum loading power: max 1.6W
Accuracy: ±1%
Operating temperature: 0 ~ 50°C
Storage temperature: -20 ~ +70°C
Dimension: 73.5*73.5*84mm
Panel mount hole: 67*67mm
HV/GND leads: UL3239 AWG22 40KV Silicone 150°C 75 cm
AC power leads: UL1015 AWG22 600V 105°C 30cm
Weight: 300g
Warranty: 1 year

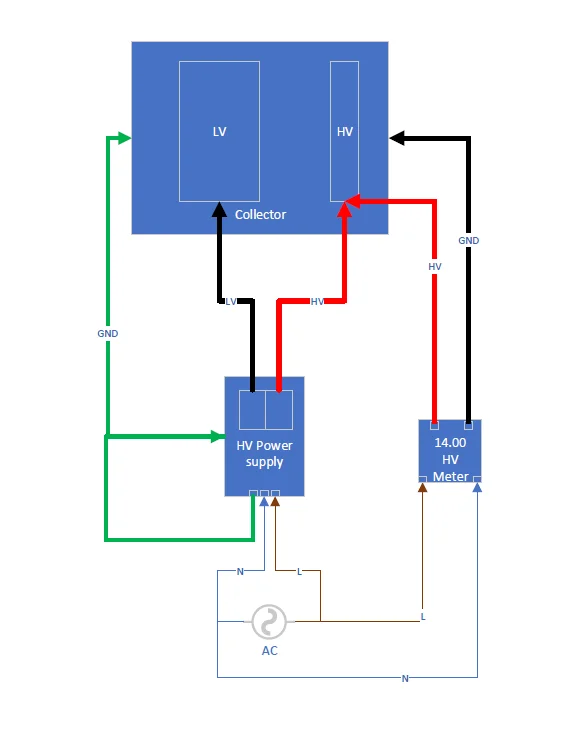

Wiring Example: (for 2 stages ESP application)
Our Services
Customization is available
Input volatge
adjustable trimmer
power cord
connector
label
Exclusive sale is negotiable
by area
by application
Safty certifications on demand
UL
CE
TUV
CB
Packaging & Shipping
EMS/FedEx/UPS/DHL/TNT delivery for samples
Air freight from Taoyuan air port, Taiwan
Ocean freight from Keelung port, Taiwan

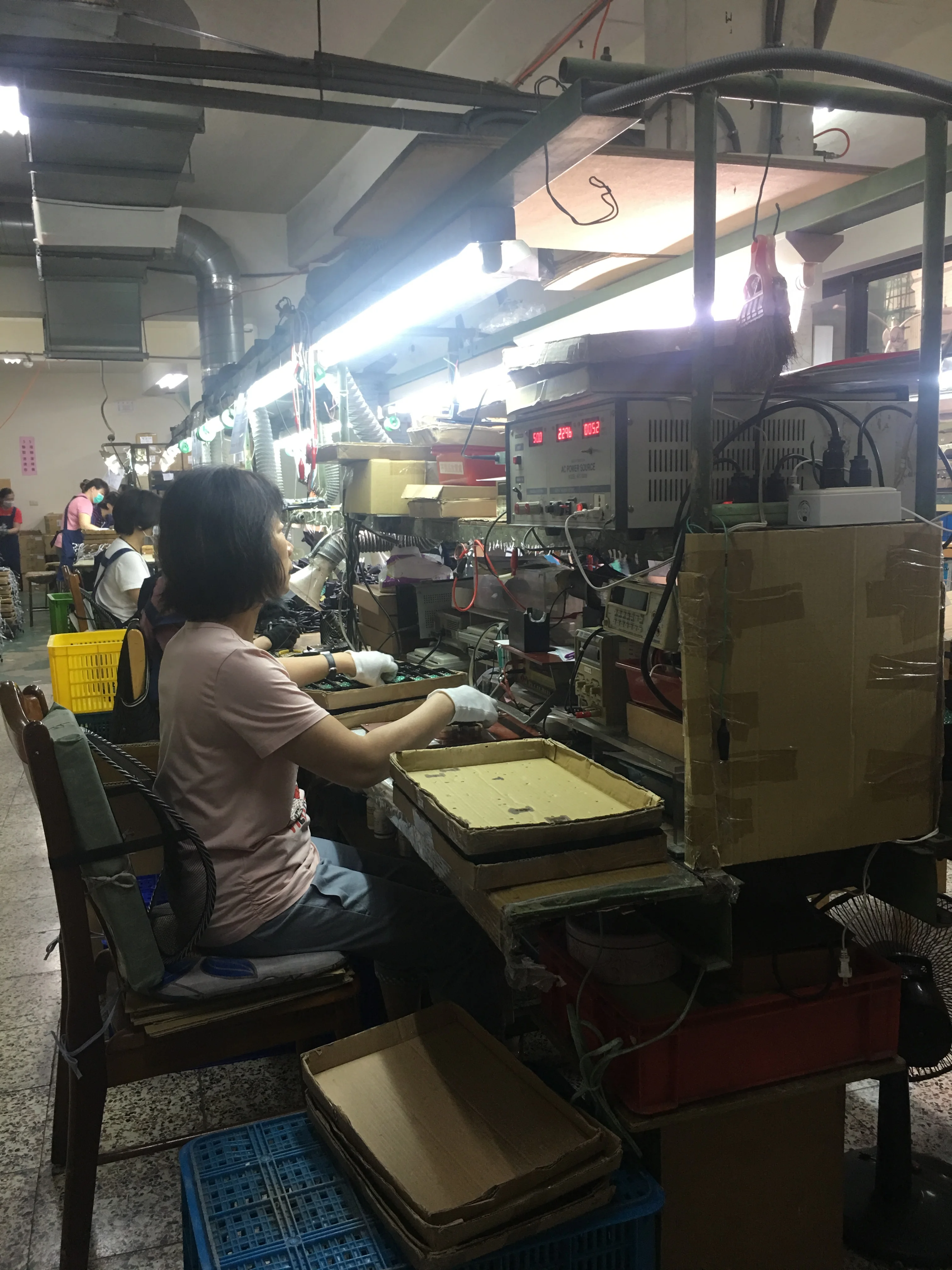

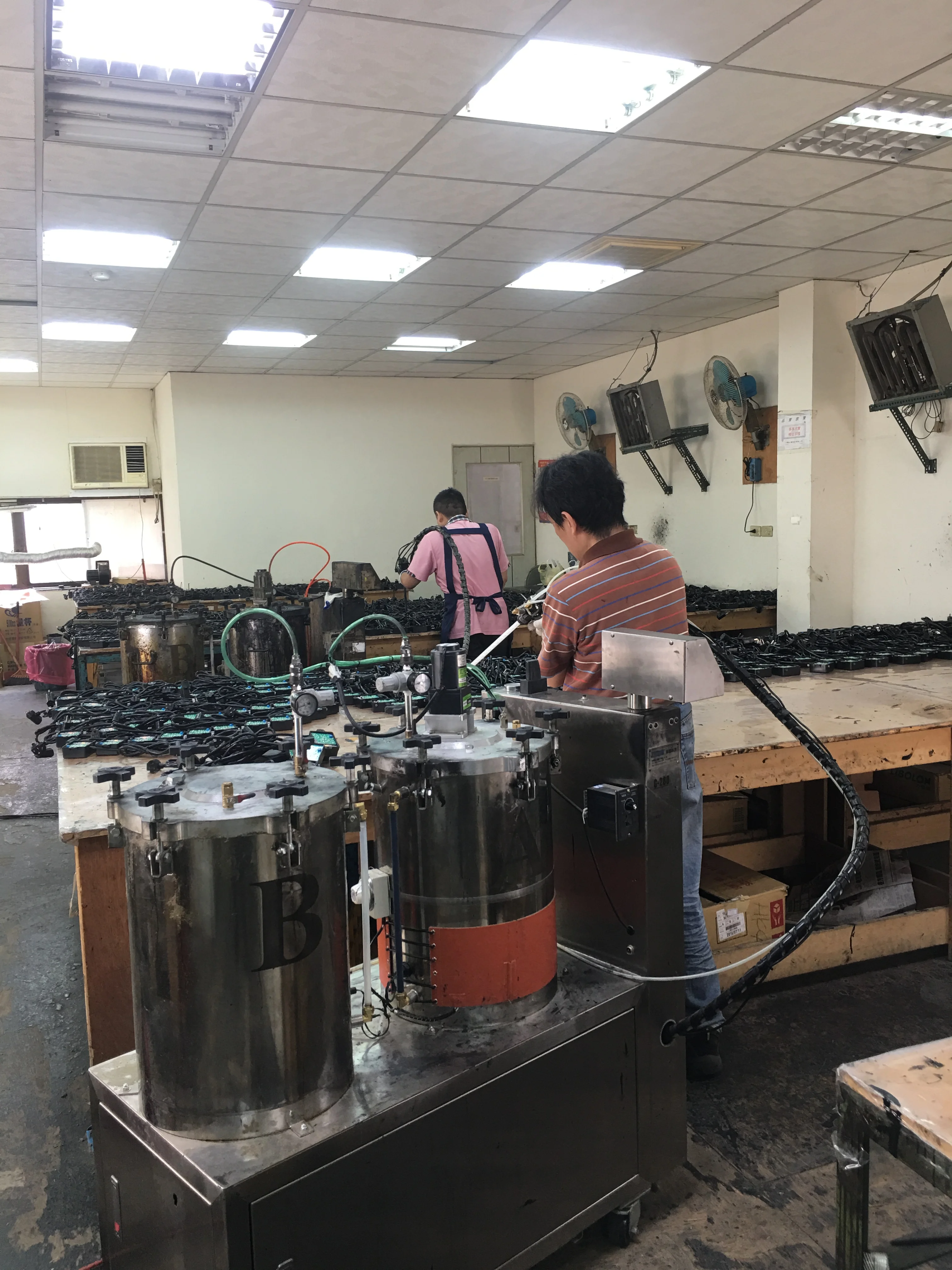

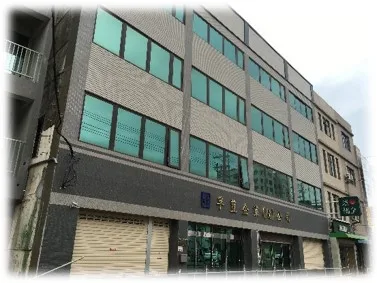

Company Information
UL/VDE/TUV recognized, ISO-9001:2015 certified. Thirty years of experience in the design and manufacturing of high voltage transformers, high voltage power supplies. Our engineering staff welcomes the opportunity to modify our existing design or create a specified high voltage power supply for your application. Products are widely used in air cleaner, refrigerator, ozone generator, gas and oil ignition device, electrostatic precipitator and other fields.
