48 В 1500 Вт комплект для переоборудования переднего
48 В 1500 Вт комплект для переоборудования переднего
48 В 1500 Вт комплект для переоборудования переднего
48 В 1500 Вт комплект для переоборудования переднего

48 В 1500 Вт комплект для переоборудования переднего


Поделиться:

Цена:120,00 $ - 130,00 $*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики


48v 1500watt ebike hub motor front wheel conversion kit



PRODUCT PICTURES

 500-1000w ebike kit with middle bag battery (2)



PRODUCT SPECIFICATION

1500w kit conversion electrical bicycle

Model :

ENC481500

Certificate

CE

Motor

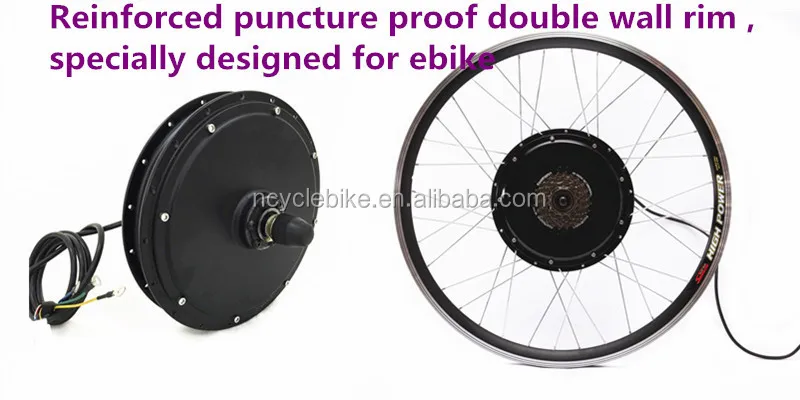

48v 1500w front or rear motor brushless gearless design

Wheel size

16"-28" aluminum alloy double wall design for choosing

Controller

48v 35amp smart controller

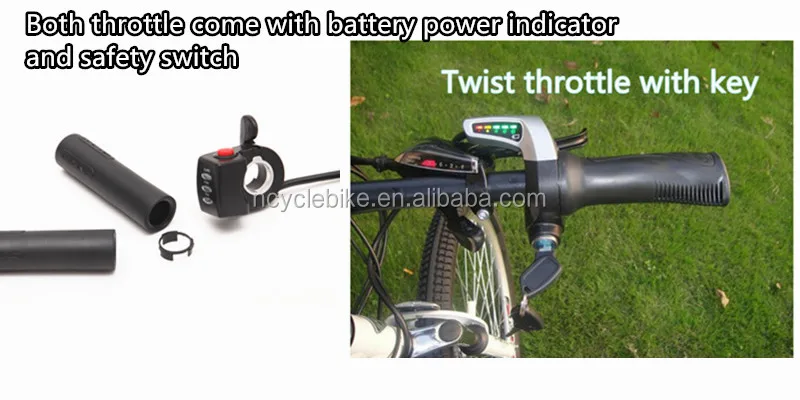

Throttle type

Thumb throttle or twist throttle with on/off

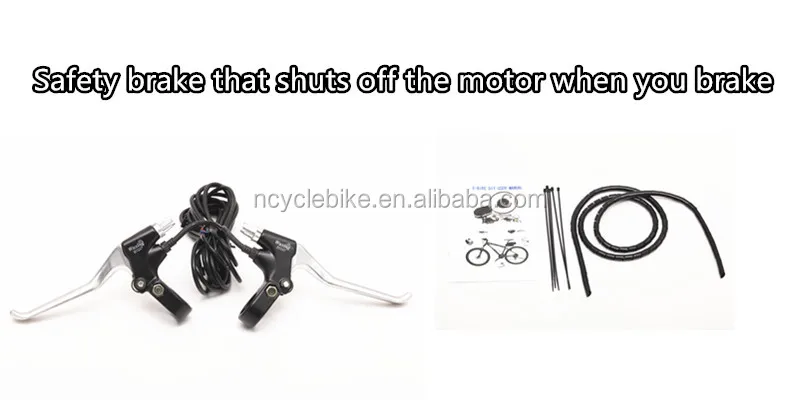

Electric brake levers

wu xing brand electric brake levers

PAS

Newest pas

Manual

book manual, ties

Specifications

25-50km/h speed, 120kgs max loading

Package

carton box with foams packing for express shipping

Package size and Gross weight

16": 40cm x 40cm x 25cm



20": 45cm x 45cm x 25cm



24": 55cm x 55cm x 25cm



26": 60cm x 60cm x 25cm



28" 700c, 29" : 65cm x 65cm x 25cm

Color

black or sliver white

Optional parts



Tires

Kenda Tire and tube

LCD display

Show Multifunctions, speed, range, time, max speed adjust, 5 PAS system and so on

Head light

Headlight with horn

Freewheel

6speed or 7speed for rear motor only

torque arm

Prevent the motor axle from stripping out



Specifications:

  • 48v 1500w e bike conversion kit speed max : 45-60km/h
  • The 48v 1500w e bike conversion kit with battery distance : 35km range @ throttle only, 60km range @ pas system
  • lcd display show speed, range, current, voltage, amp, watts, time, 5 pas levers, cruise switch and so on.
  • samsung brand cell , high discharge current for 1500w 48v motor
  • net weight : 15kgs for all.
  • Two years warranty
  • All in one kit, the controller, battery and cable connectors are installed into the bag.

PACKING LIST

48v 16"-28"rear motor 1500w kit conversion electrical bicycle



48V 1500w Burhsless gearless hub motor(180°C copper winding+ best magnet)*1SET

16"-28" 700c Double-wall alloy rims spoke 12G (2.6mm spokes )*1SET

twist throttle or thumb throttle with battery indicator power*1SET

2 electric brake levers (for both side power off)*1SET

48V 40A smart controller (12 MOZ tubes in it)*1SET

1:1 PAS*1SET

Use manual with ties also winding pipe * 1SET
good package can be delivered to customer directly
Optional parts :
48v 13.2ah samsung cell lithium battery
2a charger, EU, AU, USA, UK for choosing.
Triangle bag for free



1234

5



PRODUCT INSTALLATION

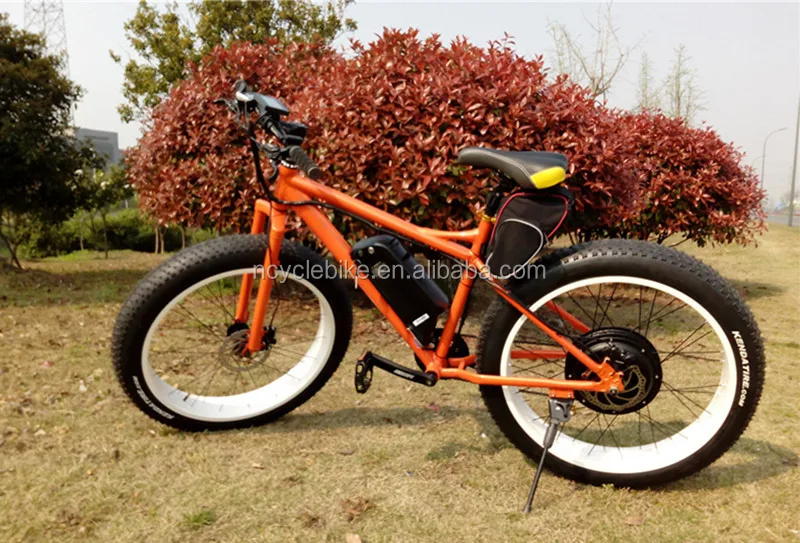

 orange frame_

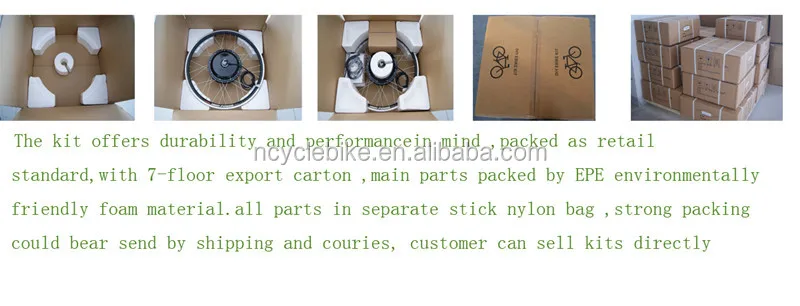

PRODUCT PACKING



48v 16"-28"rear motor 1500w kit conversion electrical bicycle battery pack Packing :

Material : carton with foam for 48v 1500W cheap electric bike kit with 1500w 48v motor 13.2ah battery
Package size :
16" 18" : 40cm x 40 x cm x 24cm
20" : 45cm x 45cm x 24cm
24" : 55cm x 55cm x 24cm
26" : 60cm x 60cm x 24cm
28" 700C : 65cm x 65cm x24cm

ebike kit packaging
