Точный вертикальный обрабатывающий центр с ЧПУ GV850 фрезерный

Цена:31 500,00 $ - 31 900,00 $*

Стоимость в USD (на сегодня):Узнать

Количество:

Product Description

Specifications	Unit	GV650	GV850
Table size	mm	800x400	1000x500
X axis travel	mm	650	800
Y axis travel	mm	400	500
Z axis travel	mm	500	500
Distance between spindle center and column surface	mm	476	571
Distance between spindle nose and table surface	mm	100-600	150-650
T slot	mm	3-18*125	5-18*90
Spindle taper	mm	BT40	BT40
Max. spindle speed	r/min	8000	8000
Max. spindle speed	r/min			(optional:10000/12000)	(optional:10000/12000)
Main motor connection		belt	belt
Main motor connection				(optional:direct)	(optional:direct)
Main motor power	KW	5.5	7.5
X/Y/Z axis servo motor torque	N·m	2010/10/15	15/15/23
X/Y/Z motor connection		direct	direct
X/Y/Z guide rail form		3 axis linear guide rail	3 axis linear guide rail
Max.table load	kg	400	500

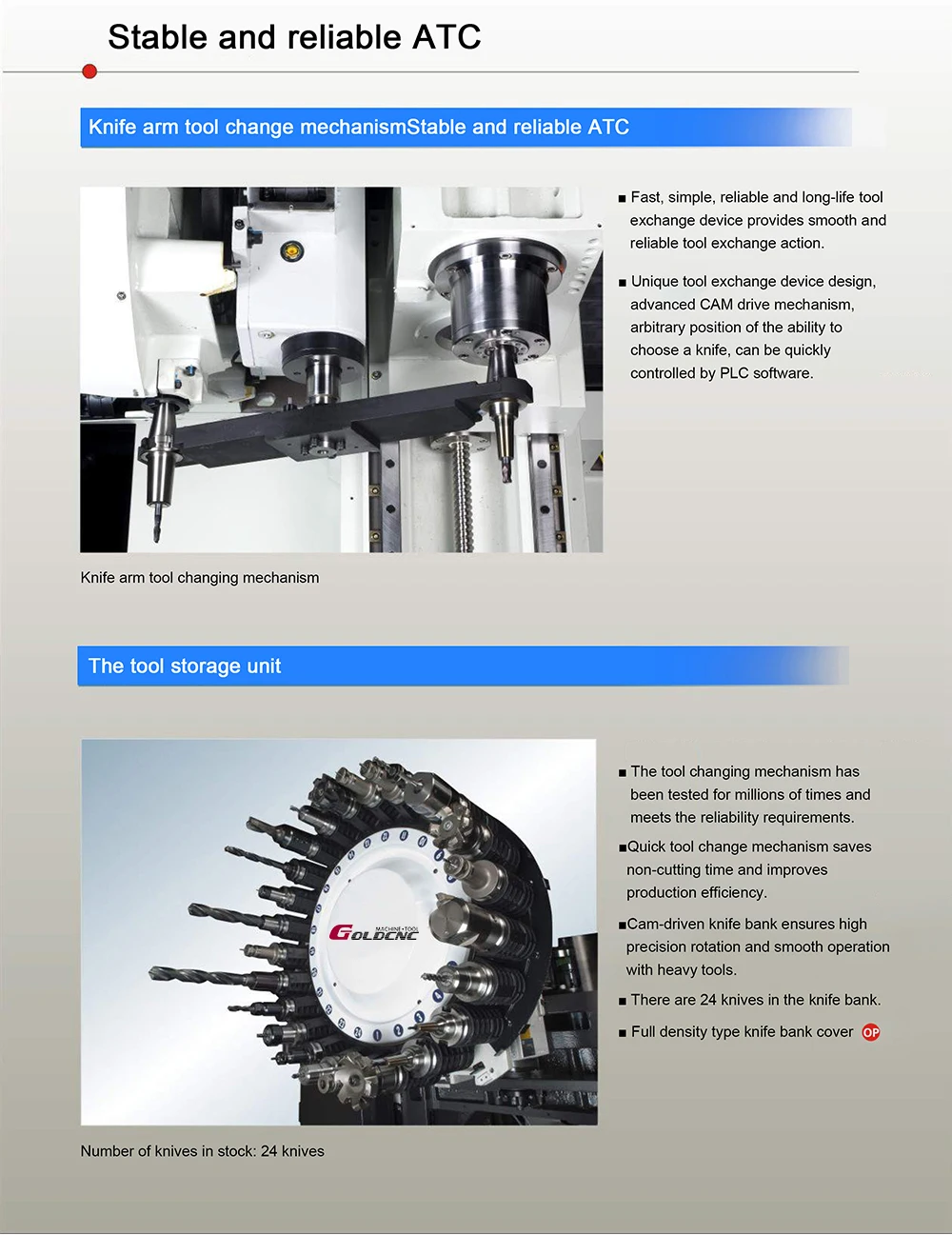

Automatic tools changer		16/20/24 arm type	24 arm type
Automatic tools changer				(optional:12 carousel type)	(optional:20 carousel type)
Max.tool weight	kg	8	8
Max. tool length	mm	300	300
Max. tool diameter	mm	78(Adjacent)/120(Apart)	78(Adjacent)/120(Apart)
X/Y/Z axis rapid traverse	m/min	32(optional :48)	18(optional :36)
Cutting feed speed	m/min	10	10
Position accuracy	mm	±0.005/300	±0.005/300
Repeat positioning accuracy	mm	±0.003	±0.003
Machine dimension	mm	2000x1800x2100	2600x2000x2200
Machine weight	kg	3500	5000

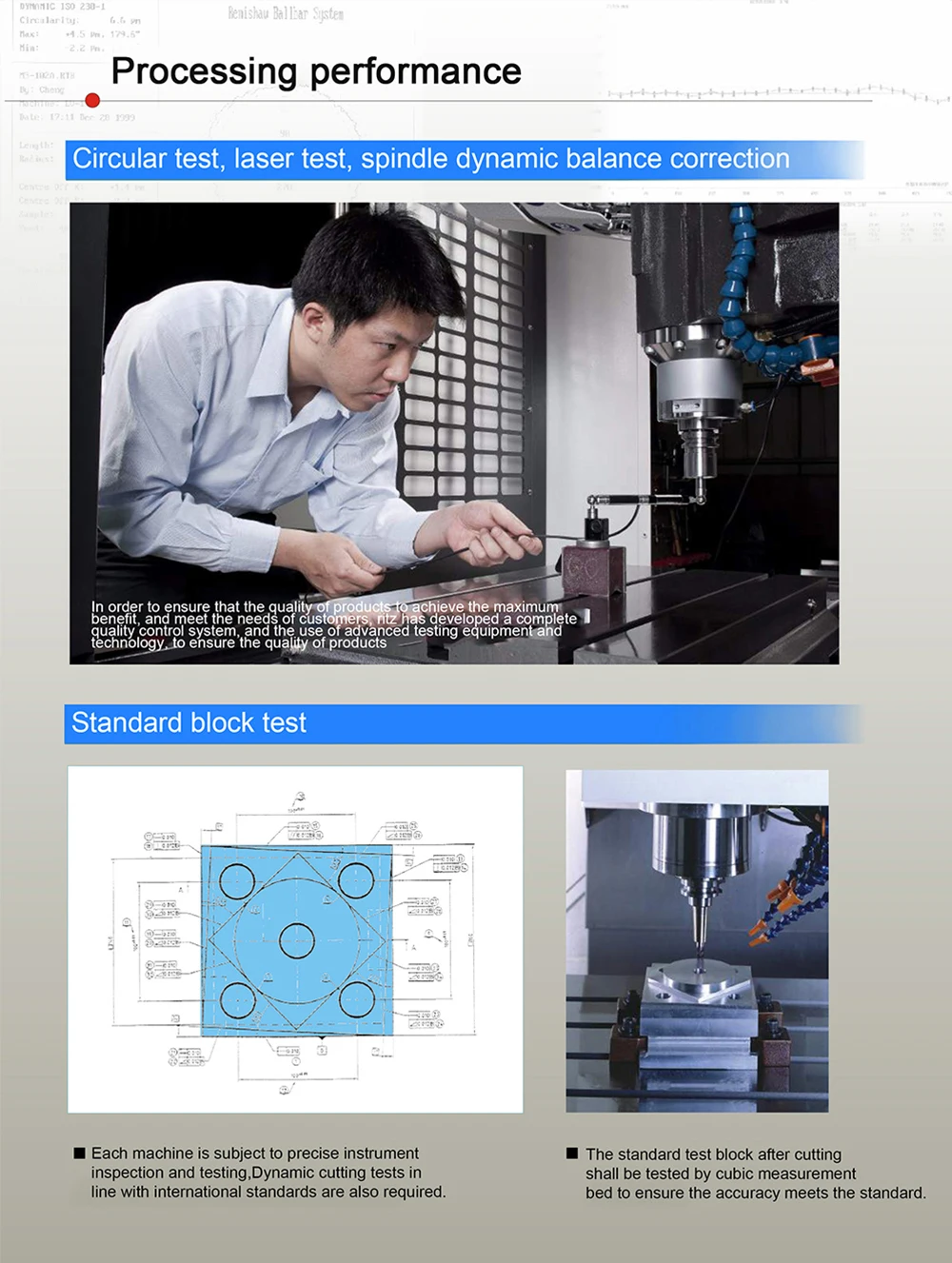

High-performance detection system

Company Profile

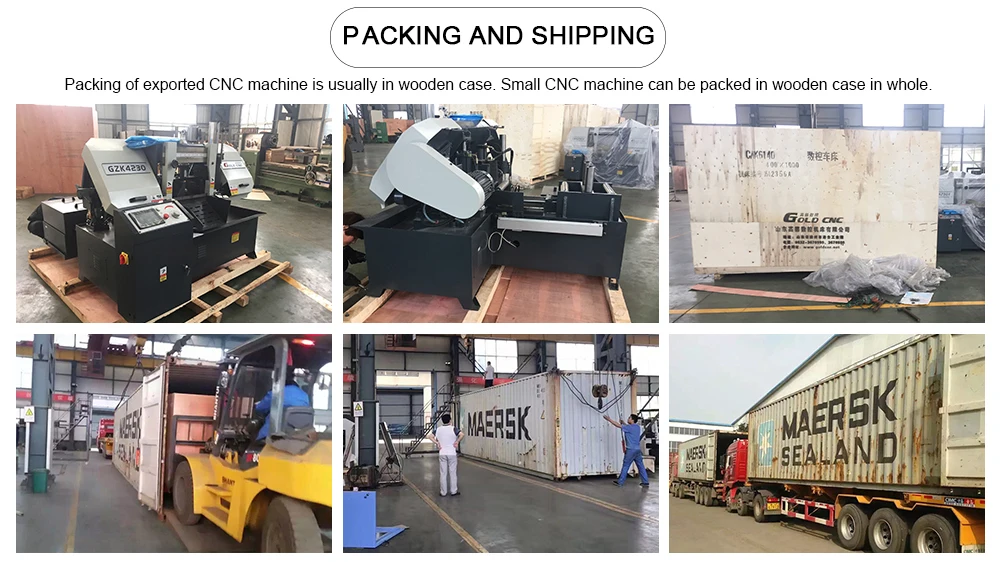

Product packaging
