Product Description

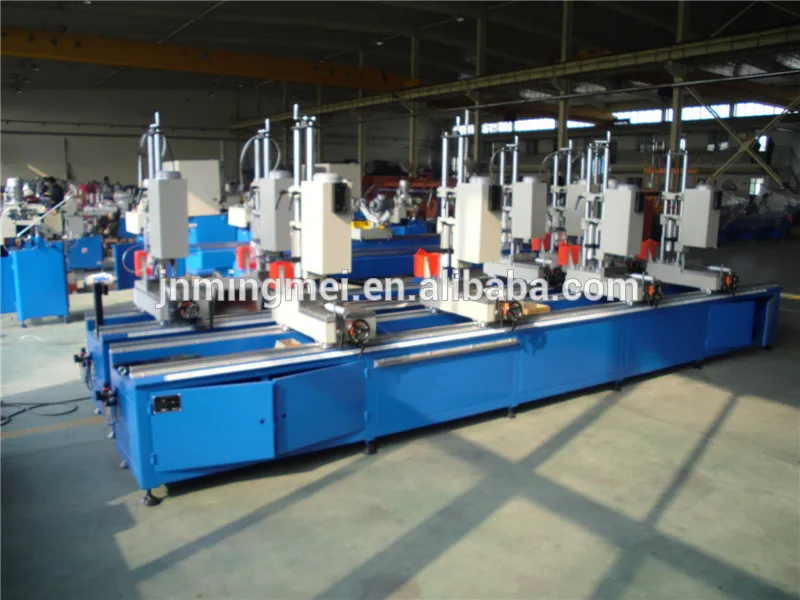

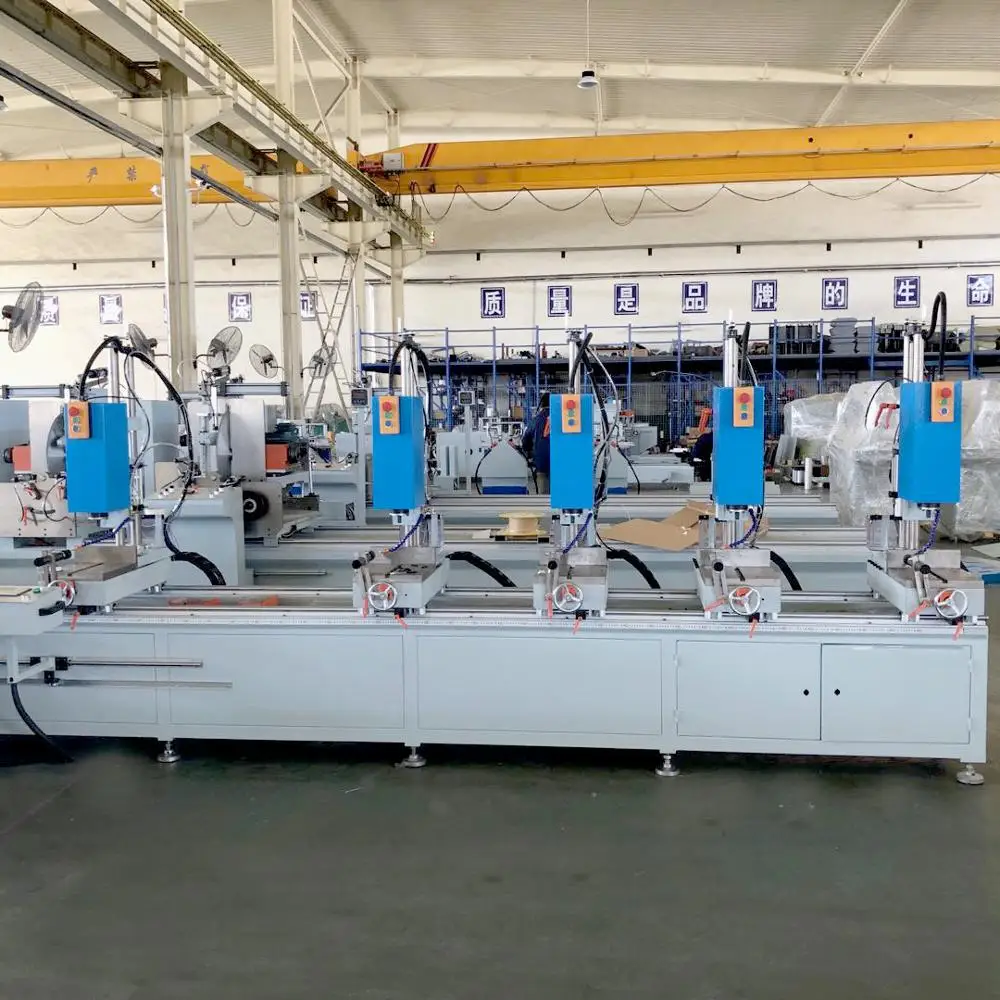

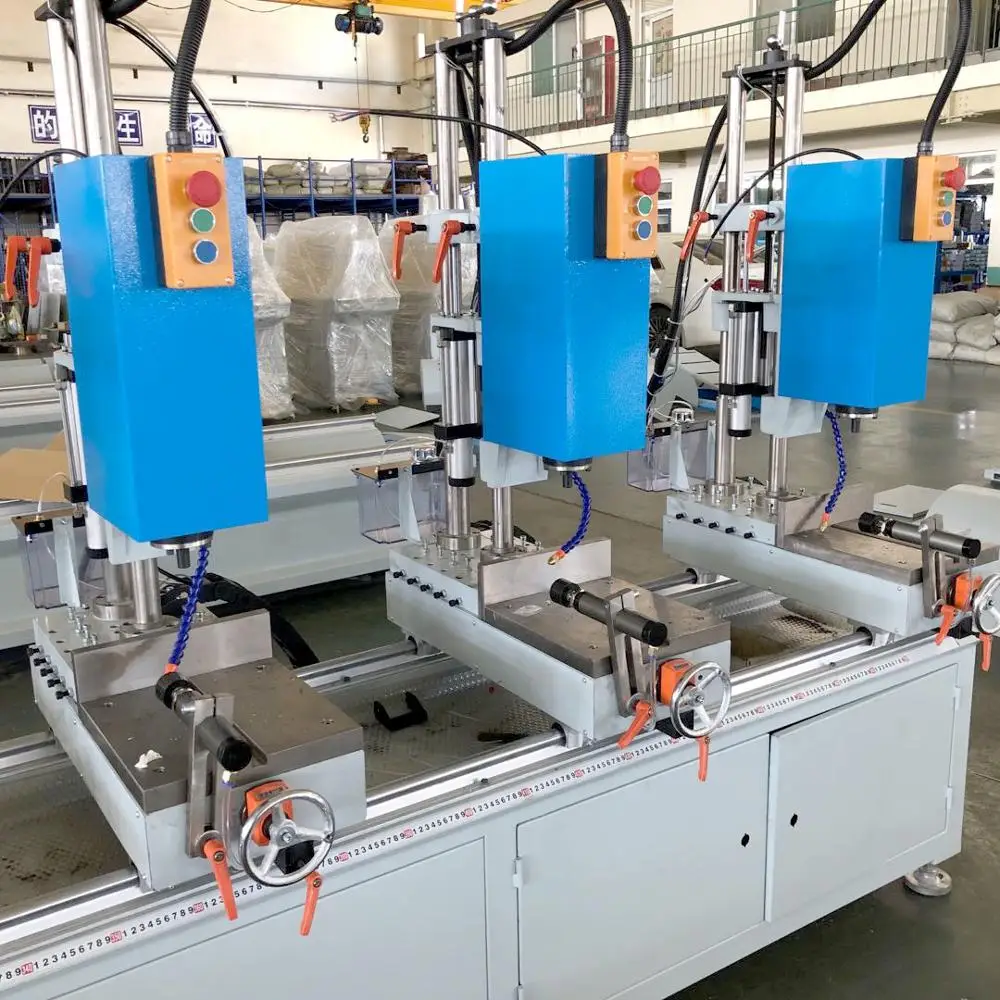

Railway aluminum profile milling drilling machinery
Special for drilling of aluminum window, curtain wall profiles. It is suitable for long profile process and mass production. Max process cross section is 250*250mm, Max process length is 5000mmProduct Detail
| color | blue/white/grey/custmized |
| certificate | CE,ISO9001;2000 |
| usage | drilling of aluminum window, curtain wall |
| Product Keywords | railway aluminum profile milling drilling machinery |
1) Special for drilling of aluminum window, curtain wall profiles. It is suitable for long profile process and mass production.
2) Max process cross section is 250*250mm, Max process length is 5000mm.
3) Pneumatic-hydraulic damp feeding system.

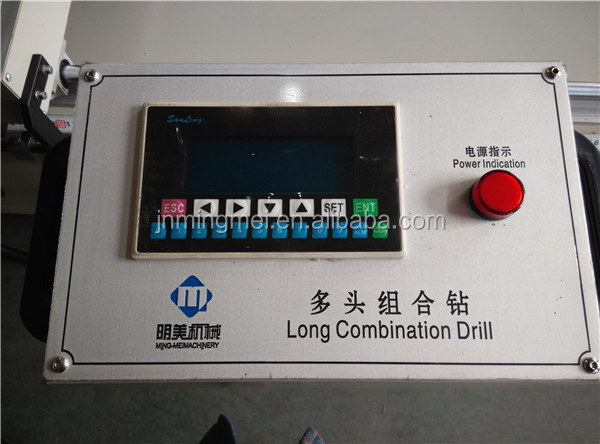

4) Imported PLC control system with steady capability.
Main features
Brand Name | Mingmei |
Model | LZZ4-13 |
Main motor Power | 4x1.1KW |
Working voltage | 380V 50Hz |
Operating air pressure | 0.5-0.8Mpa |
Max/Min distance between each group holes | 5000mm/300mm |
Max processing profile section size | 250*250mm |
Drilling head feeding travel | 125mm |
Work table size L x W | 300*200mm |
Size | 5500*1100*1800mm |
Weight | 1300KG |
