HK-5B Huawei непрерывного недлительной программы сварочная тележка

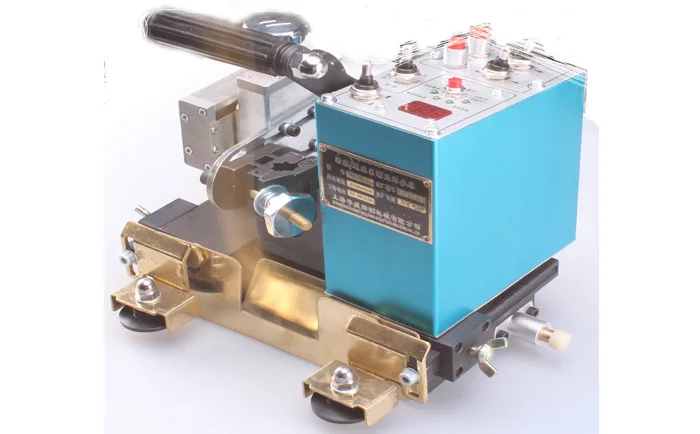

HK-5B Huawei Continuous incontinuous program welding carriage machine Huawei

Product Description

1.Suitable for discontinuous or continuos welding for straight angle
2.Digital display of speed,distance of discontinuous/continuous welding and time of end.
3.with no welding,carriage speed is regarded as most fast,more efficient
4.Magnet type of handle,which can control magnet force more or less.
5.Welding in both left and right,induction switch fixed in both end.
6.Carriage stop running while welding line.
7.Premanent magnet and guide unit fixed in carriage,which can prevenit it from deviating welding line.
8.End welding unit it attached.The time of end welding is adjusted from 0-8s.
9.wide use in shipbuilding,briage ,vehicle,oil and metal structure plant.

Model No.	Supply Voltage	LWH	Up down	Forward Backward	Work Angle	Processing Angle	Speed	Method of driving	Weight
HK-5B	AC220/50	320230290	60mm	60mm	+_45°	10°	30-1900	Rubber wheel drive	8.3
HK-5B-II	AC220/50	500290420	40mm	40mm	+_45°	10°	0-1900	Rubber wheel drive	10
HK-5C	AC220/50	390288285	60mm	60mm	+_45°	10°	50-1900	Rubber wheel drive	8.5
HK-55n	AC220/50	260120250	60mm	60mm	+_45°	10°	50-1900	Rubber wheel drive	8.5

Model No.

Supply Voltage

L*W*H

Up down

Forward Backward

Work Angle

Processing Angle

Speed

Method of driving

Weight

HK-5B

AC220/50
