Outdoor LED Display Panels LED Matrix Display Module LED Display Screen For Commercial Advertising

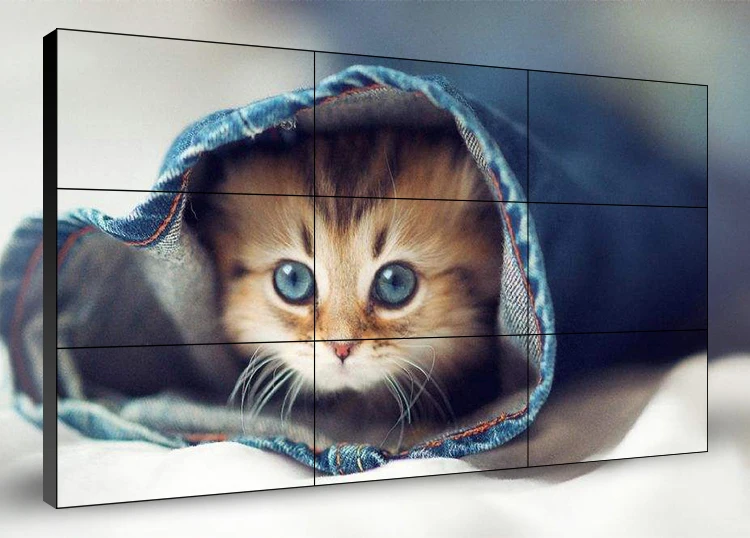

LCD VIDEO WALL

HD Display/ultra narrow edge gap/rich colors/arbitrary splicing









products data
Model	HR14EB	Viewing angle	178°(H)/178°(v)
panel type	55'DID LED Panel(diagonal 1388MM)	Display color	16.7M
Physical resolution	1920(H)*1080(V)	video input	CVBS(BNC)*2;S-VIDEO(Y/C)*1
Pixel pitch	0.53mm*0.53mm	computer sigal input	DVI*1
screen ratio	16:9	HD input	YPbPr*1,1080P(1920*1080)Backward compatible
Physical patchwork	3.5mm(leval)*3.5mm(vertical)	Video output	CVBS(BNC)*2
Response time	6ms	large-screen bezel	inset,D-Sub15in*1,D-Sub15out*1
Luminance white(cd/m2)	500 cd/m2	operation mothed	Renote control
Contrast ratio	4000:1	video format	PAL/NTSC
wide voltage design	100-240V AC	Frame dimension(mm)	up:2mm,below:1.5mm,  left:2mm,right:1.5mm
Power	240W	Weight(include packing)	about 24kg
Shape dimension(mm)	1213.5mm*684.3mm(W*H)	Display area size	1210mm*680.8mm(W*H)

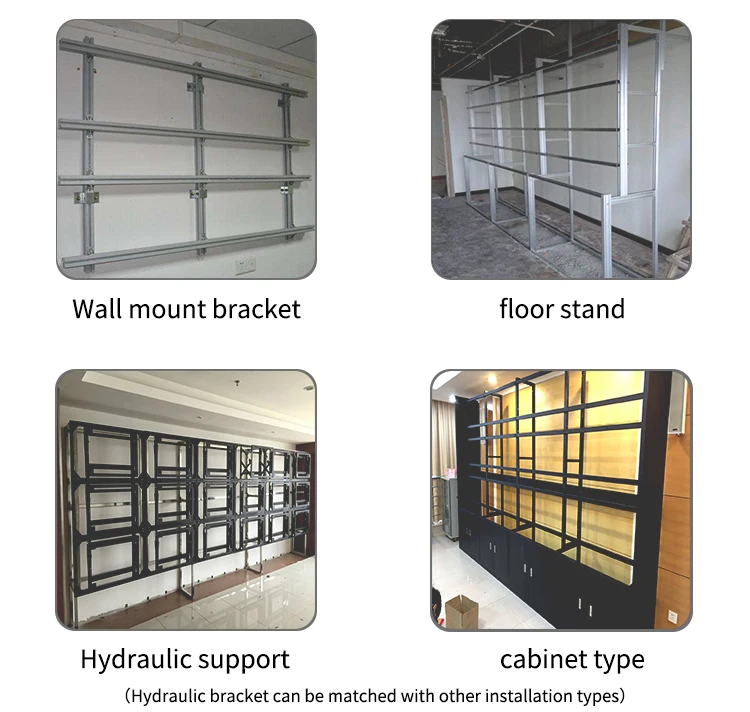

Installation hole	600mm*400mm(W*H)	Installation mode	can choose :support,hanger, cabinet
Storage temperature	*-20°C-60°C	Operating temperature	0°C-50°C
Shell Materrial	Metal Case + Toughened Glass Panel	quality standard	3C,FCC,ISO9001 etc

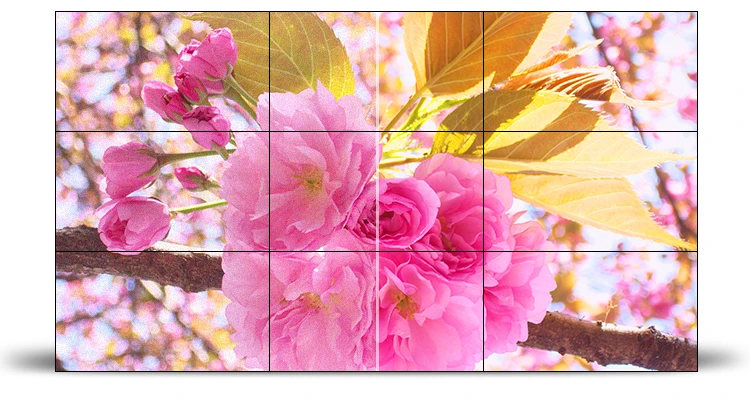

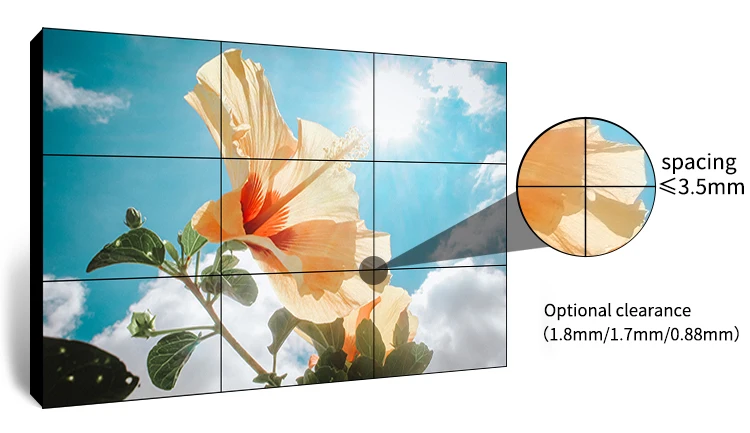

Ultra-narrow border design

The bilateral gap is only 3.5mm, the narrowest can reach 0.88mm

the display effect is more clear

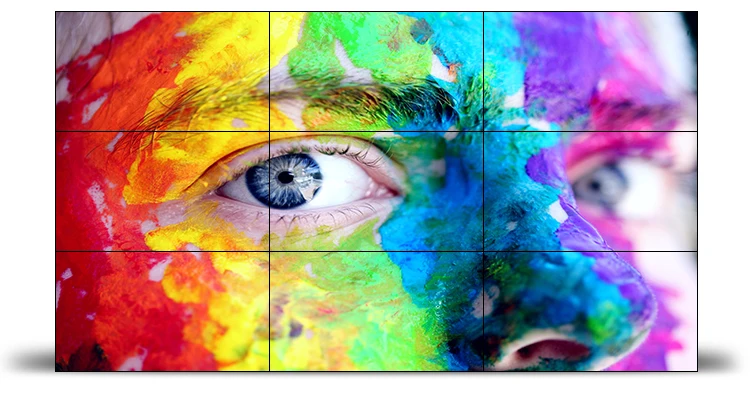

Rich color performance

16.8M color number, richer color performance

perfectly restores the inherent color of the image

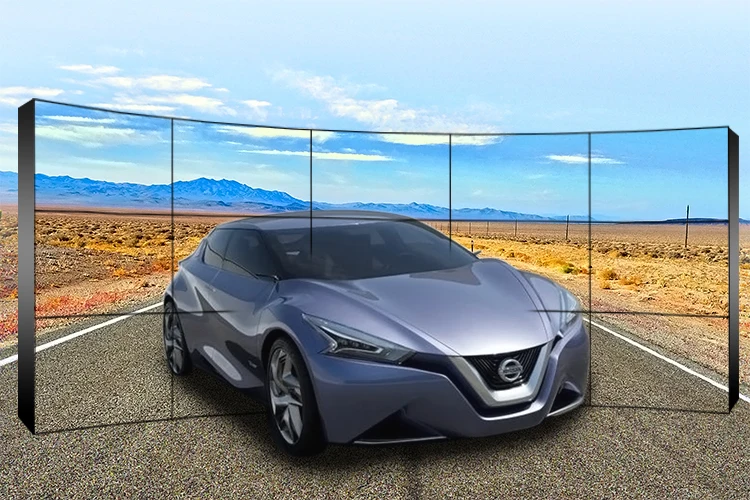

178 ° viewing angle

Viewing angle of 178 °, clear display no matter where you look at

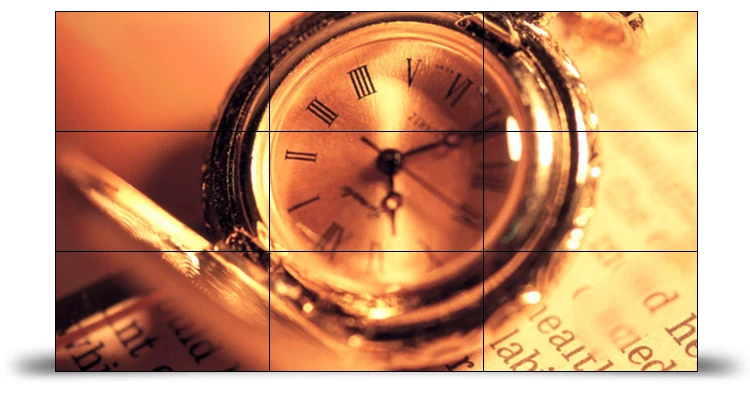

3D noise reduction technology

Reduce the loss of pixels during signal transmission, making the picture more delicate and beautiful



Before noise reduction                                           After noise reduction





Energy saving, low consumption, stable operation

With recycling resources and low power consumption design,

it can be continuously used for 7*24*365 without downtime,

and the backlight life can reach 60000 hours

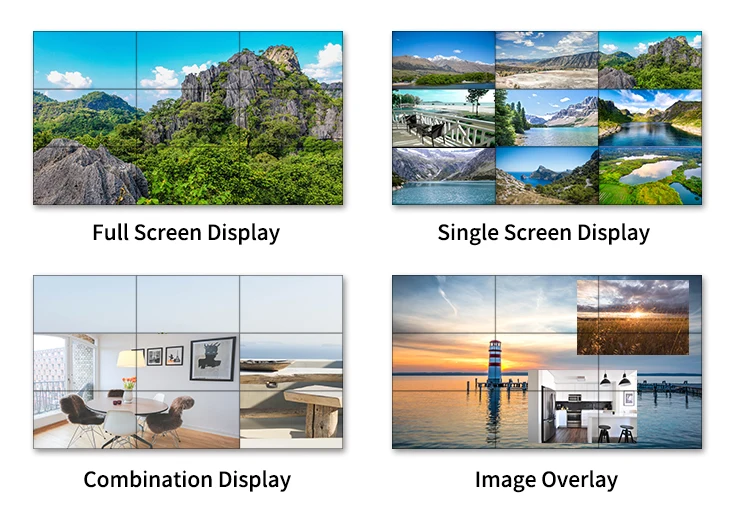

Arbitrary screen display

According to various occasions, realize different splicing methods to meet various needs



                  Splicing method







                       Product Details

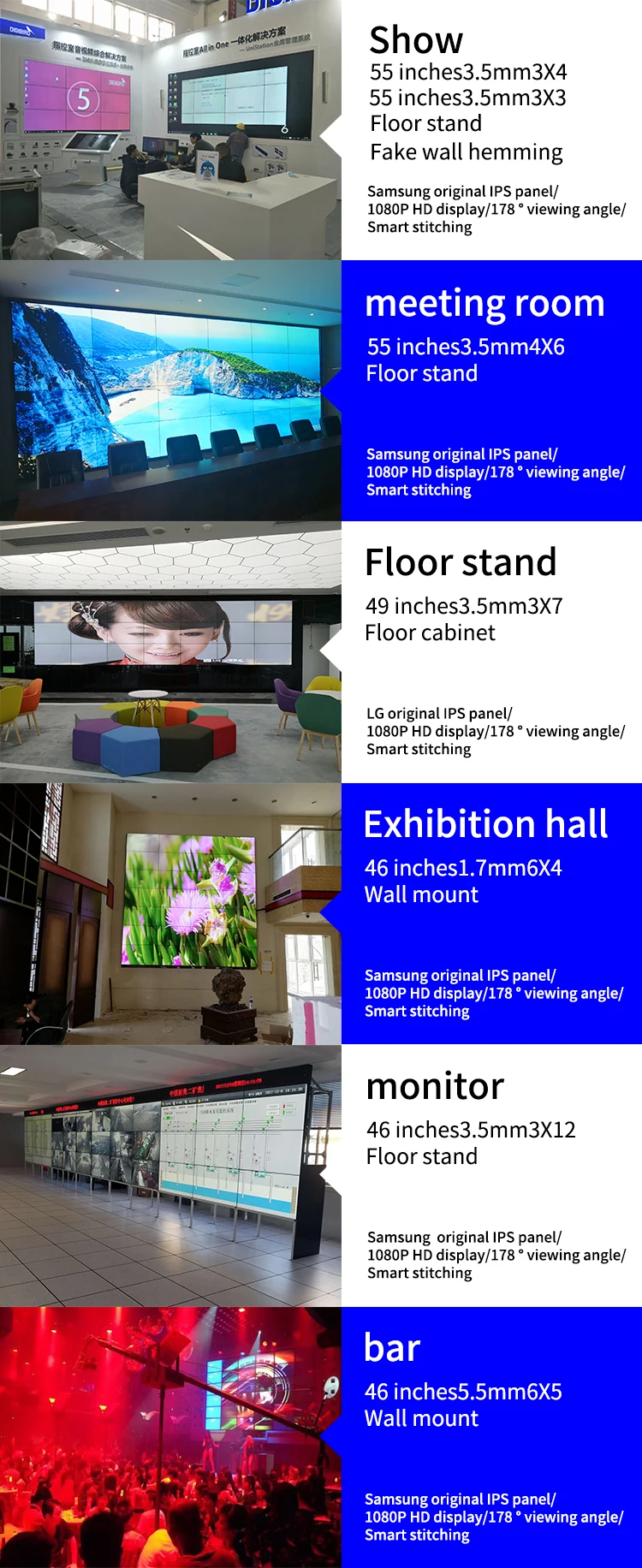

                           Successful cases

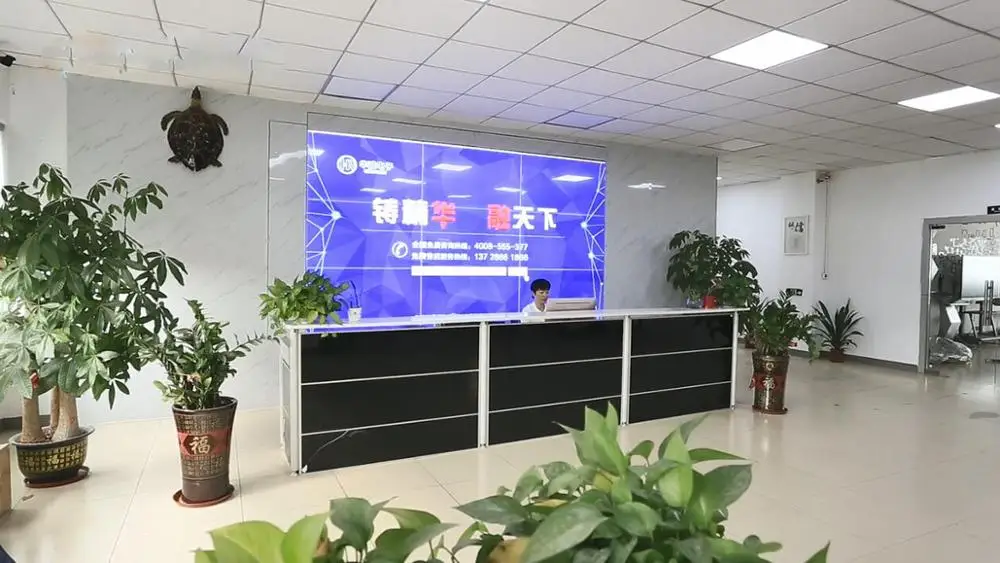

Shenzhen Huarong Electronic Technology CO., LTD.

is a large-screen manufacturer integrating R & D, production, and sales. It specializes in DID LCD splicing screens, DLP rear-projection large screens, small-pitch LED displays, LCD monitors, and touch all-in-one machines. High-end display products are in a leading position in the large-screen display industry. At the same time, the HUARONG brand large screens produced have been recognized by the industry and praised by customers for their good quality.  After years of rapid development, it now has self-built standard factories. Equipped with a variety of general and special production equipment, high-speed automated production lines, and Japan's imported testing and analysis instruments, while employing high-quality management personnel and R & D technicians in the industry.

 The company cooperates with domestic and foreign merchants with rigorous work attitude, high-quality products and integrity, and a win-win business purpose. The company has always been adhering to the development concepts of "talent is the foundation of the enterprise" and "building a first-class enterprise, creating a first-class brand", and always keeps "quality is life". Based on market management ideas, we strive to make the [HUARONG] brand a well-known brand with international competitiveness.





                           Packing & transport



 Our certification:

FAQ:

1:What is the warranty of your led display?
A:We offer 12 months warranty. and more than 100000 hours screen life span

2:what is your payment term? How long it takes to delivery?
A:We usually accept the T/T or L/C. both of them will at least 30% deposit in advance, and the rest of 70% will paid before delivery. The lead time is usually 20 day

3:How can you ensure the led display product quality?
A:Before shipment , all the screens have aging test. and then we also have waterproof test and shake test, ensure products can transportation safety and normal use.

4:What is your pre-sale and post-sale service?
A:For pre-sale service, we have professional sales team and technical team, who are willing to answer your question within 24 hours.

For post-sale service, we will instruct you how to installation ,how to use, how to change the broken modules , and we can also send the technical  to your country, in general, our led display will not have a big problem, you can rest assured to buy..
