Тяжелый грузовик-эвакуатор FAW 4x2 220hp грузоподъемность 10 тонн 8 2 м Грузоподъемная платформа

Описание и отзывы

Характеристики

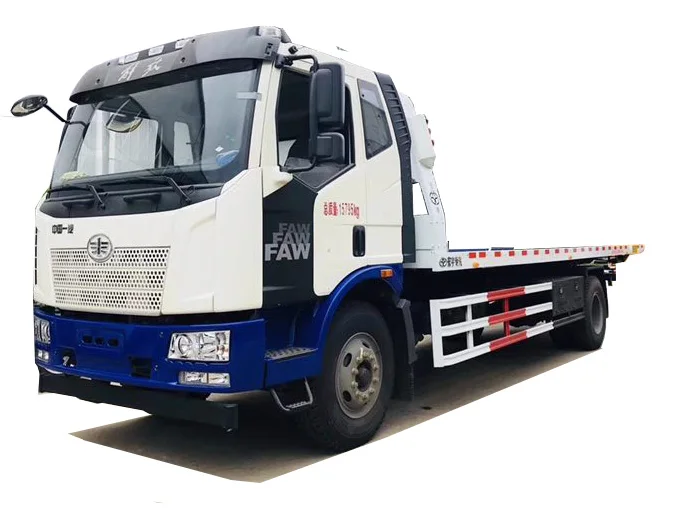

FAW SLIDE TRAY TOW TRUCK

Main Feature :

• Loading Plateform length : 8.2 m  flatbed plate , 7m+1.2 m folding plate , fulling landing type 8.2m plate
• Plate bearing capacity : 10 tons !
• Rear towing boom towing capacity : 10 tons !

Specification List of the 8.2m slide tray truck

FAW J6 HEAVY DUTY FLATBED TOW TRUCK SPECIFICATION LIST
VEHICLE	PALTE MODEL	FLATBED WRECKER
	MODEL	CLW5165TQZC5
	Overall dimension	10600*2550*2870 mm
	Total weight	15795 kgs
	Curb weight	11000 kgs
Chassis	Brand	FAW JieFang
	Cab	J6
	Wheelbase	5800 mm
	Engine	165 kw  , 224hp
	Tire	10.00R20
Wrecker body	folding plate	7000 mm main plate +1200 mm foling plate
	Straight plate	8200 mm
	Fulling landing plate	8200 mm
	Width	2550 mm
	Ground clearance	1400 mm
	Winch	8 T
	Plate bearing capacity	10 T
	Back boom length	2200 mm
	Back boom towing capacity	10 tons

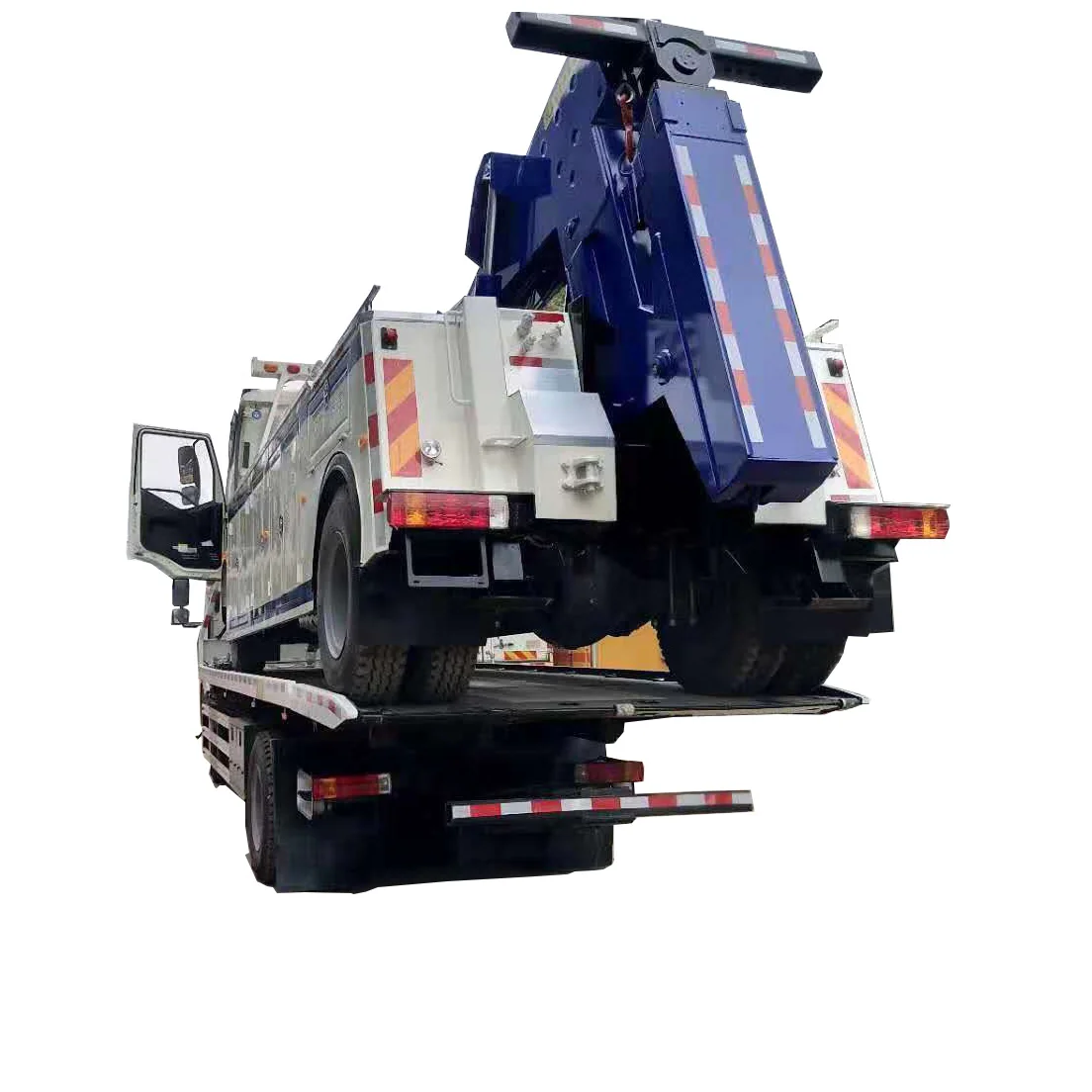

It can load a 10 m length  truck .



We can provide you different type tow truck . If you are interested in it , please call us at :0086-13872885676 whatsapp , wechat .



Related Wrecker / Tow truck for sale

We can provide you road recovery truck from 3 tons to 60 tons . It includes flatbed wrecker , crane type wrecker , rotation type wrecker .

Also , we can provide you the wrecker body only . We can design wrecker body accoring to your chassis information .

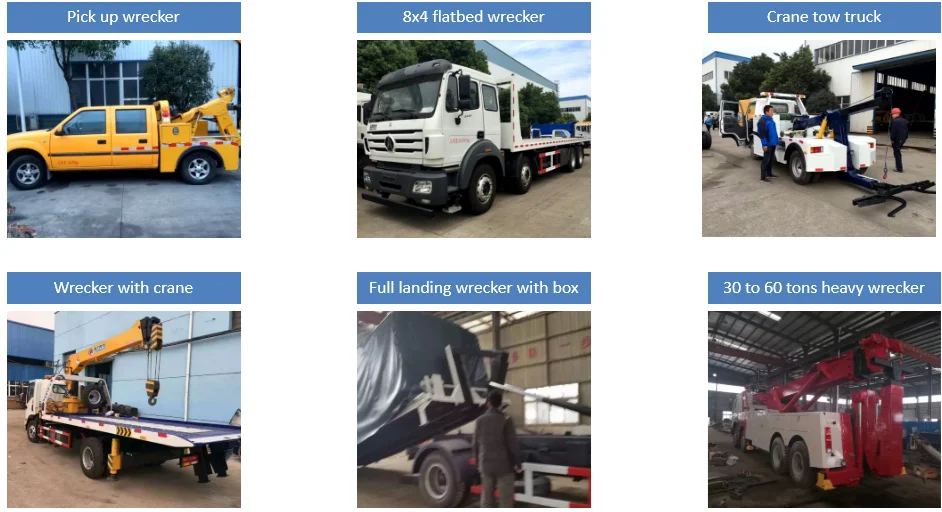

Different types road recovery vehicle / breakdown truck for your choice .

Different parts for your choice too . We just show you a little here . We can provide you many different types parts .

If you need it , please how us your request .. Free parts will be sent to you also .



PURCHASING GUARANTEE:

We are the biggest truck and trailer manufacture in China now . We have full sales and after-sales  service .

Certificate : ISO9001 , CCC , PRODUCTION LICENSE , EXPORT LICENSE , ASME FOR PRESSURE VESSEL, ADR FOR FUEL TRAILER , SGS /BV THIRD PARTY INSPECTION SERVICE , COC FOR KENYA , SONCAP FOR NIGERIA , GCC  FOR SAUDI ARABI ........

Our factory is  developing every day !





And most of customer are willing to visit us  to inpsect our factory and products . We will arrange your accomodation and meal.

Please send us your inquiry as soon as possible . We are willing to be your partner .

Slide tray tow truck
