Product Description
FP05 Free SDK Biometrics GSM Hand Biometric Scanner for Workers Clock IN
FP05 is one of HFSecurity's best selling Android fingerprint handheld terminal. It is Android 7.0 based and with 4G communication. Has been widely used for e-government, banking, telecom, NGO associations, education, etc. The fingerprint sensor is ISO 19794-2 and ANSI 378 standard, compatible with most Biometric national databases. Open free SDK for integration.
Specification
Hardware: | |||||||
Color | Black(yellow cover） | ||||||
Storage | 2G RAM/16G ROM | ||||||
LCD display | 5”, 1280*720; Optional protection screen glass Capacitive panel, multi-point touch, G+G | ||||||
NFC card | Support ISO/IEEC1443 Type A & B, 13.56MHz | ||||||
Battery | DC 3.7V/8 4000mAh | ||||||
SIM card slot | Support 1 SIM card slot | ||||||
Camera | Rear: 8.0M | ||||||
Charger | Type C cable | ||||||
Barcode | Optional 1D/2D, PDF417 scanner | ||||||
Rugged | Rugged IP65 | ||||||
OTA | Support (Can update firmware & app remotely via OTA function) | ||||||
Operating temperature | -20℃ to + 70℃ | ||||||
Certificate | CE, ISO9001, GSM TAC certificated | ||||||
Holder | Wall-mounted holder & Kiosks holder is optional | ||||||
Dimension | 5”, 1280*720; Optional protection screen glass | ||||||
Others | G-sensor: Gravity acceleration sensor MIC: Built-in microphone Speaker: Built-in stereo speaker 8Ω/1.5W TF: 1x mini SD card up to 32G Earphones: 3.5mm stereo phone jack | ||||||
Packge Accessories | Device bag, Screw driver, adapter, USB cable | ||||||
OEM | Logo, Start-up Flash | ||||||
Software | OS: Android 7.0 CPU Professor :Quad-core, 1.5G, Android 7, MTK6737 | ||||||
Extra support | ODM logo Can optional wall-mounted metal box | ||||||
Fingerprint Sensor | Image Size: 256*288 pixels Image resolution: 500DPI Gray Scale: 8-bit (256 levels) Imaging Area: 10.4mm*14.4mm Standard: Support ANSI378, ISO19794-2 Image Format: WSQ, JPG, BMP, etc. | ||||||
GPS | Monitor location in real time | ||||||
SMS | Send message to parents( widely used in school) | ||||||
Communication | Data link 2G: GSM CDMA 850/900/1800 MHz 3G: WCDMA 2100/1900/900/8500MHz (Can do customization according to clients country details) 4G: B1 B2 B3 B5 B8 B38 B39 B40 B41 (Can do customization according to clients country details) Wi-Fi: 802.11 b/g/n USB :Type C with OTG function Bluetooth Bluetooth 4.0 | ||||||
SDK | Free, come with device | ||||||
Details
Demo & Cloud Software
Will offer free SDK and DEMO for 2nd software development .Optional paid time attendance management software, which include mobile app and cloud software. Cloud software is hosted on Linux server. Admin can login to anywhere to check.
Screen Picture of Free Demo
Optional Cloud Time Attendance Management Software.
Successful project
Refugee Registration management in South Sudan
Healthcare management: used in hospital to manage patients
Bank application: UBL banks in Pakistan, enroll users' fingerprint together. Restaurant management: manage workers .
Police management: identify citizens.
School management: manage students, teachers and workers. Include course management, examination management, school bus management.
Others: farmers' management, sim card registration in Telecommunications, E-voting etc.

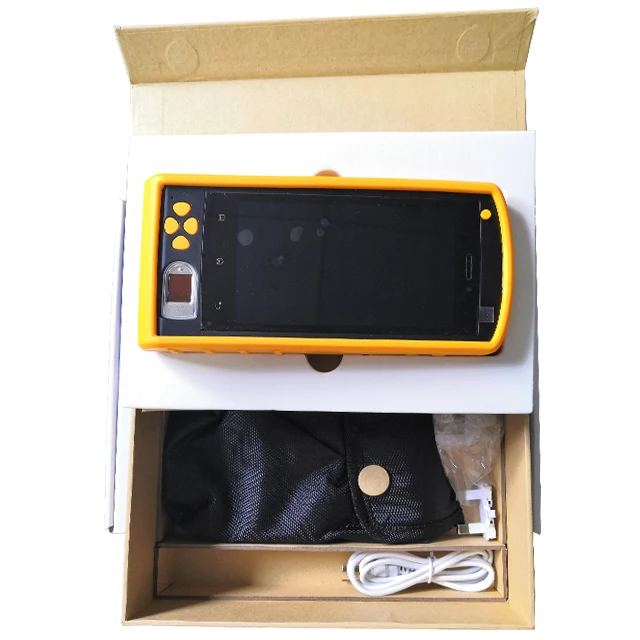

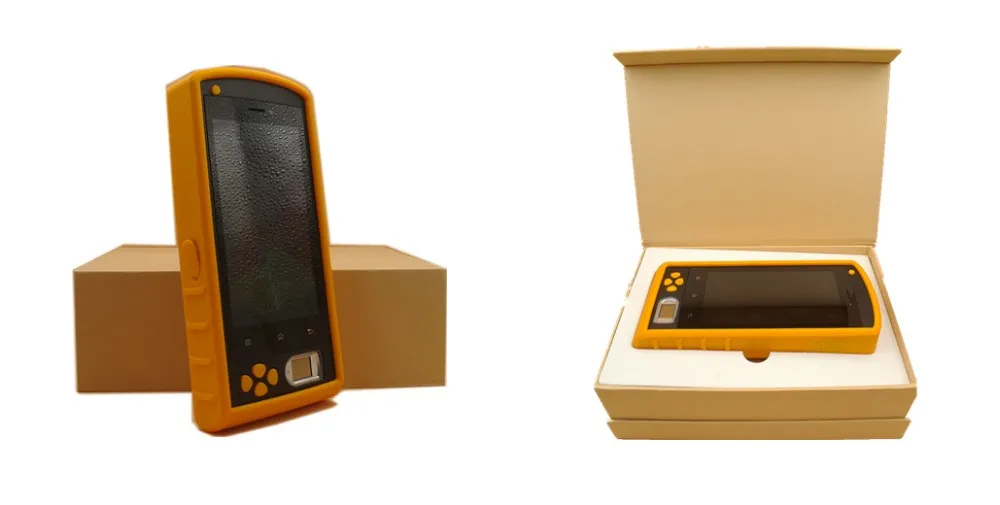

Package
Related Products
Company Profile
Our brand is HFsecurity. Factory is in shenzhen, focus on manufacture Biometric product and solution since 2005. We have regular products, also OEM/ODM. Already assisted customers to finish many projects, refer to President Election, SIM card registration, Users enrollment and identification for banks, Healthcare, Farming and Schools etc.
FAQ
F:Do you offer warranty for the device?Q:Yes,we offer one year warranty,also life soan technical support
F:What is your MOQ
Q:MOQ is 2pcs
F:What is your payment term?
Q:Paypal,T/T(Bank Transfer),Western Union,Cash,Visa and Credit Card
F:How to get software and SDK?
Q:Software and SDK is free.Will send download link after you place order.
F:What is your MOQ
Q:MOQ is 2pcs
F:What is your payment term?
Q:Paypal,T/T(Bank Transfer),Western Union,Cash,Visa and Credit Card
F:How to get software and SDK?
Q:Software and SDK is free.Will send download link after you place order.
