Introduce of Auto Feeding Weighing Mixing



Relying on the different material properties, we select the proper transmission method to combine with the hot/cold mixer as well as the devics of automatic metering, dosing system, transfer hopper and recycling hopper in connection with the extruder,which shapes a fully-exclosed and dust-free producing chain.



By such way, we get the improvement of mixing work environmental and capablity to meet the production requirements in large quantity, high quality , low cost and high effiency.



Advantages of auto dosing mixing loading system

Reduce the loss raw materials

Contamination free handling of all raw material. Reduce spillages of costly raw material.

Automatic control system

Less human involvement leads to less human errors.

Auto control system to monitor whole processing.

Protect the environment

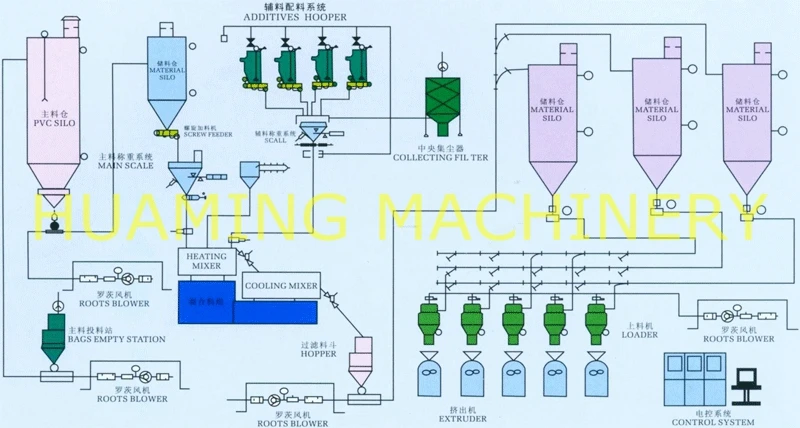

No.	Item	Quantity
1	PVC loading station	1set
2	CaCO3 loading station	1set
3	Auto vacuum sucking and dosing system	1set
4	Additive loading and central de-dusting system	1set
5	Non-dust loading silo	5set
6	Additive auto dosing system	1set
7	Mixer group  SRL  and de-dusting system	1set
8	Dry blend vacuum sucking system	1set
9	PLC auto control system	1set
10	Electric wire cable and bridge, supplied by USER	1set
11	Package & transportation	1set



1. Pneumatic conveying system

- Suction conveying system from manual loading to pvc electronic scale, transportation capacity Kg/h, transportation distance: vertical meters, horizontal meters.

- Dense-phase Conveying System of dry mixing material: kg/h, conveying distance: vertical meters, horizontal meters.

- Suction conveying system from dry mixing material to extruder: conveying capacity: Kg/h, conveying distance: vertical meters, horizontal meters.

2. Storage system

- PVC silo: stainless steel material

- CaCO3 silo: stainless steel material

- Additives hopper: stainless steel material

- Dry mixing bin: stainless steel material

- Extruder transition hopper: stainless steel material

3. Automatic weighing system

- one set of electronic scale for auxiliary materials: loading weight&accuracy

- one set of CaCO3 electronic scale: loading weight&accuracy

- one set of PVC electronic scale: loading weight&accuracy

4. Mixing system

- one set of horizontal mixing unit: A kg/ batch

- mixing capacity per hour: batch B.

- annual mixing capacity:  5 batches/hour per set;

A kg * B * 2 = kg/h

5. Computer control system

Siemens S7-200 PLC is used for automatic control of the whole system, and imported IPC is used for monitoring and management. The whole process is equipped with automatic and manual control, dynamic graphic display, fault alarm and material management, historical data recording and tracking capabilities.

6. Others

-Total power: KW

-air compression

 Cleaning bag filter: dry and oil-free compressed gas, minimum  Mpa;

Pneumatic components use: dry compressed air at least  Mpa;

Installed capacity of air pressure station:  / min,

Cooling water, soften water/h. ℃, water pressure, kg/cm2
