Factory Direct Sale Hot Anchoring Cable Insulation Piercing Clamps for Power Distribution System
Product features
1.Used for branch connection of insulated cable for building distridution system,connection of LV overhead insulated cables, branch connection of LV insulated service-entrance cable.distridution system of streetlight,etc.
2.Mainline: Insulated copper or aluminium
3.Branch line: Insulated copper or aluminium
4.Live-line work or power-cut work is allowable

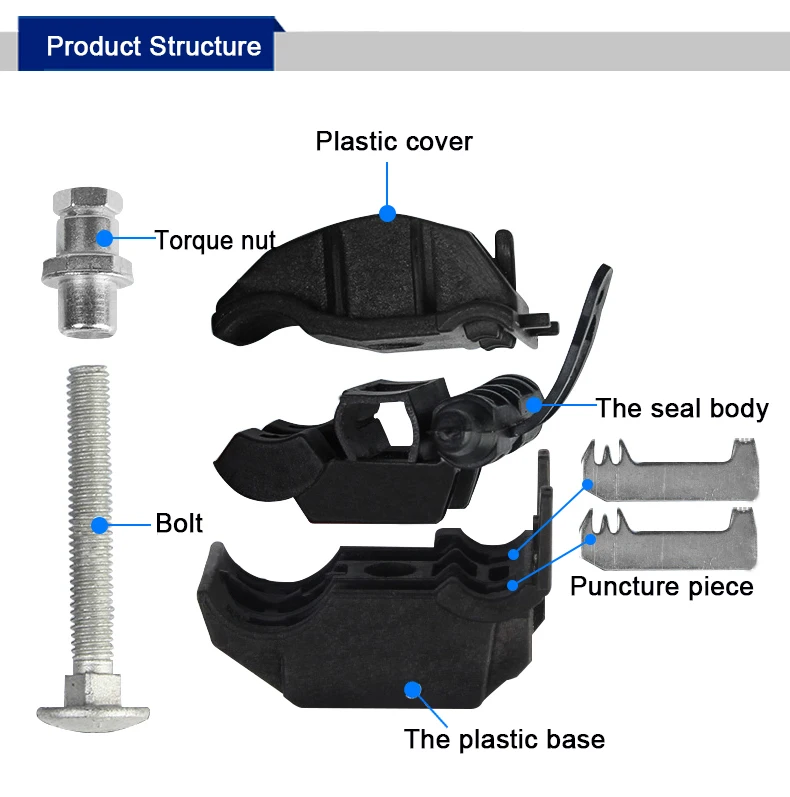

5.Main body of connector is made of high strength insulating material that anti mechanical change or climatic variation.

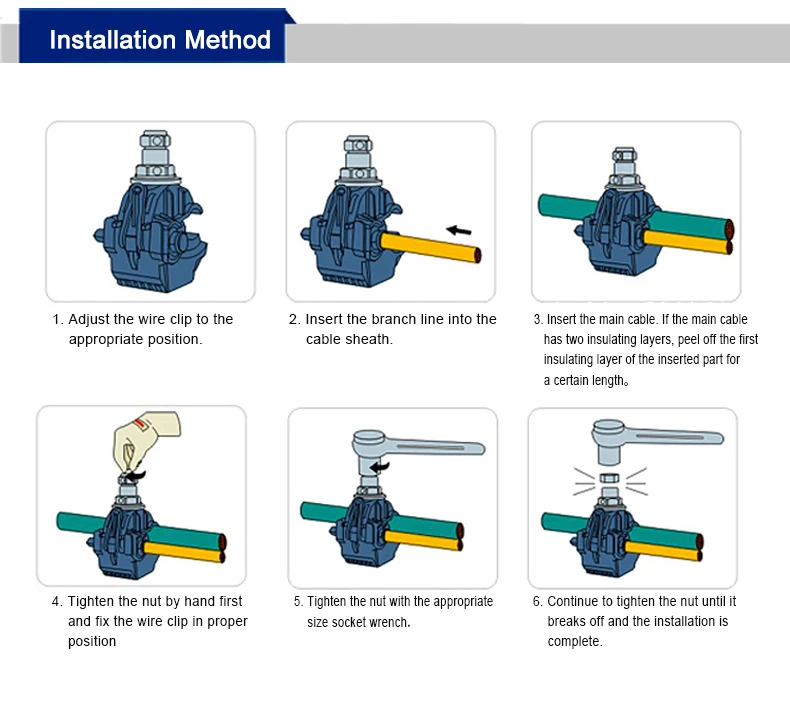

6.The screw that is equipped with fastening torque nut is anti-corrosion treated,the torque nut enables the installation to be much simple, safe and quick, its constant puncturing pressure guarantees best electrical effect for the cable connection.
7.The connector is featured with property of waterproof, it is able to withstand voltage of 6KV in water without breakdown phenomenon.
8.The waterproof sealing end cap of branch line prevents water from entering into the branch connected conductor.lt can be branched on the letf or right side according to the demard.
specification
| Mode | Applicable voltage | Main line(mm2) | Branch line(mm2) | Nominal current(A) | Dimension(mm) | Bolt number |
| FJ6/HYJ-35 | 1 | 1.5~35 | 1.5~10 | 63 | 27x41x62 | 1 |
| FJ6/HYJ-95 | 1 | 16~95 | 1.5~10 | 75 | 27x41x63 | 1 |
| FJ6/HYJ2-95 | 1 | 16~95 | 4~35(50) | 138 | 46x52x87 | 1 |
| FJ6/HYJ2-150 | 1 | 50~100 | 6~35(50) | 140 | 46x52x87 | 1 |
| FJ6/HYJ3-95 | 1 | 25~95 | 25~95 | 214 | 52x61x95 | 1 |
| FJ6/HYJ3-120 | 1 | 16~120 | 16~120 | 299 | 52x61x95 | 1 |
| FJ6/HYJ3-150 | 1 | 35~150 | 35~150 | 316 | 52x61x95 | 1 |
| FJ6/HYJ4-185 | 1 | 70~185 | 25~95 | 276 | 52x68x100 | 1 |
| FJ6/HYJ4-240 | 1 | 120~240 | 25~120(150) | 399 | 52x68x100 | 1 |
| FJ6/HYJ5-185 | 1 | 70~185 | 6~35 | 275 | 52x68x100 | 1 |
| FJ6/HYJ5-240 | 1 | 120~240 | 6~35 | 395 | 52x68x100 | 1 |
| FJ6/HYJ5-300 | 1 | 150~300 | 6~35 | 420 | 52x68x100 | 1 |
| FJ6/HYJ6-240 | 1 | 95~240 | 95~240 | 425 | 83x130x130 | 1 |
| FJ6/HYJ6-300 | 1 | 95~300 | 35~240 | 427 | 83x130x130 | 1 |
| FJ6/HYJ6-400 | 1 | 240~400 | 35~240 | 430 | 83x130x130 | 1 |

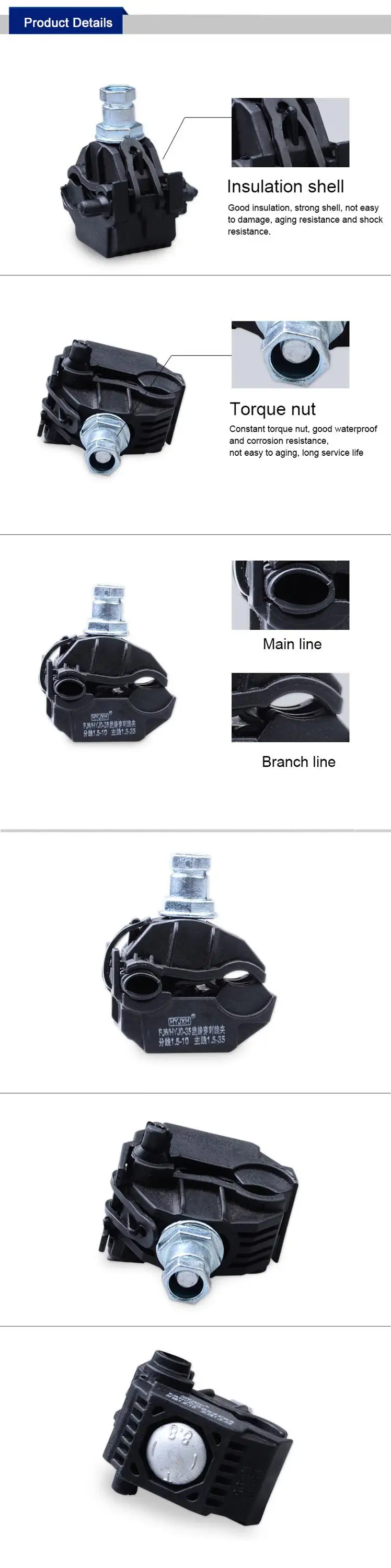

Product display
FAQ
Q1: What's the payment terms?
A: T/T 30% as deposit, and 70% before delivery, We'll show you the photos of the products and packages before you pay the balace.
Q2: What's the delivery time?
A: If not very big quantity, we can send the goods as soon as possible after recieve payment. If big quanity, the lead time need according to the quantity.
Q3: What's the standard of package?
A: Export standard package or special package according to customer requirement.
Q4: What kind of product quality your factory offer?
A: We offer most competitive prices with best quality.
Q5: Which market do you already sell?
A: We already ship to North America, Europe, Middle East, Southeast Asia and so on.
Any problem, please don't hesitated to contact us!
