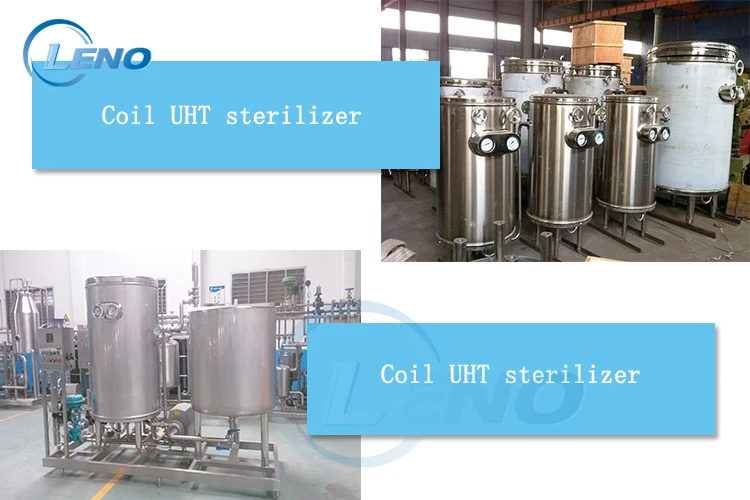

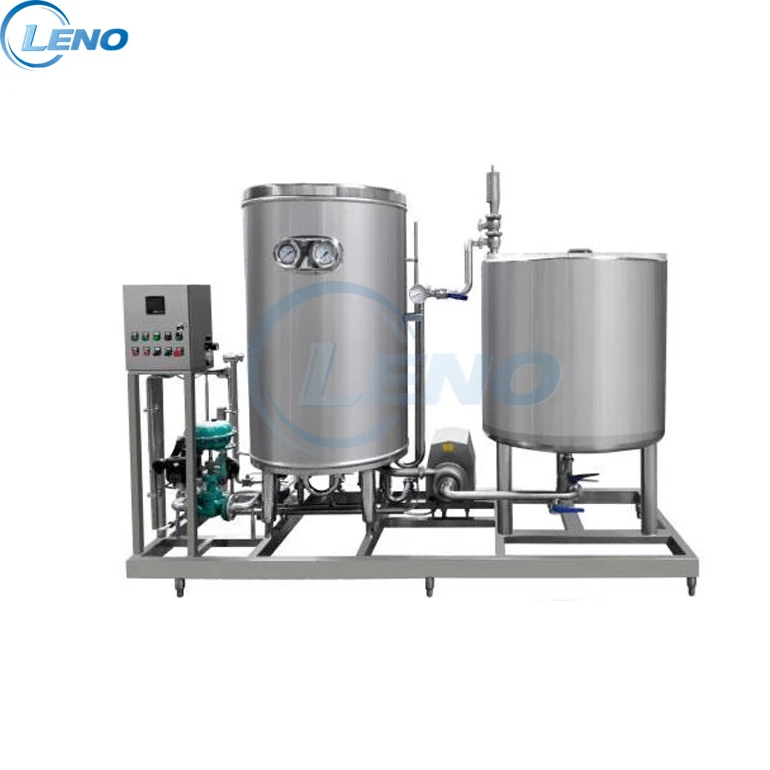

Stainless stseel food machine Coil tube UHT sterilizer
| Stainless stseel food machine Coil tube UHT sterilizer | |||
| Profile/type | Coil sterilizer | ||
| Material | SS304 or SS316L | ||
| Capacity | 1T/H-6T/H (Customized) | ||
| Heater type | Electric heating / Steam heating | ||
| The Working Temperature | 115-135℃ (According to customer requirements) | ||
| The Working Pressure | ≤0.8Mpa | ||
| Holding time | 4~6S | ||
| Outlet Temperature | ≤65℃ | ||
| PARTS DETAILS | 1.Snaitary PUMP | ||
| 2.Control Valve | |||
| 3.Backflow tanks | |||
| 4.Adjustable Legs | |||
| 5.Inlet and Outlet sanitary valve. | |||
| 6.Thermometer (According to customer requirements ). | |||
Drawing
| Model | Product capacity(T/H) | Sterilizing temperature (℃) | Motor power(KW) | Warmkeeping time(S) | Outlet temperature(℃) | Extermal dimensions(MM) | Weight(KG) |
| LNY1000 | 1000 | 115-135℃ (According to customer requirements | 2.2 | 4~6S (According to customer requirements) | ≤65℃ | 920x920x1400 | 280 |
| LNY2000 | 2000 | 2.2 | 1100x1100x1700 | 380 | |||
| LNY4000 | 4000 | 4.0 | 1200x1200x1800 | 550 | |||
| LNY6000 | 6000 | 5.5 | 1400x1400x2000 | 700 | |||
| we can design drawing according to your requirement. | |||||||
Application:Stainless stseel food machine Coil tube UHT sterilizer
1.Coil sterilizer for milk sterilization, juice sterilization, beverages sterilization and other liquid food sterilization.Capacity various from 0.5T-20T
2.Coil sterilizer complete sets of equipment is designed for milk, dairy products, fruit juices, drinks, beer and other liquid materials designed for sterilization equipment. Using manual, semi-automatic, fully automatic three control systems, control components are brand-name products, including industrial PLC programmable controller and screen, the steam valve, control valve, diverter valve, pump and heat pump materials. Other valves and pipe fittings and other fluid accessories selected high quality standards for all products. According to technical requirements of different users, the combination of different process design.
2.Coil sterilizer complete sets of equipment is designed for milk, dairy products, fruit juices, drinks, beer and other liquid materials designed for sterilization equipment. Using manual, semi-automatic, fully automatic three control systems, control components are brand-name products, including industrial PLC programmable controller and screen, the steam valve, control valve, diverter valve, pump and heat pump materials. Other valves and pipe fittings and other fluid accessories selected high quality standards for all products. According to technical requirements of different users, the combination of different process design.
Certifications
Buyer Feedback
Packaging & Shipping
FAQ
| Q1 | Are you trade or manufacturer? |
| A | We are a factory with an international sales company specialized in support for global distributors. |
| Q2 | Can you provide instant technical consulting services? |
| A | We are able to discuss technical details and offer suggestions over the phone in English. You can get the answers in minutes, instead of days. |
| Q3 | What's the difference between Ready-To-Ship and Customized products? |
| A | Some of RTS standard products are in stock and ready to ship in 2-3 days. |
| Q4 | What is the payment terms? |
| A | We accept Alibaba Trade Assurance Order, also can T/T and L/C. |
| Q5 | How to choose the shipment way? |
| A | It is according to the order quantity, delivery time, costs and customs policy etc. (Or decide by customers) |
| Q6 | How about the after-sales service? |
| A | Fast after-sales support. Our products have a one-year warranty and free permanent consulting services. |
