TK-7Y регулятор солнечного нагрева воды под давлением
US $10.00-$30.00
Солнечный водонагреватель высокого давления 100l 150l 180l 200l 250l 300l 500l 700l 1000l
- Категории: Solar Water Heaters >>>
- Поставщик: Haining,Qiruite,Imp&,Exp,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Quickly Key points
Split Pressurized Hot Water Solar Bolier Heating System | ||||||||
Water Tank Capacity | 100 liter to 2000 liter | Work Pressure | 0.6Mpa(6bar) | |||||
Solar Collector | heat pipe solar collector | Heat Preservation | 72 hours | |||||
Work Station | SR series | Heat Exchanger | Copper coil/Stainless steel coil | |||||
Split Pressurized Solar Bolier Hot Water Heating System (HSP-58)
(100L 150L 200L 250L 300L 400L 500L 600L 700L 800L 1000L 2000L)
A Home Comfort solar water heater system that utilise the free energy from the sun.
1)Strong hydraulic pressure hot water system
2),CE, SOLAR KEYMARK EN12976 certified solar water heater system
3),Factory price
4), Factory audited by SGS.
A Home Comfort solar water heater system that utilise the free energy from the sun.
1)Strong hydraulic pressure hot water system
2),CE, SOLAR KEYMARK EN12976 certified solar water heater system
3),Factory price
4), Factory audited by SGS.

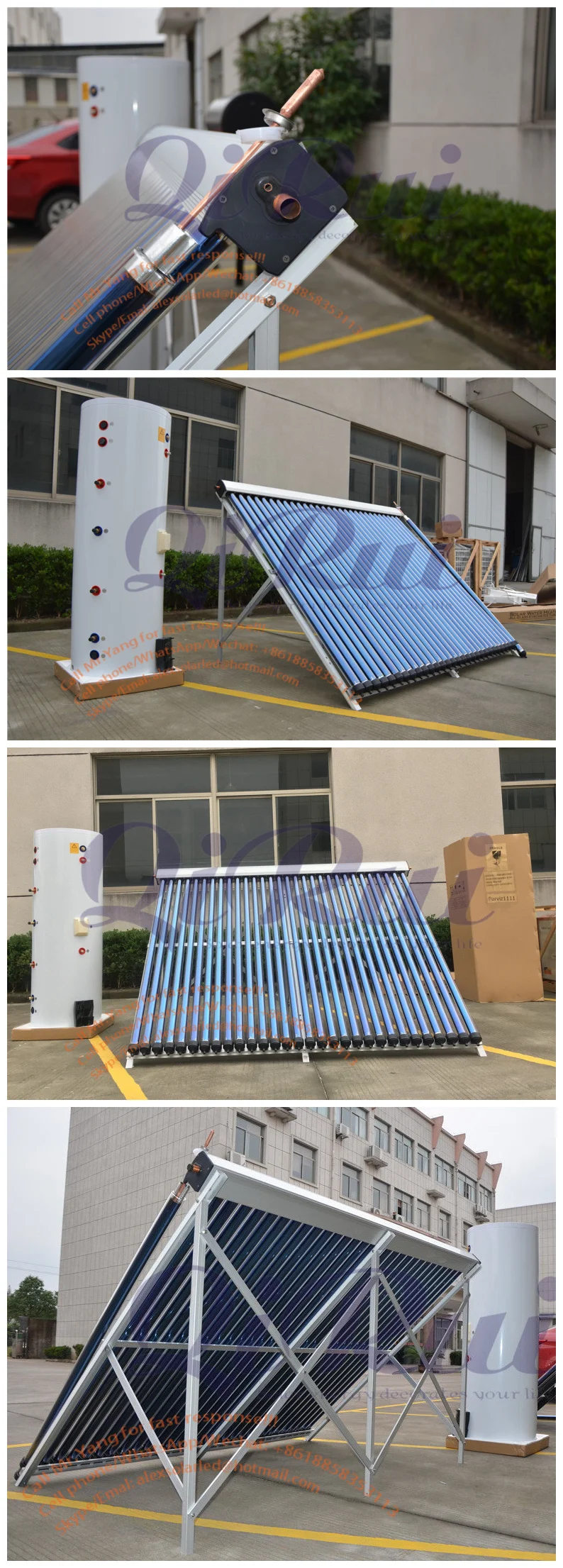

Details Images

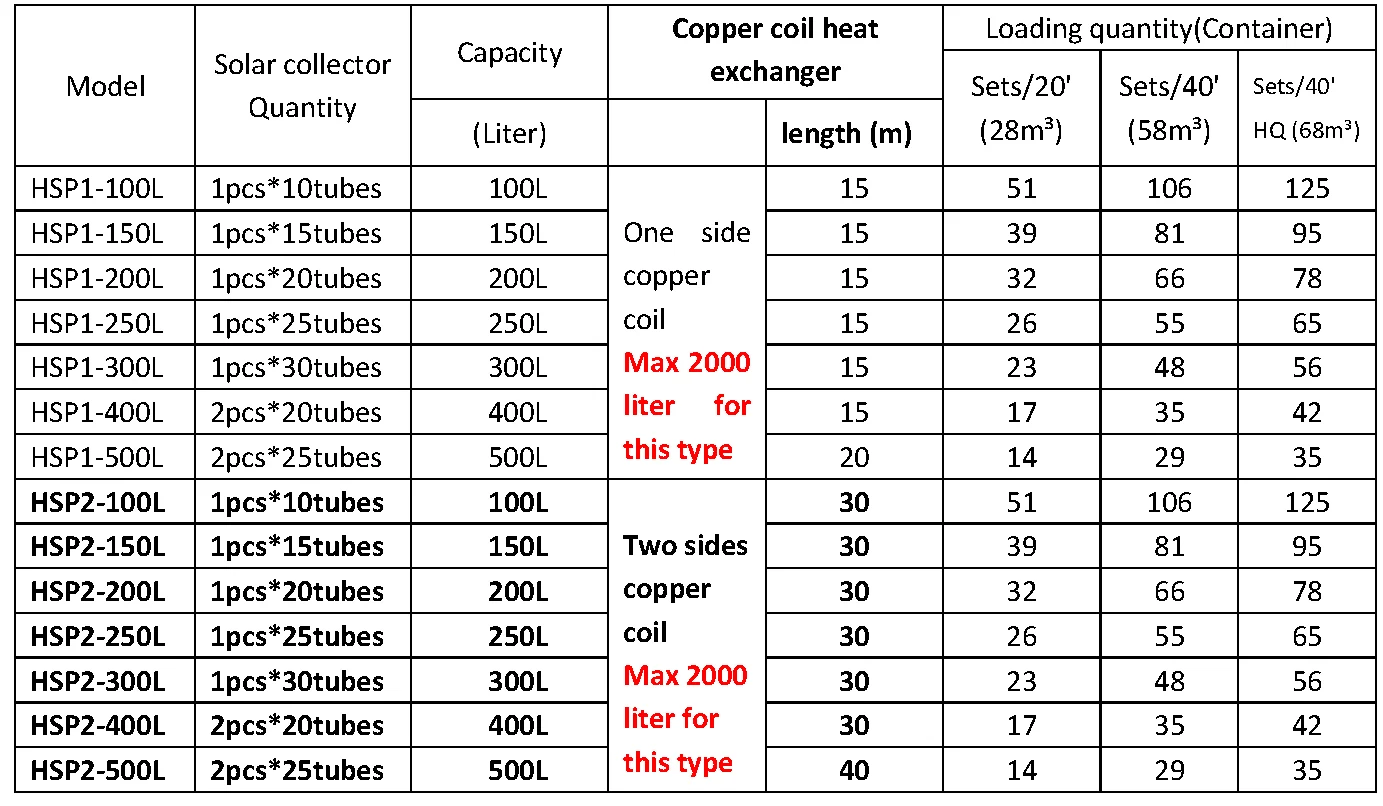

Product Paramenters

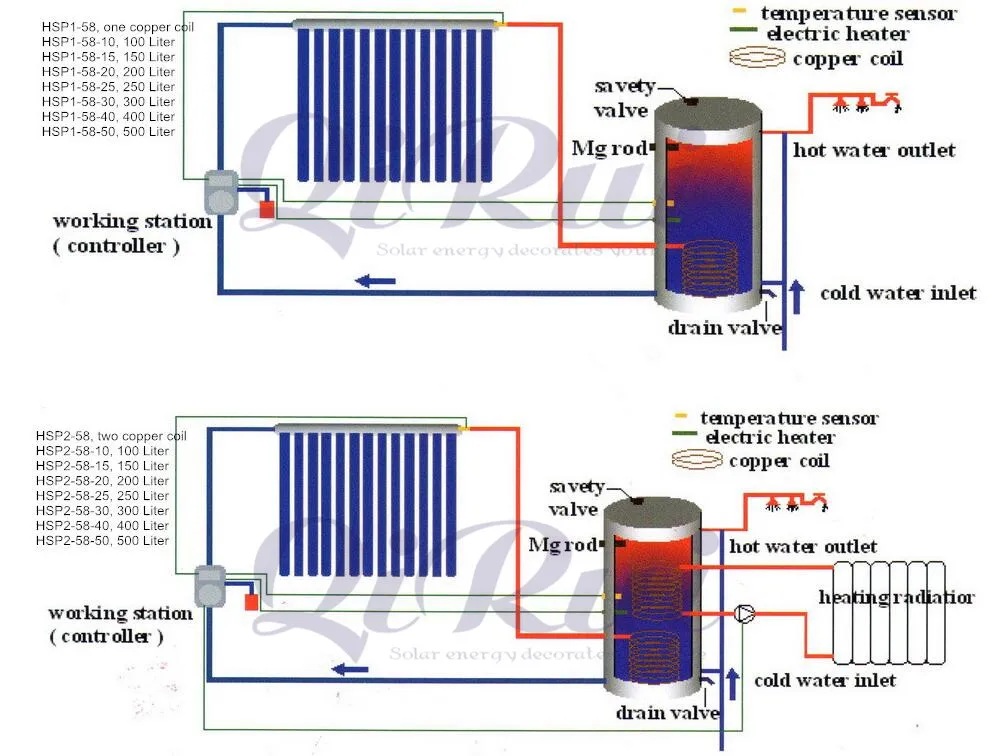

Vacuum Tube Solar Water Heater Work Principle:
Through a thermosiphon effect (in which hot water rises), hot water circulates between the collectors and the water tank while there is sun and is stored at the end of the day in an insulated tank.
Split High Pressure Solar Heating System Features
1.Strong hydraulic pressure makes your bath more comfortable: pressurized design with strong hydraulic pressure you can have hot water heater when you turn on your tap. The water rushes out with strong hydraulic pressure make your bathe more comfortable.
2. Modularized collector, arbitrary combination: collector consists of efficient heat pipes. Arbitrary combination according to your demand can supply enough hot water any time for your family.
3. Intelligent controlling: competitive and intelligent controlling system more convenient. You can know the temperature of water anytime via controller. The system controller has the anti-freezing function is that the temperature circulation will operate while it reaches the fixed temperature
4. Arbitrary combination with structure of the house: The collector can be put on both tilted roof and flat roof
5. Anti-freeze: No water inside the tubes when it works, and the system controller has the anti-freezing function is that the
temperature circulation will operate while it reaches the fixed temperature
2. Modularized collector, arbitrary combination: collector consists of efficient heat pipes. Arbitrary combination according to your demand can supply enough hot water any time for your family.
3. Intelligent controlling: competitive and intelligent controlling system more convenient. You can know the temperature of water anytime via controller. The system controller has the anti-freezing function is that the temperature circulation will operate while it reaches the fixed temperature
4. Arbitrary combination with structure of the house: The collector can be put on both tilted roof and flat roof
5. Anti-freeze: No water inside the tubes when it works, and the system controller has the anti-freezing function is that the
temperature circulation will operate while it reaches the fixed temperature
6. Multifunction: Bathing, washing, domestic heating
Solar Collector of solar Water Heater System
1. Manifold: aluminum alloy 2.0mm outer, copper chanel inner
2. Vacuum tube dimensions: 58mm x 1800mm, three target vacuum tube
3, Bracket: 2.0mm aluminum alloy
1. Manifold: aluminum alloy 2.0mm outer, copper chanel inner
2. Vacuum tube dimensions: 58mm x 1800mm, three target vacuum tube
3, Bracket: 2.0mm aluminum alloy
Water Tank of Solar Water Heater SYSTEM:
1. stainless steel 304-2B inner tank, Galvanized steel outer tank.
2. Copper coils(single or two sides): Φ16mm,thickness1.0mm
3. Insulation thickness (mm): 55mm polyurethane
Work Station of Solar water heater System:
1.Deluxe Solar Pump Station (Including Wilo Pump, Controller, Temperature Sensor, expansion vessel)
System
1.Max. Pressure: 12bar; Operating Pressure: 6 bar
2. Copper coils(single or two sides): Φ16mm,thickness1.0mm
3. Insulation thickness (mm): 55mm polyurethane
Work Station of Solar water heater System:
1.Deluxe Solar Pump Station (Including Wilo Pump, Controller, Temperature Sensor, expansion vessel)
System
1.Max. Pressure: 12bar; Operating Pressure: 6 bar

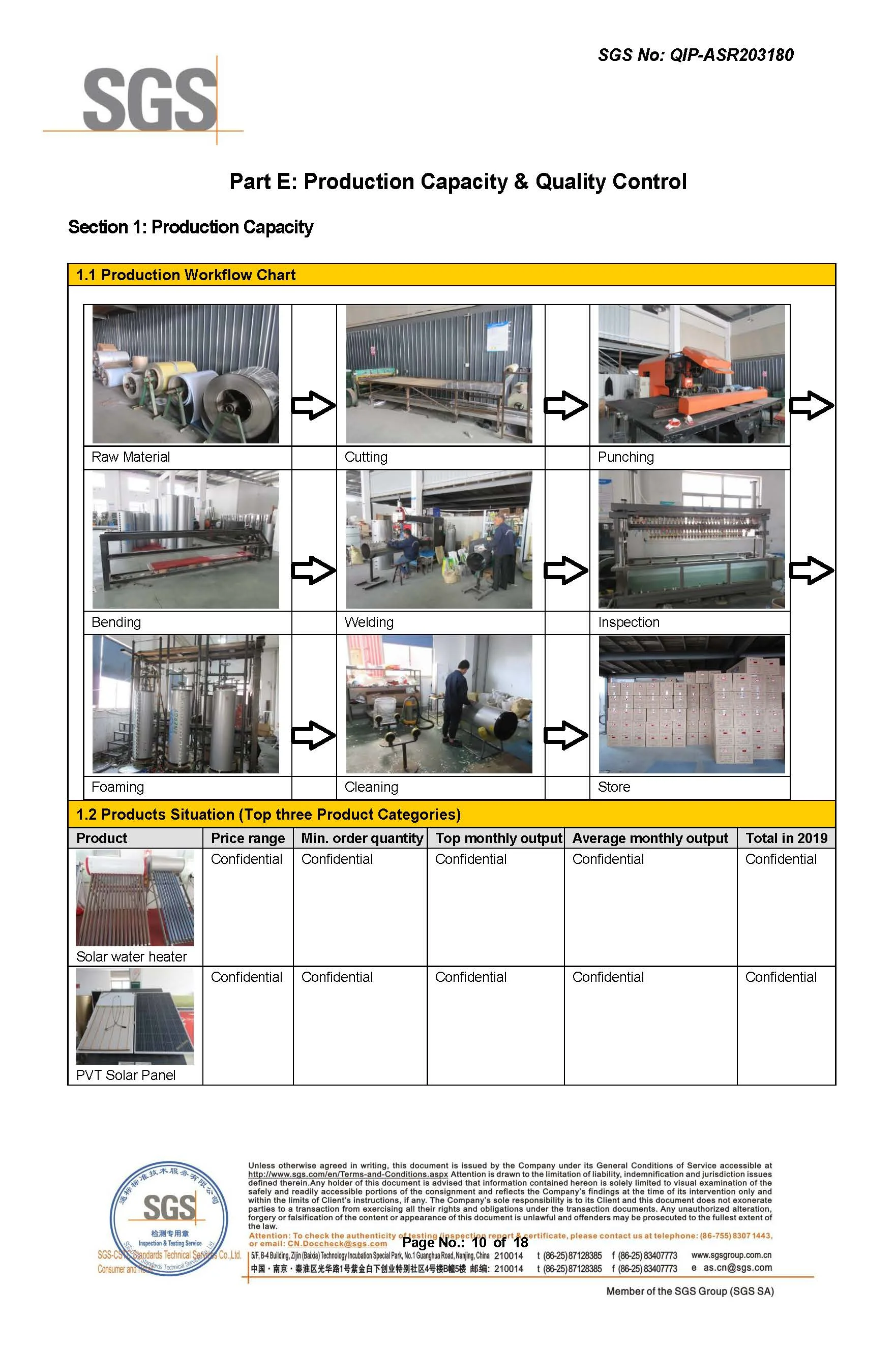

Certifications&Exhibition
Product packaging & Shipping
Container Loading
Professional and experienced team, full loading every container, Save time, Save space, Save money for customers.
Contact Mr. Alex
Contact us
Our factory located at No. 19, Chuangye road, Huangwan Town, Haining city, Jiaxing city, Zhejiang province, China.
All thecustomers' visitation will be warmly welcomed, Including the trading company in China, let us build the long-term win-win business relationship together.
More details, please contact with us directly(Trading company in China will be welcomed also).
Mr. Alex Yang
Skype:alexsolarled
Mobile Phone/WhatsApp/WeChat:+8618858353113
Skype:alexsolarled
Mobile Phone/WhatsApp/WeChat:+8618858353113
QQ:524183190
www.qr-solar.cn
www.qr-solar.cn
Recommend Products
Company Profile
1, Minimum order quantity
1 unit.
2, Guarantee Time
5 years.
3, Brand/LOGO
We can print your brand/LOGO on water tanks, cartons.
4, OEM/ODM service?
Sure
5, Port in China
A, Shanghai/Ningbo by ship.
B, Yiwu
C, Urumchi
D, Guangzhou
6, Delivery time
A, sample order in 7 days
B, 20 feet/40 feet container in 12 days.
7, Trading company or factory?
A, Factory, yes! Since 2001, Produce solar water heaters, solar collectors,
B, Factory, yes! Since 2018, add production line for producing PVT solar panels.
C, Factory, yes! Since 2018, Investment a PU cornice moulding factory, been one of owner.
D, Trading company, yes! Base on our long time working, our team grown up and have rich experiences in production, inspection, export and transportation, we can offer the multiple solutions for customers from different countries.
8, Inquiries, visitation request from China Trading company ok?
Your inquiries and visitation will be warmly welcomed, just call Alex @+8618858353113 for arranging the convenient time. I hope our experiences will contribute to your business, and looking forward to built long-term win-win business relationship with you.
1 unit.
2, Guarantee Time
5 years.
3, Brand/LOGO
We can print your brand/LOGO on water tanks, cartons.
4, OEM/ODM service?
Sure
5, Port in China
A, Shanghai/Ningbo by ship.
B, Yiwu
C, Urumchi
D, Guangzhou
6, Delivery time
A, sample order in 7 days
B, 20 feet/40 feet container in 12 days.
7, Trading company or factory?
A, Factory, yes! Since 2001, Produce solar water heaters, solar collectors,
B, Factory, yes! Since 2018, add production line for producing PVT solar panels.
C, Factory, yes! Since 2018, Investment a PU cornice moulding factory, been one of owner.
D, Trading company, yes! Base on our long time working, our team grown up and have rich experiences in production, inspection, export and transportation, we can offer the multiple solutions for customers from different countries.
8, Inquiries, visitation request from China Trading company ok?
Your inquiries and visitation will be warmly welcomed, just call Alex @+8618858353113 for arranging the convenient time. I hope our experiences will contribute to your business, and looking forward to built long-term win-win business relationship with you.
Integrated Solar Water Heater Perfect combine with Pitched roof and Flat roof.
