Двухшариковый подшипник Gdstime GDB9733 постоянный ток 12 В 97x95x33 мм 90 Бесщеточный

Описание и отзывы

Характеристики

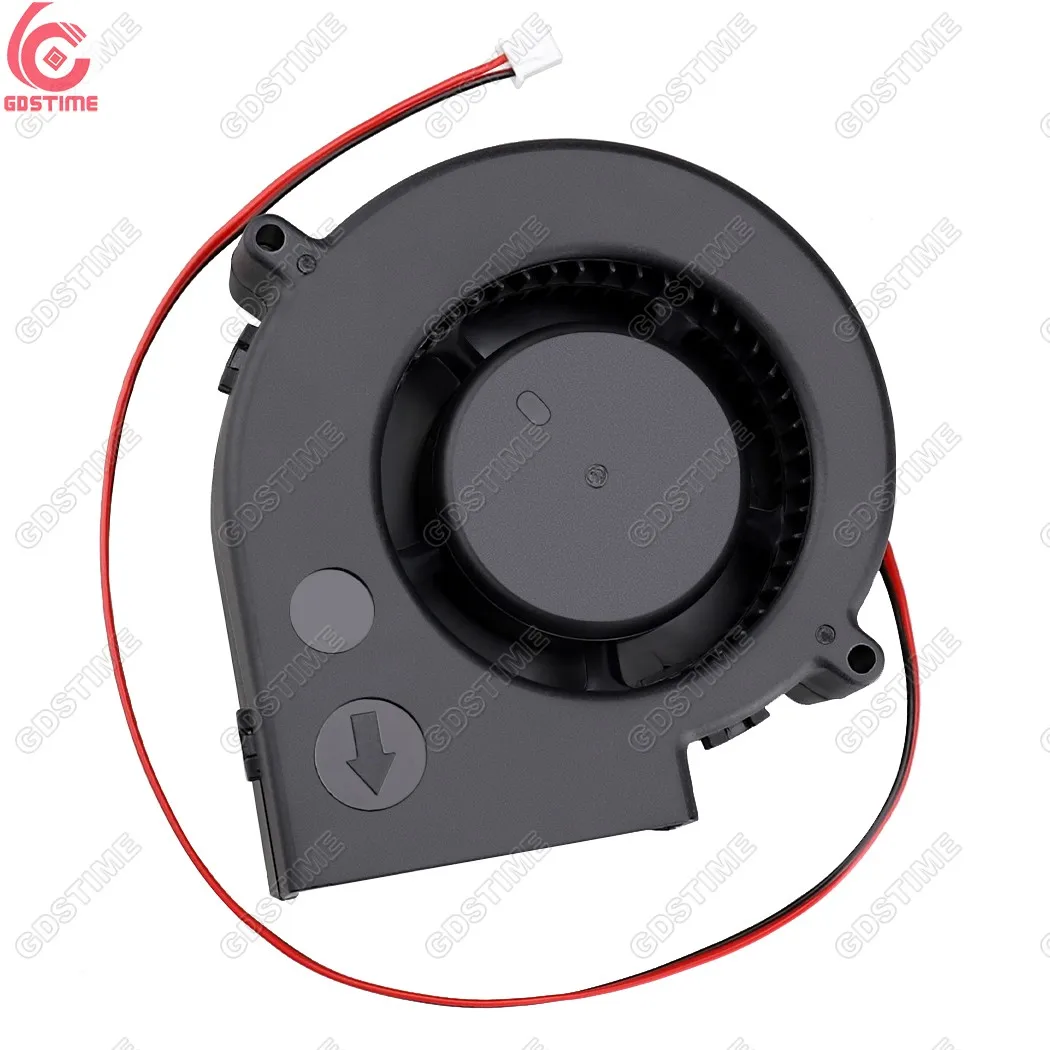

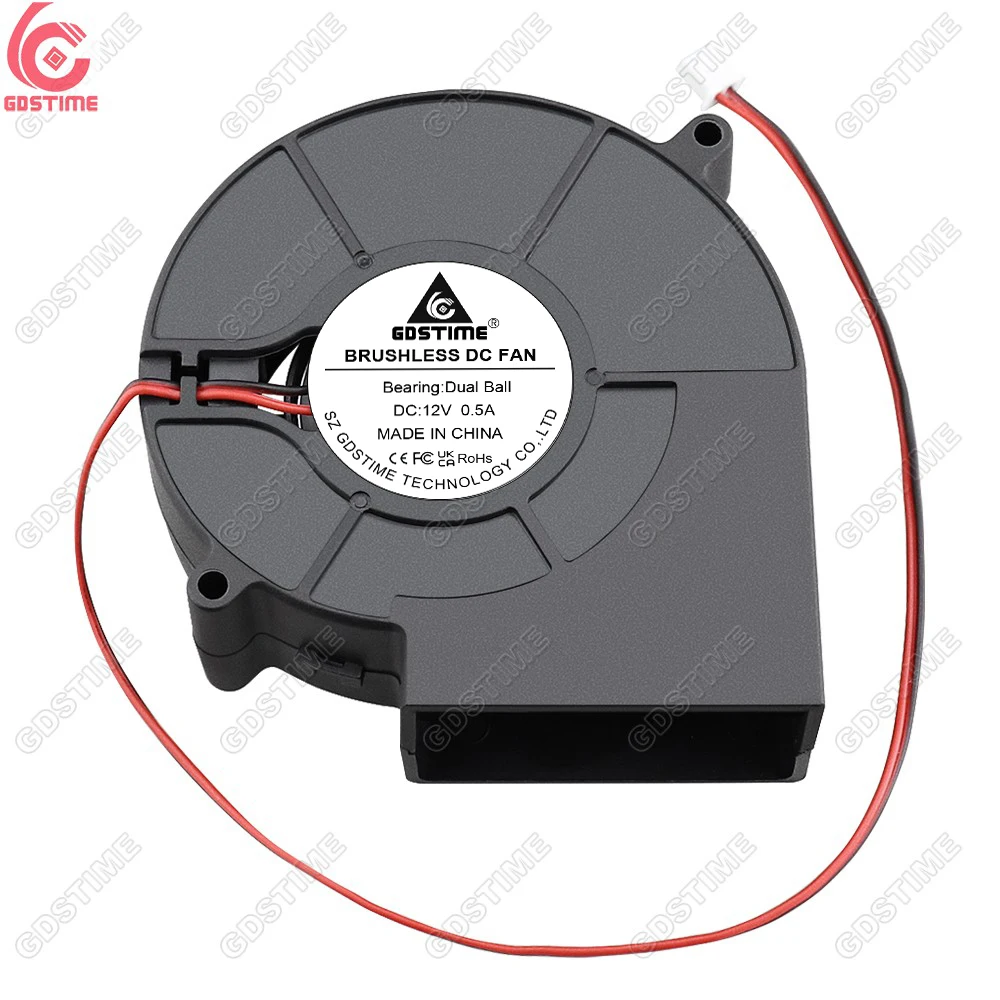

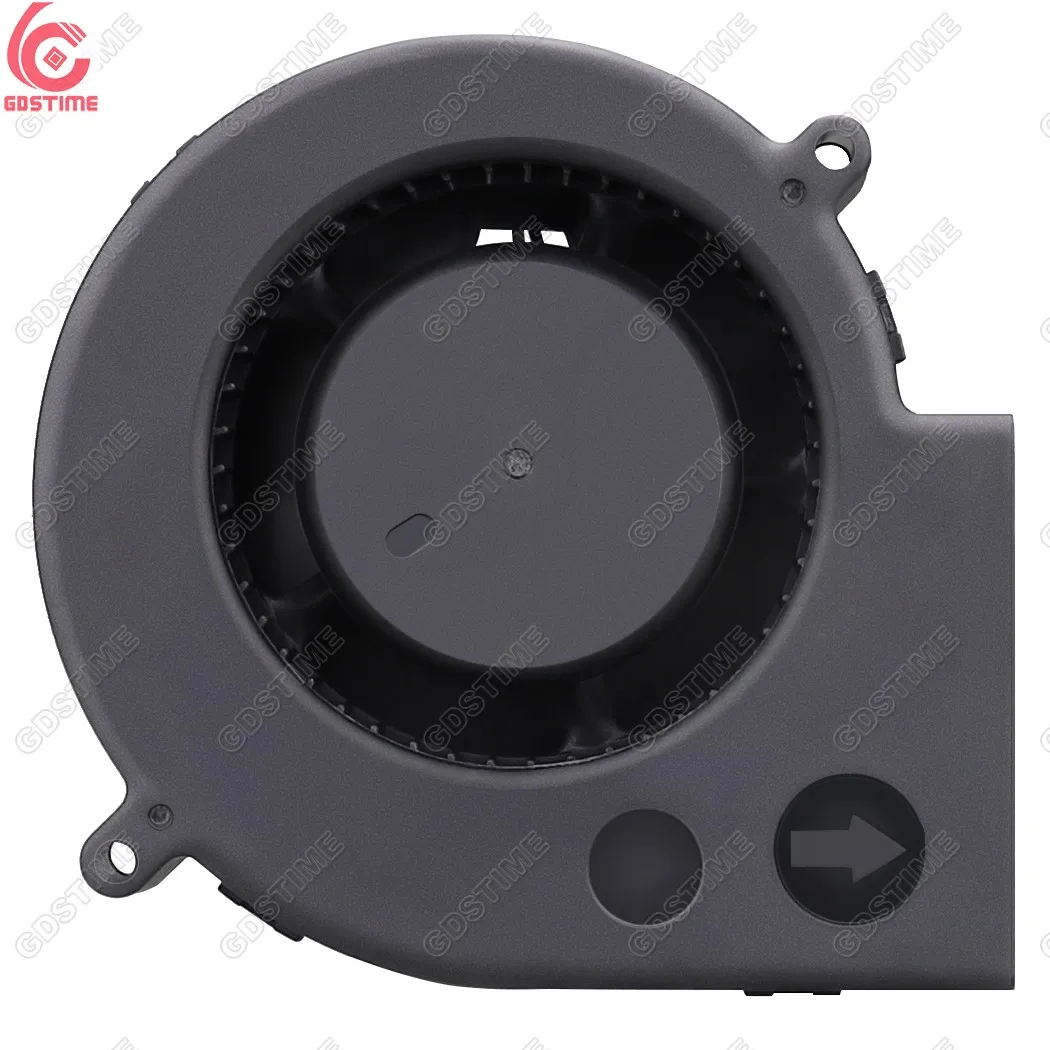

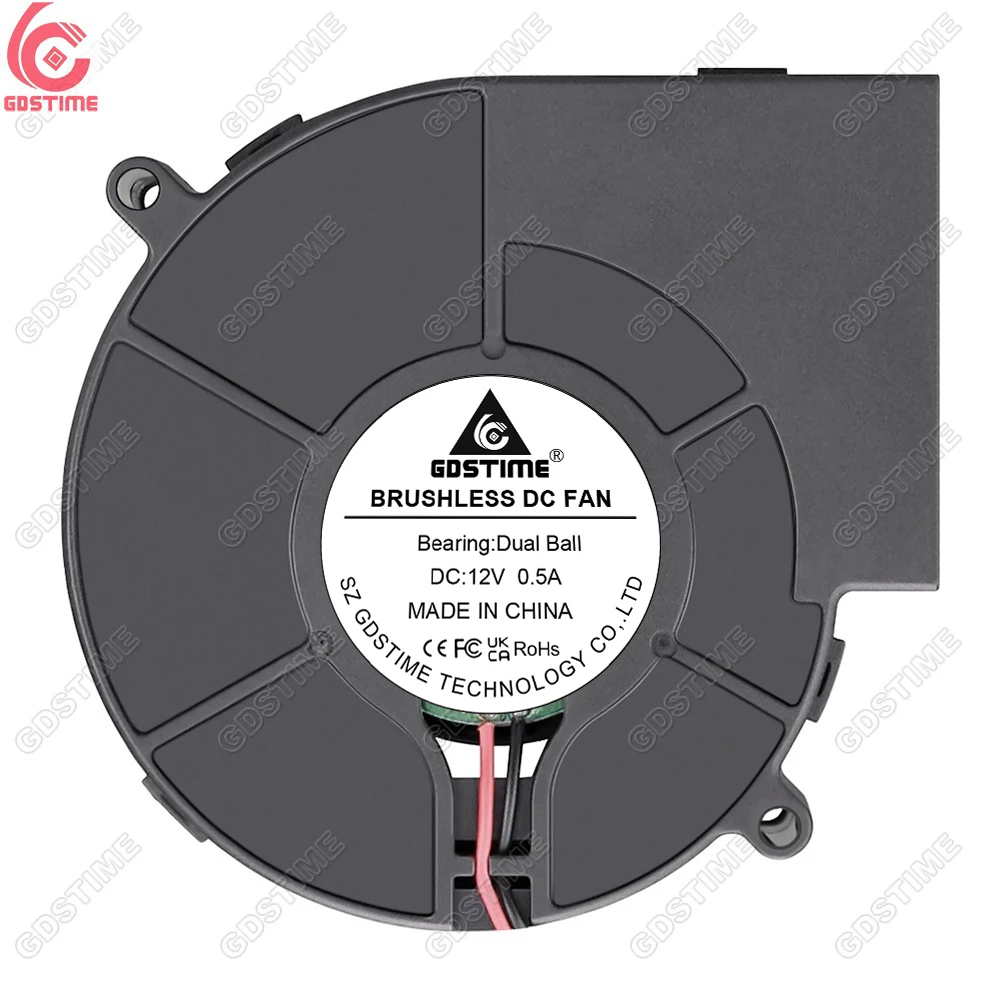

12V 97x95x33MM Blower Fan In stock



Rated Voltage: DC 12V
Rated Current:0.5A
Bearing: Dual Ball Bearing
Fan Speed:3600RPM±10%
Noise Level: <52.7dBA±10%
Air Flow:27CFM
Weight:162g

Leadwire: 30CM

Connector: 2P-XH2.54



    The above spec is in stock,if the spec not good enough for you,pls feel free to contact us for customzie!Pls consider below data sheet for reference!



Parameter





Our customization service

1.Special voltage:Any voltage in the range of 3-48v

2.Material: Eco-friendly material,Flame-proof material Moisture-proof,waterproof(IP55,IP56,IP68)

4.OEM,ODM service supported. Customize fan stickers.

5. Customize Cable length,connector.

6.Function customize.

Model	Bearing	Rated Voltage	Operating Voltage Range	Rated Current	Speed RPM	Air Flow CFM	Air Pressure (In H2O)	Noise LeVel dBA
GDB9733	Sleeve/Ball	5V	4-5.5V	0.35	2000	20.74	0.43	34.3
				0.45	2500	18.5	0.33	43
				0.62	3000	24	0.48	49
				1.06	3500	26.5	0.83	52
		12V	7-13.5V	0.3	2500	18.5	0.33	43
				0.38	3000	24	0.48	49
				0.5	3500	26.5	0.83	52
				0.55	3800	28	1.1	54
				0.8	4500	34	1.6	59
				0.9	5500	40.35	2.4	64
				2	6000	45	3.02	65
				2.3	6500	50.7	3.65	66.3
				3.6	7200	58.68	4.5	67.6
		24V	14-26V	0.14	3000	24	0.48	49
				0.22	3500	26.5	0.83	52
				0.25	3800	28	1.1	54
				0.3	4500	34	1.6	59
				0.62	5500	40.35	2.4	64
				1	6500	50.7	3.65	66.3
				1.8	7200	58.68	4.5	67.6
		48V	28-54V	0.11	3500	26.5	0.83	52
				0.13	3800	28	1.1	54
				0.18	4500	34	1.6	59
				0.9	7200	58.68	4.5	67.6
NOTE: If you want other Airflow/Voltage/Functions fan which is not in the list ,please contact us , thanks.
