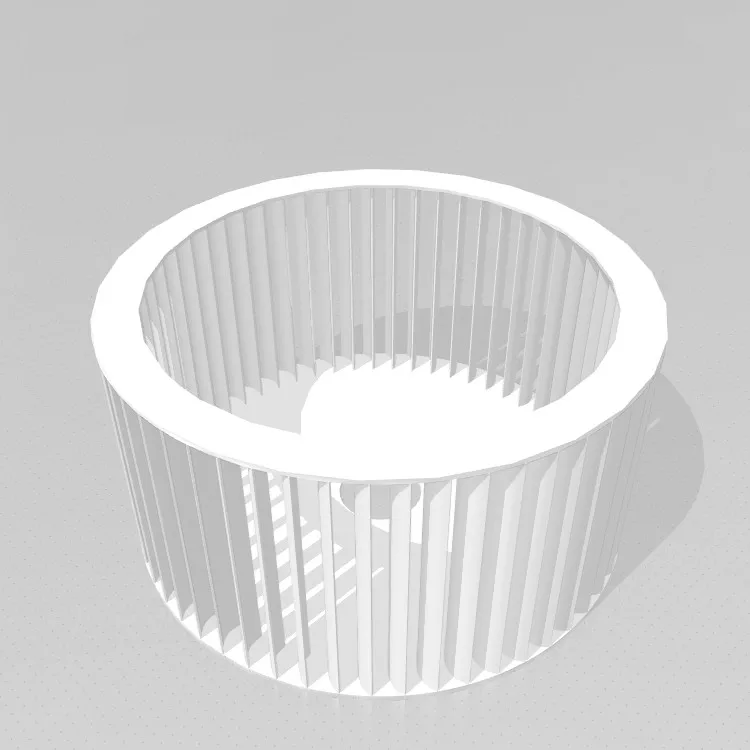

Impeller for sirocco fan
We will try to design it into the shape you want.
And we manufacture correctly.
Material	Stainless Steel , Steel (Galvanization , Painting etc) , Alminium (with anodized)





No	Diameter	Height	Blade
1	150	75	30
2	300	150	48
3	450	250	56
4	600	300	64
5	750	380	64
6	950	450	64
7	1100	525	64
8	1250	625	64
9	1400	700	64



Steel or Stainless steel

The examples listed here are just a few.
Let us know what size and shape you want.
It can be applied to steel, stainless steel, aluminum and special steel.
If you need a hub, please let me know the shaft diameter, etc.
If you have the drawings, you can recreate the impeller as it is.



1.Made-to-order. We undertake the design, cutting, forming, and joining for our manufactured parts in-house.

2.We use materials and parts made in Japan.

3.We perform metalworking of stainless steel aluminum. We perform surface treatment processing of paint/ plating/ fluoro-resin, etc.

Steel sheet cutting	Laser (w 1524mm, d 3048)
Forming	Press , Bending machine , Bending roll , Spinning
Cutting	Machining Center , Lathe
Welding	Metal active gas welding (semi automatic arc welding or robotic arc welding)
	Metal inert gas welding , Tungsten inert gas welding
Inspection	Vernier caliper (300mm , 150mm , 600mm , 1000mm), 3–D measuring machine
Nondestructive test	Penetrant testing , Magnetic testing , Ultra-sonic testing
Material inspection	Positive material inspection
