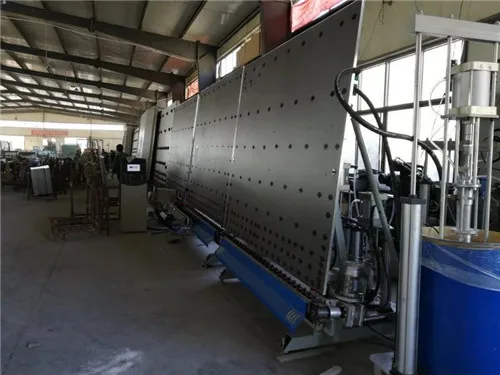

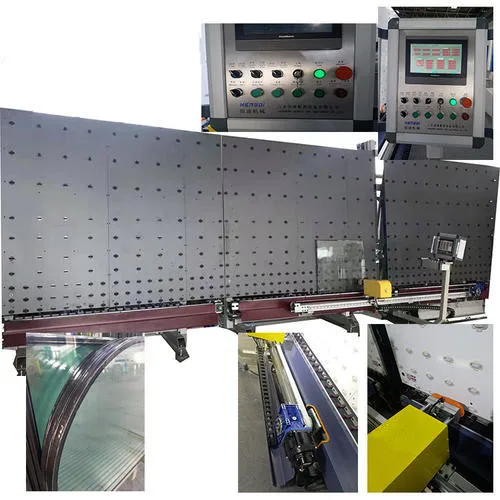

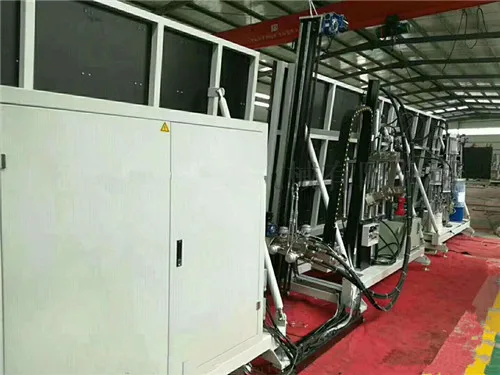

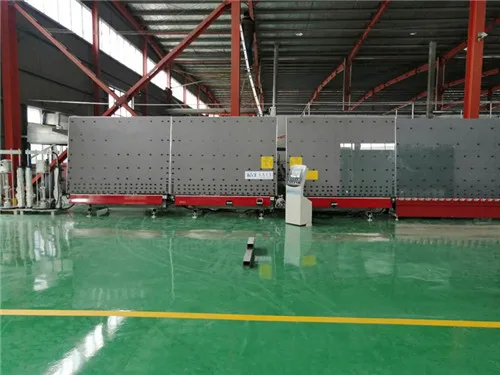

ZYD2000 Automatic Insulated Glass Sealing Machine line

The standard configuration consists of the following parts

1. Transmission section X1

2. Suction cup

3. Console

4. Glue controller

5. Glue machine X2

6. Transmission section X2

7. Suction cup



Main structure and performance

1. Suitable for large-scale glass deep-processing enterprises, reduce the labor intensity of production, save manpower, and improve production efficiency.

2. Full intelligent touch man-machine interface, simple and convenient operation.

3. The servo control system uses world-renowned brands with stable performance.

4. Timing belt drive makes the glass transportation stable and accurate positioning.

5. The key components of the equipment are made of special materials, and the equipment is stable and reliable in operation and has a long service life.

6. After coating, there is no gas line around the glass, the corners are full, and the surface is flat without the need for corner repair.

7. The third stage can be pre-stored with glass, which realizes flow operation and online sealing.

8. Can be equipped with two sets of glue protection system, two kinds of sealant switching fast, one-button operation.

9. Support three-layer glass coating.

10. Special-shaped glass can be coated directly.

11. Accurate pressure regulation by electric proportional valve to ensure the stability of the plastic head system.



Specification 1:

Model	ZYD2000
Dimension	8600mm×1300mm×2900mm
Max glass size	2000mm×2500mm
Min glass size	300mm×350mm
Coating thickness	2mm-15mm
Finished glass thickness	12mm-60mm
Single glass thickness	3-15mm
Coating speed	40m/min(6A spacer,5mmthickness coating)
Conveying speed	0-30m/min
Air pressure	0.6-0.8Mpa
Loading weight	2500kg/m
Working enviroment temperature	15-40℃
Power	10kw,380V(50HZ)

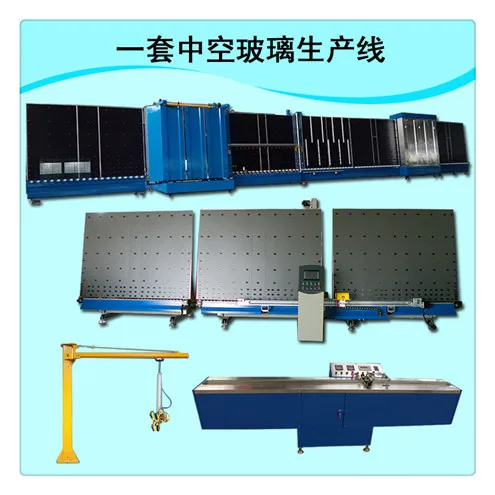

insulating glass machine/automatic washing drying pressing assembling processing line/double triple glass machinery
