Vogue MGO boards warehouse partition walls heat resistant board
Company Information
Vogue mgo board is designed for replacing gypsum board.
Protection of wood from fire, rot, mold and insects adds cost and time to the building process
Vogue Mgo board Main characteristics
- Fireproofinfg characteristic:A grade non combustible(GB8624)
- Density:0.9-1.1g/cm3(GB/T7019-1997)
- Intensity of bending resistance when dry :18Mpa(GB/T7019-1997)
- Intensity of bending resistance when moisture-saturated condition:22Mpa(GB/T7019-1997)
- The rate of deformation when pick up the moisture:0.26%(GA160-1997)
- The shrinking rate when heated:1.0%(GA160-1997)
- Water permeability:there is no drop of water to emerge in the back(CNS13778)
- Impact resistance:No crack,strip and run through(CNS13778)
- Thermal resistance:1.14m2k/w(GB/T 13475-92)
- Sound insulation:≥44db(GBJ121-88)
- Color:white or grey
- Security:100% does not include the asbestos,formaldehyde,and benzene
- Radioactivity;Not limited by the scope of application(GB6566-2001)
Product Description
Composition
The materials of magnesium fireproof board are Magnesia(Mgo), Magnesium Chlorid(MgCl2), alkali Fiberglass,sawdust and Perlite
Magnesium Oxide Board is made by the above formula of chemicals. The stable magnesium celluloid is reinforced by glass fibre netting. It has the advantageous features of being light weight, strong, very low contraction properties, flexible yet impact resistant. It has excellent drainage properties, is fire resistant, and is very easy to work with. It can become waterproof by sealing it; corrosion proof and plasticity are better than wood, paper surface plaster board or gypsum board and cement fibre board. Most importantly Mgo board is cured without the use of any heating and thus using very little energy unlike gypsum board and cement fibre board. This makes it greener and although it is a product of the past is fast becoming the product of the future for these reasons.

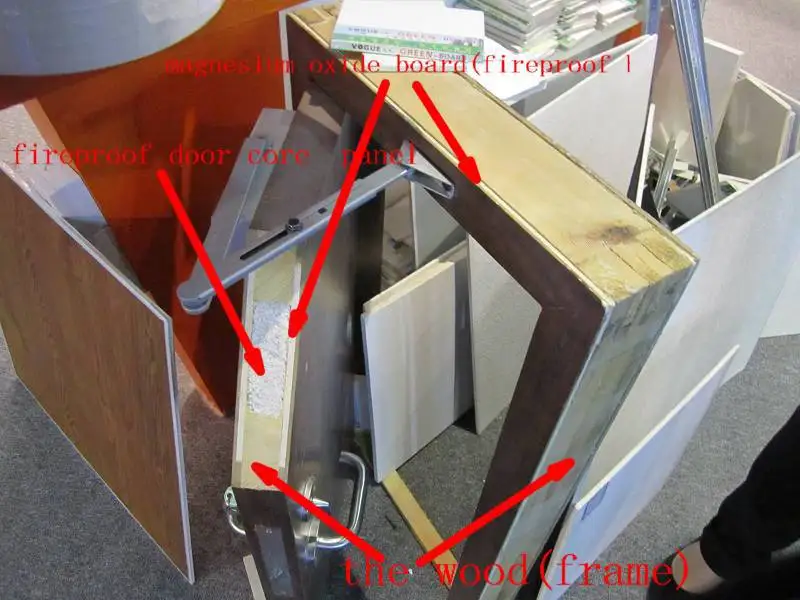

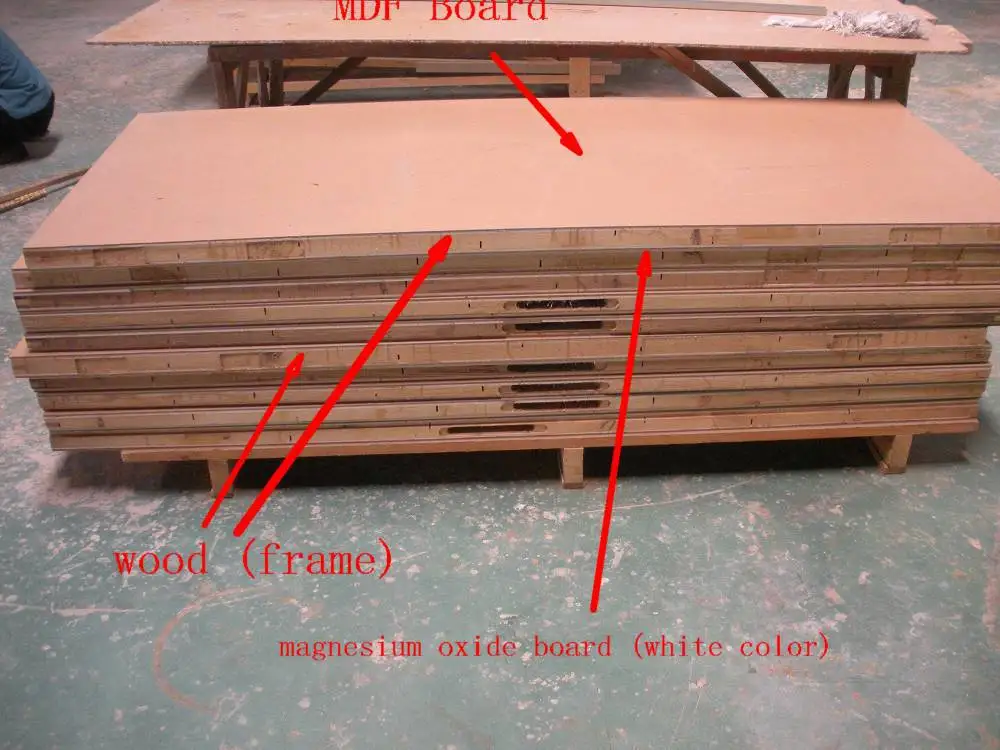

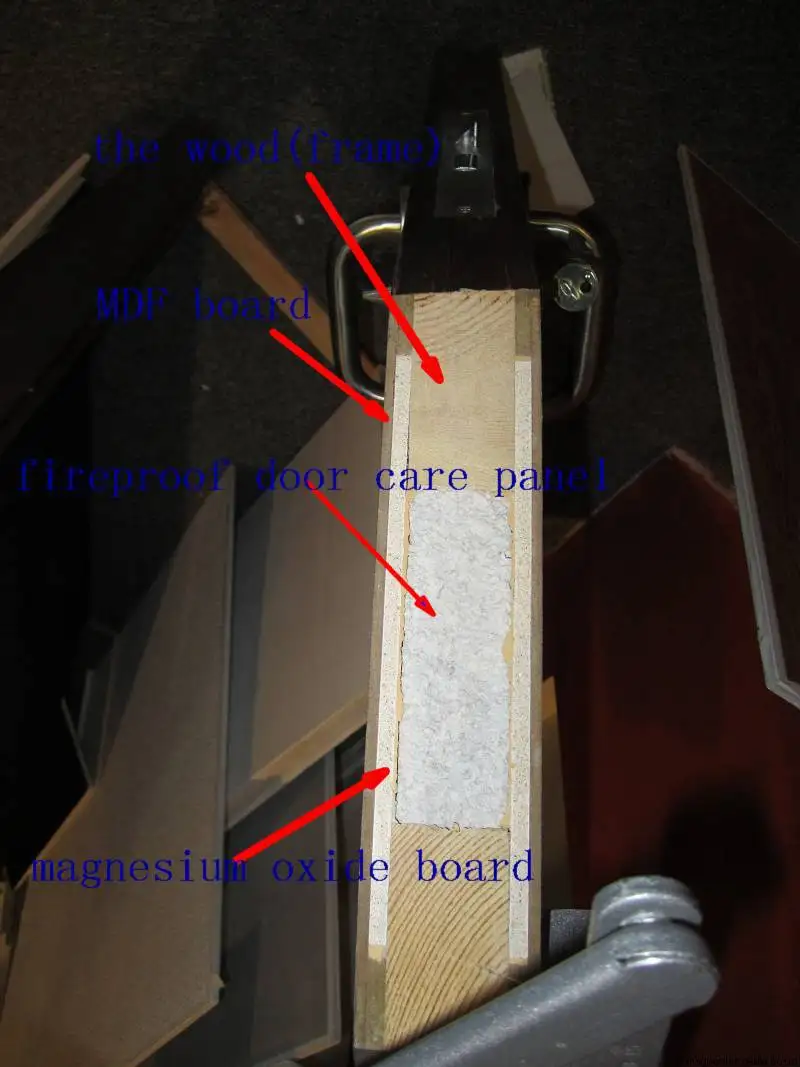

Mgo board for fire-rated door surface
Packaging & Shipping
1.packing with pallets
2.packing in bulk
| Item No. | Size(mm) | Weigh(kgs) | Quantity/20GP (pallete packing) |
| 3048 | 1220*2440*3 | 10 | 2160pcs |
| 4048 | 1220*2440*4 | 14 | 1620pcs |
| 6048 | 1220*2440*6 | 18 | 1080pcs |
| 8048 | 1220*2440*8 | 24 | 810pcs |
| 10048 | 1220*2440*10 | 28.5 | 648pcs |
| 12048 | 1220*2440*12 | 34 | 540pcs |
Packaging Detail: Standard marine package,by wood pallets or in bulk. Six sides of each pallet will be protected by vogue paper coated magneisum board.
Delivery Detail:Based on negotiation
For 1220*2440mm ,we suggest use 20ft container
Payment :T/T ,30%deposit,70%pay against of bill copy(CNF)
100%T/T(FOB)
FAQ
| 1.Are you a factory or a trading company? |
| Answer: Factory. |
| 2.What about the terms of payment? |
| Answer: We accept payment T/T or L/C. |
| 3.What's your company's current certification? |
| Answer:ISO9001:2008, CE. |
| 4.What's your delivery time of your products. |
Answer: 20Days after deposit. |
| 5.Do you have experience in South Africa?(Or Russia...) |
| Answer: We have exported our products to over 40 countries, including Africa,North America,Oceania and Asia countries. |
| 6.Which port do you choose for FOB? |
| Answer: FOB NanTong.It's close to Shanghai. |
| 7.What's your Minimum order quantity(MOQ) of your product? |
| Answer:MOQ depends on different product, please contact chris @vogue-ford.cn for more info on this. |
Item No | Size(mm) | Reference weight(kg) | Application | |||||
Ceiling | Partition | External wall | Liner Veneer | Fireproof door | Wrap up steel structure | |||
3037 | 2135*915*3mm | 6 |
|
|
| YES | YES |
|
3048 | 2440*1220*3mm | 9 |
|
|
| YES | YES |
|
4037 | 2135*915*4mm | 8 |
|
|
| YES | YES |
|
4048 | 2440*1220*4mm | 11 |
|
|
| YES | YES |
|
5048 | 2440*1220*5mm | 15 | YES | YES | YES | YES | YES |
|
6037 | 2135*915*6mm | 11.5 | YES | YES | YES | YES | YES | YES |
6048 | 2440*1220*6mm | 18 | YES | YES | YES | YES | YES | YES |
8048 | 2440*1220*8mm | 24 | YES | YES | YES | YES |
| YES |
9048 | 2440*1220*9mm | 27 | YES | YES | YES | YES |
| YES |
8049 | 2700*1220*8mm | 26.5 | YES | YES | YES | YES |
| YES |
9049 | 2700*1220*9mm | 30 | YES | YES | YES | YES |
| YES |
10048 | 2440*1220*10mm | 30 | YES | YES | YES | YES |
| YES |
12048 | 2440*1220*12mm | 36 | YES | YES | YES | YES |
| YES |
company's certificates:
Our Services
1.We offer technical support until the workers know how to operate.
2. We offer the technology data and relative files of Magnesium oxide board.
3.We provide free answers for all kinds of questions about the magnesium oxide board.
Thanks for your viewing,welcome to send Email.
We will reply within 24hours!
