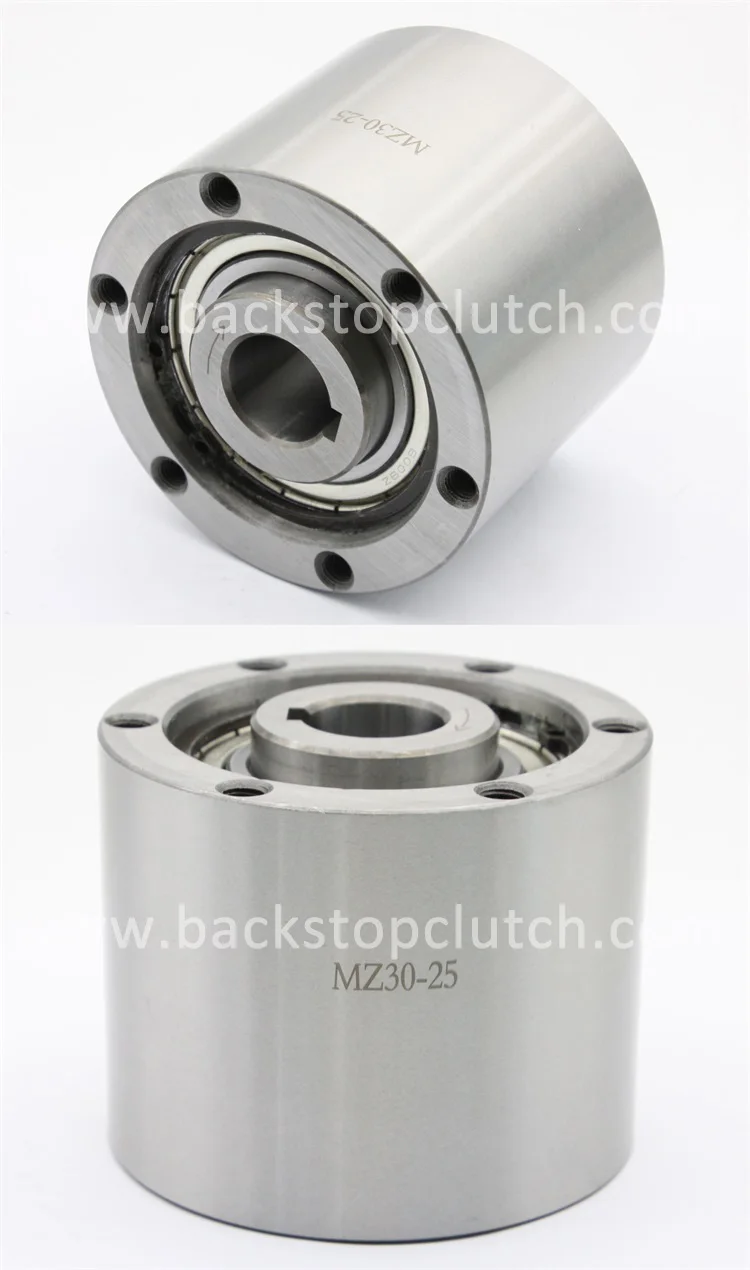

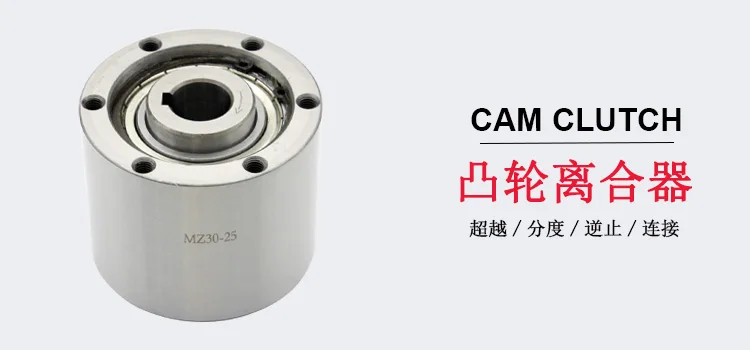

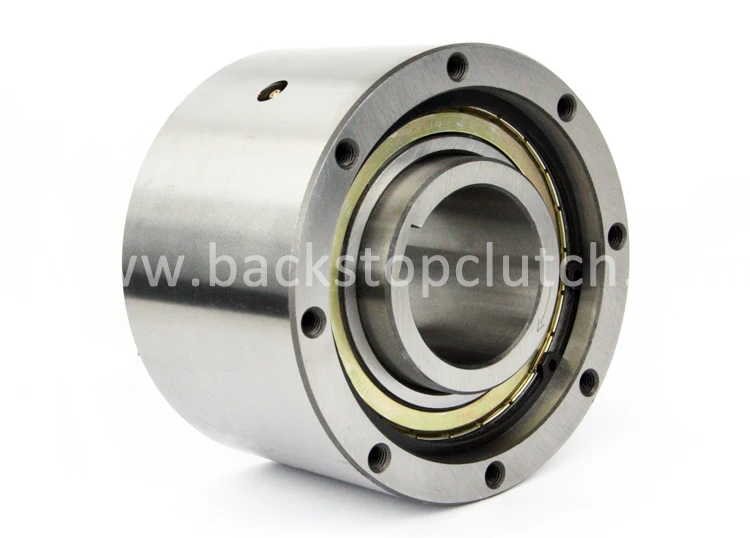

MZ17 кулачковый подшипник свободное колесо сцепления односторонний MZ

Model

Capacity
Torque
(Nm)

Torque
Drag
(Nm)

Over

running
(r/min)

Max.
Inner

Race

Over

running
(r/min)

Max.
Outer

Race

indexing
Max.
(cycle

/min)

Bore Size
Dia

(H7)

Key

way

A

B

C

PCDD

(M6)

E

F

G

H-M No.

of Tapped x
HolesSize×

Pitch

S

Wt
(kg)

MZ15

186

0.20

2,200

900

150

15

5*2.3

62

68

60

58

47

25

5.5

6*M5*P0.8

10

1.4

MZ17

215

0.20

2,000

800

150

17

5*2.3

66

75

64

64

52

28

6.3

6*M5*P0.8

10

1.8

MZ20

323

0.29

1,900

700

150

20

6*2.8

67

80

65

68

55

30

7.6

6*M6*P1.0

12

2.0

MZ30-22

735

0.39

1,800

500

150

22

6*2.8

82

100

80

88

75

45

8.9

6*M8*P1.25

16

3.7

MZ30-25

735

0.39

1,800

500

150

25

8*3.3

82

100

80

88

75

45

8.9

6*M8*P1.25

16

3.7

MZ30

735

0.39

1,800

500

150

30

10*3.3

82

100

80

88

75

45

8.9

6*M8*P1.25

16

3.7

MZ35

1,080

0.49

1,700

300

150

35

10*3.3

87

110

85

95

80

50

8.7

6*M8*P1.25

16

4.8

MZ45-40

1,620

0.69

1,700

300

150

40

12*3.3

92

125

90

110

95

60

8.4

8*M8*P1.25

16

6.2

MZ45

1,620

0.69

1,700

300

150

45

14*3.8

92

125

90

110

95

60

8.4

8*M8*P1.25

16

6.2

MZ60-50

2,110

0.98

1,600

250

150

50

14*3.8

102

155

100

140

125

80

9.1

8*M8*P1.25

16

10.2

MZ60-55

2,110

0.98

1,600

250

150

55

16*4.3

102

155

100

140

125

80

9.1

8*M8*P1.25

16

10.2

MZ60

2,110

0.98

1,600

250

150

60

18*4.4

102

155

100

140

125

80

9.1

8*M8*P1.25

16

10.2

MZ70-65

3,040

1.27

1,300

250

150

65

18*4.4

105

175

103

162

145

95

8.6

8*M8*P1.25

16

13.2

MZ70

3,040

1.27

1,300

250

150

70

20*4.9

105

175

103

162

145

95

8.6

8*M8*P1.25

16

13.2
