Высоковольтная электрическая лента 23 Резиновая шириной 19

Описание и отзывы

Характеристики

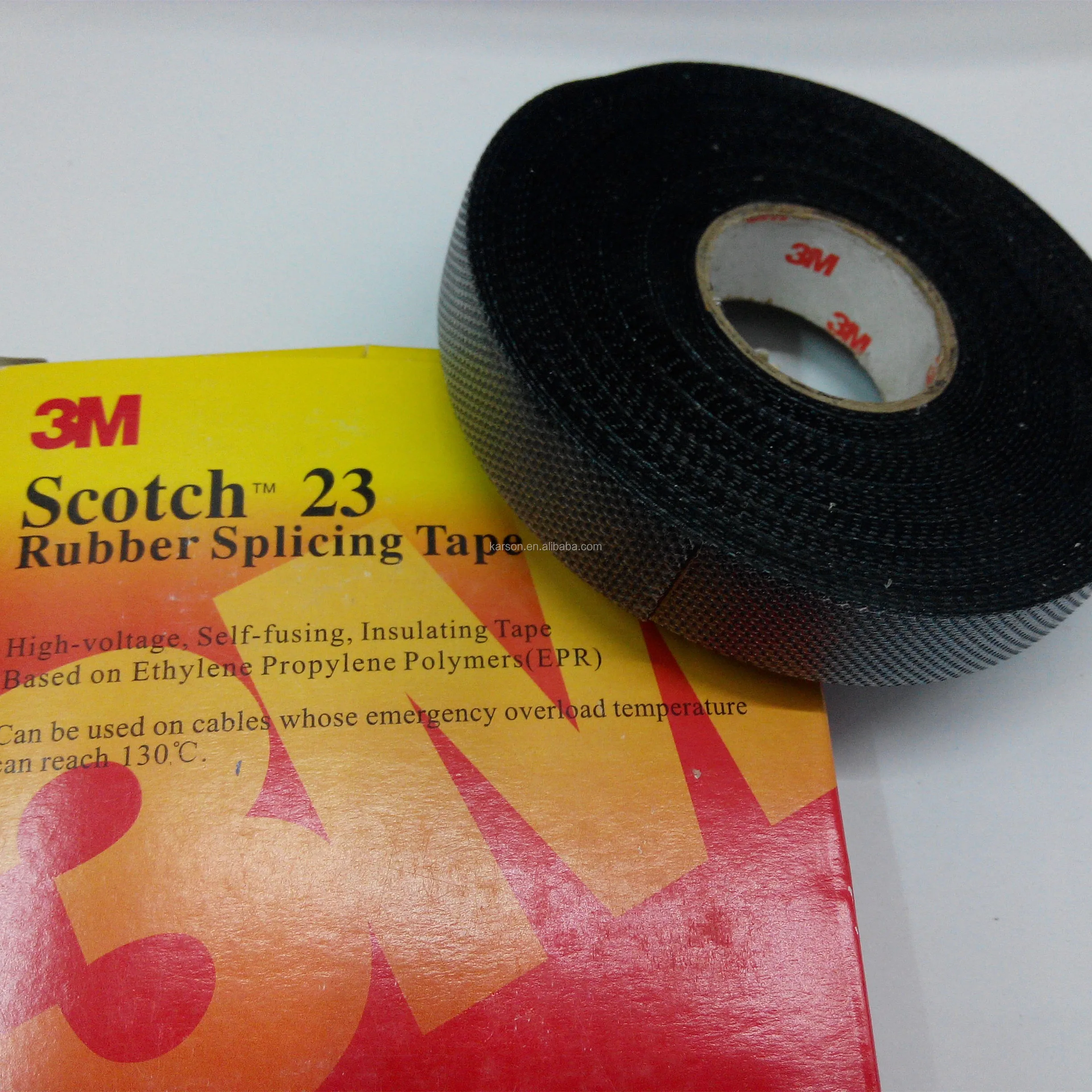

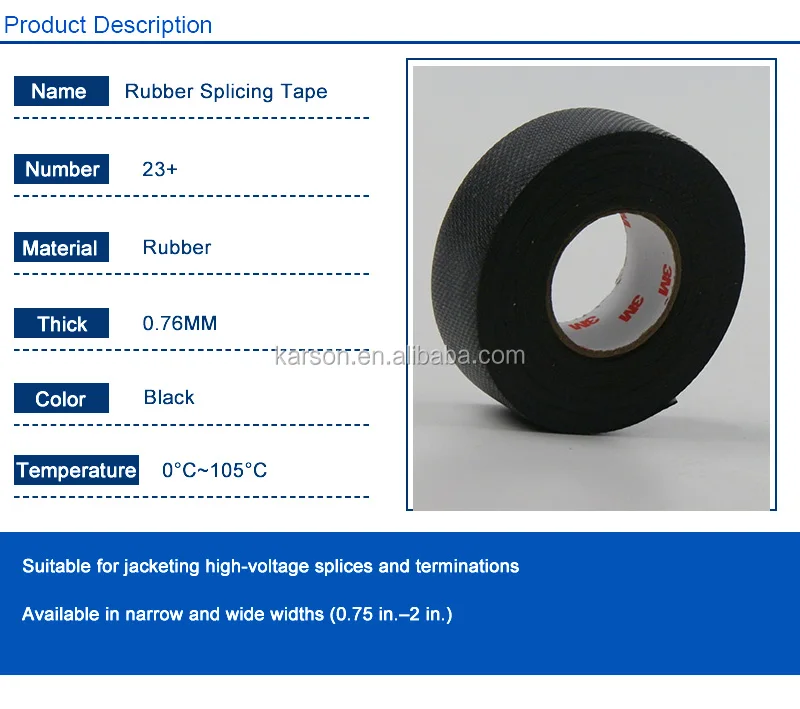

High voltage electric tape 23 Rubber tape 19mm wide

1. Rubber resin provides excellent adherence to irregular surfaces

2. Primary electrical insulation for splicing cable from 600V to 69 kV on all solid dielectric cables

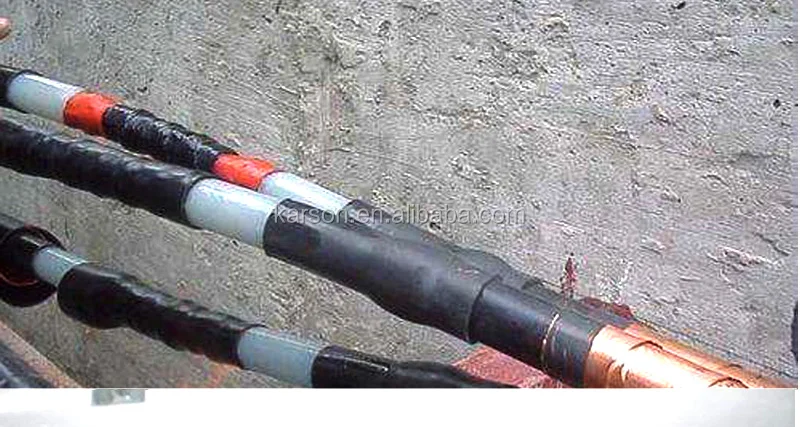

3. Suitable for jacketing high-voltage splices and terminations





Attribute Name	Value
Adhesion to Steel	5,5 N/cm
Adhesive Material	Rubber Resin, Thermosetting Rubber
Applications	Electrical Maintenance, Insulation
Breaking Strength	25 N/cm, 8 lb/in
Color	Black, Cream
Dielectric Strength (V/mil)	800, 800 V/mil
Emergency Overload Temperature (Celsius)	130°C
Insulated	Yes
Insulation Resistance	> 10^6 megohms
Length	20 Linear Foot, 30 Linear Foot
Material	EPR with Liner
Maximum Operating Temperature (Celsius)	90 Degree Celsius
Maximum Operating Temperature (Fahrenheit)	194 Degree Fahrenheit
Product Markets	Electrical Construction, Electrical MRO, Power Distribution
Product Type	Rubber and Splicing Tapes
RoHS EU Comments	RoHS 2011/65/EU compliant without exemption
Shelf Life	5 Year
Solution for	Wireless Network: Infrastructure Accessories, Wireless Network: Weatherproofing
Suitable for High Voltage	Yes
Tape Color	Black
Voltage	69 kV
Voltage Application	All voltage classes
