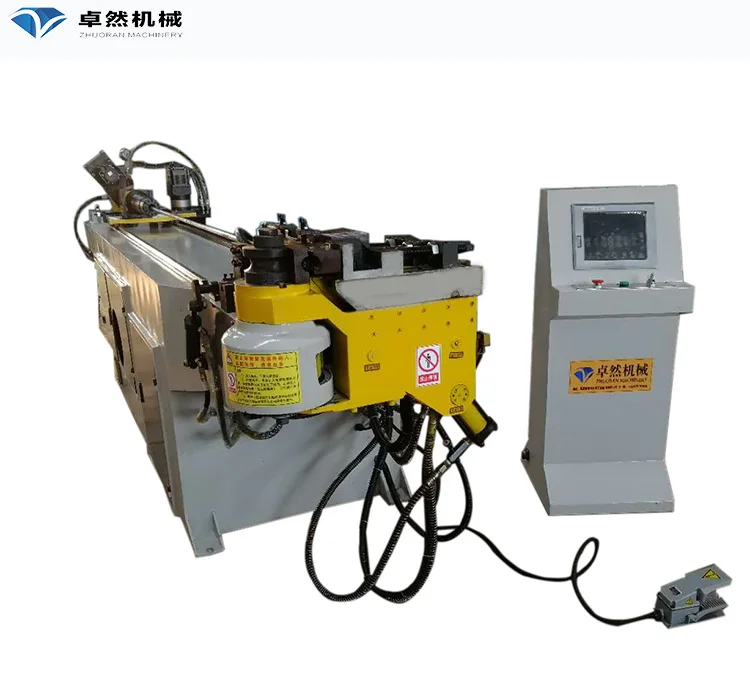

DW50CNC-2A-1S гидравлический CNC одноголовочный трубогибочный автоматический гибочный станок для алюминиевых

Main specifications

Models :

DW50CNC-2A-1S

Note:

Maximum bending pipe diameter ×Wall thickness.

Φ50mm×3mm

Carbon steel pipe

1, The minimum bending radius is based on the diameter of the pipe.

2,Maximum bending radius can be according to customer requirements.

3,The maximum core length can be according to customer requirements.

Maximum bending radius.

R250mm

Minimum bending radius.

R1.5D

Maximum bending Angle.

190°

Standard core length

2200mm

Feeding method

Direct delivery

Clip

Working speed

Bending speed

Max 80°/s

Tubing speed

Max200°/s

Feeding speed

Max 1000mm/s

Working accuracy

Bending accuracy

±0.1°

Tubing accuracy

±0.1°

Feeding accuracy

±0.1mm

Information input mode

1.  coordinate(X . Y. Z)
2. Working value(Y. B. C)

Bend way

Hydraulic pipe bending

Corner servo motor

750w

Feed servo motor

1kw

Pipe fittings allow elbows

 50

Number of parts that can be stored.

500

Oil motor power

5.5kw

Maximum system pressure.

12 Mpa

Machine  dimensions.

3900 x 900 x 1200mm

Machine weight

2500kg
