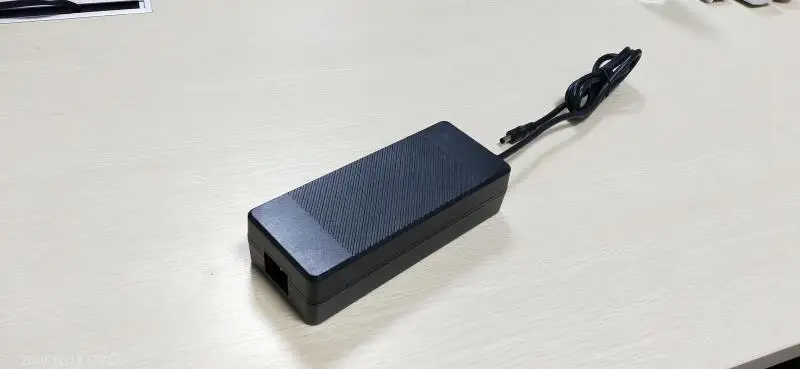

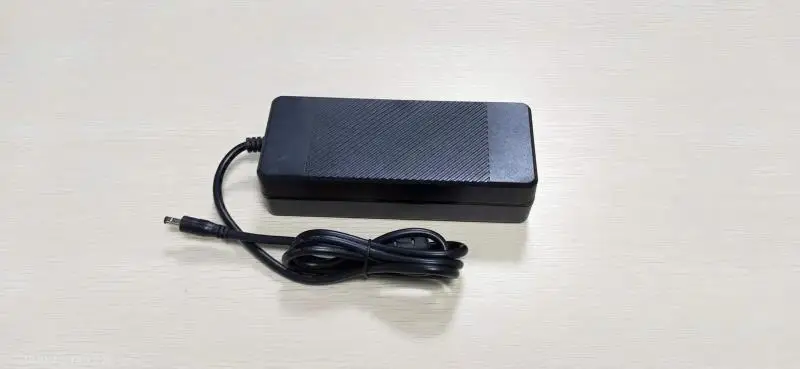

Factory wholesale US EU AC DC 36V 42V 1A 1.5A 2A Hoverboard Charger electric scooter lithium battery charger
Products Description
Power supply model number | CH0901 | ||
Output | DC Voltage | 42V | |
DC Current | 2A | ||
Max Power | 90W | ||
Voltage Tolerence | ±1% | ||
Input | Voltage Range | 100-240V~ 50/60Hz | |
LED Indicator Status | Green LED on is No load float charge | Red LED on is Fast charge | |
Safety Standard | IEC/EN60335, UL1310 | ||
Safety Certification | CE UL FCC | ||
Compliance | FCC EMC | ||
Operating temperature | 0-40 C° | ||
Storage temperature | -20-60 C° | ||
Hi-pot test | Primary To Secondary: 3000VAC 5mA 1 minute or 3300VDC 5mA 3 Sec | ||
Burn-in test | 80% to 100% load, 40 C°± 5℃ for 4 hours | ||
Length of DC cord | UL1310 requires more than1.83M | ||
DC connector | Optional | ||
RoHS/Reach | Yes | ||
Package | White box or plastic bag with outer carton | ||
AC Fix PLUG (Interchangeable Plug) | \\ | ||
Desktop Type | Avalible | ||
Efficiency Level | DOE ERP | ||
load Regulation | +/-3% | ||
Surge | Over 1 KV | ||
Protections | OVP/ OCP/SCP/LVP/OTP/Backflow Protection | ||
Warranty | 2 Years | ||
Battery Chargers | ||||||||||
Regular output | Type | Usage | Output | Battery voltage | Safety stardard | |||||
Desktop | Lithium ion | 12.6V 7A | 3S 11.1V | IEC/EN60335 | ||||||
16.8V 5A | 4S 14.8V | |||||||||
21V 4A | 5S 18.5V | |||||||||
25.2V 3.5A | 6S 22.2V | |||||||||
29.4V 3A | 7S 25.9V | |||||||||
42V 2A | 10S 37V | |||||||||
Related Products：
About Us
Company profile
Founded in 2007, Shenzhen ABP Technology is specialized in charging solutions across all categories.,such as switching power adapters,LSA/ Lithium Ni-mh battery chargers,phone chargers.,etc.We currently have 200-300 employees include 10-20 R&D team,20-30 QC team ,with a 6,000 square meters' plant,1 million capacity per month, which is equipped with advanced and complete production test equipment. Our factory have passed ISO9001-2015 audit and our products are certificated with CE, GS, FCC, UL, CUL,PSE, SAA, C-TICK,RCM, PSE,KC, CCC,ROHS .,etc.
We have successfully offered our one stop power supply & battery charger solution to over many customers around the world,such as
From concept,industrial design, electronic engineering, tooling design, certifications all the way to cost analysis,we do it all and than we do it well.
From concept,industrial design, electronic engineering, tooling design, certifications all the way to cost analysis,we do it all and than we do it well.
Factory View
Working flow
Why Choose Us
Our Advantage
1. 13 years experience;one step solution;
2. 20-50 people R&D Team to support
3. UL CB CE GS KC PSE RCM CCC listed
4. ISO9001-2015certificated
5. Whole flow of QA: IQC--IPQC--FQC--OQC
6. Door to Door service
7. Free sample for test
8. 6000 sqms,welcome for visits
9. ODM/OEM service
3. UL CB CE GS KC PSE RCM CCC listed
4. ISO9001-2015certificated
5. Whole flow of QA: IQC--IPQC--FQC--OQC
6. Door to Door service
7. Free sample for test
8. 6000 sqms,welcome for visits
9. ODM/OEM service
Exhibition
Application

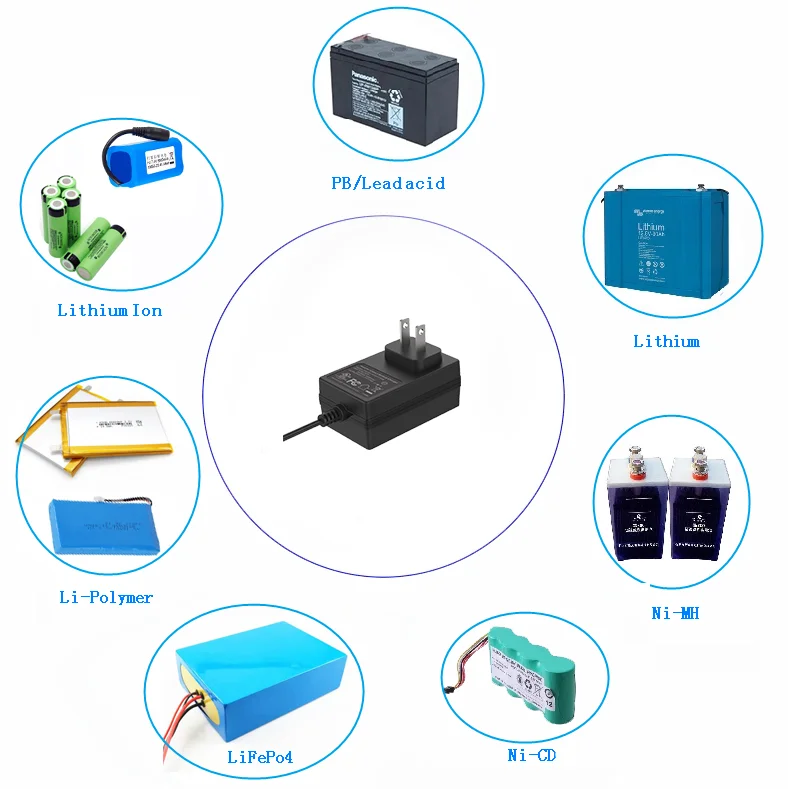

Li-ion Battery Pack, Li-polymer Battery Pack, Lead Acid Battery Pack, Lifepo4 Battery Pack, Ni-Cd/Ni-Mh Battery Pack, UAV, LED Flash Light, Heated Gloves, Power Tool, Medical Cars System, RC Car, RC Toys, E-bike, RC Plane, Diving Light, POS machine terminal, Forklift, Golf cart, Self-balanced car, Monocycle etc
Packing & Delivery：
1 Carton Packing List | ||||||||
Item | Measurement (cm) | Quantity (pcs) | G.W(kg) | N.W(kg) | ||||
CH0901 | 50*40*21 | 72 | 15.2 | 14.56 | ||||
FAQ
1. Are you a trading company or factory?
We are factory in Shenzhen. Our headquarter in Hongkong.
2. Do you provide samples?
Yes, free samples are provided while you pay the freight. Usually delivered by express like Fedex, UPS, DHL, TNT, EMS, etc.
3. What’s your MOQ?
Our MOQ is 1000pcs, but for the first order, there is no MOQ.
4. How long is the lead time?
It takes about 15-25 working days to proceed mass production. For samples, it’s usually in a week.
5. What’s your payment term and shipping term?
Advanced T/T & FOB Shenzhen / Dongguan / Hongkong
6. How long is the warranty?
It’s 2 year. During this period, if you encounter any problem, pls feel free to contact us. Our sales team, QC and R&D department
will make every effort to meet your demand.
Contact Us:
Your inquiry and mail will be quickly responded. Suppose you have no ideas on choosing the right power supply, please do not hesitate to contact us: rambo.liao@abp.com.hk
We are factory in Shenzhen. Our headquarter in Hongkong.
2. Do you provide samples?
Yes, free samples are provided while you pay the freight. Usually delivered by express like Fedex, UPS, DHL, TNT, EMS, etc.
3. What’s your MOQ?
Our MOQ is 1000pcs, but for the first order, there is no MOQ.
4. How long is the lead time?
It takes about 15-25 working days to proceed mass production. For samples, it’s usually in a week.
5. What’s your payment term and shipping term?
Advanced T/T & FOB Shenzhen / Dongguan / Hongkong
6. How long is the warranty?
It’s 2 year. During this period, if you encounter any problem, pls feel free to contact us. Our sales team, QC and R&D department
will make every effort to meet your demand.
Contact Us:
Your inquiry and mail will be quickly responded. Suppose you have no ideas on choosing the right power supply, please do not hesitate to contact us: rambo.liao@abp.com.hk
