Product Description


The PLC computer is independently controlled, and the set is accurate and stable, and the speed is faster. The device can complete multi-color drill or multi-size drill pattern by one brush drawing, with fewer processes and high efficiency.

The device can complete multi-color drill or multi-size drill pattern by one brush drawing, with fewer processes, and has very high efficiency, which improves the existing process. Moreover, the prior art requires multiple devices and multiple working hours, and the proficiency of the operating staff is very high, and the device can be easily completed, and many intermediate links are reduced.

Fast speed, speed up to 5 meters per minute, high speed and stable paper. The original correction compensation technology ensures accurate color registration. It realizes complex graphic printing of three kinds of rhinestones, with simple operation, small size and low energy consumption, which will meet the needs of various production scales.automatic rhinestone brushing machine,computerized rhinestone machine,rhinestone machine automatic,automatic rhinestone machine,machine rhinestone.

1. This equipment can complete multi-color drill or multi-size drill pattern by one brush drawing, with fewer processes, high efficiency and improved existing technology. Moreover, the prior art requires multiple devices and multiple working hours, and the proficiency of the operating staff is very high, and the device can be easily completed, and many intermediate links are reduced.

2, the speed is fast, the speed is up to 5 meters per minute, high speed and stable paper.

3, the original correction compensation technology to ensure accurate color registration.





Device name

specification 1

specification 2

specification 3

specification 4











2 Color

Equipment Specifications

320mm

380mm

400mm

600mm

Machine size

1200X800X1500

1200X850X1500

1200X920X1500

1200X990X1500

voltage

~220V, 50HZ

~220V, 50HZ

~220V, 50HZ

~220V, 50HZ

Power

300W

300W

300W

300W

weight

220 KG

280 KG

340 KG

360 KG

Air pressure

0.48~0.65MP

0.48~0.65MP

0.48~0.65MP

0.48~0.65MP

Brush drill range

320X1200

380X1200

450X1200

520X1200

Brushing speed

4~6M/min

4~6M/min

4~6M/min

4~6M/min

Suitable for drilling

6# above

6# above

6# above

6# above

Device name

specification 1

specification 2

specification 3

specification 4











3 Color

Equipment Specifications

320mm

380mm

400mm

600mm

Machine size

1600X800X1500

1600X850X1500

1600X920X1500

1600X990X1500

voltage

~220V, 50HZ

~220V, 50HZ

~220V, 50HZ

~220V, 50HZ

Power

360W

360W

360W

360W

weight

450 KG

530 KG

550 KG

620 KG

Air pressure

0.48~0.65MP

0.48~0.65MP

0.48~0.65MP

0.48~0.65MP

Brush drill range

320X1200

380X1200

450X1200

520X1200

Brushing speed

4~6M/min

4~6M/min

4~6M/min

4~6M/min

Suitable for drilling

6# above

6# above

6# above

6# above

Device name

specification 1

specification 2

specification 3

specification 4







4 Color



Equipment Specifications

320mm

380mm

400mm

520mm

Machine size

3200X800X1500

3200X850X1500

3200X920X1500

3200X990X1500

voltage

~220V, 50HZ

~220V, 50HZ

~220V, 50HZ

~220V, 50HZ

Power

420W

420W

420W

420W

weight

620KG

660 KG

700 KG

750 KG

Air pressure

0.48~0.65MP

0.48~0.65MP

0.48~0.65MP

0.48~0.65MP

Brush drill range

320X1200

380X1200

450X1200

520X1200

Brushing speed

4~6M/min

4~6M/min

4~6M/min

4~6M/min

Suitable for drilling

6# above

6# above

6# above

6# above



Brush drill specification:

1. Maximum size: 10×10mm;

2. Minimum size: 6# drill;

3. Maximum drilling thickness: <5mm;

4. Aspect ratio: <3;

5. Applicable to all kinds of domestic and imported diamond ornaments.





Detailed Images










9-7.jpg automatic rhinestone brushing machine,computerized rhinestone machine,rhinestone machine automatic,automatic rhinestone machine,machine rhinestone.

1-9

automatic rhinestone brushing machine,computerized rhinestone machine,rhinestone machine automatic,automatic rhinestone machine,machine rhinestone.

1-11

automatic rhinestone brushing machine,computerized rhinestone machine,rhinestone machine automatic,automatic rhinestone machine,machine rhinestone.

1-3

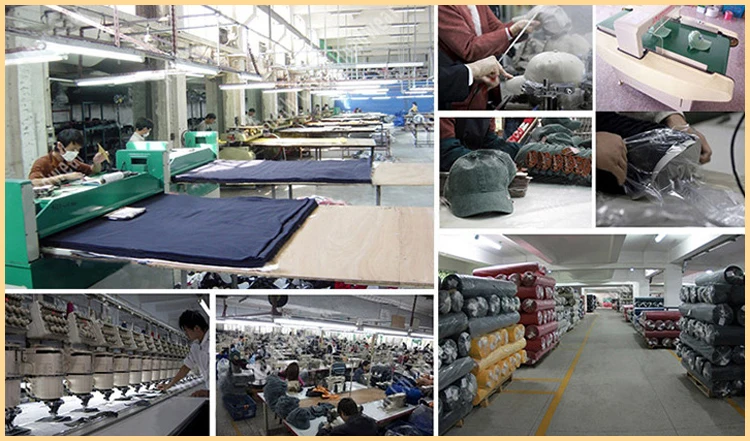

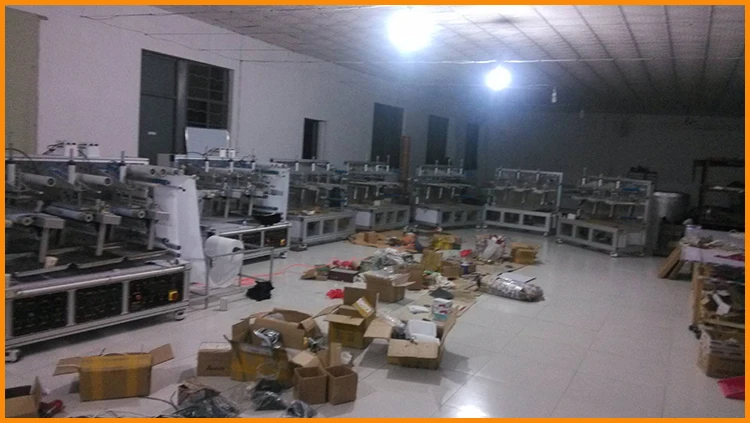

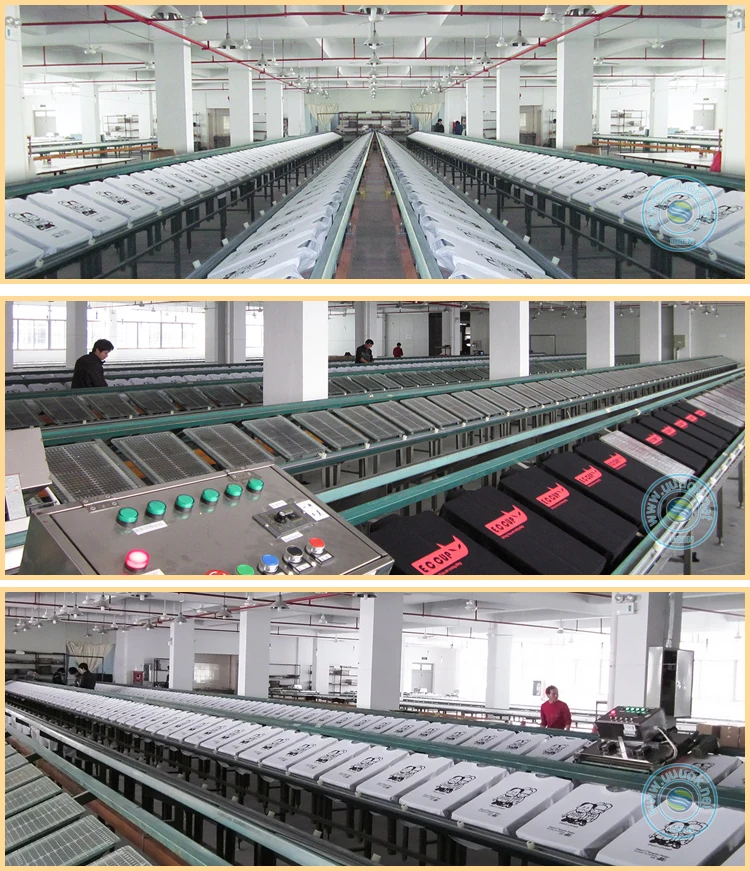

Factory show
