BABYSUN вакуумный трубчатый коллектор солнечных

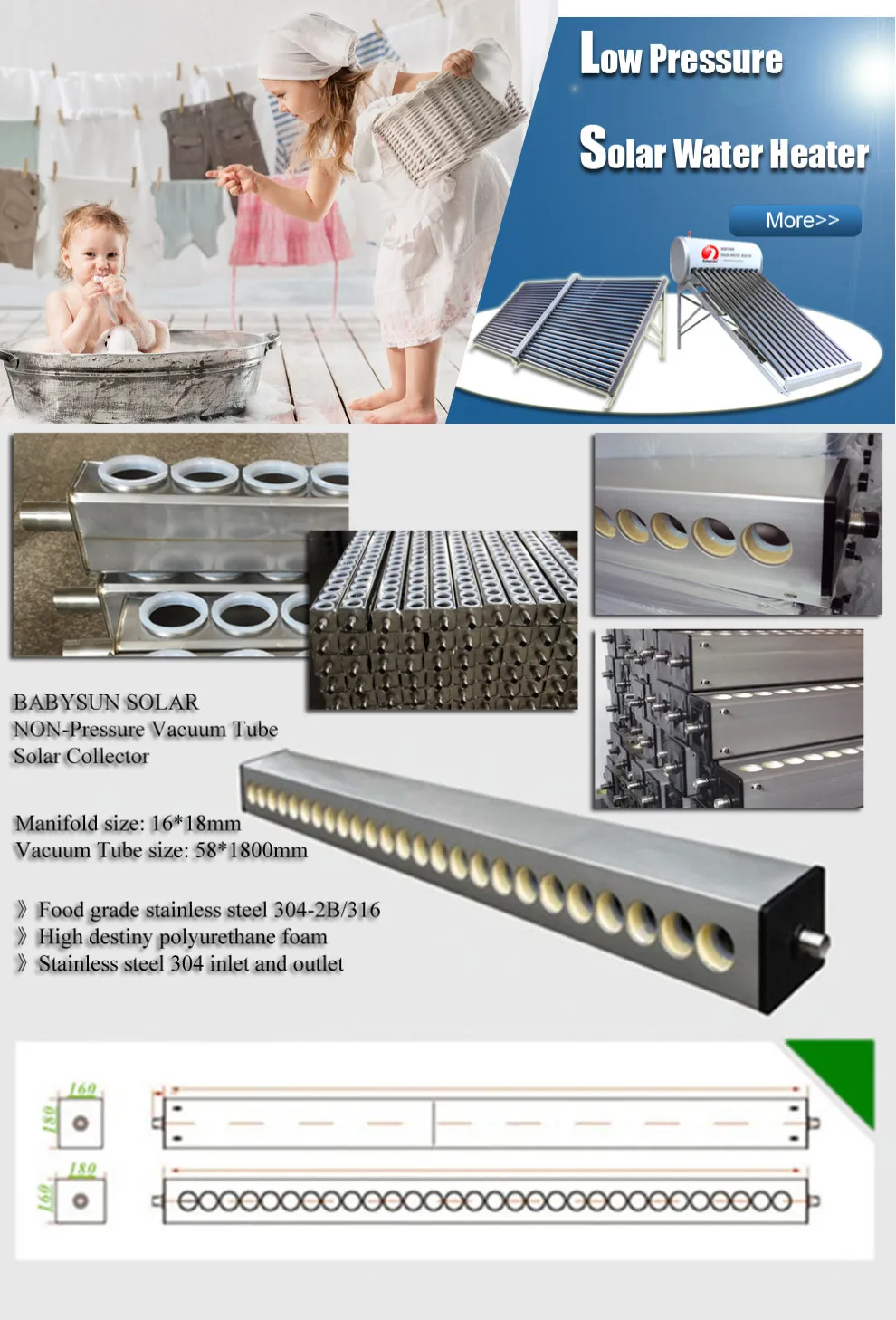

Manifold

 Manifold Shape

 Rectangular or Round shape

 Inner Manifold

 Food-grade stainless steel SUS304-2B/SUS316

 Outer Manifold

 Painted steel(Galvanized steel)/Stainless steel

 Insulation

 High-density polyurethane foam

All-glass

Vacuum Tube

High borosilicate 3.3 glass with three-target (CU/SS-ALN(H)/SS-ALN(L)/ALN) coating, 58*1800mm, glass thickness 1.6mm±0.15mm

Bracket

Shaped strong painted steel(galvanized steel)/stainless steel,  15°/25°/38°/45° angle

Inlet&Outlet

Male threaded 1"; 1 1/4"; 1 1/2"; 2"

 Hail Resistance

Φ25 MM

Model

Solar Vacuum Tube

Aperture

Area/M2

Collector Size

L*W/MM

Container Loading

Qty/Sets

Qty/Pcs

Size/MM

20GP

40HQ

Vertical Type

BS-NPC-15

15

Φ58*1800

1.41

1225*1920

100

243

BS-NPC-20

20

Φ58*1800

1.89

1600*1920

88

213

BS-NPC-25

25

Φ58*1800

2.36

1980*1920

70

170

BS-NPC-30

30

Φ58*1800

2.83

2350*1920

57

139

Horizontal Type

BS-NPC-40

40

Φ58*1800

3.77

3720*1600

42

107

BS-NPC-50

50

Φ58*1800

4.71

3720*1980

34

86

BS-NPC-60

60

Φ58*1800

5.66

3720*2350

28

71
