Резиновый дисперсионный смеситель/смеситель ЭВА/внутренний смеситель

Описание и отзывы

Характеристики



Rubber Dispersion Mixer/EVA Kneader/Rubber Internal Mixer Machine





NAME : Rubber Dispersion Mixer/EVA Kneader/Rubber Internal Mixer Machinemade in China

Model: XSN-55,75,110L

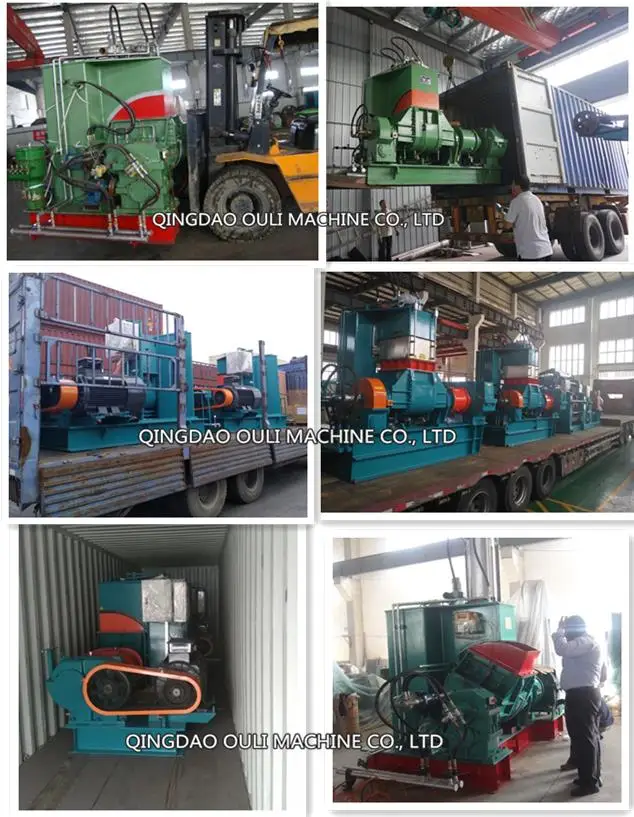

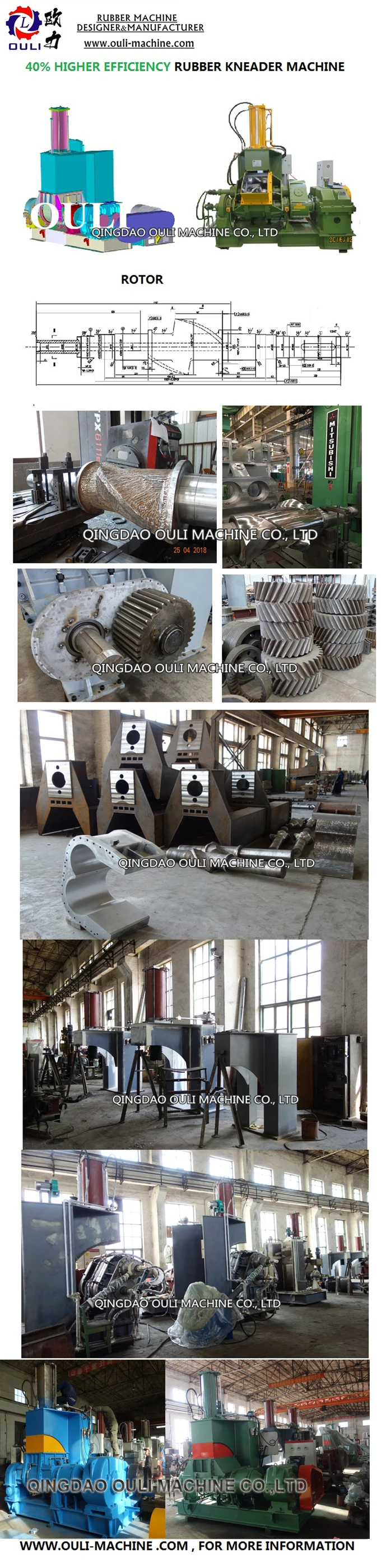

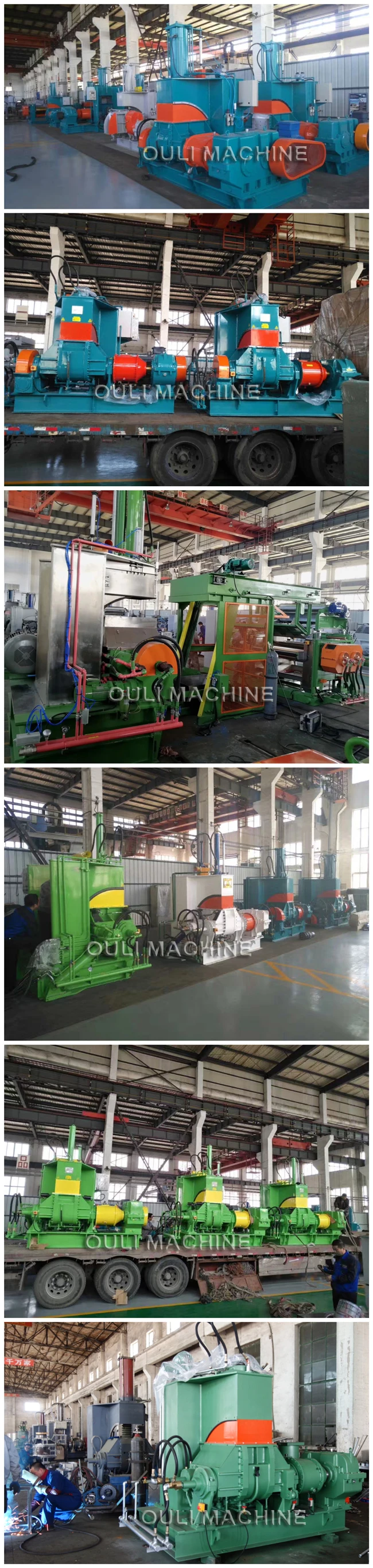

Sample pictures of Rubber Dispersion Mixer/EVA Kneader/Rubber Internal Mixer Machine



Technical parameters of Rubber Dispersion Mixer/EVA Kneader/Rubber Internal Mixer Machine



Model	X(S)N- 10X32	X(S)N- 20X32	X(S)N- 35X30	X(S)N- 55X30	X(S)N- 75X30	X(S)N- 110x30
Total volume of  mixing chamber	25L	45L	75L	125L	180L	250L
Working volume  of mixing chamber	10L	20L	35L	55L	75L	110L
Driving motor  power	15KW	30KW	55KW	75KW	110KW	185KW
Tilting motor  power	1.1KW	1.5KW	2.2KW	2.2KW	4KW	4KW
Tilting angle	140°	140°	140°	140°	140°	140°
Rotational speed  of the rotor  (front/rear)	32/23.5  r/min	32/25  r/min	30/24.5  r/min	30/24.5  r/min	30/24.5  r/min	30/24.5  r/min
Pressure of  compressed air	0.5-0.8 MPa	0.5-0.8MPa	0.5-0.8MPa	0.6-0.8MPa	0.6-08MPa	0.6-0.8MPa
Capacity of  compressed air	≥0.5m³/min	≥0.7m³/min	≥0.9m³/min	≥1.0m³/min	≥1.0m³/min	≥1.5m³/min
Pressure of  cooling water	0.2-0.4 MPa	0.2-0.4MPa	0.3-0.4MPa	0.3-0.4MPa	0.3-0.4MPa	0.3-0.4MPa
Pressure of  heating steam  (plastic mixing)	0.5-0.8Mpa	0.5-0.8Mpa	0.5-0.8Mpa	0.5-0.8Mpa	0.5-0.8Mpa	0.5-0.8Mpa
Overall  dimension	2580X1300 X2280mm	2630X1520 X2550mm	3200X1900 X2950mm	3280X1930 X3070mm	3330X2620 X3340mm	3930X3000 X3660mm
Weight	3300Kg	4500Kg	6500Kg	7800Kg	10500Kg	14500Kg











Application of Rubber Dispersion Mixer/EVA Kneader/Rubber Internal Mixer Machine



E.V.A. Rubber & TPR, Soles, Rubber Rollers, Hoses,Belts, Sponges, Sports balls, Vibration Insulators, Elastic Cords, Sealing Materials, Tires, Tapes, aster Batches, Pigment, Ink, Automobile & Electric Rubber Parts, Chemical Industry Compounds.

1. Rubber product for Automobile (Oil seal, Body seal, Gasket, Belt, Hose, Tube)

2. Electric wires (Rubber, Plastic, Wire harness)

3. Belt (Power transmission belt, Conveyor belt)

4. Roll (Rubber, Plastic, Printing, Copying machine)

5. Rubber product for Medical (Plug, Cap, Glove, Dental)

6. Sporting goods (Golf ball, Athletic ball)

7. Food (Chewing gum)





Feature of 75L rubber kneader/rubber mixing machine/ banbury internal mixer Machine Made in China



1. An Automatic temperature and time control system to provide 100% mixing effect.

2. Easy to clean chamber and easy color changing.

3. In 6-10 minutes/batch output equivalent to 2/3 units if mixing roller.

4. Pressurized and sealed mixing chamber to provide high mixing performance and prevent environmental pollution.

5. Easy installation, operation and maintenance to lower the running cost.



Package and delivery of Rubber Dispersion Mixer/EVA Kneader/Rubber Internal Mixer Machine

1. Ship date: 30 working days

2. Payment terms: T/T or L/C

3. Full range of devices to be provided on schedule, as per client demands.

4. Responsible for training works and maintenance of the machine

5. Responsible for installing and debugging all devices.

6. Formula available and long term technical supports.

7. Guarantee: 2 years guaranteed repair and lifelong tracking service,with parts provided.

8. Package: standard export wooden case
