JIALI MACHINERY CO.,LTDcan provide Electric Chain Hoist from capacity 250kg up to 50 Ton capacity to the worldwide industrial lifting market. But practically speaking, they are more economical between 250kg and 5 ton capacity.

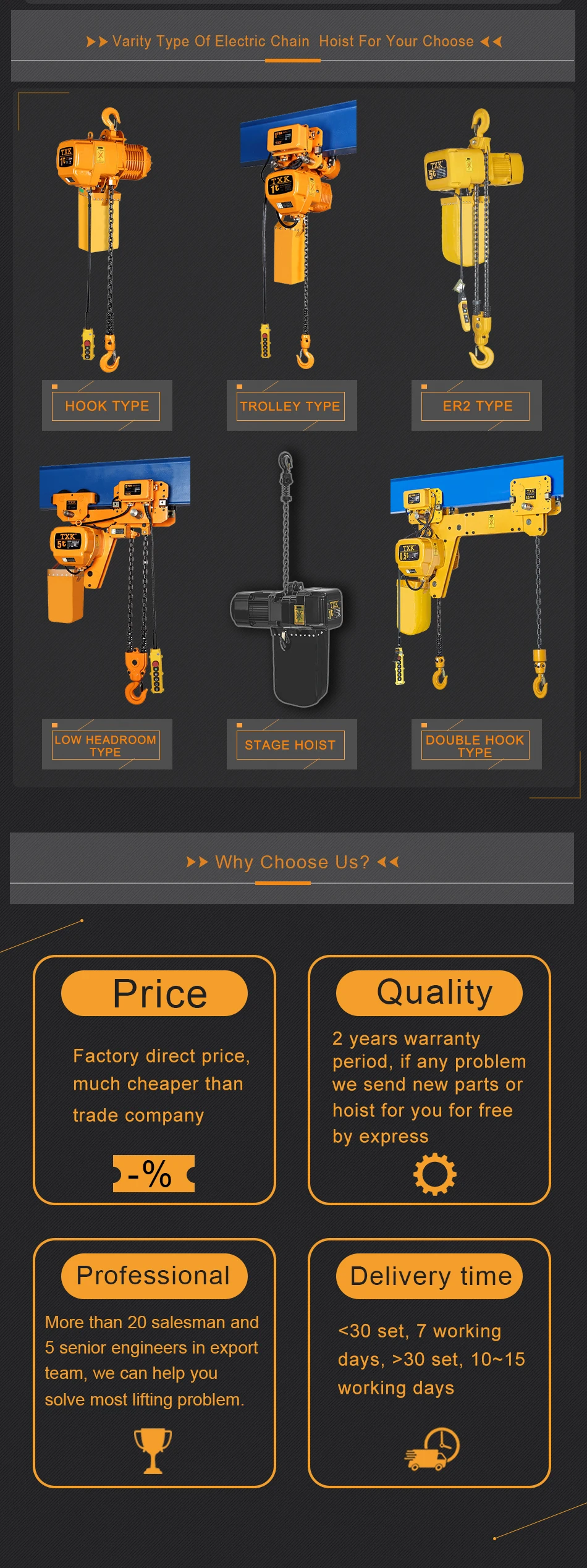

There are a few different models of electric chain hoist for customers’ option , classical model , new ER2 model , European model , underhung electric chain hoist model etc . Power supply can be single phase or three phase .Three phase electric chain hoists voltage are available between 220V~690V . Single phase hoists voltage are available with 110V / 120V/220V/240V , 50/60Hz . We always do our very best to meet the customers demands by supplying only the very best quality industrial Electric Chain Hoists.
Product Description
TXK Electric Chain Hoist
0.5~50 ton lifting capacity
With upper hook (fixed) or with trolley
Single/Double speed option
Shell: aluminum alloy
Chain: high quality G80
Chain container: canvas / iron
Gear & chain wheel: alloy steel + heat treatment
Hooks: heat forging+heat treatment
Chain diameter: 6.3~11.2mm (as per different capacities)
Motor rotate speed:1440r/min(single speed), 2880/960 r/min(double speed),
Standard chain length: 3m (can be customized)
Power specification:200~690V,50/60HZ,3 Phase
Safe voltage:24V/36V/48V
Button switch:2/4/6/8 buttons option
Insulation grade:F class
Protection class: IP55
Working group:M4
Working temperature: -40ºC ~ +40ºC
OEM acceptable
Customized logo acceptable
Package: plywood case
Warranty: 2 years for mechanical parts, 1 year for electric parts
