Product Description
Multi-functional ECG Paper CAD Paper Thermal Paper Slitting Rewinding Machine
Techinical Parameters:
Model Type | JT-SLT-900 |
Max. Unwinding Width | 900mm |
Max. Unwinding Dia | 1000mm |
Max. Rewinding Dia | 160mm |
Min. Slitting Width | 25mm |
Max. Machine Speed | 150m/min |
Unwinding Shaft | 3’’ (76mm) air expanding shaft |
Rewinding Shaft | 0.5’’, 1’’ or as per customer’s request |
Voltage | three-phase four-wire, 380V,50HZ |
Power | 2.9kw |
Weight | 1200kg |
Overall Dimensions(L*W*H) | 1900*1900*1500mm |
Specifications:
This machine is used for slitting and rewinding all kinds of thermal paper, including fax paper, cash register paper, ATM paper, ECG paper, medical record paper, POS paper, self-adhesive trade marks, non-woven cloth, films etc.
-Thermal papar slitter Machine adopts Siemens PLC control system and touch screen, all the parameters are displayed on the monitor, and it will work automatically. |
-The main motor adopts Siemens inverter motor, and frequency inverter control. |
-Machine adopts automatic chain link lift-up loading system, it controlled by a separated motor from Taiwan. |
-All transmission rollers have been dynamic/static balance treated. |
-It adopts red line marking system, printing red line at the end of paper rolls. |
-Machine adopts round blades to slit, it equipped with automatic wasting materials edge trimming system. |
-It adopts auto tucker, adjust the paper material loose or tight easily. |
-It adopts 2 set of sensors and fully automatic tension controller to keep constant tension. |
-It adopts auto meter counter, when it reach the setup length, the machine stop and alarm automatically. |
-It can avoid overlap problem after paper reels are finished. |
-It equipped with emergency switch. |
Features:
Unwinding Section |
|
Slitting Section |
|
Rewinding Section |
|
Controlling Section |
|
Tension control Section |
|
Trimmed Waste |
|
Configurations:
Name | Specification | Qty | Brand |
Computer System | PLC+HMI | 1 Set | Siemens from Germany |
Motor | 1 Set | Siemens | |
Frequency Inverter | 1 Piece | Innovance from China | |
Unwinding Shaft | 3’’ (76mm) Air Expanding Shaft | 1 Piece | |
Rewinding Shaft | 0.5’’, 1’’ or as your request | 2 Pieces | |
Upper / Lower Round Knife | 16 Sets | ||
Magnetic Brake | 1 Set | From Taiwan | |
Low Voltage Electrical Switch | 1 Piece | Schneider from Germany | |
Blower | 1 Set | ||
Cylinder | 2 Pieces | Airtac from Taiwan | |
Tension Controller | 1 Set | ||
Sensor | 2 Sets | ||
Air Pressure Valve | 1 Set | SMC from Japan | |
Relay | Omron from Japan | ||
Spacer | as per customer’s request | From China |

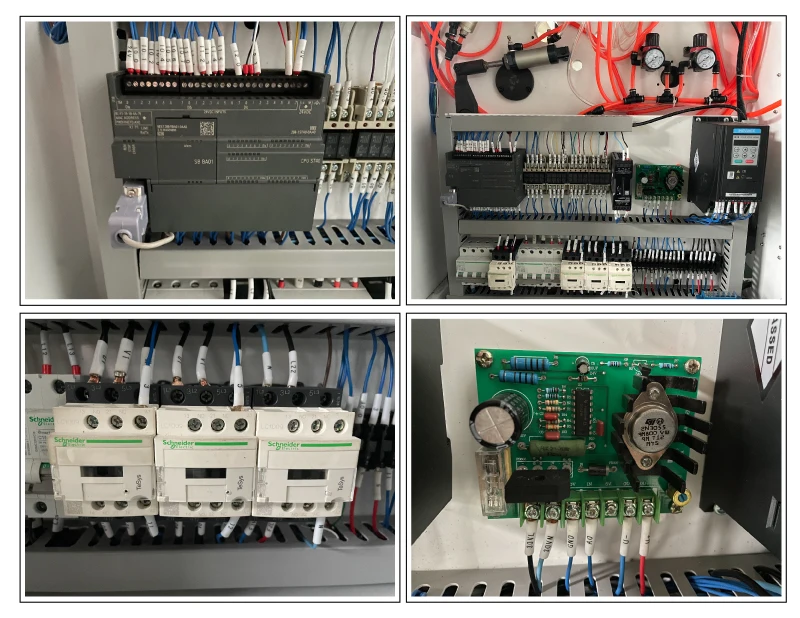

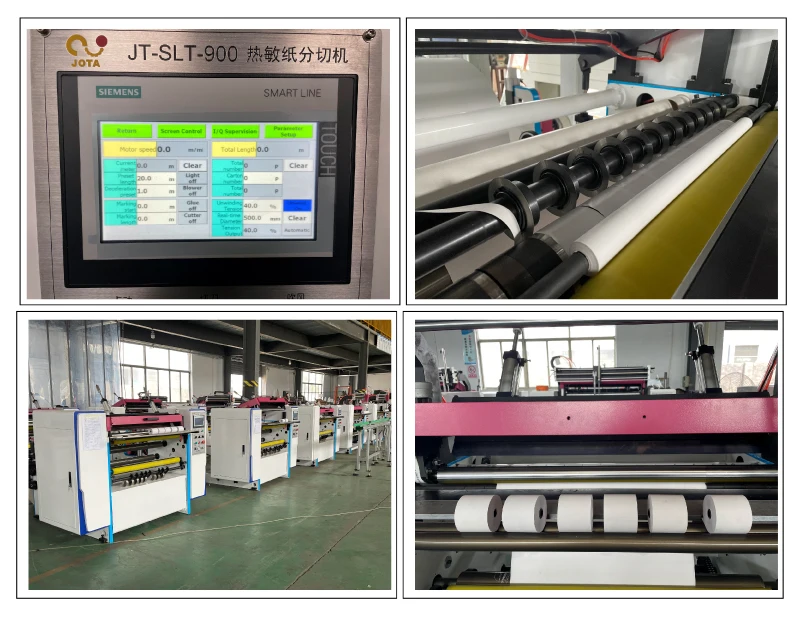

Detailed Pictures For Reference:

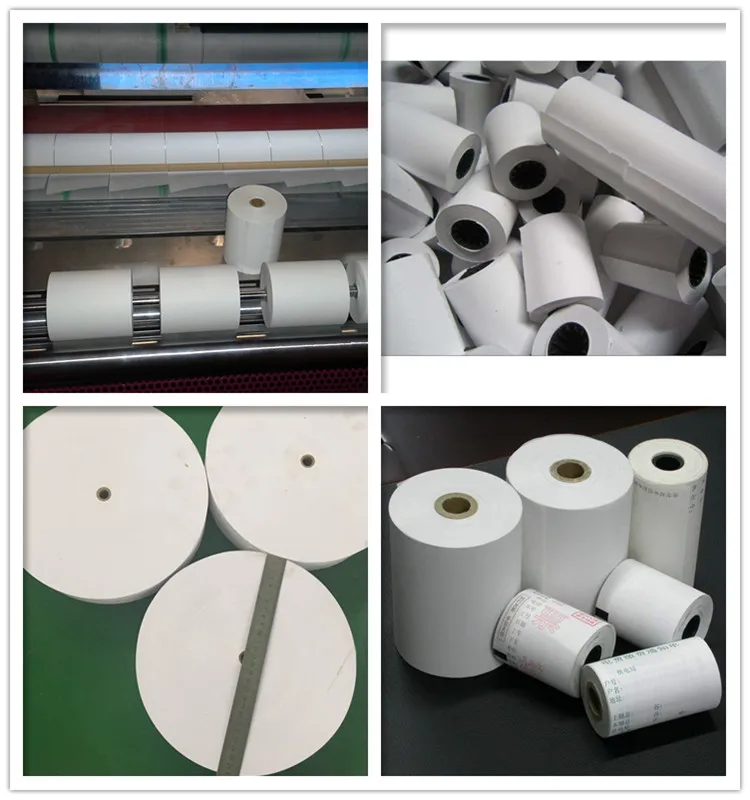

Slitting Samples:

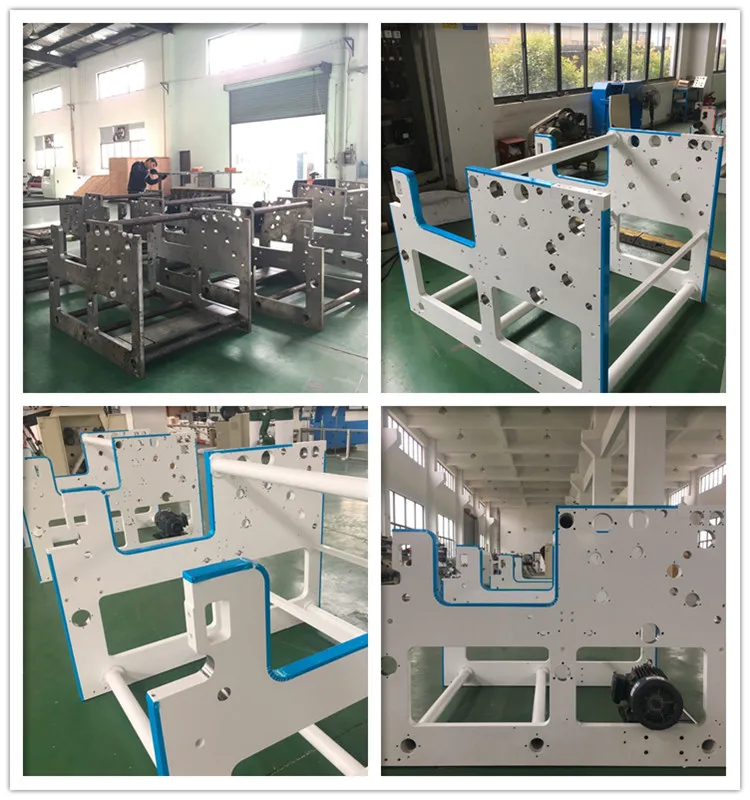

Production Procedure:

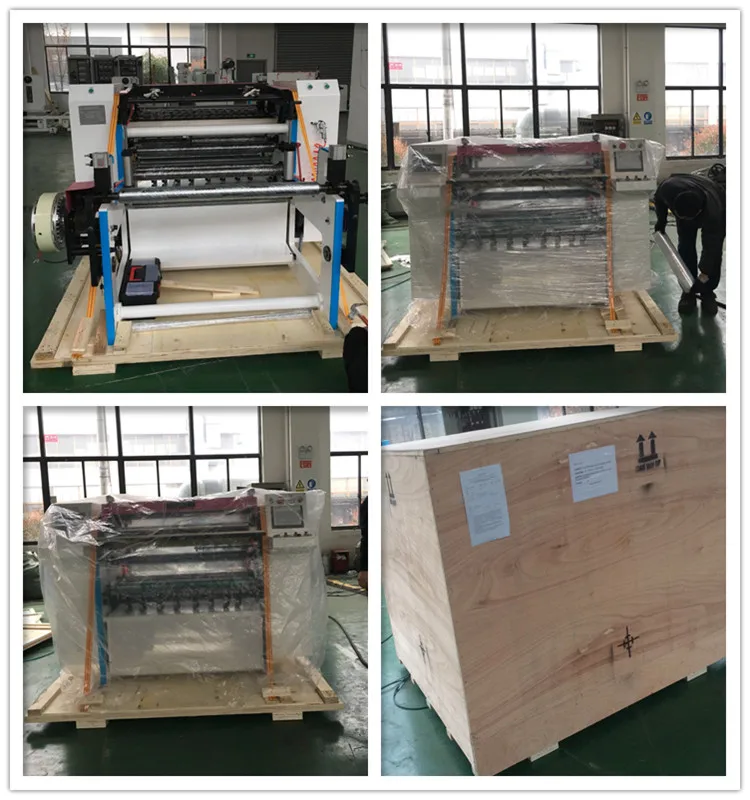

Packaging & Shipping
Packing: Multi-functional ECG Paper CAD Paper Thermal Paper Slitting Rewinding Machine is with stretch film wrapping and wooden case. As for the machine, we will supply one year guarantee, whole life technical support, a set of tools, a box of vulnerable parts, English Manu, Inverter Manu and Electrical Schematic Diagram.
Delivery: Within 10 working days after the receipt of 30% payment by T/T. Thermal Paper CAD Paper Slitting Rewinding Machine.
Recommended Products

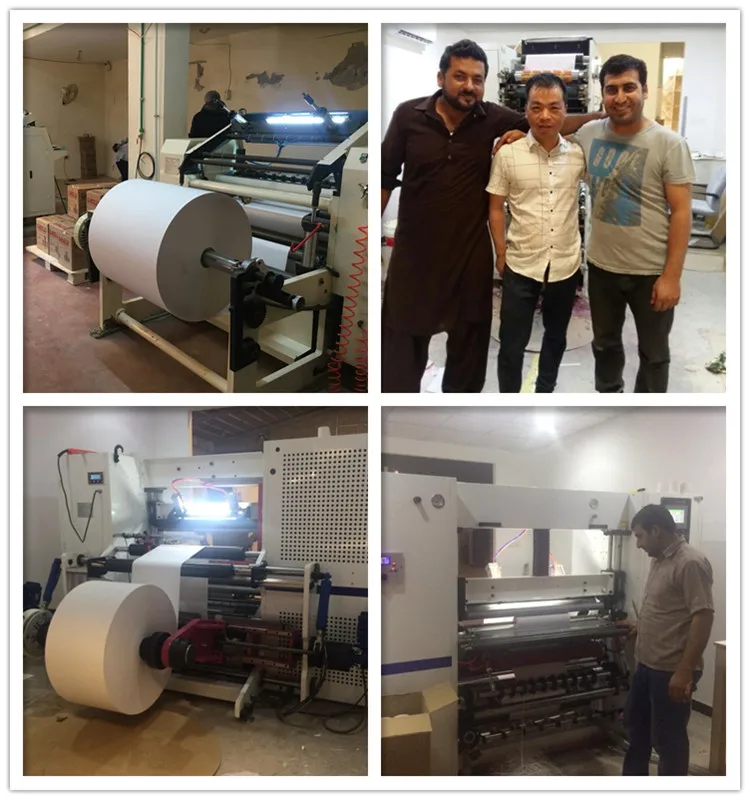

Our Customers
Exhibition

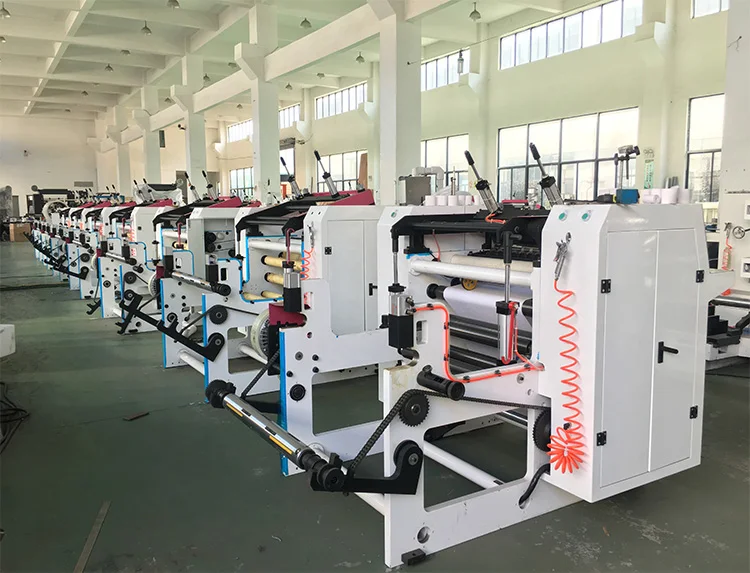

Company Information
Jota Machinery Industrial(Kunshan) Co.,Ltd is a long established engineering company combined with science, research, development, production and management. It is specializing in plastic & paper packing machinery with more than 30 years experiences in China.
We supply all kinds of packaging machines to satisfy the stringent requirements for Health and Safety, and meet the latest European CE standards. We provide customers with professional pre and after sales services, and to guarantee complete satisfaction of the equipments installed all over the world.
Our Services
Q1: What's payment terms ,trade terms you accept?
Usually we appreciate T/T 30% deposit, then 70% balance is paid before shipment. We usually offer FOB ningbo price. We also accept other ways like L/C, western union, and do CFR&CIF etc.
Q2. Does it easy to operate and what can i do if it doesn't work?
First, our machine is stable and easy to operate by one man, what you do is just learn some basic things like loading the jumbo roll paper, start the machine and cutting the paper. We will send you manual and video. Our suggestion is for you to visit our factory to learn more things by yourself, and if something goes wrong, you can call us, video-chat, or email us. We will give solutions within 36 hrs. Our engineer also can be distributed to overseas as you required.
Q3. If the machine's spare parts broken ,where can i get?
We will give you vulnerable parts, and some critical parts like gear box. Our quality is good, in case broken within one year, we will send you for free.
FAQ
1, Are you trading company or manufacturer?
We are a manufacturer, and also provide business solutions to all the friends.
2, Do you have quality certificate?
Yes we have CE, SGS etc.
3, What's the delivery time?
Around 20~30days, however, based on order.
4, Can you help us to buy other goods?
Sure of that, it is our honor to work for you, and control the goods quality.
