Model GGS71-B high temperature HPHT laboratory supplies filter press for measuring drilling fluid cement slurry filtration rate
Product Description
Model | Name | Configuration |
GGS42-2 | HPHT filter press | Through hole/heating jacket with thermal insulation layer |
GGS42-2A | HPHT filter press | PID temperature controller |
GGS71-A | HPHT filter press | Through hole/no hole drilling fluid |
GGS71-B | HPHT filter press | Through hole/no hole drilling fluid |
HPHT filter press named GGS42-2 is a professional instrument, used to measuring the filtration amount of drilling fluid and cement slurry under simulative deep well conditions (high temperature and high pressure), and also make filter cake after filtering under the same conditions. The filter is mainly composed of main body (base, stand bracket, heating system), tee valve, drilling fluid cup, high pressure filtrate receiver and QG-76/QG-80 pressurized manifold, etc.
The whole instrument is designed to integrated the heating and control system, and the main components are made of high-quality stainless steel, which is convenient operate, flexible move, delicate surface and durable quality. This filter has the characteristic of high temperature control precision, good repeatability, simple operation, accurate measurement and etc. It has widely used for measuring the filtration amount of drilling fluid and cement slurry in oil fields, scientific research institutes, laboratories and other departments.

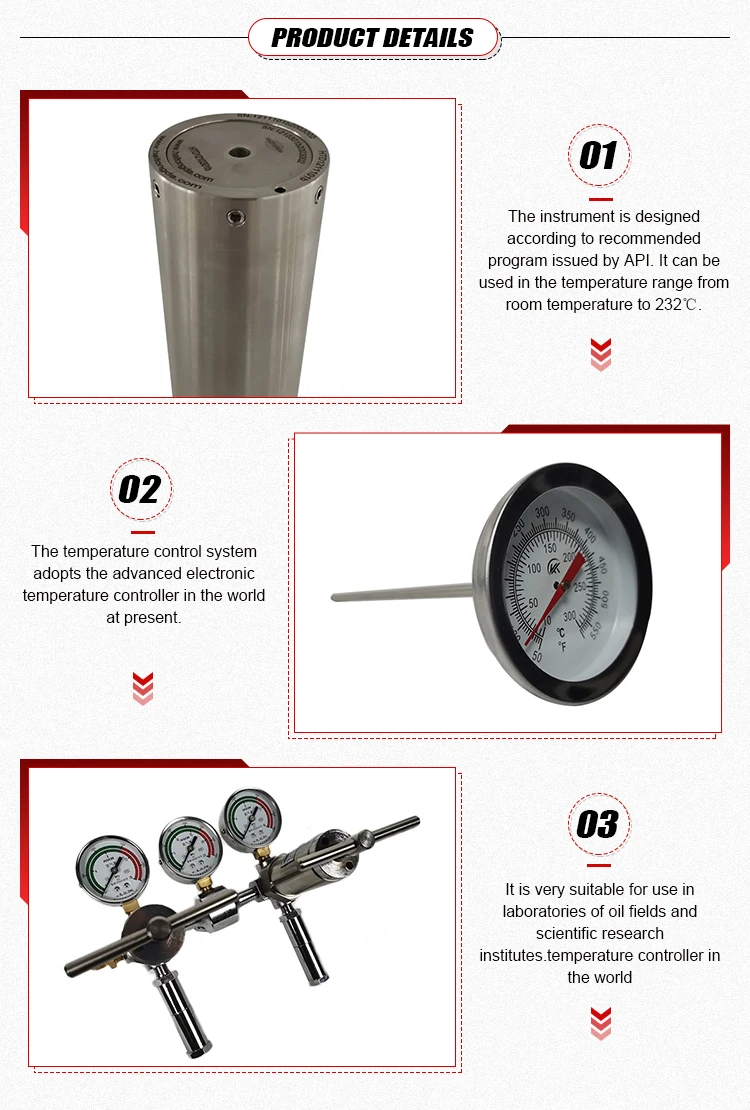

Detailed Images
Working principle : Pour the quantitative drilling fluid samples into the drilling fluid cup. After sealing, put the drilling fluid cup into the heater and heat it. At the same time, inflated and pressurized the drilling fluid cup quantitatively through the pressurizing pipe. Under some kind of temperature and pressure conditions, pressurize the sample to produce the filtrate pass through the filter screen or filer paper in the drilling fluid cup, and then evaluate the filtration performance of drilling fluid by measuring the volume of filtrate.
Technical Specification
Item | GGS42-2 | GGS42-2A | GGS71-A | GGS71-B |
Power supply | AC(220±11)V 50Hz | AC(220±11)V 50Hz | AC（220±11）V 50Hz | AC（220±11）V 50Hz |
Rated power | 400W | 400W | 1KW | 1KW |
Operate pressure | 4.2MPa | 4.2MPa | 7.1MPa | 7.1MPa |
Saver pressure | 0.69MPa | 0.69MPa | 3.5MPa | 3.5MPa |
Maximum drilling fluid volume | 175mL | 175mL | 500mL | 500mL |
Filter area | 3.5 in2 （22.6 cm2） | 3.5 in2 （22.6cm2） | 3.5in2 （22.6 cm2 ） | 3.5in2（22.6cm2 ） |
Gas supply | Nitrogen, carbon dioxide(No impurities such as oil and water) | Nitrogen, carbon dioxide(No impurities such as oil and water) | Nitrogen, carbon dioxide(No impurities such as oil and water) | Nitrogen, carbon dioxide(No impurities such as oil and water) |
Operate temperature | Normal to 150℃（±3℃） | Normal to 150℃（±3℃） | Normal to 232℃（±5℃） | Normal to 232℃（±3℃） |
Net weight/Gross weight | 12.08kg/18.1kg | 13.26kg/22.6kg | 28.36kg/38.6kg | 28.66kg/40.2kg |
Dimensions | 180×200×540mm | 260×250×560mm | 480×350×780mm | 480×350×790mm |
Packing dimensions (wooden box) | 570×435×275mm 310×290×285mm | 570×435×275mm 310×290×285mm | 790×450×415mm | 790×450×415mm |
