Product Description

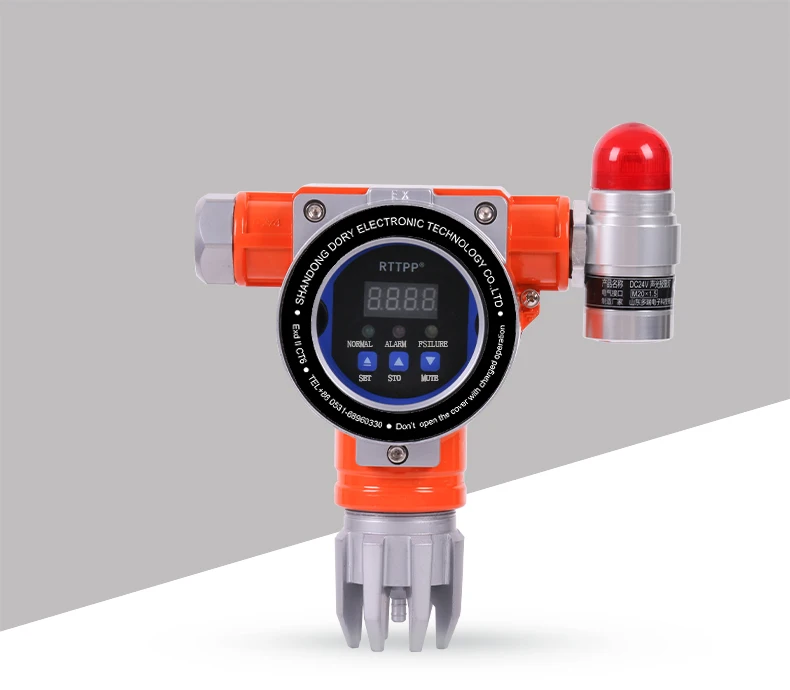

Industrial fixed gas detector
1.Sensors use imported sensitive elements, which have the characteristics of high accuracy, strong interchangeability and high reliability.
2.The internal machine core is in the form of components. Maintenancecan be accomplished only by replacing components.
3.Independent liquid crystal display and acousto-optic alarm module, long life, can show the gas concentration working state on state on site and sound-light alarm. Infrared remote control technology, easy operation of zero calibration.
2.The internal machine core is in the form of components. Maintenancecan be accomplished only by replacing components.
3.Independent liquid crystal display and acousto-optic alarm module, long life, can show the gas concentration working state on state on site and sound-light alarm. Infrared remote control technology, easy operation of zero calibration.
Items | Parameters |
Product name | Fixed O2 gas detector |
Detection gas | O2 Oxygen |
Detection Range | 0-30%VOL |
Accuracy | 0.1%vol |
Ex Level | Ex d Ⅱ C T6 Gb |
Protection Level | IP66 |
Output Signal | 4-20ma/RS485/switching walue |
Certifica tions | CE, SIL2 |

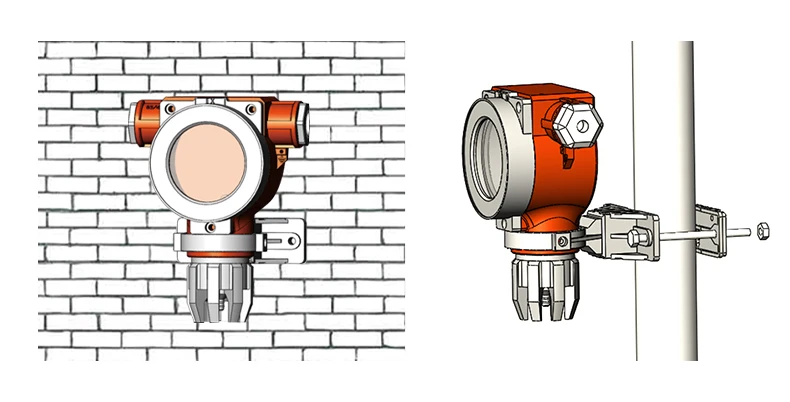

Installation
Fixed bracket
Tube mounting
Wall mounting
According to gas weight, the gas detector should be installed up or under the leakage.

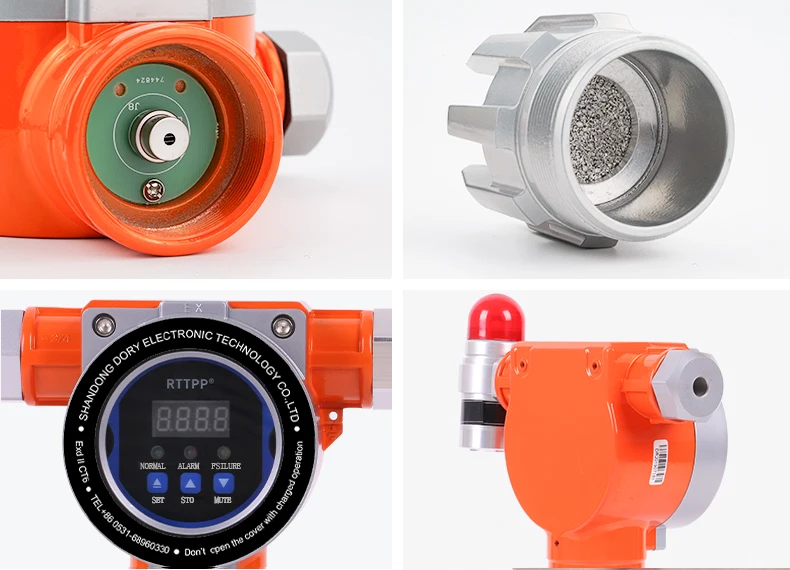

Detailed Images
Electrical interface：G3/4 Thread
Display type: LED display
Output signal: 4-20ma/RS485/switching walue
Size Information
Size | Data(mm) | Weight |
Length | 205 | 2.5kg |
Width | 80 | 15.3 |
Height | 215 |
Packing&Shipping
Company Introduction
Shandong Dory Electronic Technology Co.,Ltd has been committed to technical re-search
and development and consulting services for gas detection and alarm instruments,cloud
service systems,instrumentation,automation control systems and safety protection system
software for many years.
With the mission of "Let the world be less dangerous", the company is driven by "technology leads the future, innovation drives development",with the aim of "being a company with a conscience and a company that is meaningful to the society". Sincerely welcome people from all walks of life to guide,discuss cooperation and seek common development!
and development and consulting services for gas detection and alarm instruments,cloud
service systems,instrumentation,automation control systems and safety protection system
software for many years.
With the mission of "Let the world be less dangerous", the company is driven by "technology leads the future, innovation drives development",with the aim of "being a company with a conscience and a company that is meaningful to the society". Sincerely welcome people from all walks of life to guide,discuss cooperation and seek common development!
Certifications
Exhibition
FAQ
1.How many square meters can each detector detect?
It can detect 15-20 square .
2.How many detectors can be connected to one controller?
2.How many detectors can be connected to one controller?
According to the number of detectors to choose the controller’s type.

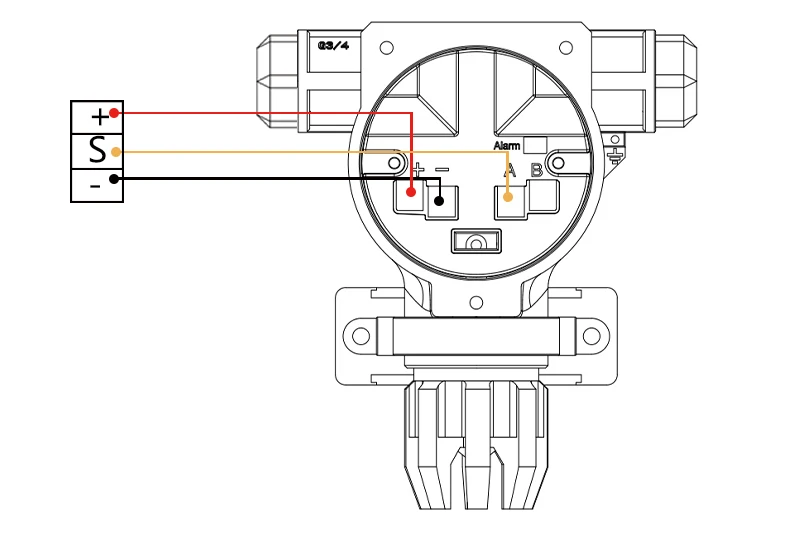

3.What’s the line type which connects the controller and detector?
3.What’s the line type which connects the controller and detector?
Dividing system: 1.0mm² three-core shielded wire.
Bus system : power line -RVV2*1.0mm², signal line -RVVSP2*1.0mm²
4.The product’s price shall be set according to the required function.
5.Why do you choose our products?
4.The product’s price shall be set according to the required function.
5.Why do you choose our products?
Brand supply, responsive, 360 degree detection, long life.
