Product Description
Android Network player board YS-M8 support USB SD card input and Picture /Music / Video Playback lcd advertising board
GENERAL DESCRIPTION
➢ YS-M8 The PCBA’s firmware is base on Android OS 7.1.1,Rockchip RK3288 CPU which is Quad-Core and 1.8GHz
➢ YS-M8 Platform Support LVDS and EDP output for FHD LCD panel, support HDMI 2.0 output for 4K UHD
➢ YS-M8 monitor,infrared remote control, touch screen Printer bar-code scanner, etc. It is convenient to use it for digital
signage , All-in-one field application.
Specification
CPU | Rockchip RK3288, Quad-Core, 1.8GHz | ||
GPU | Mali-T764 | ||
RAM | 2GB DDR3(4GB is optional) | ||
Internal Storage | 8GB EMMC Flash (Extensible) | ||
Decoding Ability | MAX. 2160P(3840X2160@60HZ) | ||
OS | Android 5.1.1 or Android 7.1.2 | ||
Network | Support RJ45 Ethernet, 2.4GHz WIFI,4.0 Bluetooth | ||
Video Format | RM/RMVB,MKV,TS,FLV,AVI,VOB,MOV,WMV,MP4, etc | ||
Audio Format | MP3,WMA,APE,FLAC, etc | ||
Image Format | BMP/JPEG/PNG/GIF, etc | ||
USB2.0 Port | 5 USB HOST,1 USB OTG/HOST | ||
Ethernet | 10M/100M self-adaption Ethernet | ||
LVDS Output | Support 60Hz 6Bit/8Bit Single or Dual Channel LVDS Max Resolution :1920X1080@60Hz | ||
eDP Output | Support 1/2Lanes eDP signal output Max Resolution :1920X1080@60Hz | ||
Power | For Board | 12V or 12V/5VSB/STB | |
To LCD panel | 3.3V/5V/12V | ||
HDMI Output | Support HDMI2.0 4K@60HZ output | ||
Audio Output | L&R audio-out（2X8Ω/5W speaker） Earphone(3.5mm Audio jack or PH 4pin Header) | ||
RTC | Real-Time Clock Available | ||
Timer | Available | ||
System Update | Support USB/TF Card update | ||
Products Description

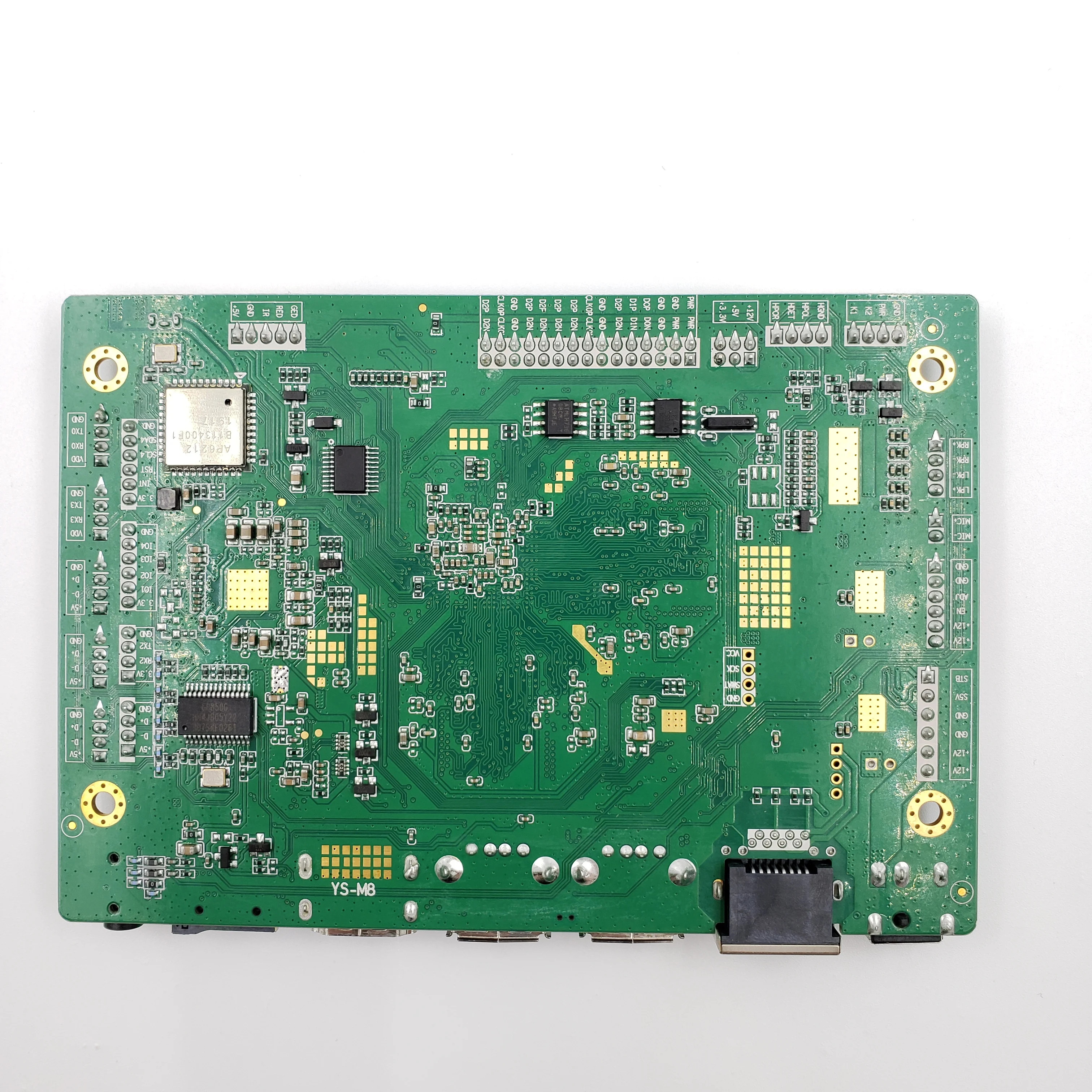

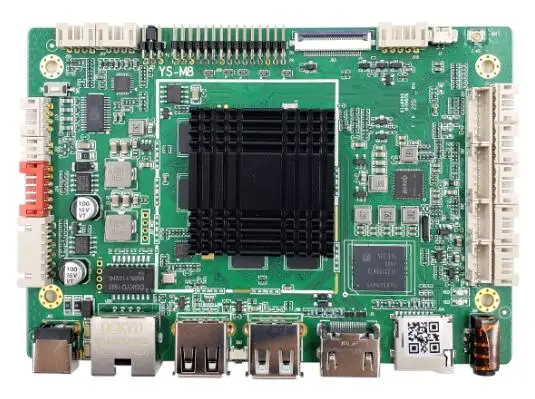

Interface Picture

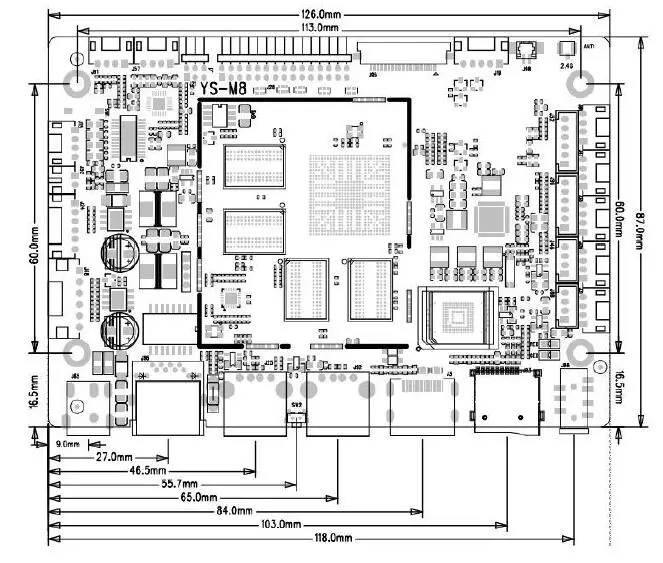

Size of the board
Related Products
Product Usage
Packing&Shipping
1.About the test
2.About the Packing
EPE with Carton with Carton & Plywood case EPE with Carton&Pallet
3.About the Shipping
Company Introduction
Shenzhen Caison Technology co., LTD. Is a professional LCD module solution provider.Our product include:
LCD/LED panel(4.3 inch -110 inch );
LCD kits(1080P-5K LCD controller board,Android board/Media player board, LVDS cable ,Inverter board, OSD board,Remote controll ,
Power supply,Power adapter);
Touch panel(Resistive touchscreen,IR touchscreen,Capacitance touchscreen);
High brightness panel;
We accept all kinds of customized products, including LCD screen, cable, many kind of the board (1080P-5K LCD controller
board,Android board/Media player board),Shell.....All products can be printed with your logo.
We can also apply for certificates for customers' products.Such CE ,SASO, KC, BIS, PSE and CE, FCC, RoHS to UL.....
Welcome you esteemed partners to visit us and start business on mutual benefits together. Thanks!
LCD/LED panel(4.3 inch -110 inch );
LCD kits(1080P-5K LCD controller board,Android board/Media player board, LVDS cable ,Inverter board, OSD board,Remote controll ,
Power supply,Power adapter);
Touch panel(Resistive touchscreen,IR touchscreen,Capacitance touchscreen);
High brightness panel;
We accept all kinds of customized products, including LCD screen, cable, many kind of the board (1080P-5K LCD controller
board,Android board/Media player board),Shell.....All products can be printed with your logo.
We can also apply for certificates for customers' products.Such CE ,SASO, KC, BIS, PSE and CE, FCC, RoHS to UL.....
Welcome you esteemed partners to visit us and start business on mutual benefits together. Thanks!
