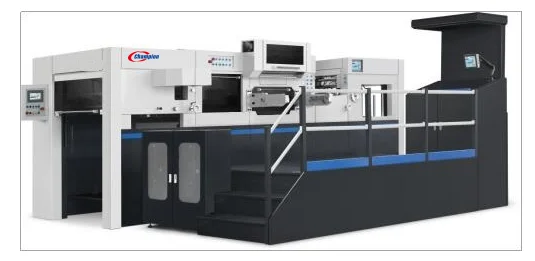

Автоматическая высокоскоростная машина для резки и горячего тиснения фольгой
- Категории: Paper Production Machinery >>>
- Поставщик: Shanghai,Asianray,Industry,Development,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Features of CHK-1050T series include:
ü CE approved
ü Center line system
ü Auto Non-stop collecting device
ü Human machine interface and PLC from Schneider
ü Overload protection torch limit controller
ü Timing belt driven system
ü Automatic forced lubrication system
ü Micro-adjustment of the feeding platform
ü Four side stripping unit(Optional)
ü Wide stock range for corrugated board and card paper
ü Photoelectrical device for safe operation
ü Automatic oil cooling device
ü Automatic lubrication device for main driven chains
ü High speed and precision feeder equipped
ü ISO9001 and CE approved manufacturing process.
ü European, Taiwan and Japanese standard spare parts
Specification
Max. sheet size | 1050×750mm |
Min. sheet size | 400×360mm |
Max. die cutting size | 1040×720mm |
Min.gripper margin | 9-17mm |
Inner chase size | 1080mm×745mm |
Stock range | 80~600g/m(card paper) less than4mm(corrugated paper) |
Die cutting accuracy | less than ±0.1mm |
Max. working pressure | 300T |
Max. working speed | 7500s/h |
Max. paper feeding stacking height | 1600mm(including wooden pallet) |
Max. paper collecting stacking height | 1400mm(including wooden pallet) |
Max. gold foil diameter | 250mm(Longitudinal) 200mm(lateral) |
Electric-heated system | 12 temperature zone, 40-180℃ adjustable |
Foil width | 20-1020mm |
Main motor power | 11kw |
Overal dimension(length: including pre-feeding track)(width: including the pedal) | 7700mm×5200mm×2600mm |
Total weight of machine | 18.5ton |
Full-load wattage | 52kw |
Air pump displacement | 0.6~0.7Mpa,≥0.37m3/min |
Dear sir:
Pls find our specification and payment term as below :
Payment | TT / LC |
Delivery | 60-120 days |
if there is any question , please feel free to contact us.
Packaging & Shipping
Our Services

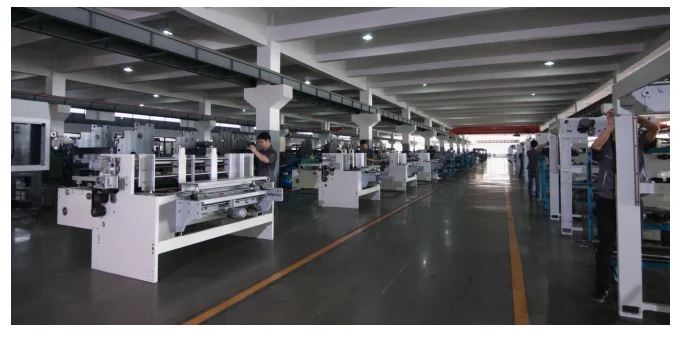

Company Information
