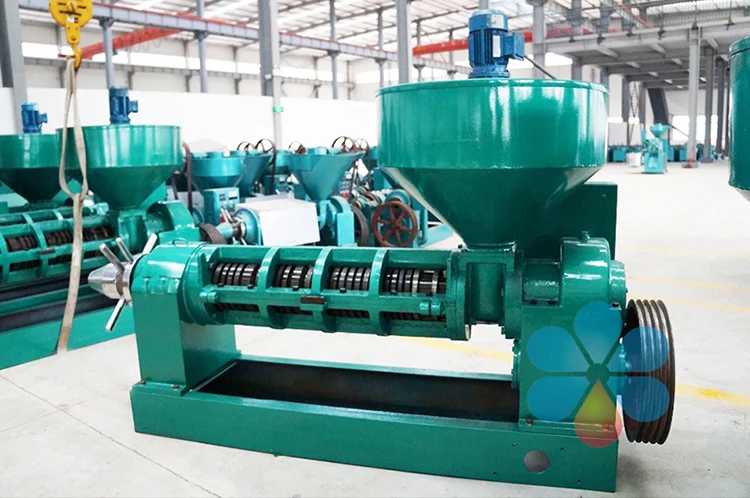

Peanut Oil Making Machine
Product Description
Peanut Oil Production Line
Huatai peanut oil press machine adopt the latest pre-press - oil extraction process technology, at present, this technology is the most advanced in the world, and it makes up for lack of traditional oil press and improve the oil yield, ensure the quality of peanut oil ,improve the quality of peanut meal, to provide a guarantee as high protein forage material.
Henan huatai Peanut Oil Making Machine features:
1, the world's most advanced oil extraction technologies. The traditional oil extraction are one-time pressing, leading to the oil yield is not high, waste oilseeds, henan huatai use pre-press - oil extractiontechnology to reduce the residual oil rate of oil cake and improve the quality of peanut meals.
2, the unique environmental initiatives. Oil extraction systems, henna huatai unique exhaust absorption system, absorbing good effect, in line with environmental standards required in many countries, to solve customer worries.
3, reasonable advanced energy-saving design. solvent recovery system in oil extractor are provided, the solvent can be repeatedly used, heat energy also can be repeatedly used, saving the amount of solvent and steam, for customers to save costs.
The whole production line contains three workshops pretreatment&prepressing workshop,oil extraction workshop and oil refining workshop,that are suitable for all kinds of oil seeds, such as,peanut,rice bran, copra,palm,soybean, corn germ,cottonseed,sunflower seed,rapeseed, sesame seed and so on.

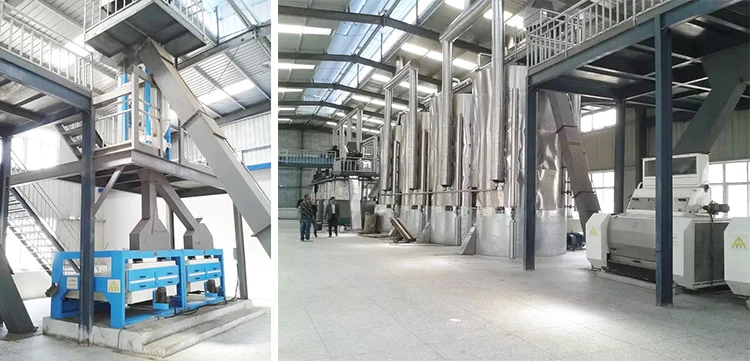

Peanut Pretreatment&Prepressing Workshop
Craft flow:
Crude material → cleaning → softening → prepressing → drying → to extraction workshop
Pretreatment and prepressing section is a very important section before extraction.It will directly affect extraction effect.
Craft features:
1.Create good production enviroment
2.Minimize the total fat loss,increase oil yield and output and improve the quality of oil and cake&meal.
3.Comprehensively utilize impurities and offal.
4.Perfectly match extraction production line,design different production processes according to different materials.
We have obtained patent for expanding,Patent No. is ZL2007 20092291.7.
Peanut Oil Extraction Workshop
Craft flow:
solvent steam
↓ ↓
extraction → mixed oil → evaporation→ steam-stripping → crude oil
Extractor types:
Level rotation extractor, loop type extractor, chain extractor
Extraction methods:
Use organic solvent through soaking or spraying contact methods to extract oil from oilseeds.
Advantages of extraction craft:
1.High oil yield, low residual oil in meal;2.Low labor intensity;3.Good working environment;4.Good meal quality.
Negative pressure evaporation helps to improve crude oil quality.
Craft features:
1. Adopting negative pressure evaporation can ensure excellent oil quality;
2. Extraction system is highly adaptable, and can adapt to different raw material ;
3. All equipments are provided with exhaust gas absorption systems with excellent absorption effect;
4. Full energy-saving design utilizes heat energy for many times and saves steam consumption;
We have obtained patent for extraction,Patent No. is ZL2007 20092291.7.

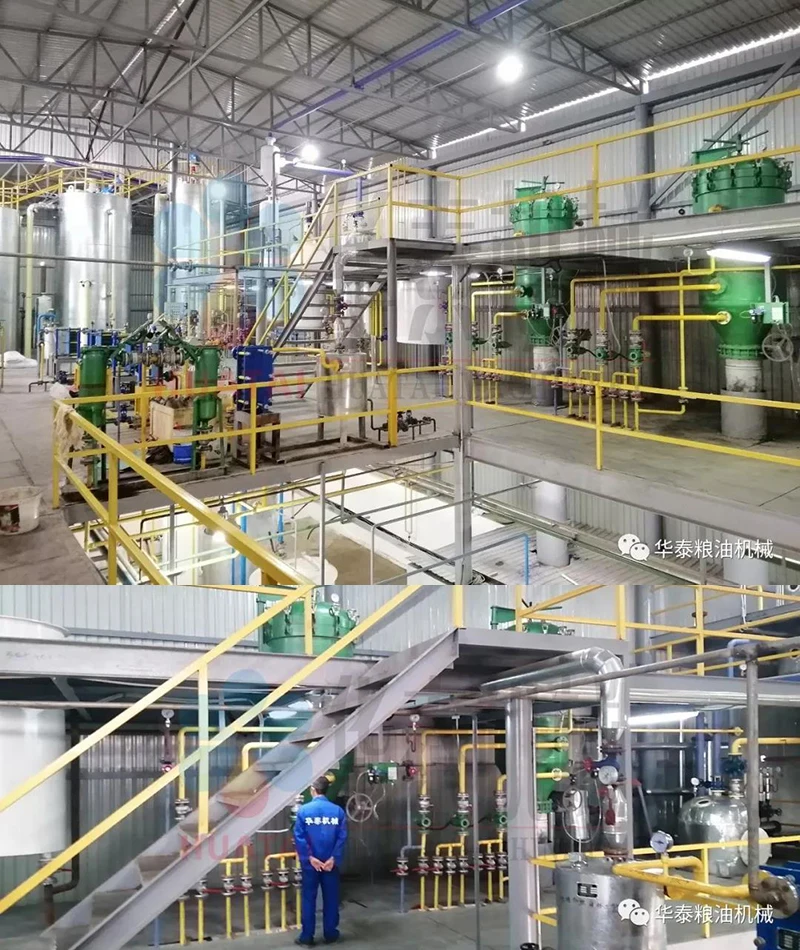

Peanut Oil Refining Workshop
Craft flow:
crude oil → degumming&dephosphorization → deacidification → drying → decolorization → deodorization → defatting → dewaxing → finished oil.
Refining methods:
oil refining is according to the different usage and requirements, utilizing the physical methods and chemical processes to get rid of the harmful impurities and needless substance in the crude oil, getting standard oil.
Advantages of refining craft:
1. After refining the impurity of oil must be less than 0.2% ; 2.Recycling system save power and money; 3.Lower oil waste.
Craft features:
1.Continuous alkali refining shortens contact time between oil and lye,reduces grease saponification,lowers refining consumption,and improves efficiency.
2.Decolorization adopts technology of combining premixing and steam mixing bleaching,which improves bleaching efficiency,saves consumption of bleaching clay,and it's simple and convenient to operate;and negative pressure state avoids oxygen in the air from contacting with hot oil,thereby ensuring oil product quality,inhibiting acid value to rise again,and lowering peroxide value.
Oil Quality Index
Finished Peanut oil quality index
Item | Quality index |
Refined oil color(Lovibond cuvettes133.4mm) | Y15,R 1.5 |
Smell,taste | No smell,good taste |
Transparency | Clear and transparent |
Moisture and volatile matter(%) | ≤0.05 |
Insoluble impurities (%) | ≤0.05 |
Acid value (mg KOH/g) | ≤0.2 |
peroxide value m mol/kg) | ≤5.0 |
Residual solvent (mg/kg) | No |
company information
Huatai Machinery, the full name is Henan Huatai Cereals and Oils Machinery Co., Ltd. Located in Hua County industry Zone of Henan Province. Covering an area of 150,000 sqm, with total investment RMB360 millions, has a modern standard plant and advanced processing equipment, is a research and development, design, manufacture, guidance, installation as one of the major cereals and oil machinery manufacturing enterprise.
Rich experience of large overseas projects
- Hundreds of successful overseas projects;
- Rich experience in government bidding projects;
- Products are exported to all over the world;
- Large project experience, can undertake 3,000t/d projects;
Dozens of certificates and honors
- Won Gold Award of China Invention Exposition;
- Excellent member of China Grain & Oil Association;
- Won the Provincial trustworthy unit for many years;
- China Top 10 Food and Oil Machinery Brand;
Our Services
1.Supply set of equipment and accessories on time.
2.Ensure the installation and debugging are succeed by one time.
3.Supply good material and price machine to customer.
4.Develop new product and production technology and supply them to customer
5.We will direct the installation and operation of the equipment, and train operators for customer
6.Engineers available to service machinery overseas
7.1 year warranty period for machine, during this period we will amend the machine free charge if it is equipment quality problem. But if the machine broken by operation reason, the customer need to take the accessories charge. We will supply solution within 4 hours, or our engineer comes to solve it within 3 working days.
If you have any questions about Peanut Oil Making Machine , please don't hesitate to contact Sarah !
