Universal Horizontal Gear Hobbing Machine Price List

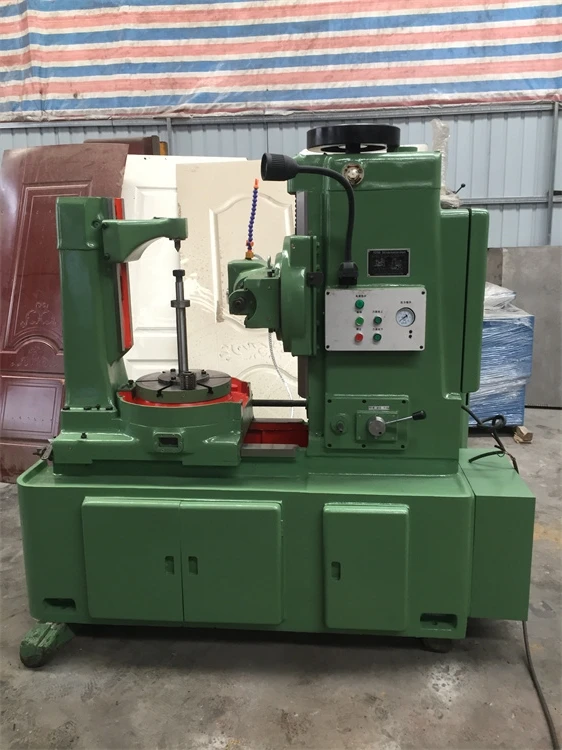

Product picture
1.Convenient hydraulic powed structure reduces the non-cutting time as well as the times to use the cutting tools .
2.Raised height for vertical column and increased stroke:The vertical column is made higher(180/130mm increased axial stroke in head slide)
3.High precision and long service life:The machine adopts the worm gear of a high precision over five grade and uses bronze alloy material which is of high abrasion resistance,enabing long service life and steady accuracy.
Model | Y3150 | Y3180 |
Max workpiece diameter(with rear column/without rear column) | 350mm/500mm | 550mm/800mm |
Max hobbing modulus | 8mm | 10mm |
Max Processing Width | 250mm | 300mm |
Min processing gear | Z/K=6 | Z/K=8 |
Max vertical travel of tool post | 300mm | 350mm |
Max swiver angel of tool post | ±240° | ±240° |
Distance between cutter axis and worktable | 235-535mm | 235-585mm |
Spindle taper | Morse 5 | Morse 5 |
Hob diameter | 160mm | 180mm |
Max axial movement of cutter | -------- | 50mm |
Hob abor diameters | Φ22,Φ27,Φ32MM | Φ22,Φ27,Φ32,Φ40MM |
Distance between hob axis center and worktable | 30-330mm | 50-550mm |
Worktable aperture | 80mm | 80mm |
Taper bore of workpiece mandrel | Morse 5 | Morse 5 |
Worktable diameter | 520mm | 650mm |
Spindle rotate speed and range | 9Level 40-250R/Min | 8Level 40-200R/Min |
Rapid travel speed of tool post slide | ≤540MM/Min | ≤540MM/Min |
Worktable rapid moving speed | ≤500MM/Min | ≤500MM/Min |
Distance between worktable | 400-600mm | 400-600mm |
Axial feed rate and degree | 12Level 0.4-4MM/R | 12Level 0.4-4MM/R |
main motor power and synchro-speed | N=4Kw 1500R/Min | N=5.5Kw 1500R/Min |
Machine weight | 4500kg | 5500kg |
Overall dimension | 2440*1370*1800MM | 2752*1490*1870MM |

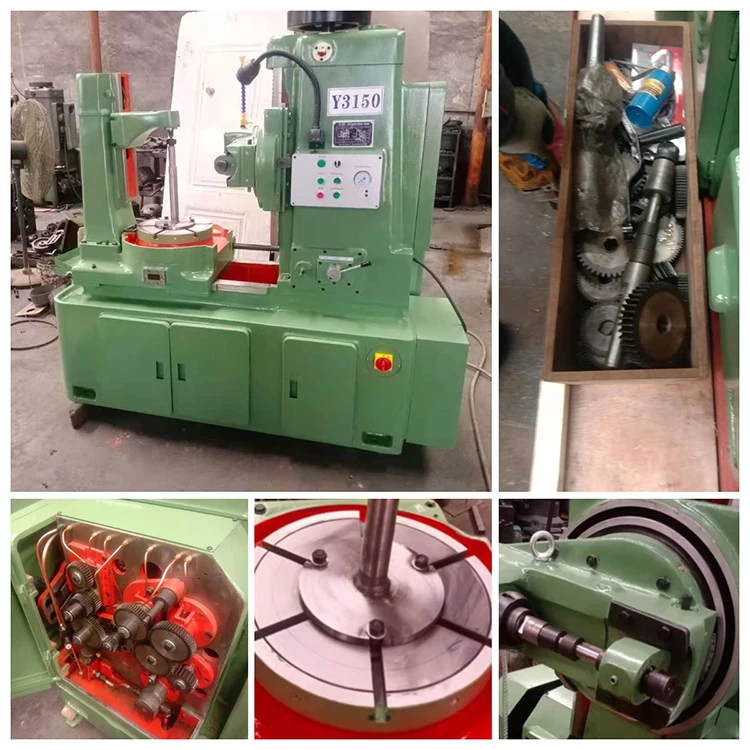

Detailed Images
Packaging & Shipping
Why choose us
1.About Us------Professional Knowledge.
We have more than 20 years experience producing Kinds of machine in China.
2.Price and Quality.
We will recommend you sutiable machine with High quality and Best price.
3.On Time Delivery.
As direct manufacturer supplier, we can delivery in on time to make sure to save you much time and energy.
