Автоматическая машина для резки резиновых лент
US $1500-$4500
Бесплатный образец на прошлый день AOYOO cnc машина для резки
- Категории: Другое оборудование для обработки резины >>>
- Поставщик: Shandong,Aoyoo,CNC,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

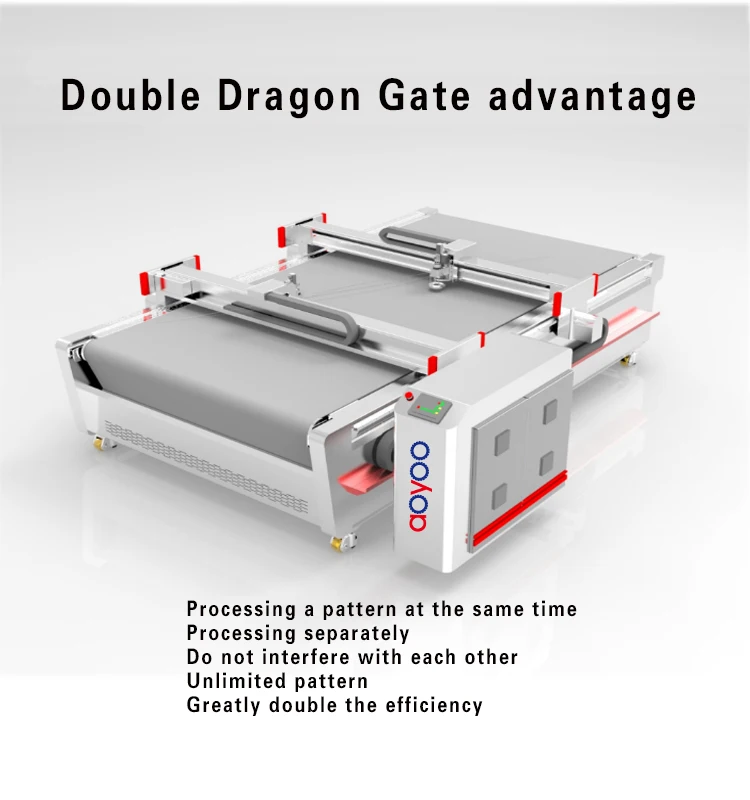

Free sample last day AOYOO cnc gasket cutting machine
Contact us for more details, super high quality, ultra low price
product description of Free sample last day AOYOO cnc gasket cutting machine
1. Diversified head configuration
Freely combine standard handpieces according to different industry needs, and respond to production and processing requirements
2. Ergonomic design
6mm square tube is welded at high temperature, and the frame structure of the whole machine is strengthened to make the equipment more stable and the design is more ergonomic.
3. Safety device
The safety device ensures maximum safety of the operator during high-speed movement, and the infrared automatic sensing device effectively avoids the loss of cutting materials.
4. Automatic typesetting system
The system can automatically and automatically generate an optimized marker screen on the computer according to the user-set width and the number of samples.
5. Scientific wiring system
The simple and scientific circuit system can effectively improve the stability of the circuit, ensure the upgrade of the later products more convenient, and also increase the expandability of the equipment.
Free sample last day AOYOO cnc gasket cutting machine of Product parameters
| Technical parameters / model | AOYOO-1625 | AOYOO-1825 |
| Effective working area | 1600x2500mm | 1800x2500mm |
| Multi-function tool | Vibrating knife full cut, semi-cutting cut, indentation, drawing mark, cursor positioning, camera positioning edge cutting, high power active round knife | |
| safety devices | Safety devices use infrared sensing, safe and reliable | |
| Cutting speed | 200-2000mm/s | |
| Cutting thickness | ≤50mm Other thicknesses can be customized according to the material | |
| Applicable materials | Glass fiber, glass fiber cotton, prepreg, carbon fiber, carbon fiber felt, boron fiber, aramid fiber, ceramic fiber, soft glass, PVC, leather leather, sponge composite skin, XPE material, wire ring, leather, soft glass , silicone, rubber material etc composite soft material | |
| Material fixing method | Vacuum partition adsorption | |
| Transmission port | Network port | |
| Transmission system | Yaskawa servo motor, linear linear guide, timing belt, lead screw | |
| rated power | 11kw | |
| Rated voltage | 380V±10%/220V±10% Optional | |
| Control System | Chinese and English LCD touch screen | |
| Operating environment | Operating environment Temperature 0-40°C Humidity 20%-80%RH | |
| Support file format | AI,PLT,DXF,CDRetc | |
| Overall size | 2300*3560*1221mm |
2500*3600*1221mm
|
Free sample last day AOYOO cnc gasket cutting machine industry
1. Home textile: AOYOO can provide customized cutting integrated solutions according to the home textile industry, which can not only significantly improve the utilization rate and processing efficiency of the fabrics in the home industry during the cutting process, but also effectively improve product quality and achieve high efficiency. Low consumables, high quality and comprehensive optimization
2. Textile and Apparel: AOYOO cutting system is designed for brand clothing, high-end custom clothing tailoring, and developed an automatic correction system to solve
3. Composite material: AOYOO cutting system replaces the hand-painted version of the composite product manufacturing process, manual cutting and other traditional processes, especially for complex samples such as heterogeneous irregular patterns, greatly improving production efficiency and cutting accuracy.
4. Automotive interior: AOYOO system for different cutting requirements of the automotive interior industry, different cutting materials proposed a full-coverage cutting integrated solution, cutting products including fully enclosed foot pad, large surrounding foot pad, wire ring foot Pad, car seat cover and other flexible fabrics
5.Advertising packaging: AOYOO system cutting provides a complete solution for the advertising industry, especially suitable for PP paper, KT board, Chevron board, self-adhesive, corrugated paper, honeycomb paper and other materials processing, and can be equipped with high-speed milling cutter for acrylic Processing of hard paper materials
Company Profile of Free sample last day AOYOO cnc gasket cutting machine
Shandong Aoyou CNC Equipment Co., Ltd. is a high-tech enterprise specializing in R&D, production, sales and service of CNC cutting equipment, covering an area of more than 1,000 square meters.
Developed a variety of tools such as vibrating knife, drag knife, round knife, half cutter, bevel cutter, pressure roller, punching knife, milling cutter, etc.
The company specializes in clothing textiles, cartons, luggage shoes, carpets, carbon fiber, etc.
Received a number of national invention patents, passed ISO9001, CE and FAD, and exported products to more than 100 countries and regions.
Packaging Details of Free sample last day AOYOO cnc gasket cutting machine
|
FAQ OF Free sample last day AOYOO cnc gasket cutting machine
| 1. Are you a trading company or a factory? We are manufacturers. 2. When can we arrange shipment? We usually arrange shipment within 15 days after getting deposit, but customized machines should be more than 25 days. 3. Do you provide equipment operation training after sale? Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passport. 4. Can you customize the machine according to my request? Yes. We have experienced engineers and technical team, can provide personalized service |
Contact us for more details, super high quality, ultra low price
