Mining pneumatic drilling machine YSP45 stopper rock drill
Product Description
YSP45 model upward type high frequency rock drill is used mining,shaft sinking and drilling operations of drilling raise rock hole,drilling upward hole in the direction of the earth from 60 to 90 degrees,it also can be used to install the anchor rod.

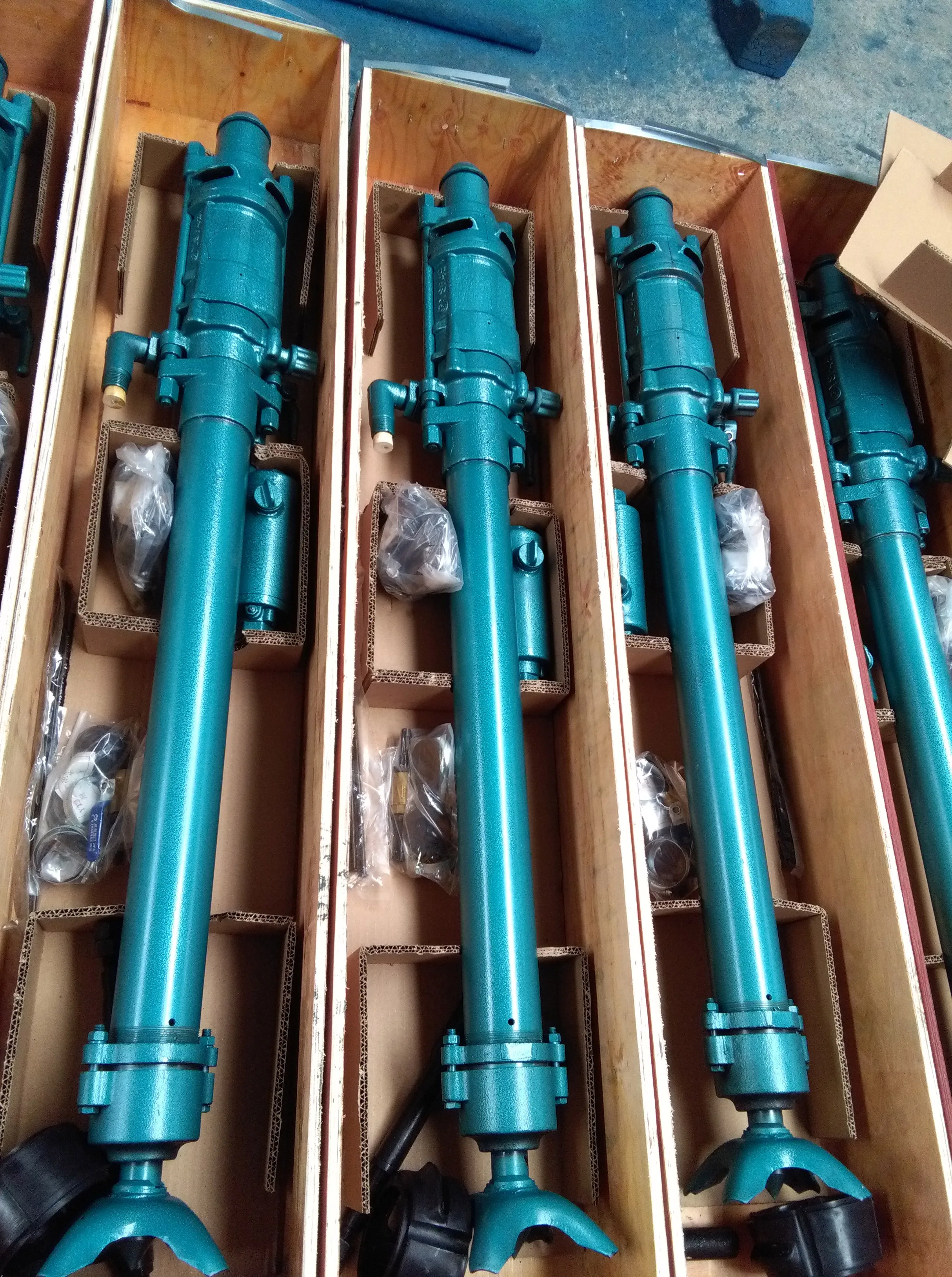

Mining pneumatic drilling machine YSP45 stopper rock drill
| YSP45 STOPER PNEUMATIC ROCK DRILL | |||
| Min. Length | 1420 mm | ||
| Max. Length | 2170 mm | ||
| Stroke Piston Diameter | 74 mm | ||
| Piston Diameter | 95 mm | ||
| Piston Stroke | 47 mm | ||
| Impact Frequency | ≥42 Hz | ≥45 Hz | ≥46 Hz |
| Impact Energy | ≥57 J | ≥70 J | ≥73.5 |
| Air Consumption | ≤80 L/s | ≤83 L/s | ≤113.3 L/s |
| Torque | ≥12 N.m | ≥18 N.m | ≥32 N.m |
| Air Pressure | 0.4 Mpa | 0.5 Mpa | 0.63 Mpa |
| Water Pressure | 0.3 Mpa | ||
| Air Pipe Inner Diameter | 25 mm | ||
| Water Pipe Inner Diameter | 13 mm | ||
| Drilling Hole Diameter | 34~42 mm | ||
| Max. Drilling Depth | 6 m | ||
| Working Temperature | -30~50℃ | ||
| Shank Size | H22x108±1 mm | ||
| FY500A Oil Lubricator | |
| Weight | 2.5 Kg |
| Oil Capacity | 0.52 L |
Mining pneumatic drilling machine YSP45 stopper rock drill

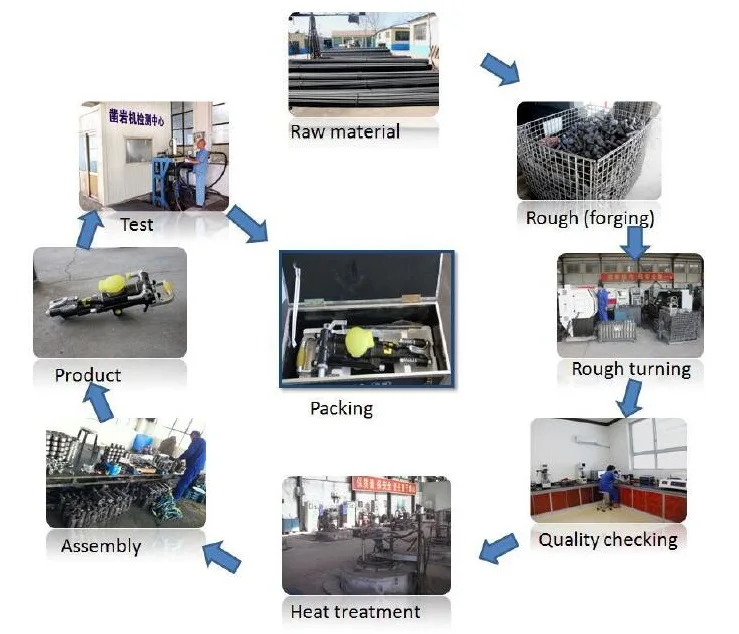

Productive Process
Mining pneumatic drilling machine YSP45 stopper rock drill

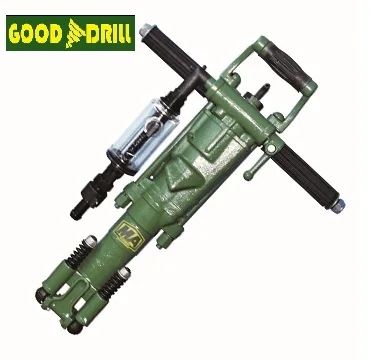

Related Products
 |  |  |
| Hex. drill rod | ||
| Mining pneumatic drilling machine YSP45 stopper rock drill | ||
 |  |  |

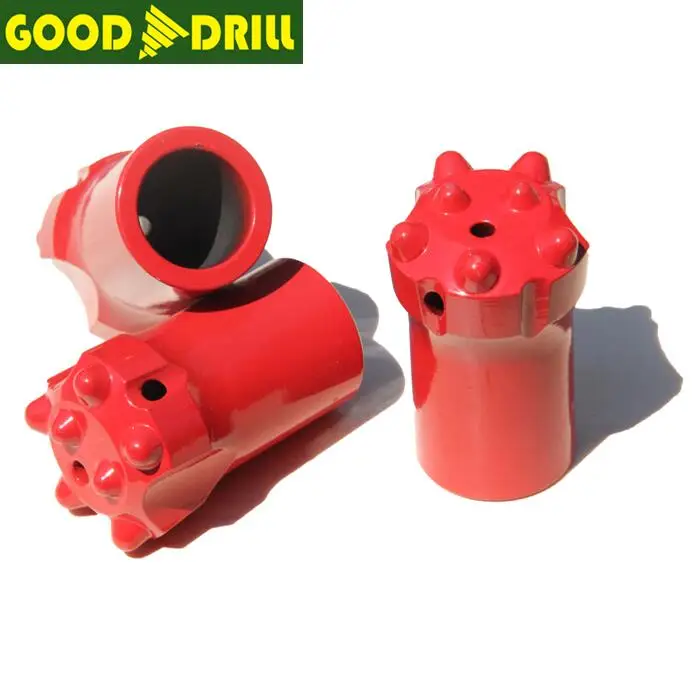

| Button bit | Cross bit | Integral drill rod |
Mining pneumatic drilling machine YSP45 stopper rock drill
Company Profile
Certifications
Customer Visit
Our services
1.Pre-sale service:
Act as a good adviser and assistant of clents enable them to get rich and generous returns on their investments.
a.Response within 24 hours.
b.Select equipment model as your request.
c.Design and manufacture products according to client's special requirement.
2.Services during the sale:
Strict control products before delivery.
3.After-sale services:
Provide considerate services to minimize client's worries.
a.Professional engineers available to service machinery at home or overseas.
b.Warranty for 6 months if the products have quality problems.
c.Provide perfect spare parts and accessories service and support.
