Машина для производства переработанных шин и

Описание и отзывы

Характеристики

recycle tyres rubber making machine

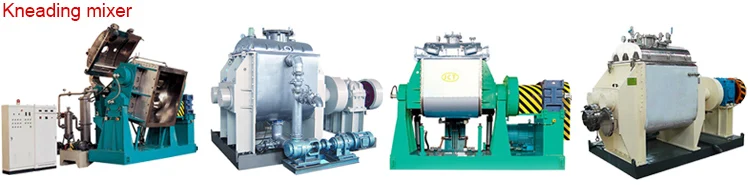

1. the kneader machine







Kinds of Kneading Machine provided.

Mainly include:

1). Hydraulic lid off (For small amount production).

2). Hydraulic tilting (Referring to the parameter).

3). The bottom bumping (Automatic operation or mass production recommended).

3). Laboratory Kneading Machine for testing.



2. Application:



Kneading machine is widely used for the raw material mixing of rubber,silicone, Ink, Silicone sealant, Plasticine, Gum and other high viscosity materials.

3. Product Features:

 1). Kneading mixer does very well in mixing, kneading, crushing and dispersing for high-viscosity liquid materials, with no dead point.

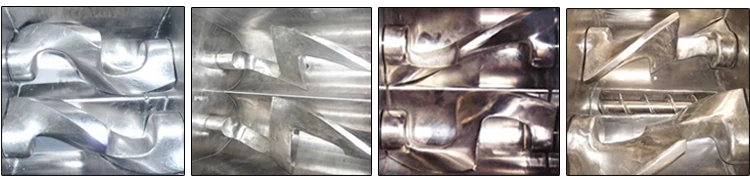

2). With two sigma/ Z-type blades, with frequency controlling by invverter.

3). With double jacket heating, and vacuum & high pressure are available.

4). Discharge mode: Hydraulic tilting, Bottom pumping,or Screwing.

5). Hydraulically driving for the cylinder and the cover.

6). Suitable for liquid-liquid, solid-liquid, paste-powder, paste-liquid, paste-paste mixing.

7). Accept OEM and ODM service.



 table tennis rubber butterfly making machine

4. Technical specification



Model	Volume (L)		Drive motor power          (KW)		Mixing Speed (rpm)		Discharge mode		Heating
	Full volume	Feeding amount		Paddle fast / slow paddle	Optional parameters			Optional parameters
NHZ-5	5	3	2.2-4	75/50	Manual / Hydraulic tilting			Running Hot oil	Electrical heating	Pressure Steam
NHZ-20	20	12	3-5.5	63/42
NHZ-50	50	30	4-7.5	63/42
NHZ-100	100	60	5.5-7.5	43/29
NHZ-200	200	120	7.5-15	43/29	Hydraulic tilting	The bottom pumping	Screw extruding
NHZ-300	300	180	11-18.5	43/29
NHZ-500	500	300	18.5-30	43/29
NHZ-1000	1000	600	22-55	32/22
NHZ-1500	1500	900	30-90	32/22
NHZ-2000	2000	1200	45-110	32/22
NHZ-3000	3000	1800	55-130	33/22
Remarks: 1.Temperature range: 0-300°, 2. Pressure range:-0.1-0.6MPa, 3. Inverter for frequency control if necessary.





5. Packing and Shipping

l  Standard Export Packing

l FOB (usually), CIF, CFR

  table tennis rubber butterfly machine



6. Warranty and after-sale services

u  18 months' free of charge warranty for all of our machines except of the pipes, valves, pumps etc.

u  Customer request for product modification or new product development are invited.

u  24 hours technical support by Email, Skype, Mobile-phone

u  Engineers are available to overseas for technical support or producing guidance.

u  Original manufacturers' price for quick-wear parts of our machines.







7. About Us





8. Office and Clients





9. Certificate





 table tennis rubber butterfly

10. FAQ





11. Contact information
