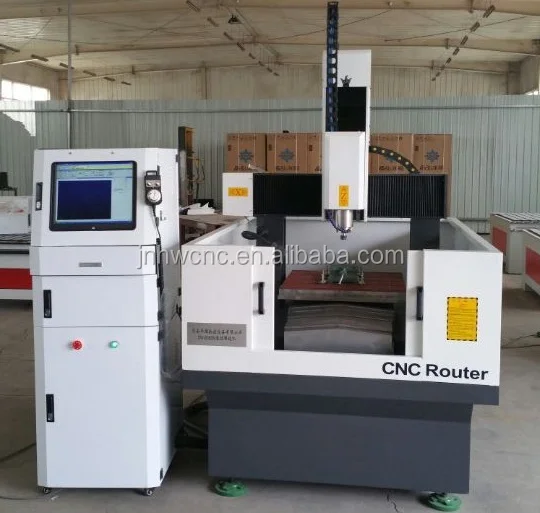

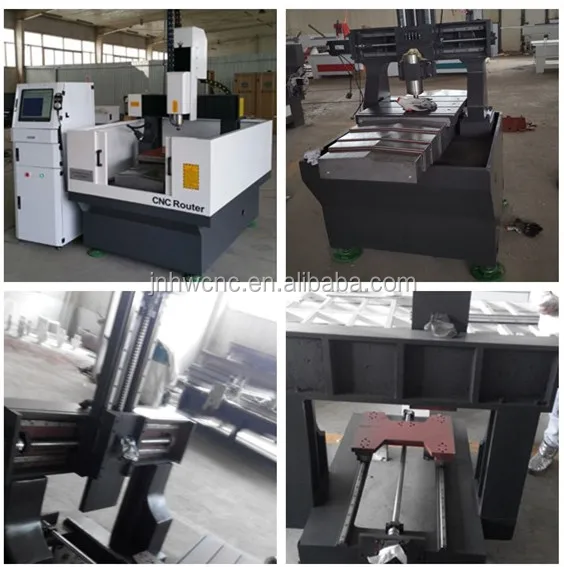

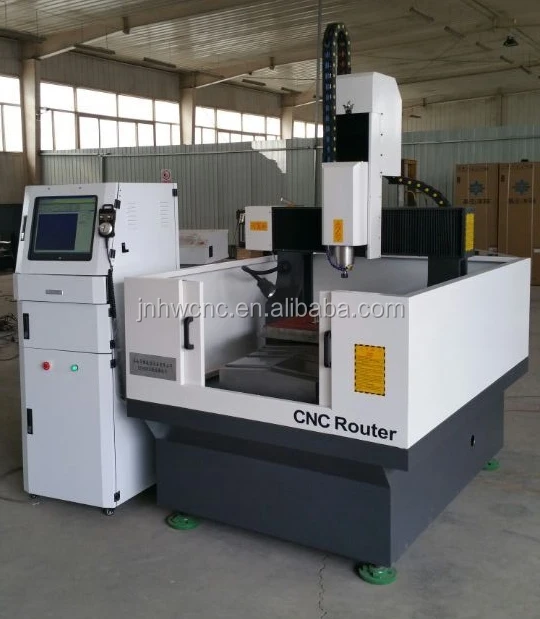

  6060 cnc router metal mould making machine



Product Description



Machine Features

1. whole cast-iron structure, steady structure, high rigidity,precision ±0.01mm.

2.Three axis all use Grinding ball screw and Taiwan Hiwin sqaure guide rails, also installed with Japan bevel math bearing for ball screw to make sure the accuracy and reposition precision.

3.Original Ncstudio system , This system has break point memory mode and special saving mode of different points, so that can make sure continuous working after electronic drop or other postpone situation. The function can guarantee the processing precision of long time operation..

4.  Adopt table movement to keep stable.

5.  Constant power  spindle , big torque, strong cutting, high-frequency , long-lifetime, can be a long time continuous working

QQ20160517145340_QQ20160517145317_

Technical Parameters

Model

SW-6060

Machine body

Whole cast iron

Work dimensions

600*600mm

Table structure

Cast iron

Z-axis working area

200mm ( optional :300mm)

Cut thickness of material

<=40mm

 positionaI accuracy

±0.015//300mm

Max.speed

6000mm/min

Working speed

0-4000mm/min

Mechanical precision

±0.01/300mm

Spindle speed

0-24000rpm

Software

Artcut/Type3/Artcam

Max.Power consumption

1800w

Power source

AC220V/50HZ

Driver type

Japanese servo motor

Spindle

2.2kw water-cooling

Blade diameter

3.175mm/4mm/6mm

Control system

Original Ncstudio system

Command

HPGL,G code,u00*,mmg,plt

 Machine Parts

metal mould

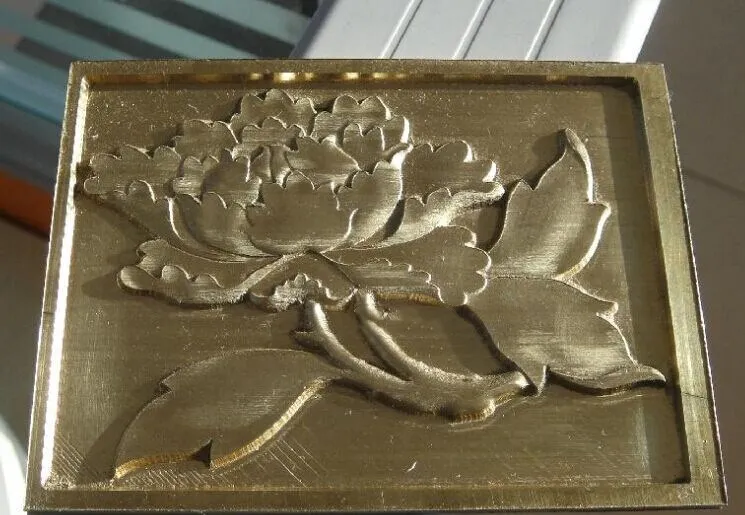

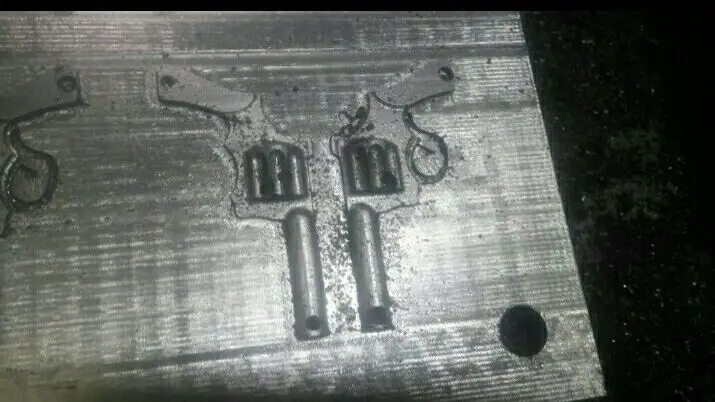

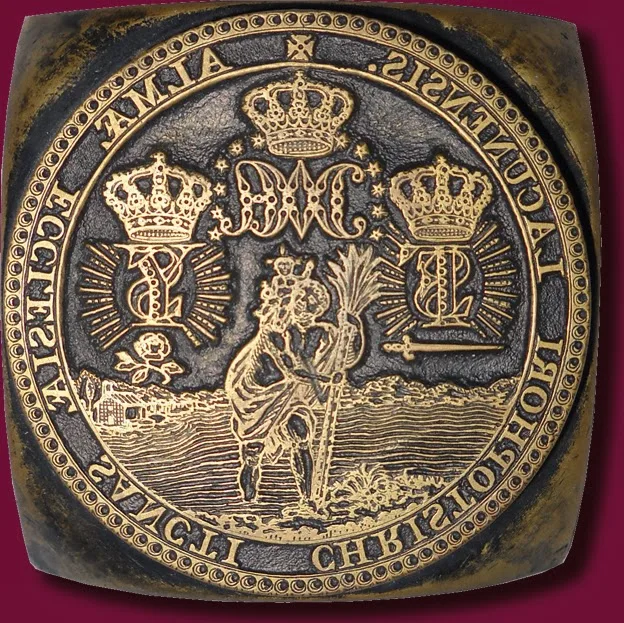

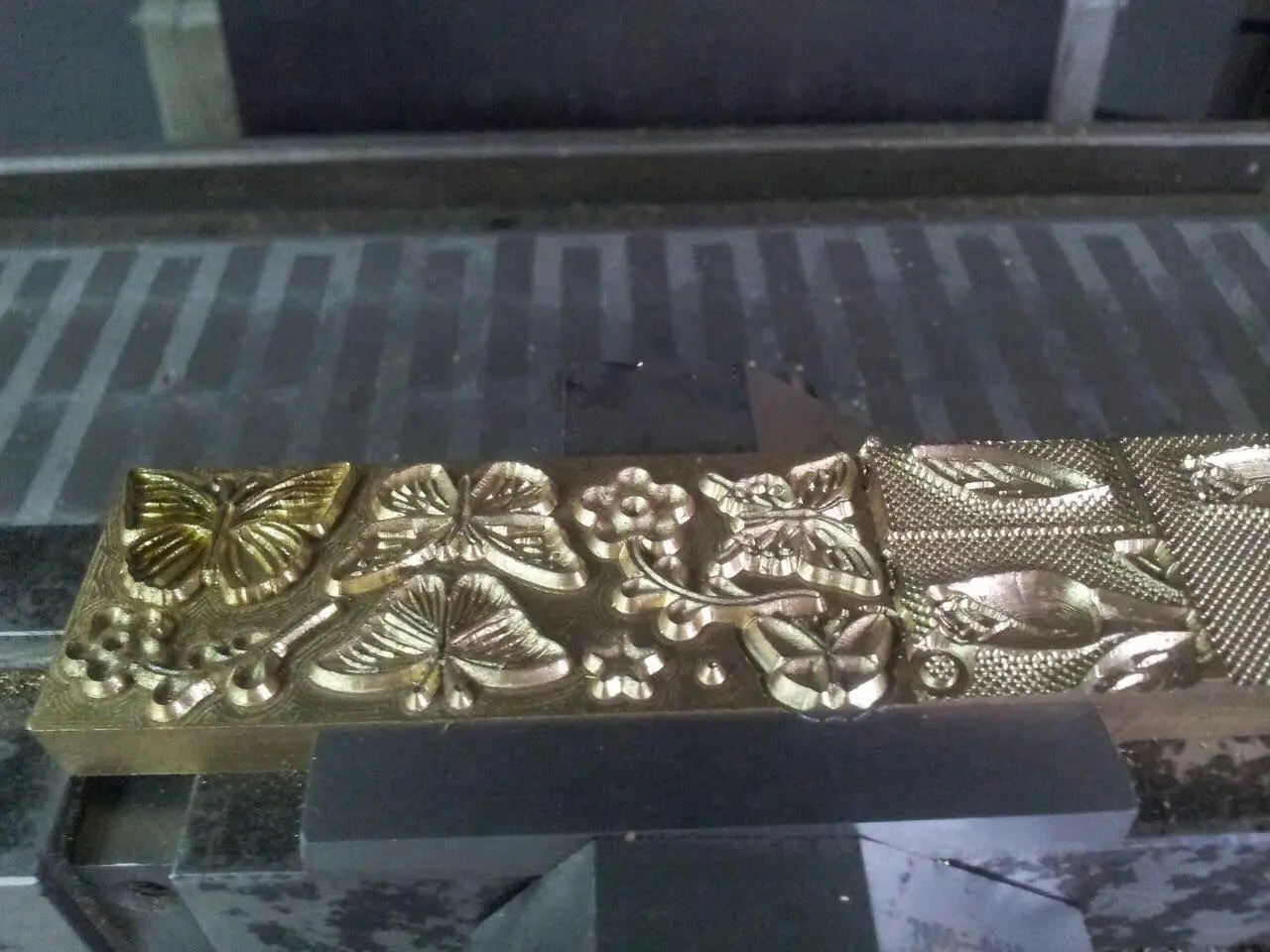

Machine Samples



8QQ20181218155730QQ20150428144900_11211d1edb95bfa9(07-03-08-14-54)QQ20180709093920



Packaging & Shipping

Delivery and Package:
Generally we will take care of your machine packages well like picture show.
Firstly our worker will make sure your machine clean before package, then add Stretchy film for the whole machine and spare parts for sweet protection, at last we will make export standard strong
plywood case package according to your needs.

20171204_091400

Our Services

A. Technical support:
1. Technical support by phone, email or MSN/Skype around the clock
2. Friendly English version manual and operation video CD disk
3. Engineer available to service machinery overseas

B. After sales services:
Normal machine is properly adjusted before dispatch. You will be able to use the machine immediately after received machine.
Besides, you will be able to get free training advice towards our machine in our factory. You will also get free suggestion and consultation, technical support and service by email/fax/tel etc



C. Guarantee:
12 months for the whole machine. Within 12 months under normal use and maintenance, if something is wrong with the machine, you will get spare part for free. Out of 12 months, you will get spare
parts at cost price. You will also get technical support and service all the lifetime.

FAQ

1) This is the first time I use this kind of machine, is it easy to operate?
Together with our machine, there are english manual or guide video that show how to operate the machine.
If you have any question, we can talk by phone, email or skype.


2) If the machine has problem in my place, how could I do?
We could send free parts to you in warranty period if machines have any problem.
Free after sales service for lifetime, please feel free to contact us if your machine have any problem. we will give you 24 X 7 support by phone, email and skype.


3) This model is not suitable for me, do you have more models available?
Yes, we can supply many models. Replacement of some part, we can produce wood CNC engraving machine, marble CNC engraving machine, and etc. The above are most popular. If it can not meet your requirement, then tell us. We have the ability to make specially according your requirement!

Buyer Feedback

Customer feedback121.jpg

Certifications


Company Information

JiNan Huawei CNC machinery Co.,Ltd specilized in raising the R&D capabilities of cnc & laser machine and engages to be the leading specialized company in the industry
Established in 2002, we have a professional team of unity, skill and strong sense of responsibility, having over 10 years experience, we create a set of precise and elegant engraving skills with modern high-tech means and advanced digital technology
Most components of cnc and laser machines can be produced and processed by ourseleves, which great guarantee on production efficiency, with the expanding scale, we have purchased several forkifts and large equipment to improve our processing technology to a higher leavel
