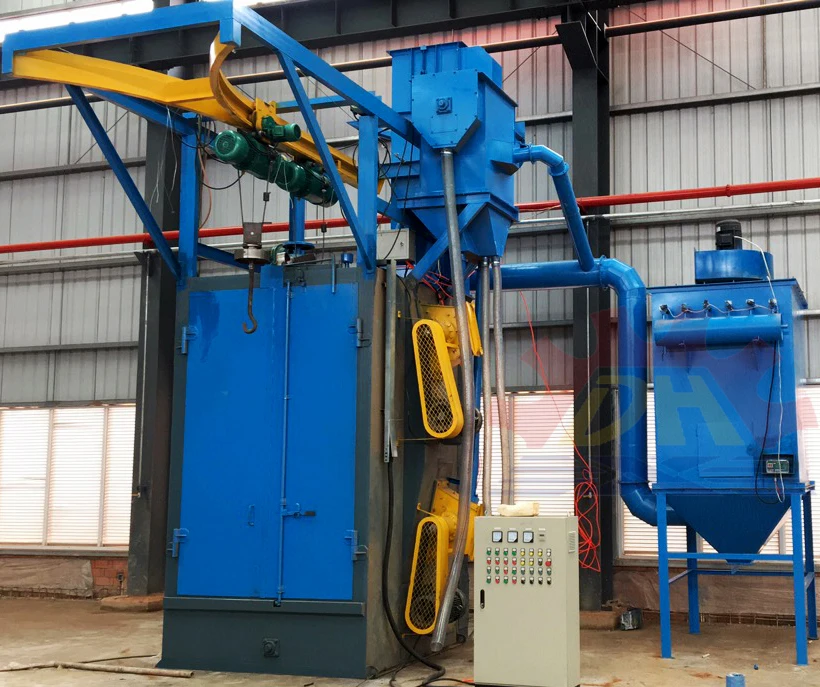

Double Hook Orbital Shot Blasting Machine, Derusting Machine Used in Electric Tricycle Frame

Q37 Series hook type shot blasting machine has large shot blasting capacity, high cleaning efficiency, large effective space, compact structure, and no pit is needed.



There is no special requirement for shape of the workpiece, and it can be used in single machine, widely used in machinery manufacturing and foundry industry.

Q37 Hook type shot blasting machine is suitable for surface cleaning and shot blasting strengthening of small batch castings, forgings and steel structural parts, to remove the workpiece surface welding slag, scale, also suitable for the surface cleaning and strengthening for heat treatment parts; it can also reduce the internal stress of the workpiece and improve the fatigue resistance of the workpiece.

l Ferrous and non-ferrous castings

l Heat treated forgings

l Steel structural parts

l Aluminum alloy parts

l Gas cylinder

l Auto parts

l Wheel rim

l Other small & big metal parts

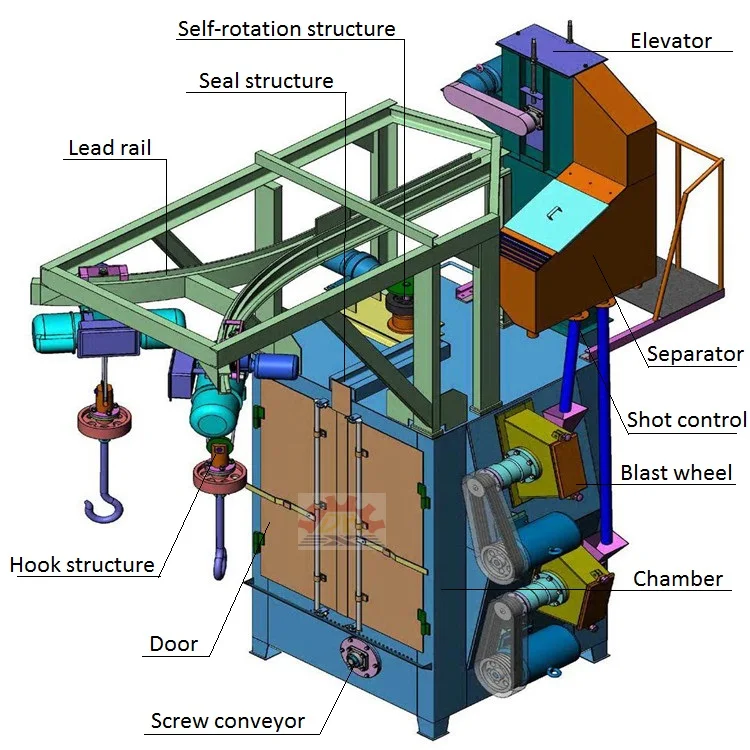

1, Hook type shot blasting machine adopts cantilever-centrifugal blast wheel with long life and simple structure.

2, Hook type shot blasting machine adopts BE type separator with good separating effect and high productivity, and it plays positive role in lengthening the lives of blades.

3, Hook type shot blasting machine adopts pulse bag type dust collector to make the dust density in the exhausted air lower than that stipulated in national standard, to improve working environment.

4, Hook type shot blasting machine adopts 12mm thickness wear-resistant impact-resistant ZGMn13 protecttive liner (area against balst wheel), .wall is 10mm thickness 65Mn protective liner.

5, Hook type shot blasting machine adopts sealing cover plate with delicate structure at the top opening of blasting chamber, to prevent the abrasive from bouncing to the outside of the chamber. (new technology )

6, For Automatic opening and closing door adopts pneumatic control.





Max dimension of suspender	mm	Ø700x1200	Ø1200x1800	Ø1400x2200	Ø3000x3000
Abrasive flow rate	Kg/min	2x200	2x250	3x250	5x250
Lifting amount of elevator	T/h	24	30	45	75
Separating amount of separator	T/h	24	30	45	75
Machine power	kw	23.5	47.5	56.2	97.6
Ventilation capacity	m3/h	4000	5000	9000	16000

We can design and produce all kinds of non-standard Hook Type Shot Blasting Machine according to customers' workpiece details and requirement.
