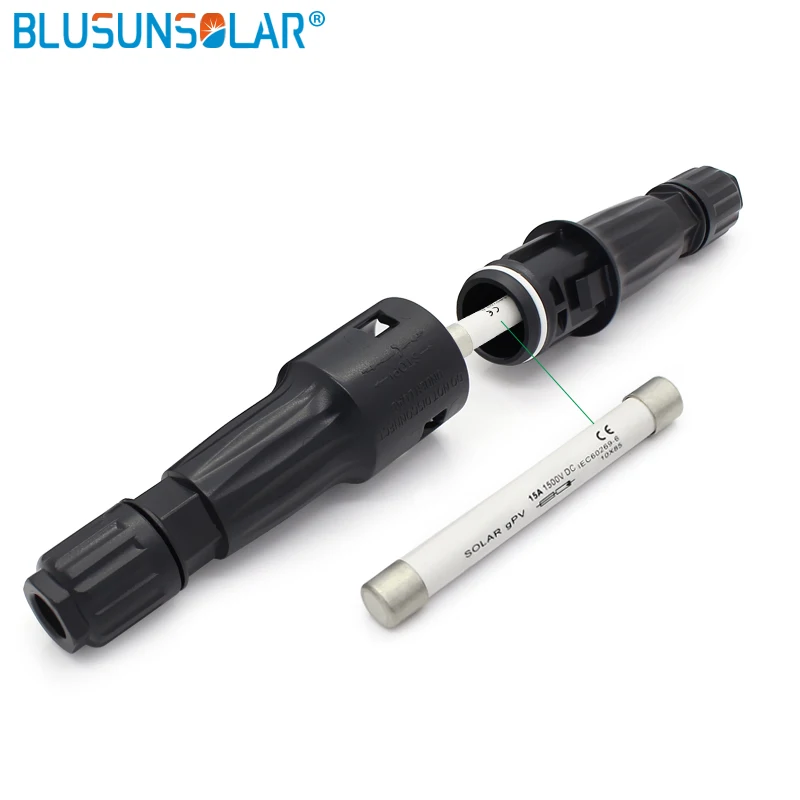

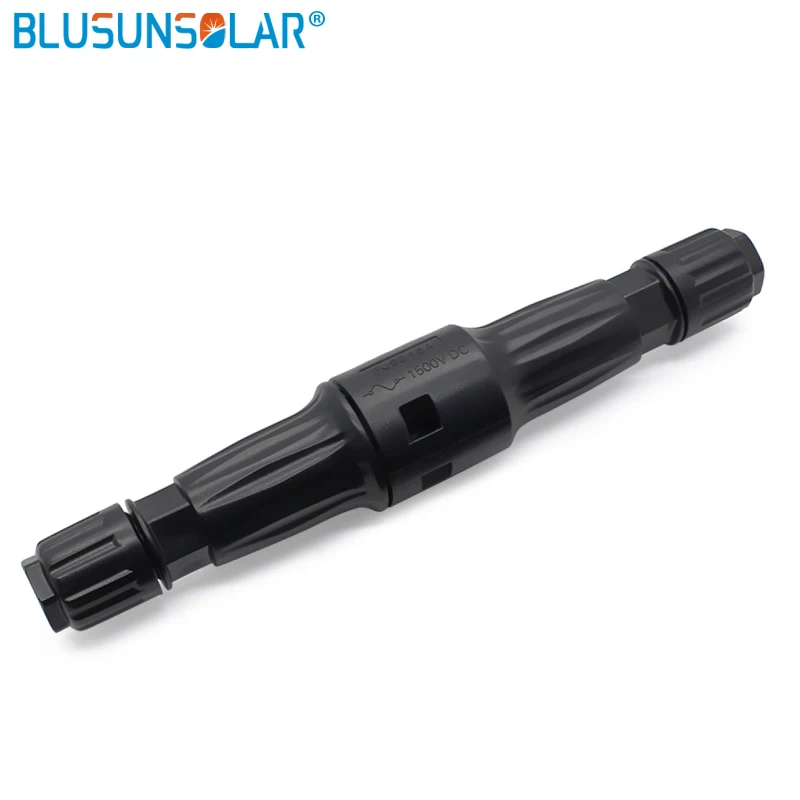

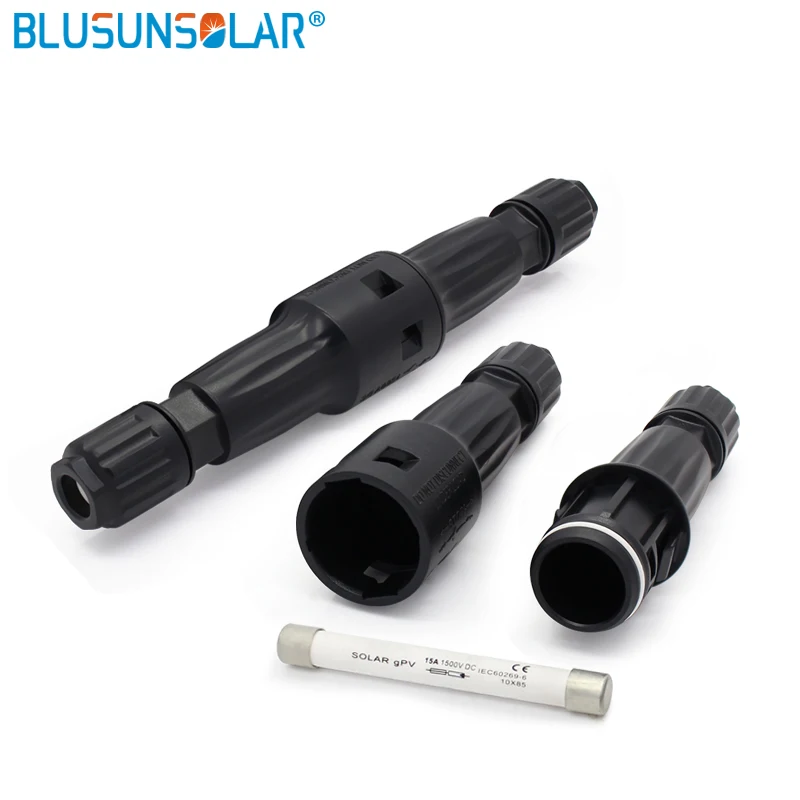

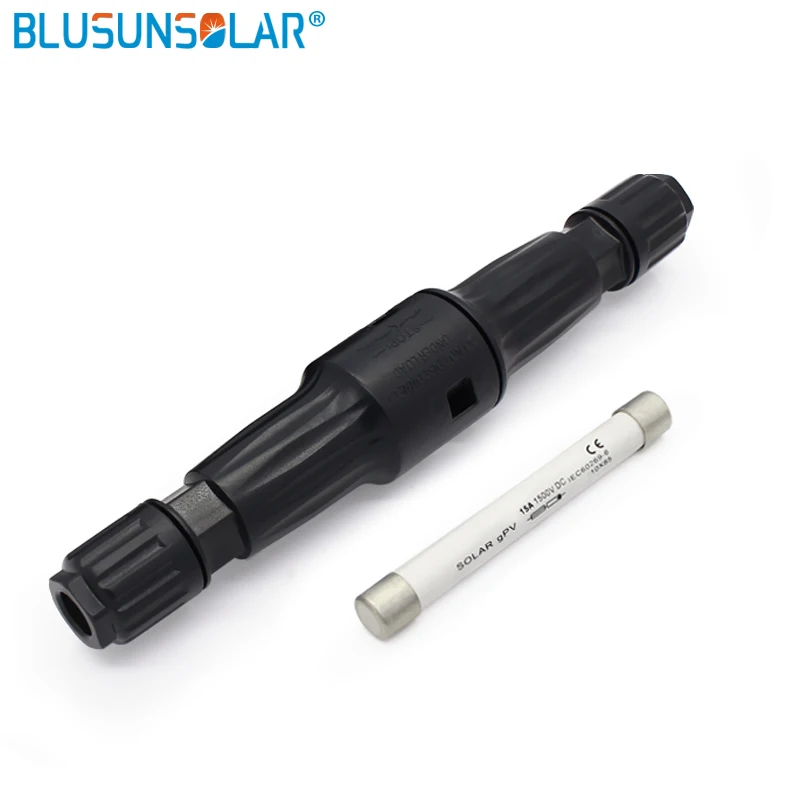

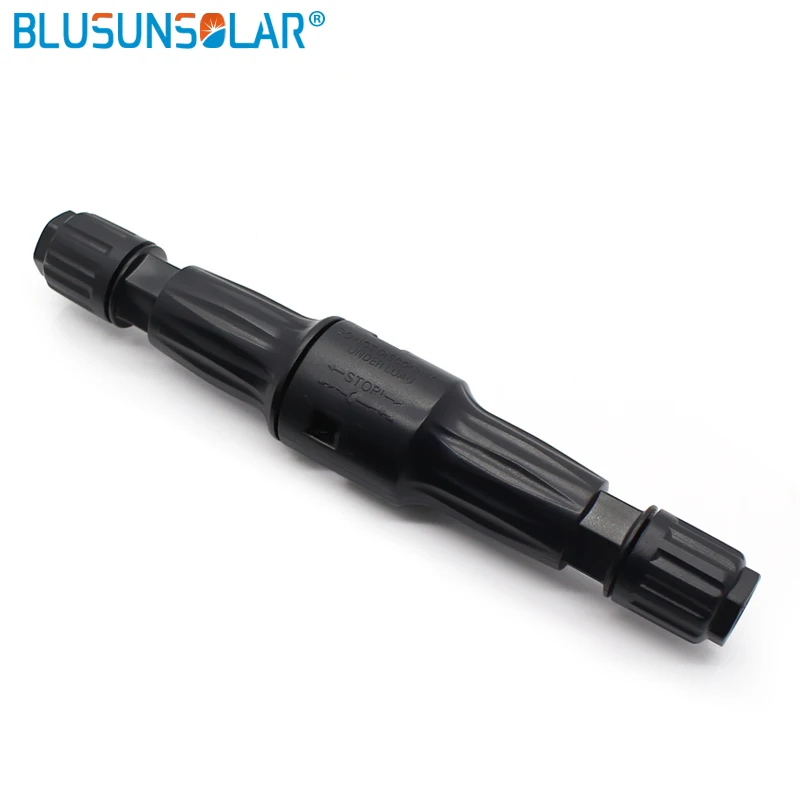

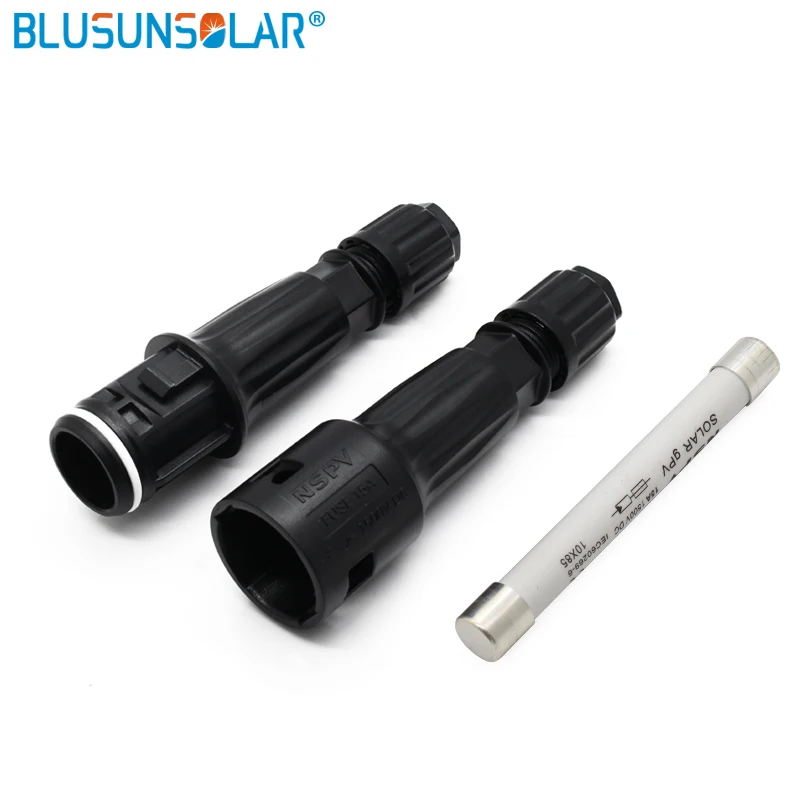

TUV Approved IP68 1500VDC PV 4.0 Fuse Connector with 15A 10mmx38mm Inline Fuse Cable Gland Fuse Holder for Solar PV System
Product Description
Technical data:
1.Connector adopts touch of reed with inne-knob type.
2.Auto-lock enable connection more easy and reliable.
3.Popular figure suit most of field installation.
4.Quickly to connector.
5.Water proof and prevent dust.
6.Long life.
CHARACTERISTICS:
| Insulation material: | PPO |
| Rated Voltage | TUV 1500V DC |
| Test voltage | 6KV(50Hz,1Min) |
| Contact material | copper, tin plated |
| Contact resistance | less than 0.5 m ohm |
| Degree of protection | IP68 |
| Pollution Degree | 2 |
| Protection class | Class II |
| Plug Force | less than 50N |
| Withdrawal force | more than 50N |
| Ambient temperature range | -40 ~ + 90. |
| Compatible cable cross sections Solar cable | 2.5mm² ,4.0 mm² and 6.0 mm² (14 awg,12awg,10awg) |
Packaging & Shipping
1.All the goods will be packed properly and in paper carton
2.The goods will be ship out within 5-7 days after confirm the payment ,we will keep you posted for the shipping status ,when it delivered to you will double check and confirm with you for the receipt.
3.When you meet any problem for the shipping please feel free to contact with me in the contact,we will work together to solve the problem together.
4,Shipping time will take 5-7 days if ship by express like TNT/FEDEX.DHL,if ship by china post will take about one month or take a little more time to finish the delivery.
Company Information
Our Services
We will give you a best service.
1) Reply inquiry in 24 hours.
2) Answer your questiong detailed.
3) Freight forwarder: faster, safer,and convenient.
4) Please kindly inform us which items you are interested & the reasonable price will be provided you upon.
5)OEM/ Dropship service.
FAQ
Q:Do you offer free samples for test the quality ?
A: Sample is available and free, but the freight cost should be pay by you.The freight cost of sample will be refund after further order received.
Q:Do you accept customized order or drop ship order?
A:Yes, we do.
Q:Do you have oversea warehouse which can deliver the goods fast?
A:Yes we have opened overseas warehouse in Germany ,which can ship the goods faster in European country.
Q:Is drop shipping is available?
A:Yes we are working with many customers for the drop shipping orders.
Q: What's the delievery time?
A: It usually takes 4-27 days after confirming payment, but specific time should be based on the order quantity.
Q:How can I contact you?
A:Contact person: Matte Mao
Email/Skype: sales1(at)leadergroup-cn.com
Mob: 0086-139 2683 2641(WhatsApp/wechat)
