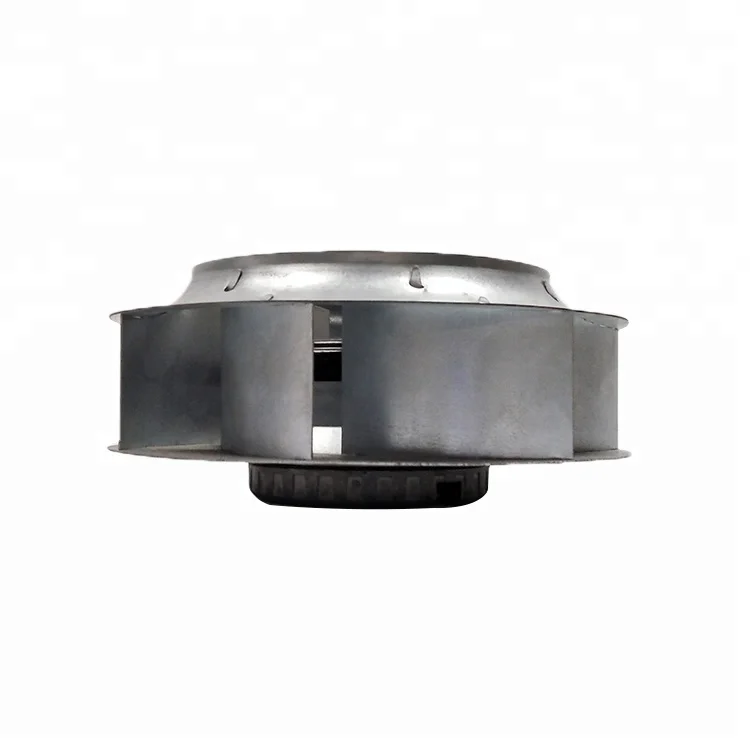

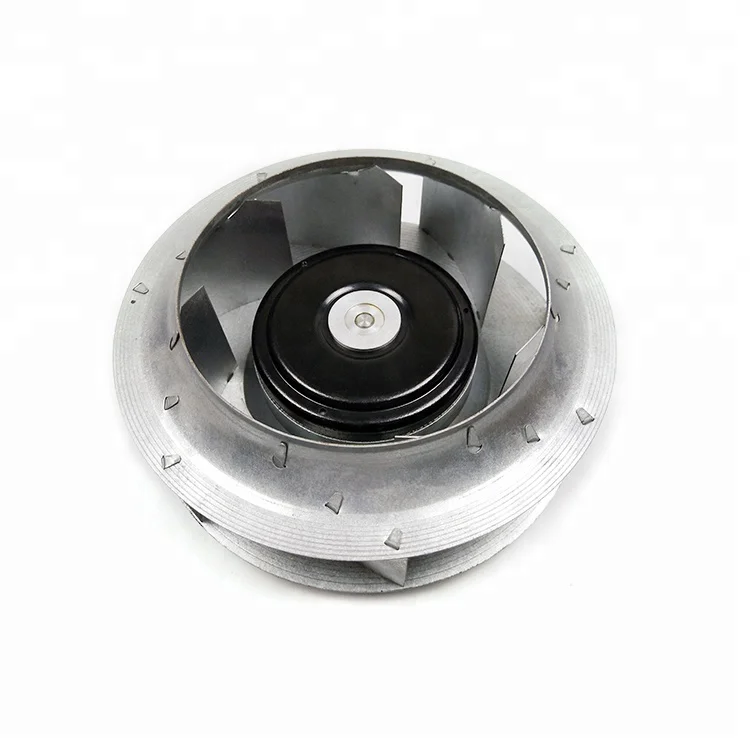

Центробежный вентилятор с обратным изогнутым лезвием постоянного тока 190
- Категории: Centrifugal Fans >>>
- Поставщик: Shenzhen,Sanly,Electronic,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
DC Centrifugal Fan
Applications
3D Printer, Refrigerator, Freezer, Wine Refrigerator, Air purifier,Toy, Electric Equipment, Notebook, Laptop, Mini-projector, Humidifier, Medical Device, etc.
Introduction
MOTOR: DC brushless inner rotor Motor
IMPELLER: Aluminum alloy
BEARING: Ball
OPERATING TEMPERATURE : -10°C to +60°C
INSULATION GRADE: Standard grade is B grade
INSULATION RESISTANCE : 10MEG Ohms Min. @500VDC
SAFETY: CE
ROHS COMPLIANCE : Yes
WATERPROOF GRADE: IP44
FAN ROTATION: standard Clockwise (If need Counterclockwise, please tell us)
POWER WIRES: Standard RED: Positive(+); BLACK: Negative(-) Wire insert: 2.5-2P / NOP(Tin exposed 5mm)
PROTECTION: Reverse protection; Auto Re-start protection.

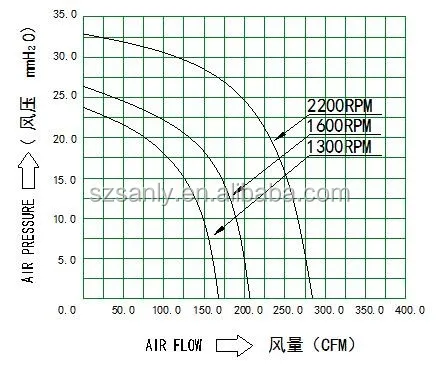

Model | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Max Air Flow | Max Static Pressure | Noise |
VDC | VDC | Amp | Watt | R.P.M | m3/min / CFM | mmH2O / INH2O | dB-A | |
SF9255BM | 12 | 6to13.5 | 1.20 | 14.40 | 1300 | 4.76/168.03 | 23.79/0.94 | 51.0 |
SF9255BH | 12 | 6to13.5 | 1.80 | 21.60 | 1600 | 5.85/206.80 | 26.40/1.04 | 55.0 |
SF9255BM | 24 | 18to25.5 | 1.50 | 36.00 | 1600 | 5.85/206.80 | 26.40/1.04 | 55.0 |
SF9255BH | 24 | 18to25.5 | 2.00 | 48.00 | 2200 | 8.05/284.30 | 30.90/1.21 | 64.0 |
Related Products

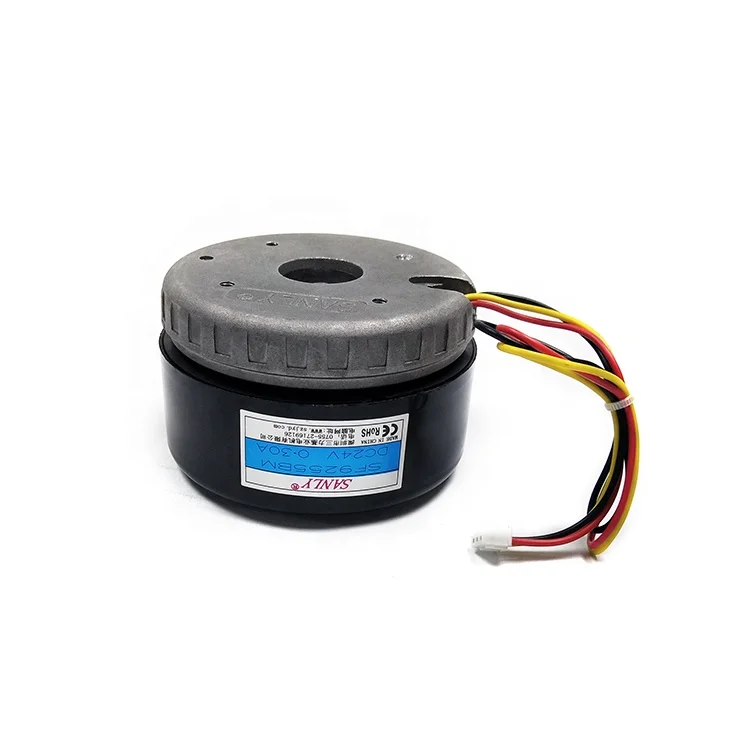

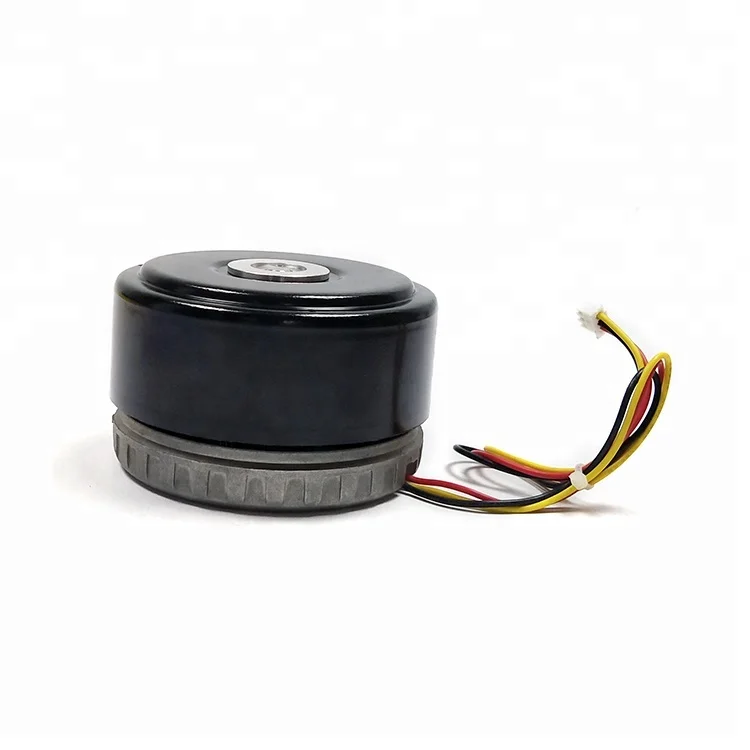

92mm 24v 48v DC Brushless induction external rotor Motor for sale in low Price | ||||||

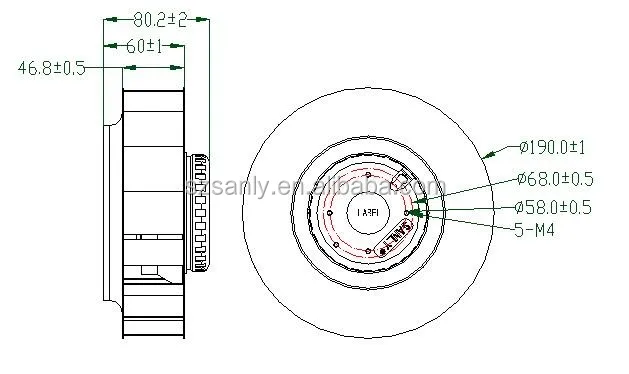

Model | SF9255BH | Size | Diameter 92mm, Height 55mm | |||
Motor type | DC brushless motor | Protection level | IP44 | |||
Characteristic | 3 phase 9 poles inner rotor motor | |||||
Packing & Delivery
Packing Details : Samples: 1-10pcs/carton, Large order goods: Use the right carton according to the total quantity
Delivery Details : 3-30 days after received deposit payment
Delivery Details : 3-30 days after received deposit payment
