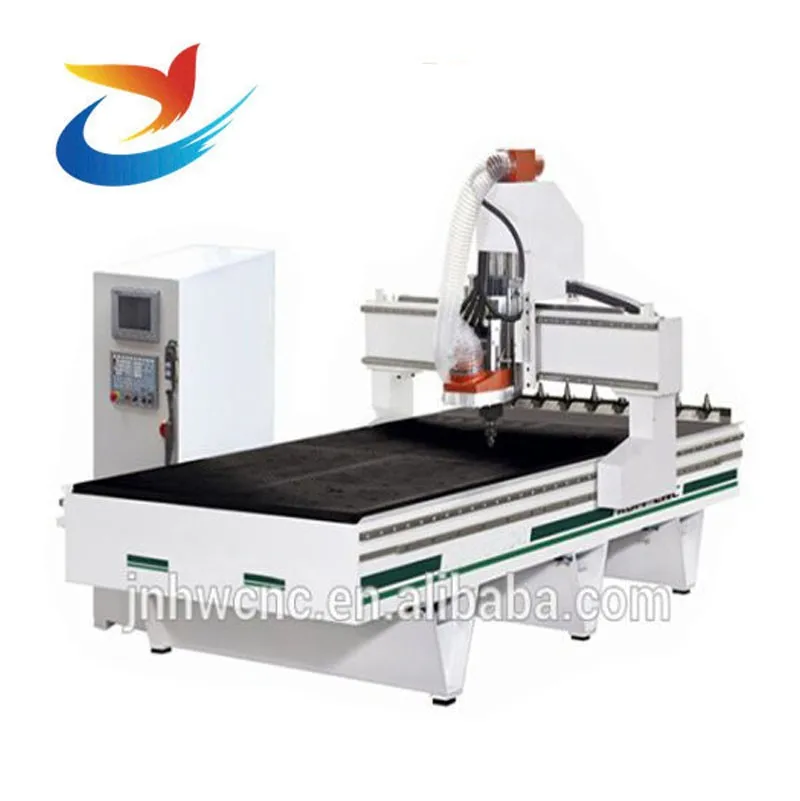

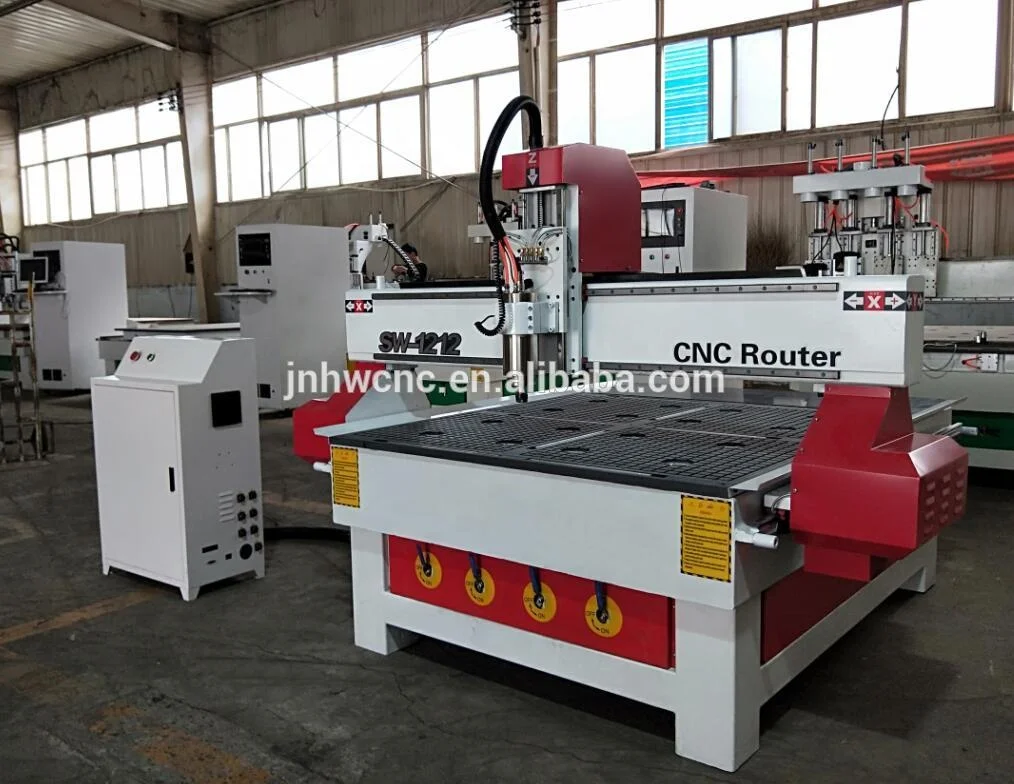

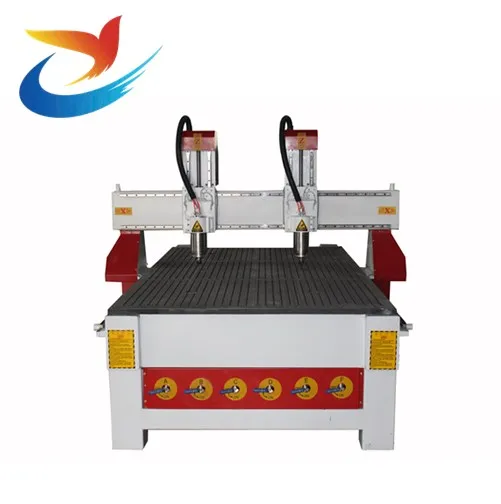

manufacturer advertising acrulic mdf cutting cnc machine 4x4ft cnc router
Product Description
Features

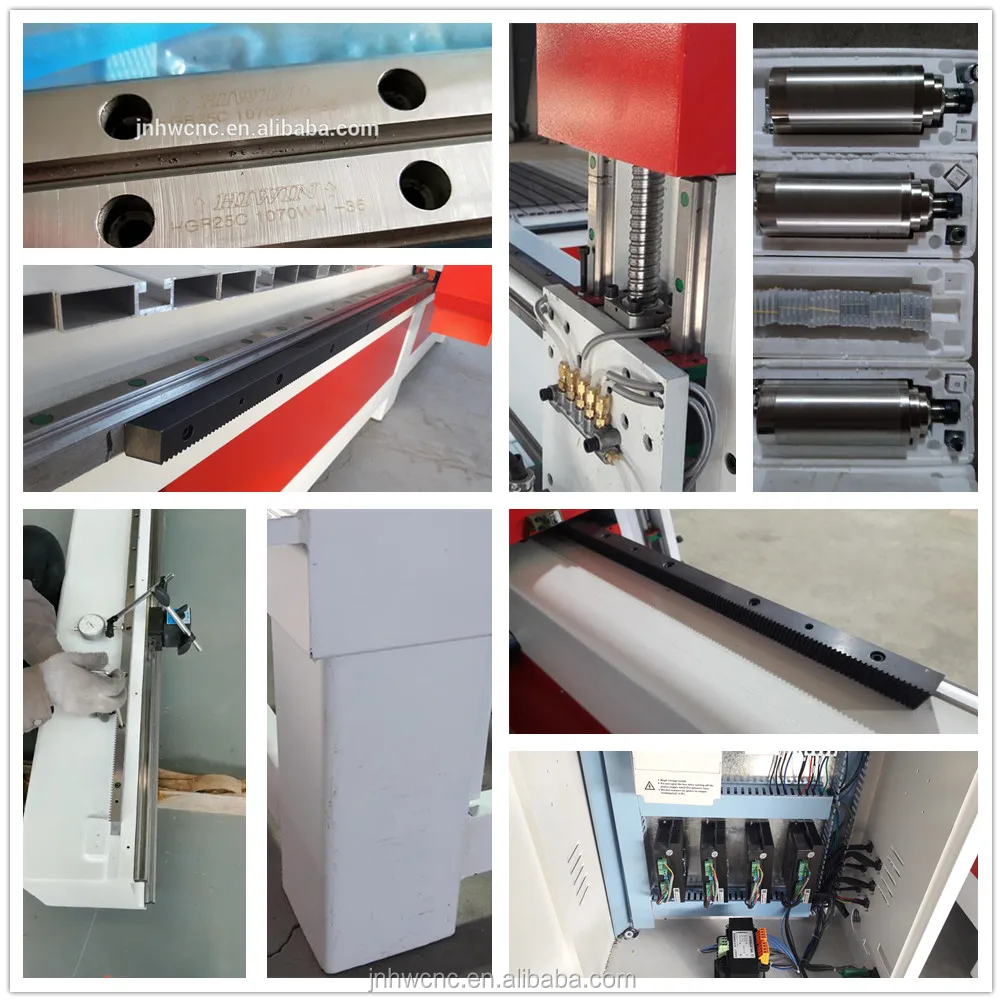

1.X,Yaxes Taiwan Hiwin linear square guide rails, oblique tooth rack and pinion transmission.
2.1.5KW water-cooling spindle for different applications, high efficiency, high precision and low noise.
3.Intelligent protection of working table can avoid damage resulted from the wrong operation.
4. Side arms adopt steel board. or cast iron machine bed ,no distortion. Steel pipe welding machine frame.
5.NC studio operating system, 128 MB of flash memory. or Mach 3.
6.Support type3 / Artcam/Castmate/Ucancam and JD paint designed by CAD/CAM software.
7.The machine table is Aluminum T slot covered with hard PVC board. or vacuum such working table.
8.The machine is provided with a central oiler.Lubricate the machine weekly.
9. Widely used in woodworking,furniture making and door engraving industry. Marble and granite engraving.
10. Freestanding control units.
Specifications
| X,Y working area | 1200*1200mm | we can make the working area accoridng to the customers' requierments. |
| Z working area | 120mm | with rotary 4 axis: feeding height: 300mm |
| X,Y,Z Traveling positioning accuracy | ±0.03/300mm | |
| X,Y,Z Repositioning positioning accuracy | ±0.02mm | |
| Machine bed | cast iron | not cast aluminum bed. Cast iron is more stable and no distortion. |
| X,Y Structure | Ball screw Square guide rails | from Taiwan Hiwin square guide rails |
| Z Structure | Ball screw Square guide rails | from Taiwan Hiwin square guide rails |
| Drive motors | Stepper system | |
| Table surface | Aluminum T slot | with PVC milling table |
| Fixed method | By clamps | |
| Max power comsumption | 2.0KW | |
| Max rapid travel rate | 80000mm/min | |
| Max working speed | 30000mm/min | |
| Spindle | Water-cooling | |
| Spindle power | 1.5KW | higher power than 800W |
| Spindle speed | 6000-24000RPM | |
| Working voltage | AC220V/50/60Hz | |
| Command language | G Code | |
| Operatiing system | NC studio system | Mach 3 |
| Computer interface | USB | |
| Flash memory | 128M(U Disk) | |
| Collet | ER11(3.175/4/6mm). | |
| X,Y Resolution | <0.02mm | |
| Software compatiliby | Type3/Artcam/Artcut/Ucancam /JDpaint etc software | |
| Running environment temperature | 0-45 centigrade | |
| Relative humidity | 30%-75% | |
| option :Rotary 4 axis | diameter 80mm ,working length 500mm | |
| Color | red and black | white or other colors |
Application
Application
| Wood processing: processing of various furniture such as door, window, cabinet, craft wood door, table, computer desk,screen and so on. | ||||||
| Advertisement: engraving and cutting various labels and number plate,ABC plate,acrylic cutting. | ||||||
| Art craft: engraving characters of any languages and graphics on gifts and souvenirs. Image engraving and relief 3D engraving on packaging gift box. | ||||||
| Mold industry: Engrave on material like brass, Al, and Iron to make metal mold. And it can engrave on artificial Marble, gravel, plastic board, PVC pipes, wood, and alike Non-metal mold. | ||||||
| Stone engraving: marble,grainte,jewellery,tile, light metal engraving. |
Samples
Accessories
| standard accessories | quantity | |
| Water pump (for water cooled spindle) | 1 | |
| Main power cable | 1 | |
| Tool box | 1 | |
| Tools | 2 | |
| Wrench | 4 | |
| Collets | 2 | |
| Milling cutter | 1 | |
| Straight bits | 12 | |
| NC studio control card | 1 | |
| Control cable | 1 | |
| NC studio operating software CD | 1 | |
| Clamps | 6 | |
| Plywood package | 1 | |
Packaging & Shipping
1.From Jinan, Shandong to Qingdao Port.
2. From Qingdao Port to your destination port by sea.
3. If you want other transport, please tell us, we're glad to do it for you, for your convenience.
Our Services
l One year free warranty, main parts are free of charge for changing new one when problems happened during the guarantee period.
l Life time free maintenance service
l .Free training course at our factory with professional engineers.
l 24 hours online service each day, free technical support.
l We provide door to door technical support to agents, if necessary.
