MVL1270 High cost-effective 3 axis vertical cnc milling machine


Поделиться:

Цена:50 260,00 $ - 55 780,00 $*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики



Product Description




Specification


Type
Unit
MVL1270
Worktable
Worktable ( L*W )
mm
1400*700
Maximun load of table
kg
1100
T-slot
mm
5-18*120
Axis travel
X/Y/Z axis travel
mm
1200*700*650
Distance from spindle nose to workbench
mm
100-750
Distance from spindle center to column guide
mm
775
Feed system
Fast feed speed
m/min
30/30/20
Spindle
Spindle speed
rpm
8000
Spindle specifications
BT40
Spindle power
kw
11/15
Tool magazine
Capacity of tool magazine
24
Max. tool diameter
mm
80
Max. tool length
mm
300
Max. tool weight
kg
8
Tool change time
sec
2.5
Accuracy
Positioning accuracy
mm
0.012
Repeated Positioning accuracy
mm
0.008
Control system
Control system
Fanuc 0i-mf
Voltage
kva
25
Air supply
Air supply pressure
bar
6-8
AIr pressure flux
l/min
280
Others
Floor area (length*width*height)
mm
3600*3000*3010
Weight
kg
8000

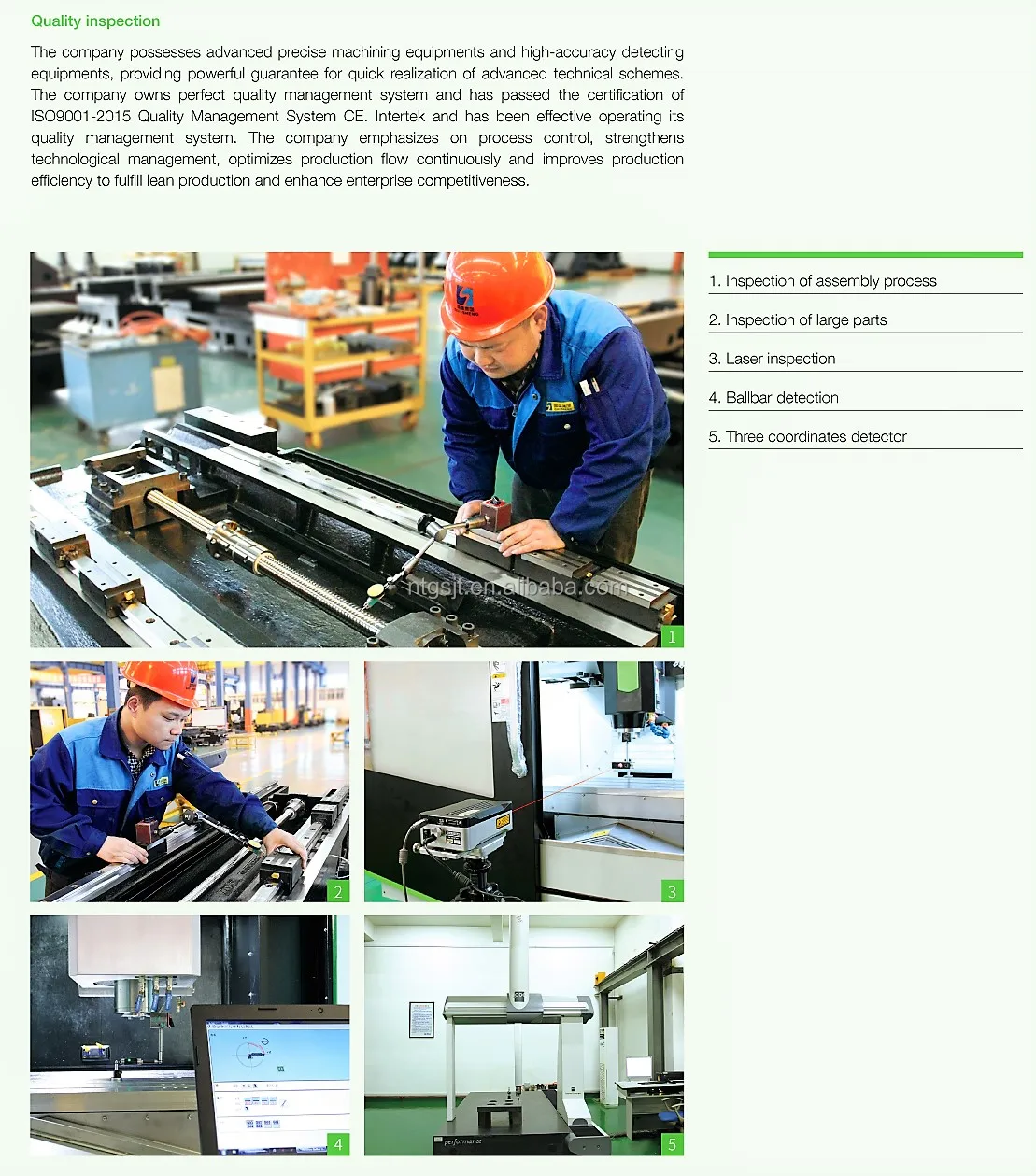

Quality control




Marketing Campaign




Packing & Delivery




To be packed in fumigation wooden case(s) ,or in carton(s),suitable for long distance ocean/overland/air freight transportation,well protected against moisture and shocks,pressure wetness.


Company Profile








Nantong Guosheng Machinery & Power-Generating Group Co. Ltd. is specialized in producing the advanced CNC Horizontal
Machining Center, CNC Vertical Machining Center, Gantry Machining Center, Horizontal boring-milling machine and Precision sheet metal parts, professional welding
parts, high quality casting, CNC EDM Machine tool and so on.
Our products can meet the demand from mould industry, energy industry, shipbuilding industry, construction machinery industry, aerospace industry, military project and so on.
Guosheng Group is a high-tech enterprise with strong R&D team .We are among of the top 15 in Chinese CNC machine tool industry.And we own a lot of patents
and high-tech products.

With the strong technical support, precision machining, detection device, well-organized employee team and industry-leading service idea, now Guosheng group has
become the long-term partner of a lot of world famous enterprise like : DMG, BOMAG, SANDVIK, TOSHIBA MACHINE, HUSKY, FOXCONN and so on.

Guosheng group enterprise sprit is: "honest, quality, diligence, innovation." We will keep on provide the all-around solution and high quality products and fast-action to our international clients.


FAQ


1. who are we?
We are based in Jiangsu, China, start from 1999,sell to . There are total about 301-500 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Vertical Machine Center,Horizontal Machine Center,Horizontal Boring and Milling Machine Center,Gantry Machine Center,CNC Lathe

4. why should you buy from us not from other suppliers?
We have nearly 16 years in producing CNC machine tools .We have been cooperated with a lof of famous enterprises like : TOSHIBA Machine, HUSKY, DMG, BOMAG, SANDVIK, DAVIS-Standard, FOXCONN, TRUMPF, Schaeffer Group and so on .

5. what services can we provide?
Accepted Delivery Terms: FOB,CIF;
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,L/C;
Language Spoken:English
