Product Description

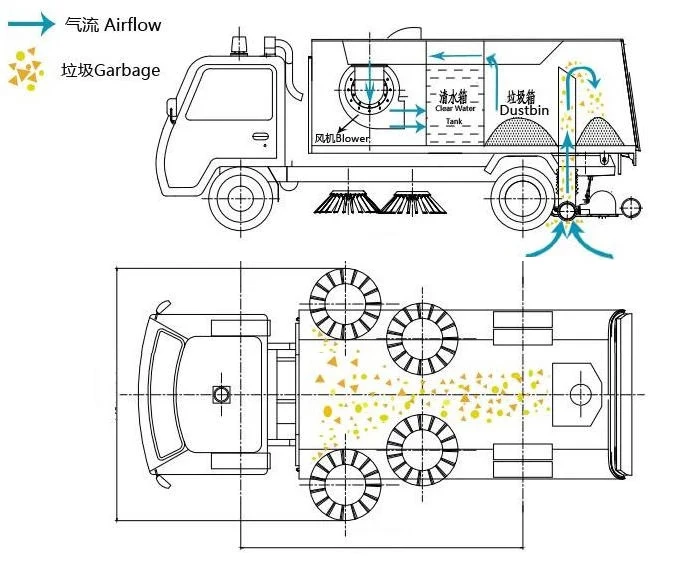

The isuzu road sweeper truck is designed and developed on the basis of the Qingling light truck special vehicle chassis to meet needs of sweeping and cleaning urban pavement and curb. The principle of pure suction under negative pressure is adopted to guarantee strong suction force, dust-free working, simple operation, and excellent performance. It can quickly and efficiently sweep the household garbage and spilled objects in streets and roads.
It is equipped with a dry-type dust discharge and control system to reduce fugitive dust during the process of dust discharge. It can realize the real-time monitoring and efficient management on sweeping operation through the operation quality management system. It is typically used for the cleaning of pavement and curb of main roads, high-grade highways, expressways, large and medium-sized factories and mines, enterprise campus, parks, port terminals, etc.
Vehicle parameters | |||
Vehicle Model | EHY511009TSLQ | Vehicle Brand | HUAYI |
Overall dimensions | 6910X2200X2640mm | Curb weight | 6800kg |
Dust tank volume | 5000L | Water tank volume | 3000L |
Chassis parameters | |||||
Chassis model | QL11009LARY | Chassis brand | ISUZU | ||
Overall dimensions | 7430X2170X2330mm | Wheel base | 4175mm | ||
Front/rear wheel track | 1680/1650mm | Front/rear suspension | 1110/2145mm | ||
Approach/departure angle | 21/13° | Maximum speed | 110km/h | ||
Chassis Manufacturer | QingLing Motors (Group) Co., Ltd. | ||||
Cab | Configuration | 700P,single row cab,allowable 3 passengers, air conditioner, USB radio interface,cab can be flipped. | |||
Color | White,other color is optional | ||||
Engine | Model | 4HK1-TCG40 | |||
Emission | Euro 4 | ||||
Type | 4 cylinders,4 valve,4-stroke,in-line,common rail,precision electronic control,multistage injection,optimal combustion,exhaust gas recirculation, diesel engine. | ||||
Rated power | 190hp | ||||
Displacement | 5193ml | ||||
Manufacturer | Isuzu Engine (Chongqing) Co., Ltd. | ||||
Tire | Size | 8.25-20-14PR nylon tire | |||
Number | 6+1 nos | ||||
Frame | 216X70(6+3)mm | ||||
Front axle | 4.0tons | ||||
Rear axle | 7.0 tons | ||||
Drive form | 4X2 | ||||
Suspension | Multi leaf springs | ||||
Rated voltage | 24V,DC | ||||
Transmissions | Isuzu MLD six speed transmission, 6 speed forward 1 reverse. | ||||
Steering device | Power assisted steering | ||||
Steering wheel | Left hand drive | ||||
Selective configuration | Tire:825R16,825-20,825R20,235/75R17.5 | ||||
If there is a slight change in the chassis parameters above,please take the actual product as the standard | |||||
Road sweeper structure parameters | ||||
Dust tank volume | 5000L | Water tank volume | 3000L | |
Sweep width | 3000m | Cleaning speed | 3-20km/h | |
Cleaning ability | 9000-60000 m2/h | Cleaning efficiency | 98% | |
Maximum suction particle | 120mm | Min. clearance of suction nozzle | 200mm | |
Unloading angle | 45° | Unloading height | 970mm | |
|
| Color and Logo | Optional | |
Standard configuration | Chassis,sub frame,body,4 sweeping brushes, stainless steel vacuum tank, water tank,5T fan, auxiliary engine, electromagnetic control valve, suction cup, sprinkler system, hydraulic system and electrical system. | |||
Selective configuration | surveillance system,rolling brush. | |||

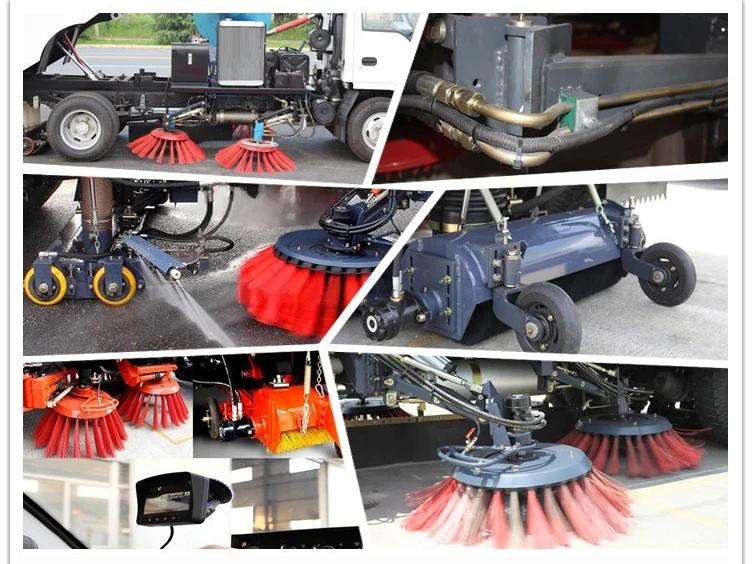

Detailed Images
Company Information

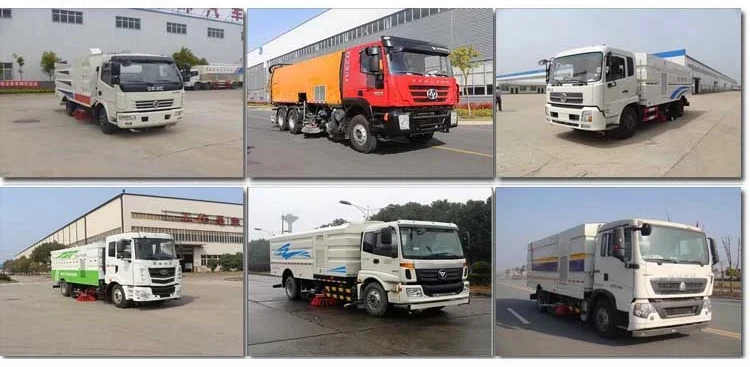

Sweeper truck series
Packaging & Shipping
FAQ
1.Are you manufacturer or trading company? Where is your company?
A: We are specialized in this field over 14 years. Our factory is based in Hubei,suizhou,which is the town of Special automobile.
2.How many brands you can supply of the trucks?
A: We are cooperating with the famous brand in China ,such as dongfeng,China FAW,foton,sinoruck,shacman,iveco,hino,camc etc.
3.How can you ensure the product quality?
A: a.strictly materials testing before production.
b.mature welding and sealing technology
c.high pressure water testing, air testing,detecting testing etc after tank formed.
4.How about your service and warranty period?
A: Our warrant period is 1 year since the shipping date.
Overseas service is avaible if needed.
5.Cooperation items:
A:a: Order confirm: After confirming all the requirements ,PI should be signed with our company
official seal.
b: MOQ: 1 set.
