Ударопрочные Электрические гофрированные трубы для

Ударопрочные Электрические гофрированные трубы для

Категории: Wiring Accessories >>>
Поставщик: Xiamen,QX,Trade,Co.,Ltd.

Цена:0,19 $ - 0,21 $*

Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики

Product Description

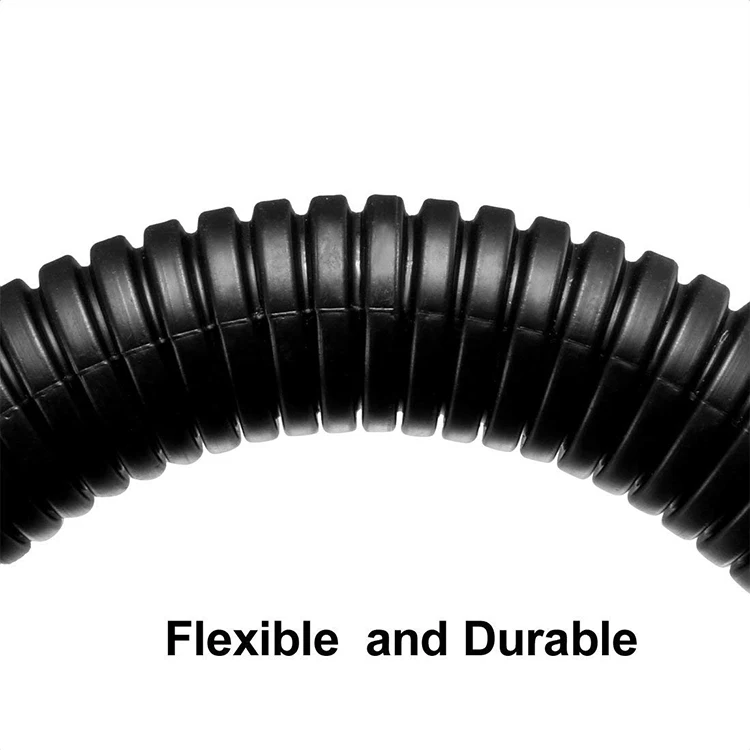

CFC-PE/PA/PP Corrugated Flexible Conduit ofeers you wide range technical properties for your cable and wire management applications against not only mechanical damage but also the influences of UV radiation, weathering and chemicals. The flexible body allows for the cables in the corner and elbow. We also supply the split style for easy installation and removal.

Technical data
Material	PE/PA/PP
Operating range	-30℃±130℃
Flammability	VW-1
Standard color	Black and grey
Certificate	RoHS
Tool	Heat gun

Application

a. Protecting wires and cables harness in automotive, equipment, railway etc.
b. Used for protecting the hydraulic hoses.
c. Used in the fields of electrics communication, automobile for connection insulation and rust-proof of metal product.

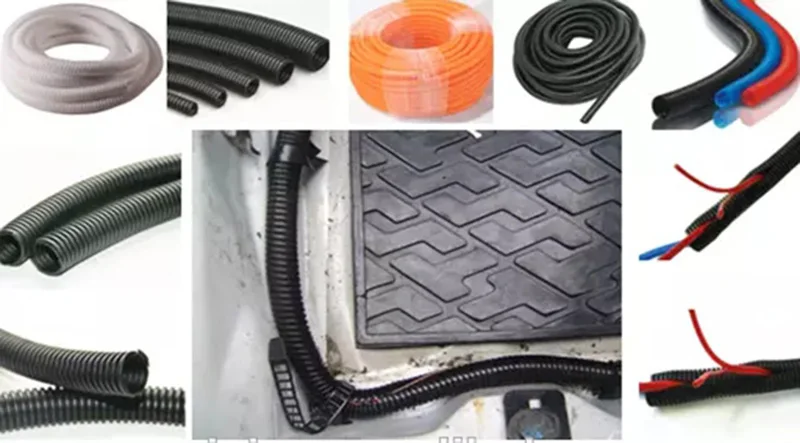

Detailed Images

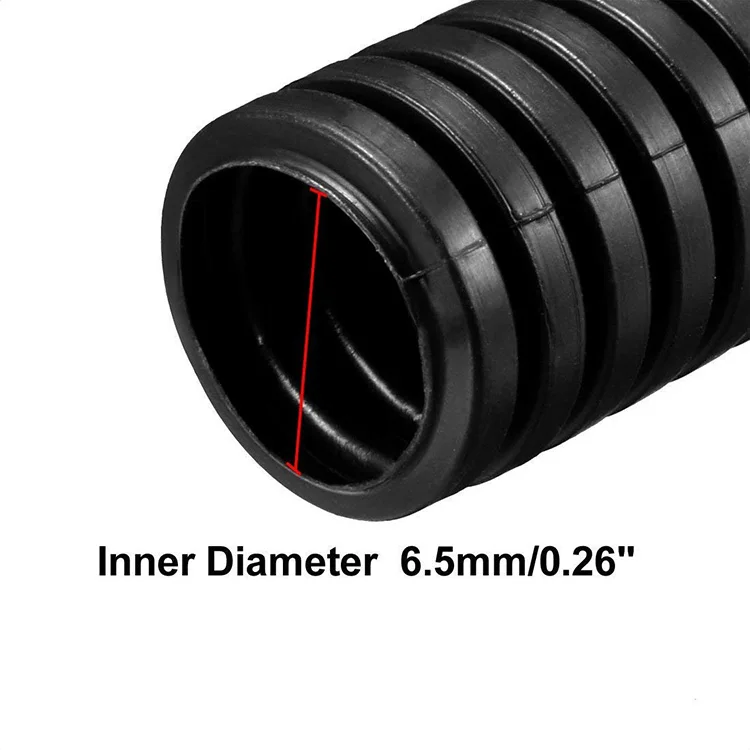

Size Information

Part NO.	ID*OD (mm)	Bending radius (R±10%)	Packing (L)
CFC-PE/PP/PA-7	4.5*7.0	5.0	200M/ROLL
CFC-PE/PP/PA-8.5	5.5*8.5	8.0	100M/ROLL
CFC-PE/PP/PA-10	7.0*10.0	10.0	100M/ROLL
CFC-PE/PP/PA-12	8.5*11.5	15.0	100M/ROLL
CFC-PE/PP/PA-13	10.0*13.0	20.0	100M/ROLL
CFC-PE/PP/PA-15.8	12.0*15.8	30.0	100M/ROLL
CFC-PE/PP/PA-21.2	17.0*21.2	45.0	100M/ROLL
CFC-PE/PP/PA-25	21.0*25.0	50.0	100M/ROLL
CFC-PE/PP/PA-28.5	23.0*28.5	55.0	50M/ROLL
CFC-PE/PP/PA-34.5	29.0*34.5	60.0	50M/ROLL
CFC-PE/PP/PA-42.5	36.0*42.5	70.0	25M/ROLL
