Product
Haul-off Machine
Usage & scope of application

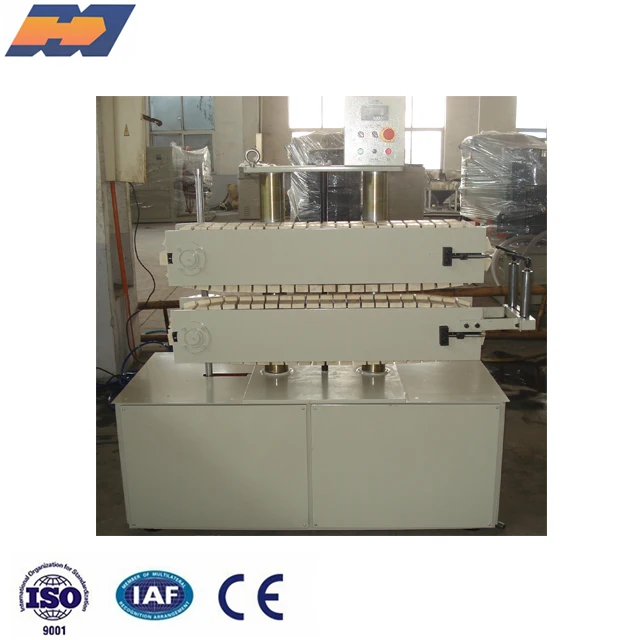

DY series tractor is rubber block type which adopts double belt hauling mode. DY-D series tractor is rubber belt type for plastic profile. It adopts twin rubber belt hauling mode. Both of these two series are used together with plastic extruder for hauling the plastic pipes, plastic flexible pipes and kinds of plastic profiles. The application range is wide and operation is easy. Our tractors can be driven in many different ways to meet almost all the requirements for extruding products. It is an necessary auxiliary machine for plastic extruding & processing.
Characteristics:
Double hauling mode is used for wide range application;
The speed regulation range is wide as stepless speed regulation is adopted;
Uniformly hauling speed;
Low noise;
Compact structure & beautiful appearance;
Coding length-counting device is selectable for precisely measuring.
Technical Standards of DY(D) series Haul-off Machine:
| Model |
DY-600D
|
DY-1
|
DY-2
|
DY-3
|
DY-3A
|
| Drawing speed (m/min) |
0.3-10(customizable)
|
0.4-5
|
0.3-5
|
||
| Max. drawing size(mm) |
80×80
|
120×120
|
150×150
|
210×160
|
210×160
|
| Max. drawing hight(mm) |
800-1000
|
800-1000
|
1000-1100
|
950-1050
|
800-4000
|
| Drawing power(kw) |
0.75
|
1.5
|
3
|
4
|
5.5
|
| Appearance size(mm) |
1000×550×1500
|
1250×650×1600
|
1550×800×1750
|
2740×1200×1800
|
2200×1000×1750
|
| Weight(kg) |
400
|
500
|
700
|
1200
|
300
|
