Волоконная лазерная маркировочная машина металлическая маркировка метка
- Категории: Аппарат для лазерной гравировки >>>
- Поставщик: Shandong,Leapion,Machinery,Co.,Ltd.Shandong,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Specification
Mode | LM-20 | LM-30 | LM-50 | LM-60 | Customized | |||
Working Area | 110*110mm / 200*200mm (standard) / 300*300mm | √ | ||||||
Repeatability Accuracy | ±0.01mm | |||||||
Minimum Line Width | 0.02mm | |||||||
Marking Line Speed | ≤7000mm/s | |||||||
Laser Power | 20w / 30w / 50w / 60w | √ | ||||||
Laser Source | MAX / Raycus / IPG / JPT | √ | ||||||
Working Voltage | 220V 1Ph 50Hz / 120V 1Ph 60Hz | √ | ||||||
Upgrade | Rotary / 3D Working Table / Cutting Working Table | √ | ||||||

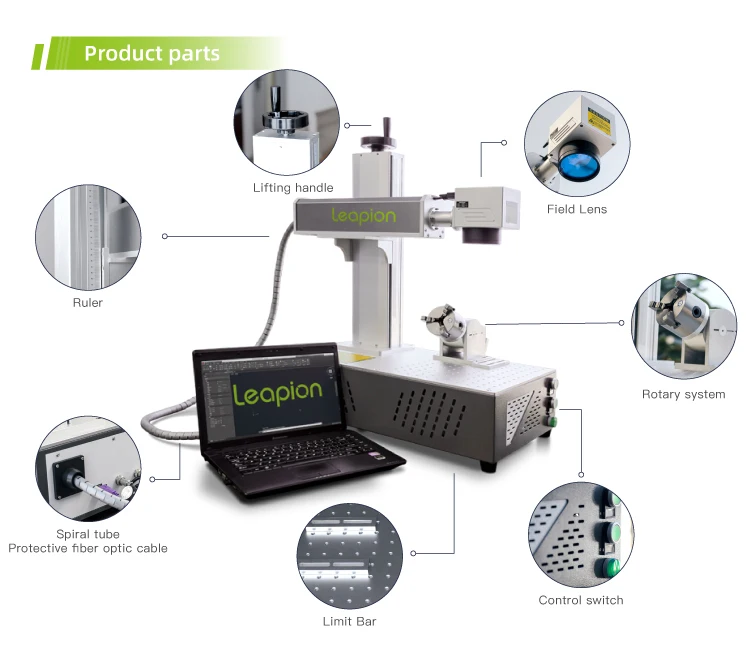

Products Description
Laser Source
Raycus/MAX/IPG/JPT, multiple choice. Different brands, different laser power are available. The higher power, the faster marking speed.
Also supply CO2 laser, UV laser, MOPA laser, green laser, etc.
Field Lens
110*110mm, 175*175mm, 200*200mm (standard), 3000*300mm, different lens. Same laser power with the smaller lens will have the faster marking speed.
Also supply the other size.
Galvo Lens / Scan Head
Two high speed motor control reflect lens inside the head, which give the machine max 7000mm/s
marking speed.
Supply different brand and mode, also could make the auto focus type, and the 3D type.
Rotary
Different diameter rotary with 50mm, 80mm, 100mm, 150mm and the other size for meet customer's need.
Have special rotary for Ring inside and outside marking. Special rotary for Pens, or bulb. We also could customize the other type of rotary for customer.
Control Panel
Emergency stop: biggest protect the operator.
Split power switch for Laser Source.
Split power switch for Scan Head.
Humanized control system, easy to operate, safe and convenient, dust proof design.
Work Table
All machine standard with the aluminum work table, which could fix the tools.
Option table: 2D working table, 3D Working table, Cutting Work table for jewelry, also could customize the special work table for meet your needs.
Marking Samples
After Sale Service Introduction
What kind of support you can get from Leapion？
1.2 year warranty，Provide a full range of technical support for life.
2.From Monday to Sunday 9:00 am to 23:00 pm. Experienced technician to guarantee lifetime online support (by WhatsApp /Skype /Wechat /Zalo /Line /Telegram /Email).So there is no need to worry about technical support due to time difference.
3.Support local after-sales service up to 2022, we have offered onsite to these countries and areas： Canada, Mexico, the United States, Ukraine, Russia, Italy, Poland, Spain, Brazil, Indonesia, India, Turkey, Thailand, Vietnam, Australia,etc.
Packing & Delivery
1.Outside package: Strong wooden case.
2.Inner package: Water-proof plastic film package with foam protection in each corner Solid Seaworthy Wood Box Package.
2.Inner package: Water-proof plastic film package with foam protection in each corner Solid Seaworthy Wood Box Package.
Fumigation-free packaging size:920*460*540mm
Total weight:65kg (could ship via air or train or sea)
Total weight:65kg (could ship via air or train or sea)
