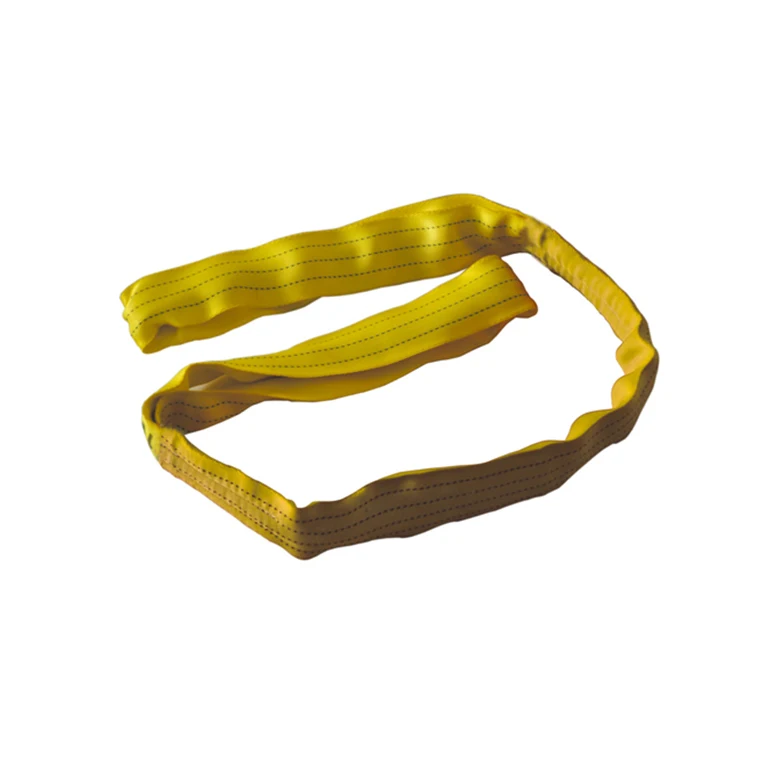

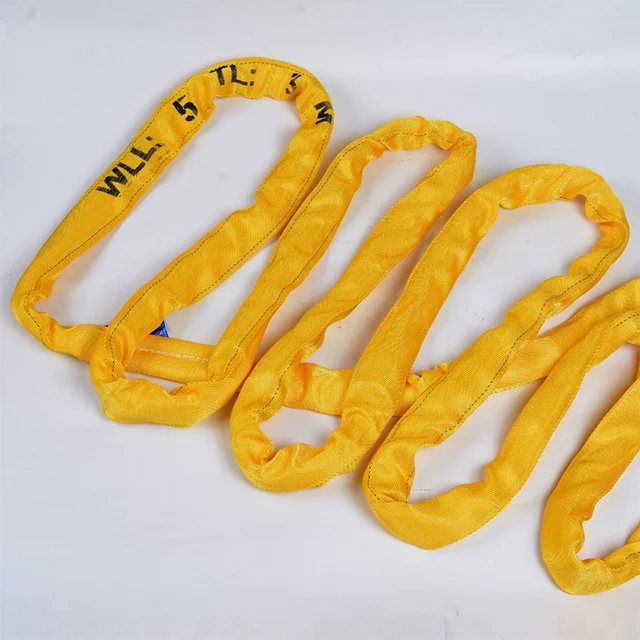

The circular lifting belt, with a maximum load of 300 tons and an effective length of 80 meters, is generally made of 7:1. 6:1 with a safety factor of 7:1. The circular lifting belt is made of high-strength polyester industrial filament (100%PES).

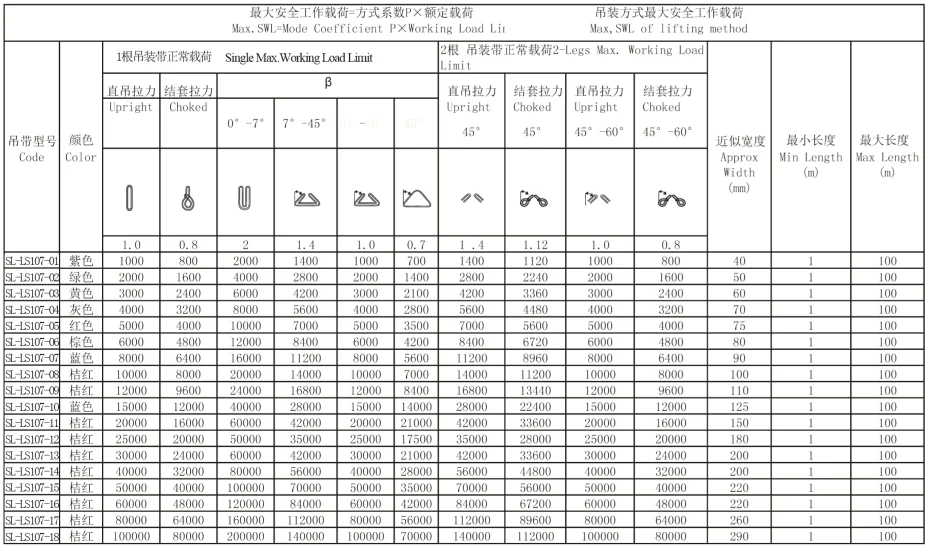

 Product Parameter:

Max. SWL=Mode Coefficient PX Working Load Limit								Max, SWL of Lifting Method
Code	Color	Single Max. Working Load Limit						2-Lecs Max. Load Limit				Approx. Width (mm)			Min. (m)	Max. Length (m)
		Upright	Choked	Β				Upright	Choked	Upright	Choked
				0-7°	7-45°	7-45°	0-60°	45°	45°	45-60°	45-60°
		1	0.8	2	1.4	1	0.7	1.4	1.12	1	0.8	5:1	6:1	7:1
JCYC-LS104-01	Purple	1000	800	2000	1400	1000	700	1400	1120	1000	800	25	25	30	1	100
JCYC-LS104-02	Green	2000	1600	4000	2800	2000	1400	2800	2240	2000	1600	50	50	60	1	100
JCYC-LS104-03	Yellow	3000	2400	6000	4200	3000	2100	4200	3360	3000	2400	75	75	90	1	100
JCYC-LS104-04	Grey	4000	3200	8000	5600	4000	2800	5600	4480	4000	3200	100	100	120	1	100
JCYC-LS104-05	Red	5000	4000	10000	7000	5000	3500	7000	5600	5000	4000	125	125	150	1	100
JCYC-LS104-06	Brown	6000	4800	12000	8400	6000	4200	8400	6720	6000	4800	150	150	180	1	100
JCYC-LS104-07	Blue	8000	6400	16000	11200	8000	5600	11200	8960	8000	6400	200	200	240	1	100
JCYC-LS104-08	Orange	10000	8000	20000	14000	10000	7000	14000	11200	10000	8000	250	250	300	1	100
JCYC-LS104-09	Orange	12000	9600	24000	16800	12000	8400	16800	13440	12000	9600	300	300	300	3	100
JCYC-LS104-10	Blue	15000	12000	40000	28000	15000	14000	28000	22400	15000	12000	200	200	240	3	100
JCYC-LS104-11	Orange	20000	16000	60000	42000	20000	21000	42000	33600	20000	16000	250	250	300	3	100
JCYC-LS104-12	Orange	25000	20000	50000	35000	25000	17500	35000	28000	25000	20000	300	300	300	3	100
JCYC-LS104-13	Orange	30000	24000	60000	42000	30000	21000	42000	33600	30000	24000	300	300	300	3	100
JCYC-LS104-14	Orange	40000	32000	80000	56000	40000	28000	56000	44800	40000	32000				3	100
JCYC-LS104-15	Orange	50000	40000	100000	70000	50000	35000	70000	56000	50000	40000				3	100

Main Feature:

1. It is especially suitable for hoisting circular objects.
2. The external surface of lifting belt is fine, which will not cause damage to vulnerable objects.
3, the lifting method, can also be used for dragging objects.
4. The hoisting belt is under uniform stress, thus extending its working life.
5. High strength to weight ratio
6. Anti-wear and anti-cutting protective sleeve can be added.
7, with a unique label, and the use of international standard color to distinguish the bearing tonnage, timely sling wear is easy to identify.
8, light and soft, easy to use in a small space.
9, do not conduct electricity, no contact danger.
10. It conforms to European standard en1482-1:2000 and Chinese industry standard JB/ t8521-1997.
11. The elastic elongation of lifting belt is less than or equal to 7%.
12, used to 40 ℃, 100 ℃ temperature range.



1. What about the payment term&price term?

As usual, we accept T/T, L/C as the payment term, and the price term, FOB&CIF&CFR etc are ok.



2. What's the delivery time?

Usually, we will delivery the goods within 15-20 working days, but this is aim at 1-10pcs products, if you give more quantity, it just depends.



3. Are we a manufacturer&factory or trading Company?

Chongqing Shanyan Crane Machinery Co.,ltd is a manufacturer in Chongqing, China, we have specialized in crane&hoist over 10 years, our high quality products were welcomed in many countries.
