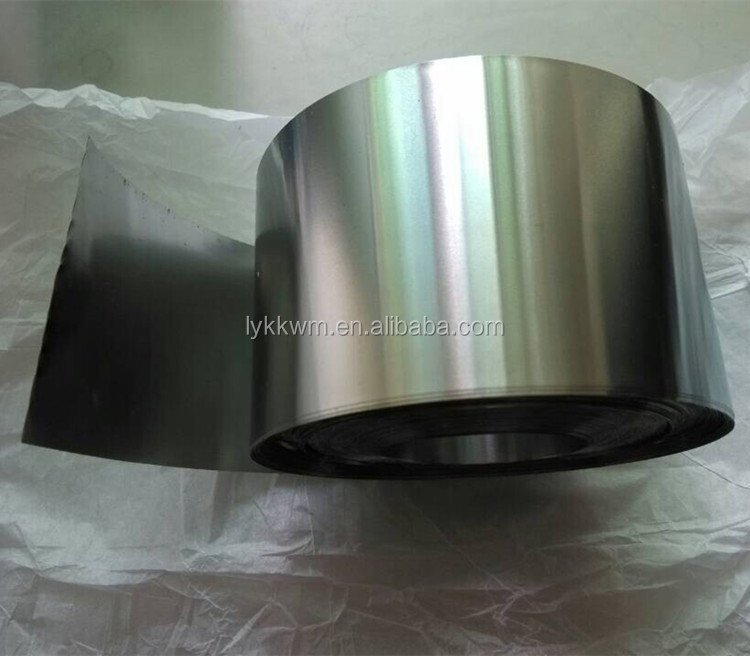

0.02mm molybdenum foil and strip 99.95% purity moly sheet



Product Description





Description:





1. Product name: 0.02mm 99.95% purity moly hseet foils and strips





2. Standard: ASTM B386 or as required





3. Material: Mo >99.95%





4. Density: >10.2g/cc





5. Tensile strength: 610MPa





6. Elongation:> =10%





7. Using temperature: 1800, max temperature: 2310





8.

































Length(mm)



Tolerance(mm)



<6



±0.1



6-30



±0.2



30-120



±0.3



120-400



±0.5



400-1000



±0.8






Application:





Is widely used in production of sapphire crystal growth furnace reflective screen, cover board, reflective screen in a vacuum furnace, tropical, fittings, plasma deposition sputtering target material, high temperature resistant boat and other products.





Specification:





Specification:(0.03-80)mm*maxW760mm*maxL30m





We produce high quality molybdenum sheet as one of our hot product. We offer 3,000-5,000 kg molybdenum sheets per month and small order is also acceptable.





Surface Condition:





Surface can be supplied in a shiny, matte, satin, or as-rolled condition;





dependent upon thickness and width parameters.





Heat treatment:





99.95% purity moly hseet flat products are rolled and annealed to provide the optimum condition for the desired end use.





Composition:


















































































Brand



Mo-1



Mo (%)



99.95



Other Element Content (%) ≤



Pb





Bi





Sn





Sd





Cd





Fe



0.005



Ni



0.002



Al



0.002



Si



0.003



Ca



0.002



Mg



0.001



P



0.001



C



0.005



O



0.003



N



0.001



Use for example



Precision Manufacture






The production process:





99.95% purity moly hseet billet (raw materials) - inspection - hot - leveling and annealing - alkaline cleaning - inspection - provenzano - vacuum annealing - - cold rolled - leveling - shear vacuum annealing - inspection - packing
